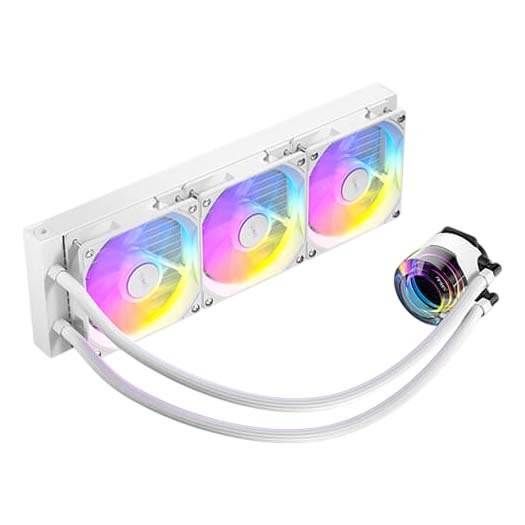

The Antec Vortex Lum 360 ARGB AIO Liquid CPU Cooler features a 360mm radiator and three 120mm ARGB fans for powerful and efficient cooling. It uses a high-performance pump with a unique vortex design and supports CPUs up to around 280W TDP. The cooler is compatible with Intel and AMD sockets.
Features
Vortex LUM 360 White
The Epoch-Making All in One ARGB CPU Liquid Cooler

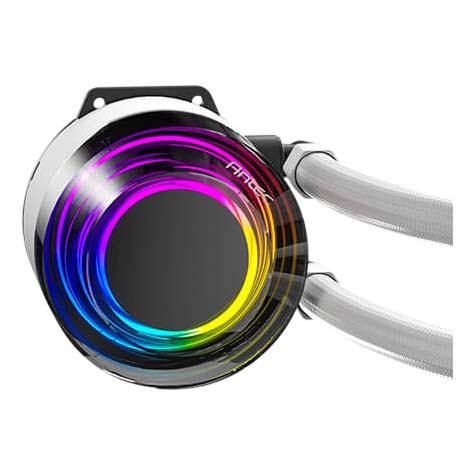

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump

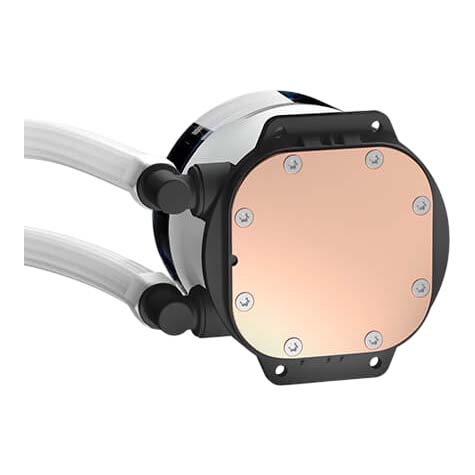

Massive Copper Base Plate
Provides highly efficient cooling at all loads.
EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
Extreme Cooling Performance
- 800±200~1800±10% RPM
- Airflow | 71.5 CFM
- Noise Level | 31 dB(A)
- Air Pressure | 2.45 mmH2O
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customising each individual LED in Colour and effect.
Lighting Effect Switch Connector
Connected to the reset or LED control button on the PC case to. turn it into the Mode button.
ARGB Connector
Connect it to the motherboard for lighting effects in sync.
ARGB Headers
Connected to the fan's ARGB connector. Each header supports up to 48 LEDs, 120 LEDs for 4 headers in total.
Mode Control
Long press for 3 seconds to switch to motherboard control and single press for switching back to the button control.
SATA Connector
Connect it to the SATA connector of the power supply.
CPU Socket Compatibility
- Intel Compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
- AMD Compatibility : AM3 / AM4 / AM5 / TR4
Specifications
General Data
| Model Number |
VORTEX-LUM-360-W |
| TDP |
≤ 280 W |
| Warranty |
3 years |
| Colour |
White |

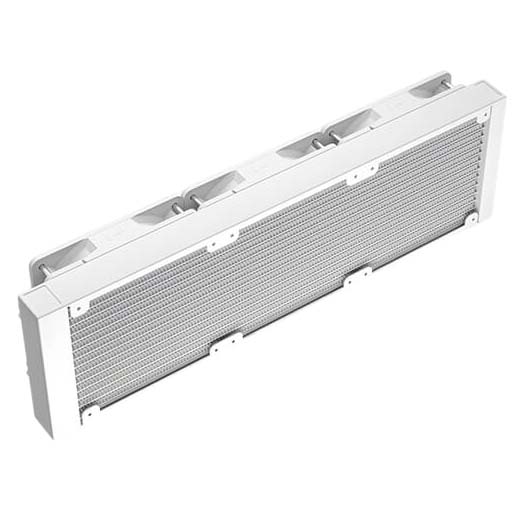

Radiator
| Radiator Dimensions |
397 x 120 x 27 mm (L x W x H) |
| Radiator Material |
Aluminium |
Pump
| Dimensions |
Φ67 x 48.5 mm |
| Rating Voltage |
DC 12 V |
| Minimum Startup Voltage |
≥5.0 V |
| Fan Speed |
2800 ± 10% RPM |
| Rated Current |
0.25 ± 20% A |
| Consumed Power |
3.0 W |
| Flow Rate |
≥1300 mL/min |
| Water Pressure |
1.4 m |
| Operation Temperature |
-10°C ~ +60°C |
| Noise Level |
≤28 dB(A) |
| Lifespan |
40,000 hours |
| Connector |
PUMP: 3-pin | LED: 3-pin |
Fan
| Fan Type |
PWM Fan |
| Dimensions |
120 x 120 x 25 mm |
| Bearing Type |
Hydraulic Bearing |
| LED Type |
Addressable RGB |
| Fan Speed |
800 ± 200~1800 ± 10% RPM |
| Airflow |
71.5 CFM (max.) |
| Air Pressure |
2.45 mmH2O (max.) |
| Fan Noise Level |
31 dB(A) |
| Lifespan |
40,000 hours |
| Connector |
PH 2.0 7-pin (PWM+ARGB) |
| Rated Voltage |
FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage |
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V |
| Rated Current |
FAN : 0.20-0.25 A | LED : 0.32 A |
Socket Compatibility CPU
| Intel |
LGA 115X/1200/1700/20XX/1851 |
| AMD |
AM3/AM4/AM5/TR4 |
Backed by a 3 year Antec warranty.
