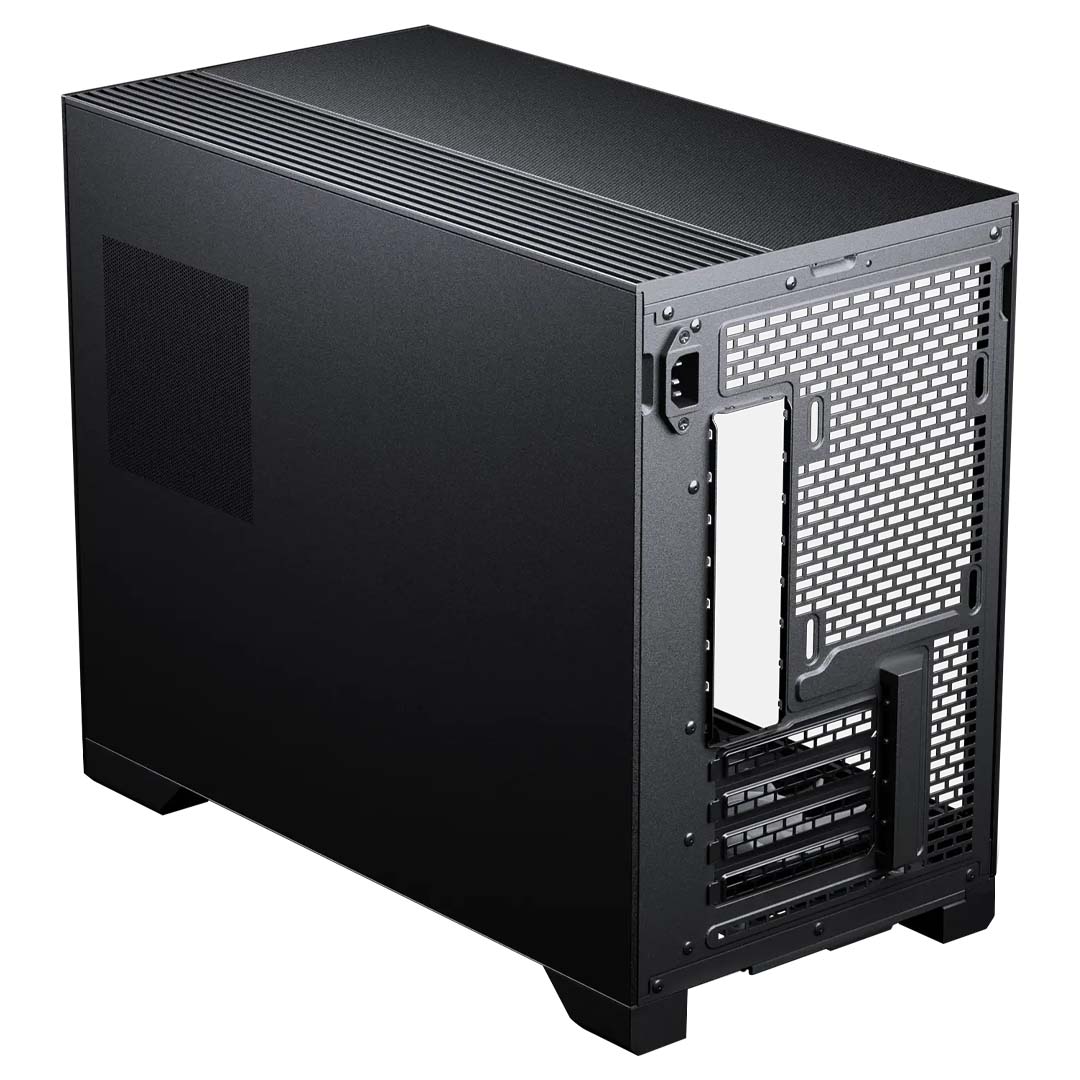

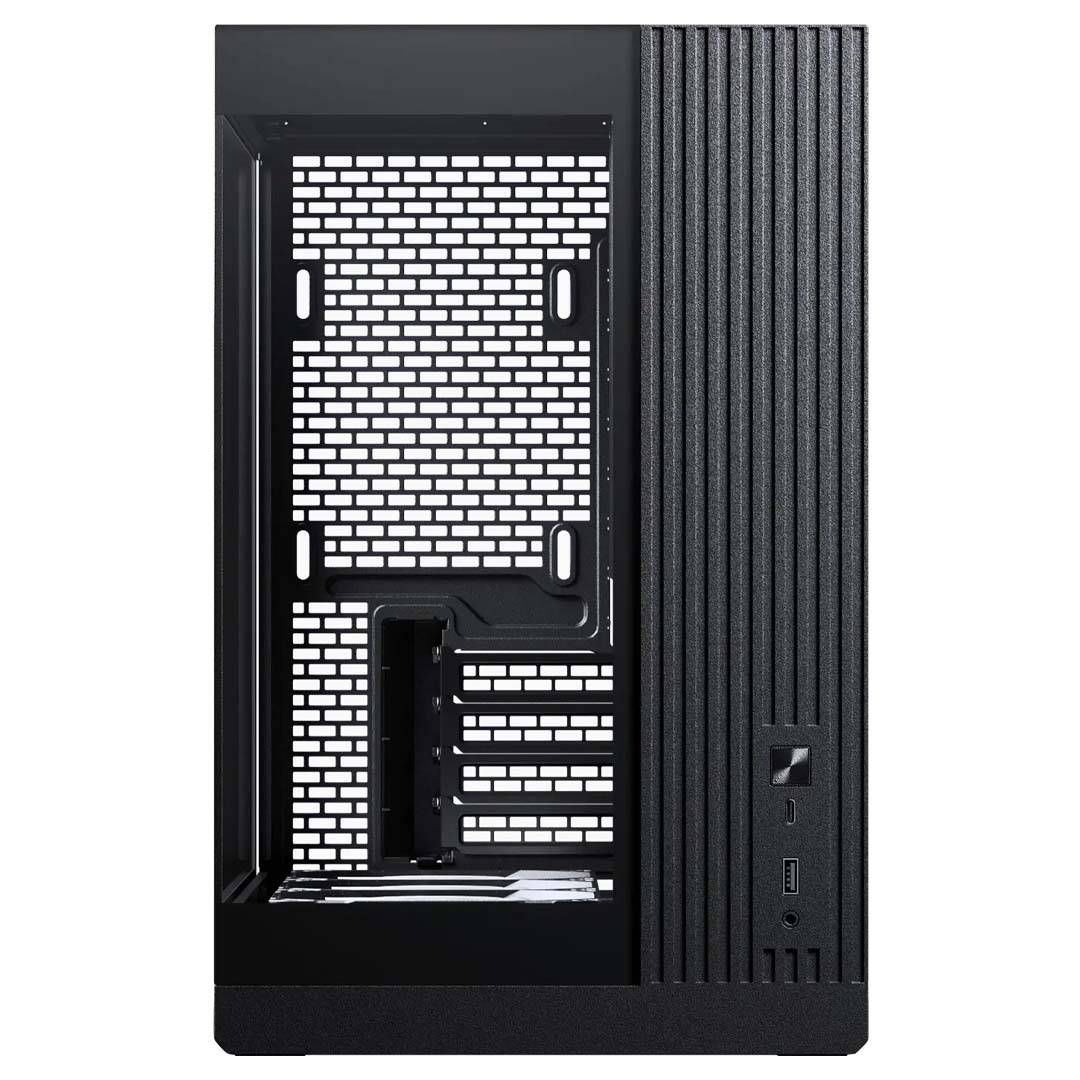

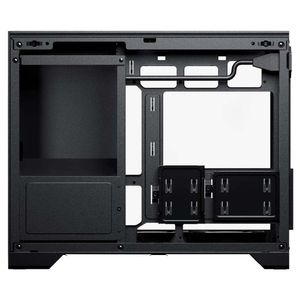

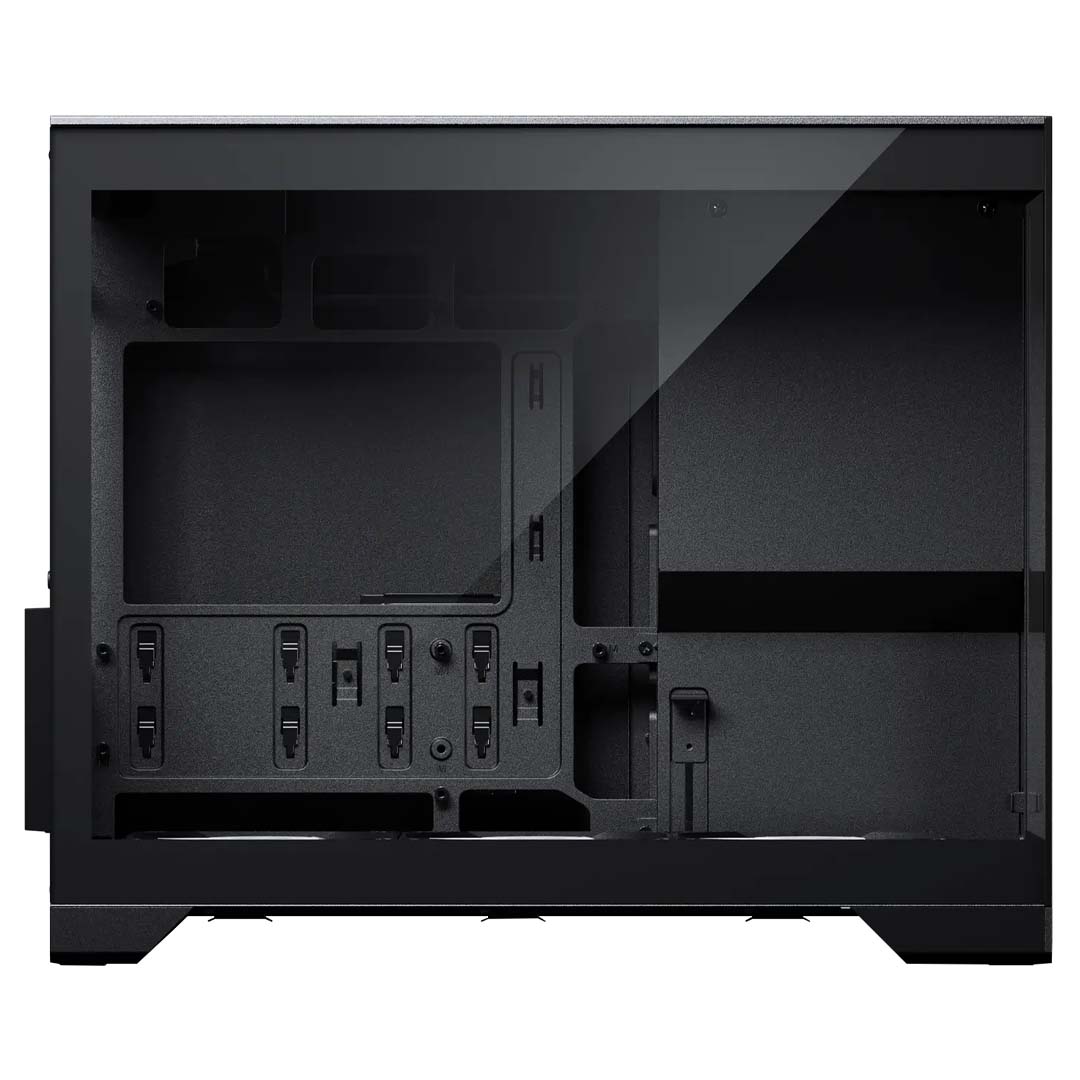

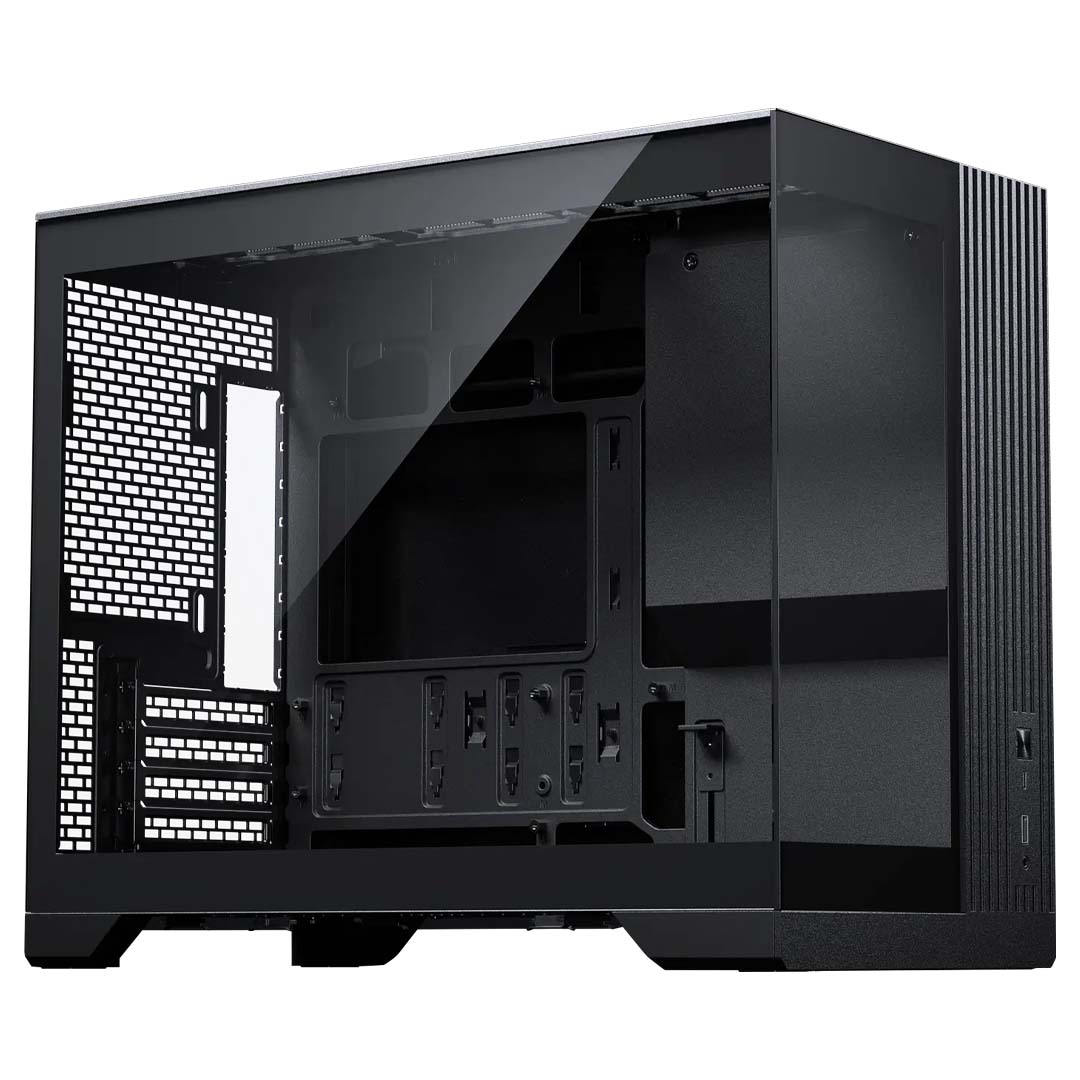

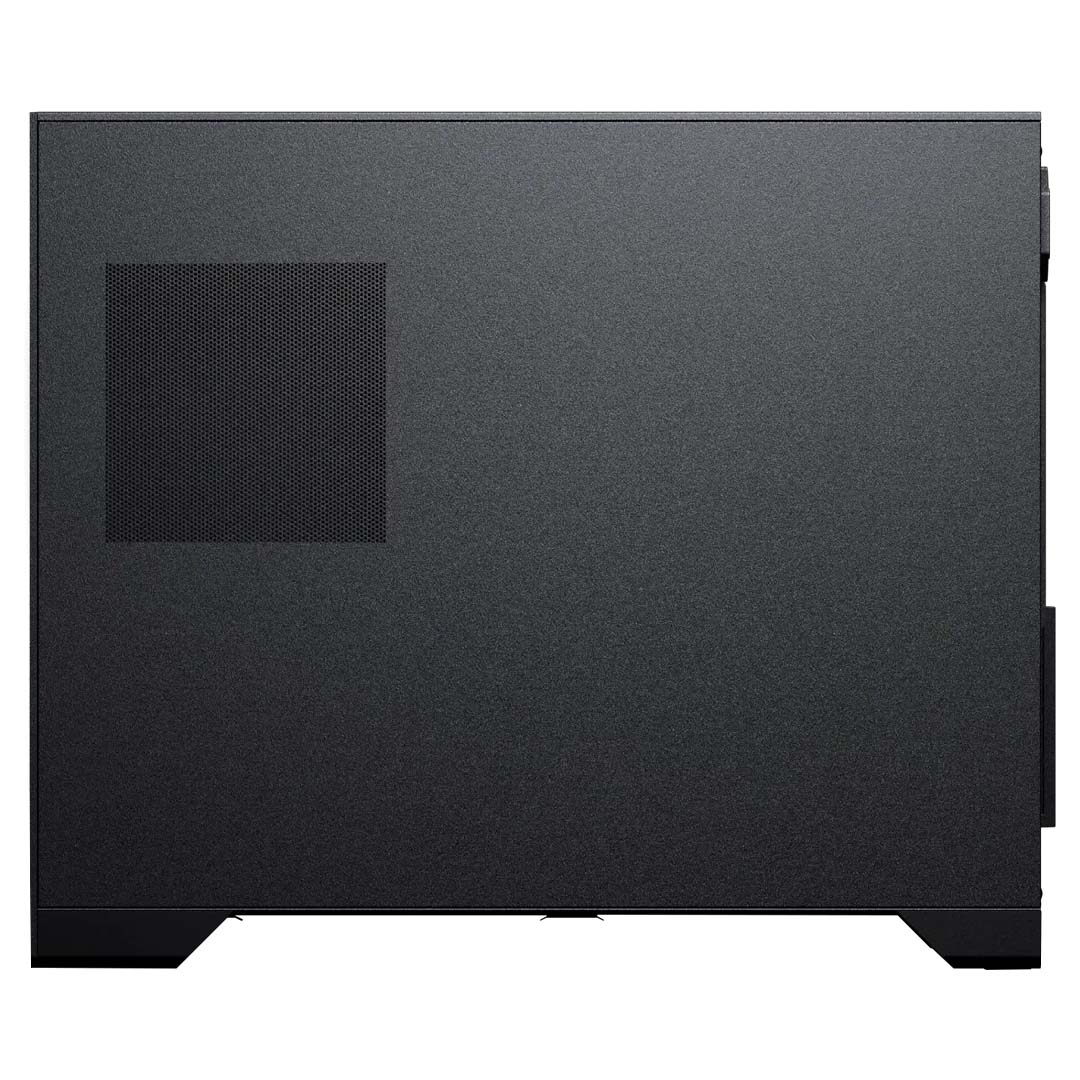

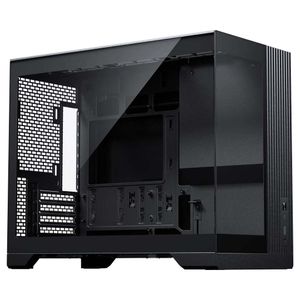

Unleash the full potential of your compact build with the Phanteks XT V3 Tempered Glass Micro ATX Case, engineered for exceptional cooling and a clean, modern aesthetic. This innovative chassis supports up to nine 120mm fans and a 360mm radiator in the top, ensuring maximum thermal performance for even the most demanding gaming setups. The XT V3 is designed for an effortless building experience, featuring a spacious interior with ample cable routing space and full compatibility with rear-connect motherboards for a remarkably clean finish. Showcase your high-end components through the stunning tempered glass side panel, all within a compact Micro-ATX form factor that delivers outstanding value and performance.
Features
XT V3
Compact Micro ATX Gaming Chassis
The XT V3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT V3 is a micro-ATX powerhouse ready for any cooling challenge.
- Supports a total of nine 120 fans for powerful cooling within this compact chassis.
- Dedicated 360 radiator space in the top of the chassis.
- Triple fan locations in the bottom for direct GPU cooling.
Organised by Design
- Spacious cable routing area for clean and efficient management.
- Fully compatible with Rear-Connect mainboards for streamlined builds.
Fan Positions
- 3x 120 mm top fans.
- 1x 120 mm rear fan.
- 3x 120 mm bottom fans.
Radiator Positions
- 1x 360 top radiator up to 410 x 122 x 60 mm
Storage
SSD Storage Bracket
- Supports 2x 2.5″ SSD drives.
HDD Storage Bracket
- Supports 1x 3.5” HDD drive.
Specifications
General Data
| Model Number |
PH-XT325V_DBK01 |
| Case Dimensions |
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in |
| Form Factor |
Compact microATX tower |
| Mainboard Support |
Micro-ATX | Mini-ITX |
| Materials |
Steel chassis | Tempered glass window | ABS plastic |
| Colour |
Black |
| Expansion Slots |
4 |
| Vertical GPU Support |
No |
| Internal 2.5″ Positions |
2 + 1x 3.5″ HDD |
| Internal 3.5″ Positions |
1 + 2x 2.5″ SSD |
| Front I/O |
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button |
| Net Weight |
6.05 kg | 13.33 lbs |
| Warranty |
5 Years Limited |
| What's Included |
1x XT V3 chassis
1x SSD bracket (Pre-installed)
1x HDD bracket (Pre-installed) |
| Accessory Box |
9x Zip ties
1x Stand-off removal tool
1x GPU support |
| Screws |
17x Mainboard | SSD screws
5x Power supply screws
4x HDD screws
1x Mainboard stand-off |
Fans
| Total Fans |
7 x 120mm |
| Top |
3 x 120mm |
| Rear |
1 x 120mm |
| Bottom |
3 x 120mm |
Radiator
Clearance
| CPU Cooler Height |
175 mm | 6.88 in |
| GPU Length |
430 mm | 15.94 in (Without front fans installed) |
| GPU Width |
175 mm | 6.88 in |
| Power Supply |
150 mm | 5.90 in |
| Top 360 Radiator (Length x Width x Height) |
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in |
Backed by a 5 year Phanteks warranty.
