Ubiquiti Enterprise 8-Port PoE+ Managed Switch

USW-ENTERPRISE-8-POE | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$909
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti Enterprise 8-Port PoE+ Managed Switch features 8 PoE+ ports, 2x 10G SFP+ ports and a 120W total PoE supply for access points and other PoE devices. Including an extensive suite of both Layer 2 and 3 switching protocols, while offering a user friendly 1.3" touch LCM to provide status.

Features

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 1

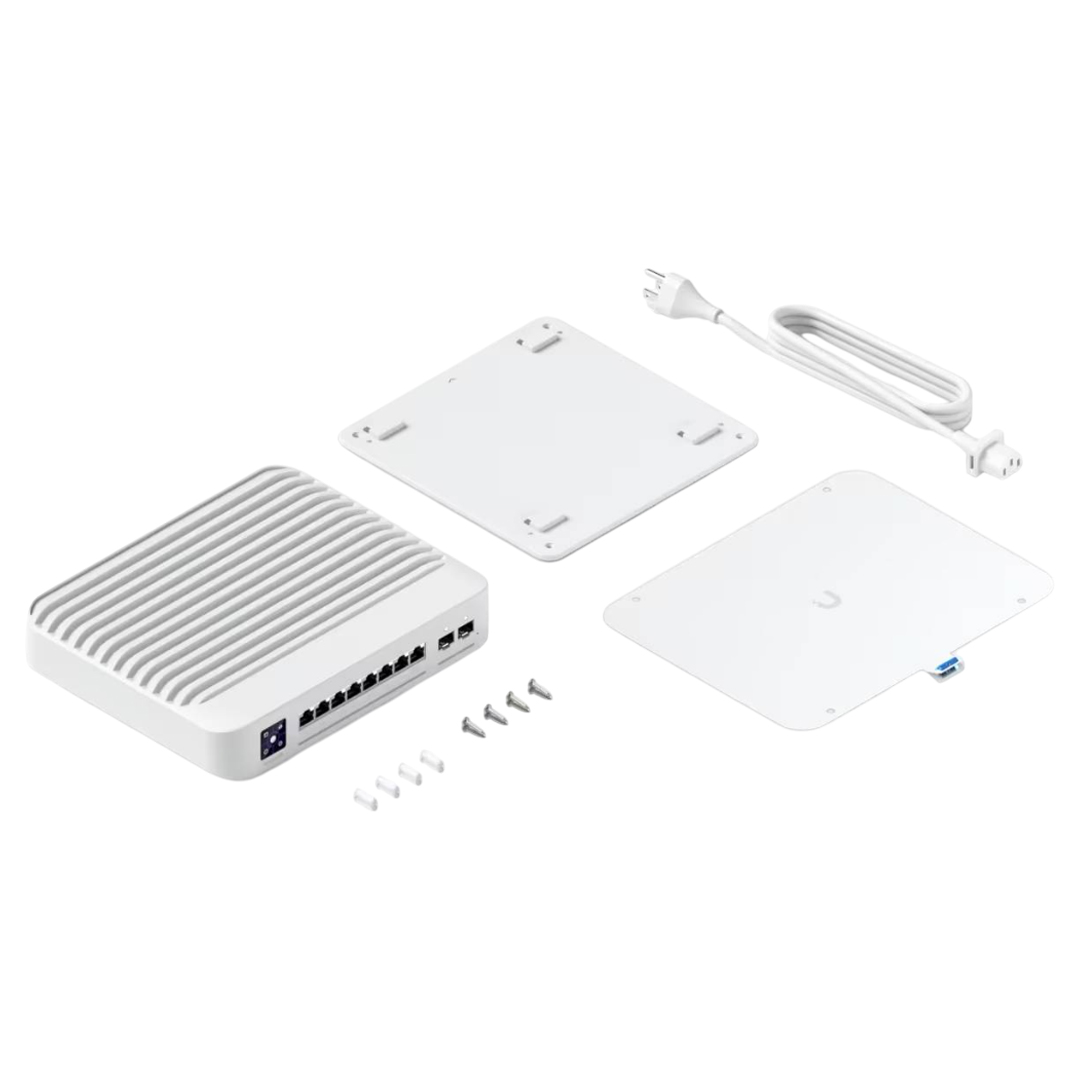

Deployment

Build Features

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 2

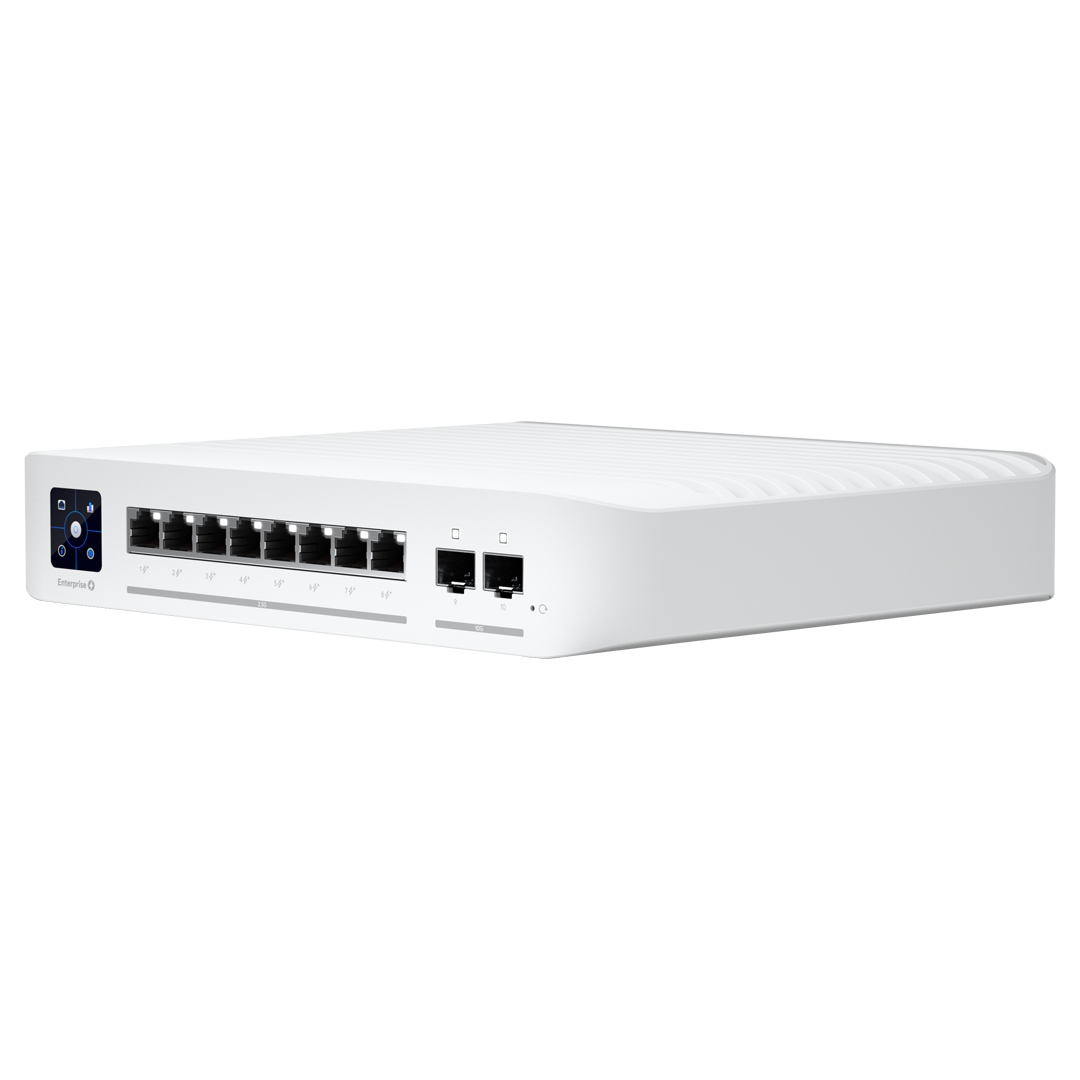

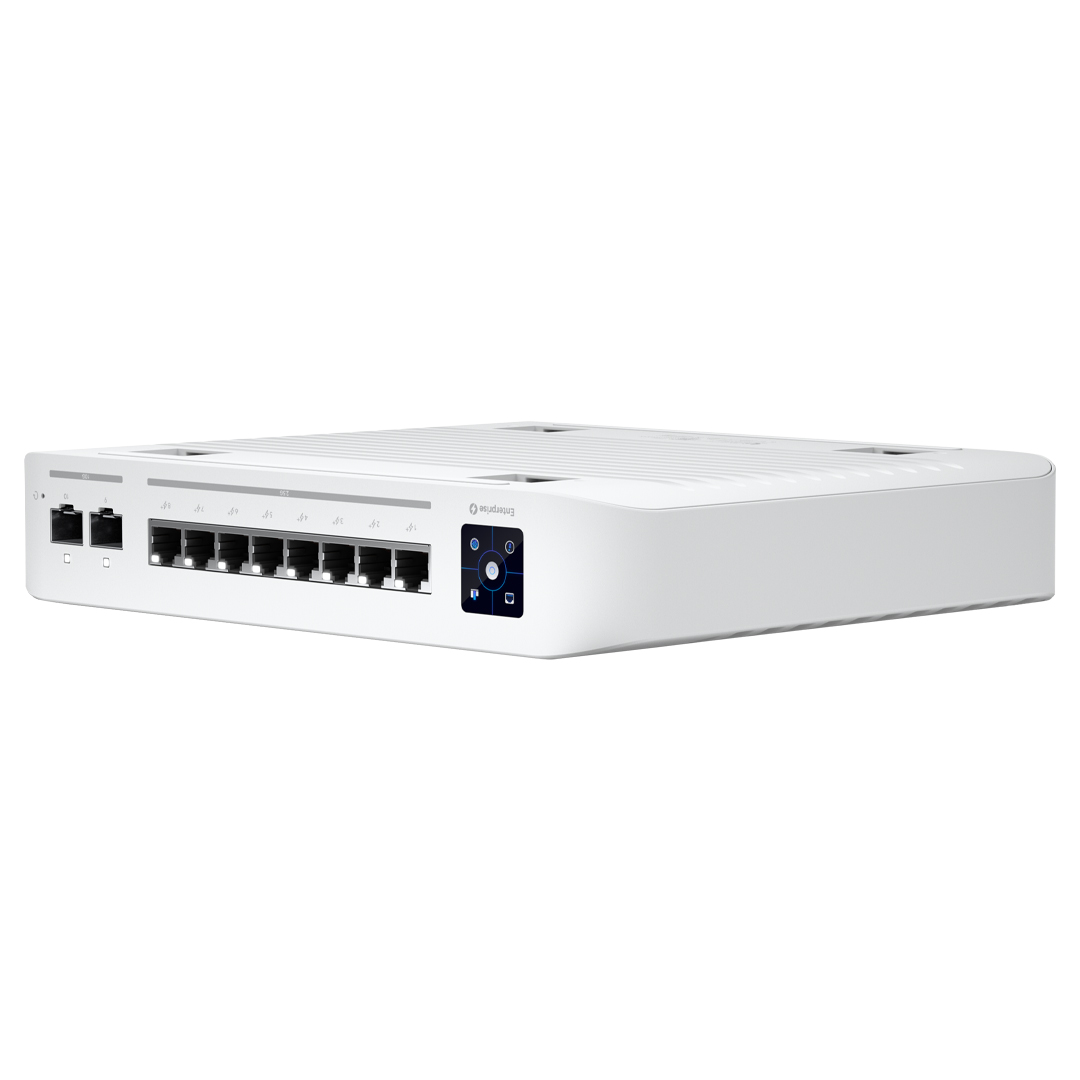

Front View

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 3

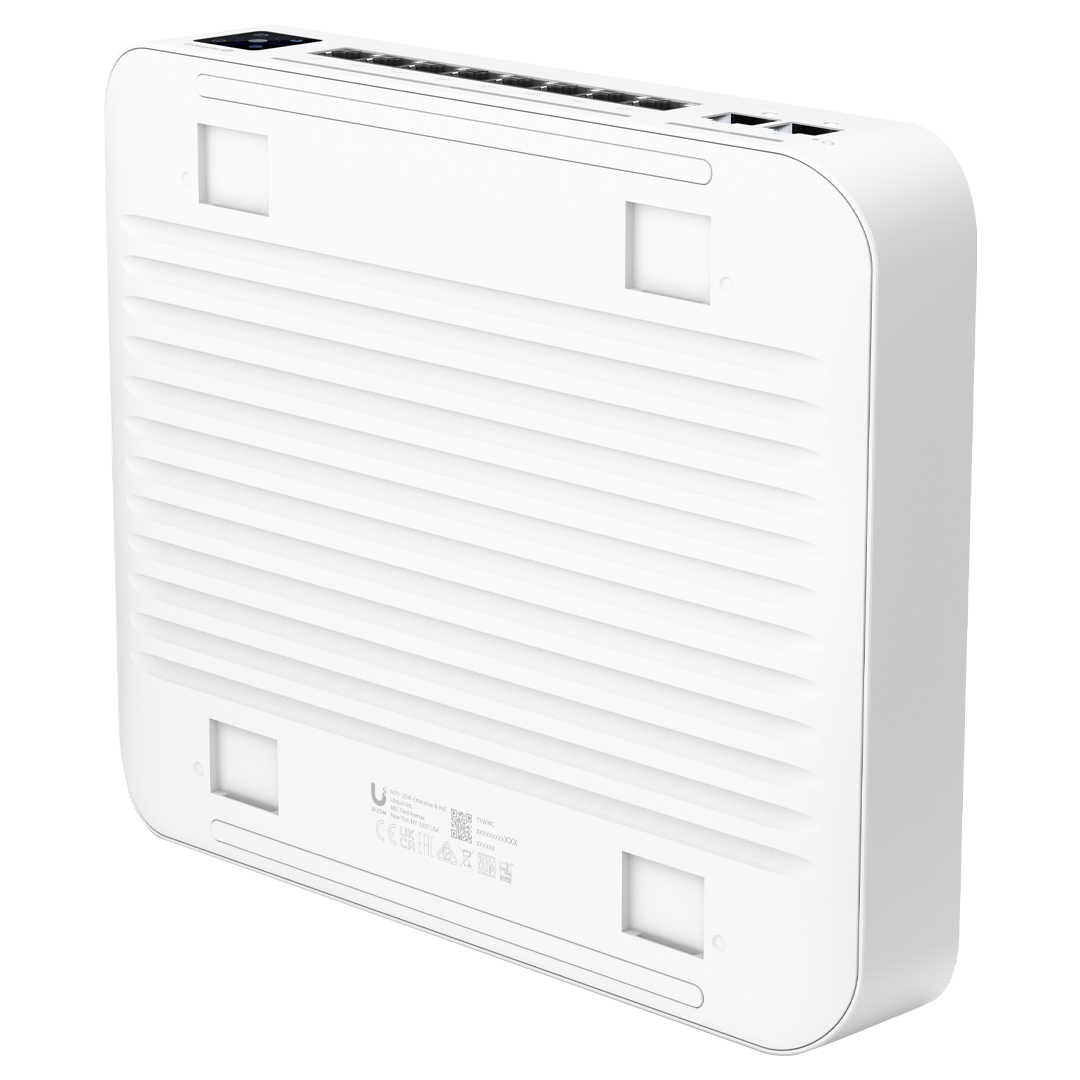

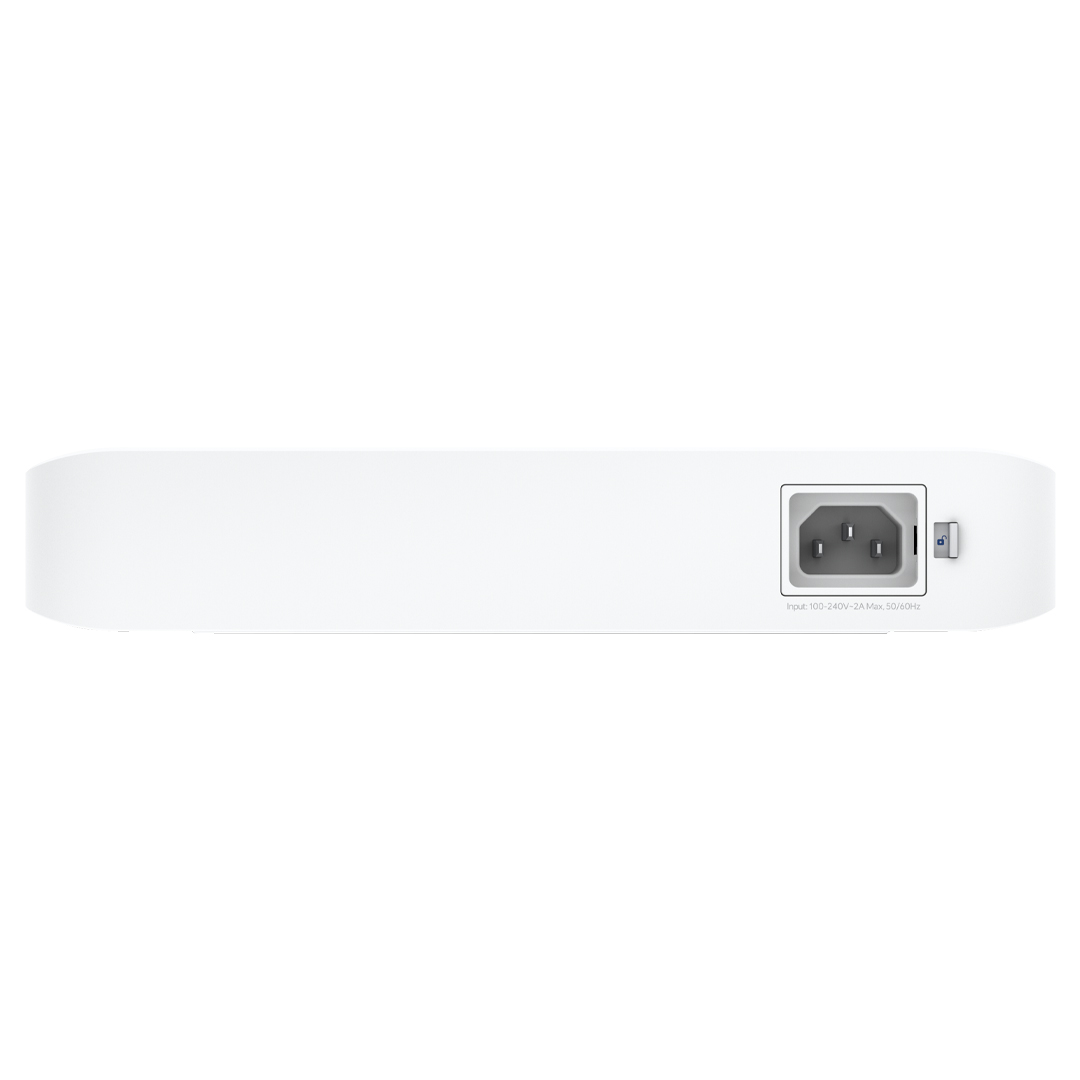

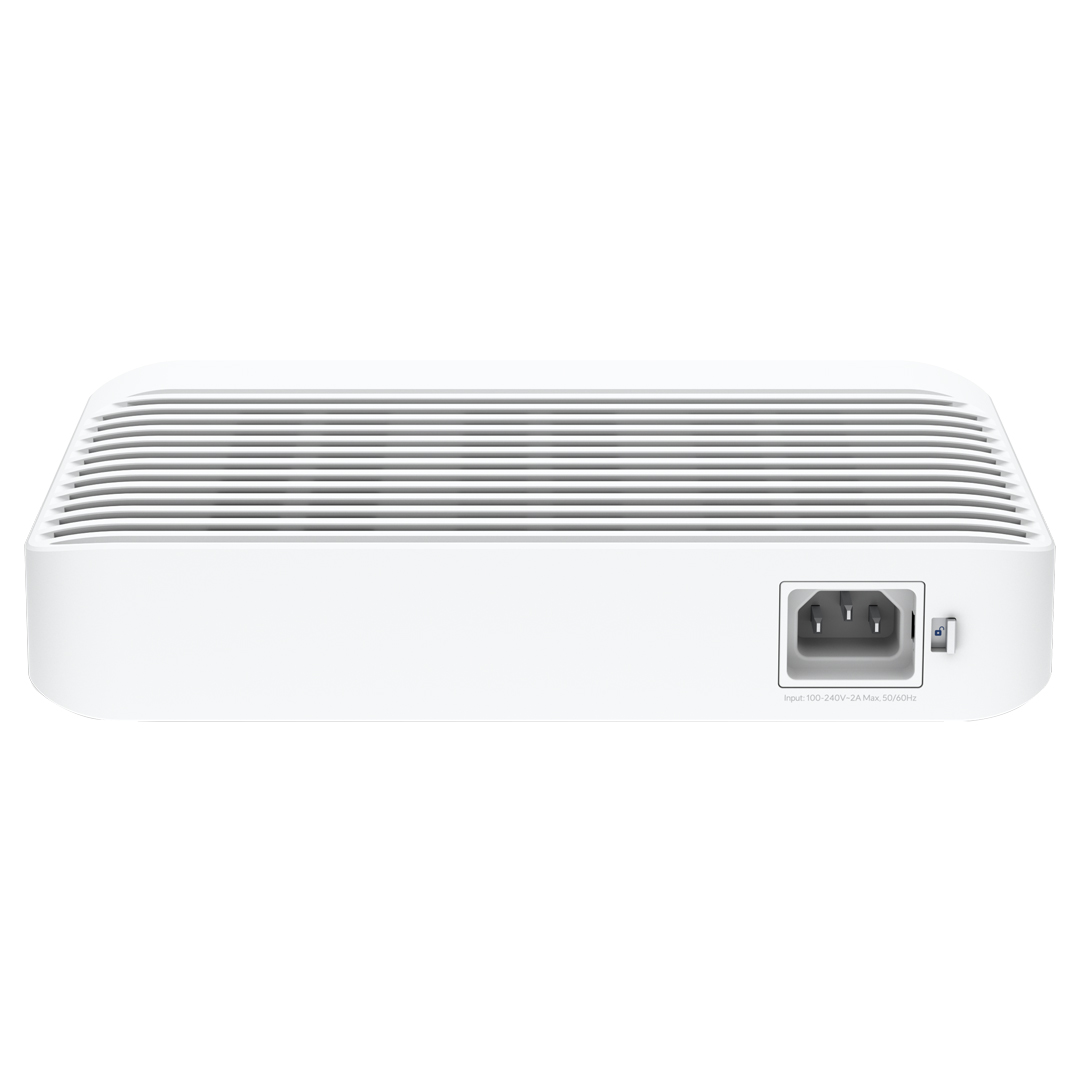

Back View

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 4

Dimensions

Specifications

General Data

Model Number USW-ENTERPRISE-8-POE
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Port Layout 2.5 GbE RJ45: 8 (All PoE+) (2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
Max. PoE Output Up to PoE+
Total PoE Availability 120W
Layer 3 Yes
Form Factor Compact desktop
Warranty 1 Year

Performance

Switching Capacity 80 Gbps
Total Non-Blocking Throughput 40 Gbps
Forwarding Rate 60 Mpps
Supported VLANs 1,000
MAC Address Table Size 16,000
L3 Table Size ARP Entries: 512
IPv4 Routes: 512
Packet Buffer Size 1.5 MB
Access Lists IPv4: 12
MAC: 10

Layer 3 Features

DHCP Server (Local Networks) Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes

Layer 2 Features

LACP Port Aggregation Yes
STP & RSTP Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes

Hardware

PoE Ports PoE+: 8
Max. PoE Wattage per Port by PSE PoE+: 32W
Max. Power Consumption 30W (Excluding PoE Output)
150W (Including PoE Output)
Power Method Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 150W
Supported Voltage Range 100—240V AC
Management Ethernet
AR
Heat Dissipation (Excluding PoE Output) 102.36 BTU/hr
Weight 2.4 kg (5.3 lb)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Supported Rack Depth 400~1200 mm (15.7-47.2")
LCM Display 1.3" touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel

Software

Application Requirements UniFi Network: Version 6.3.51 and later
Backed by a 1 year Ubiquiti warranty.
