Ubiquiti UniFi Dream Wall Gateway

UDW | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$2189
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Dream Wall Gateway is a powerful all-in-one network solution that combines a 10G cloud gateway, and a high-power PoE switch in a sleek wall-mounted design. With support for over 100 UniFi devices and up to 300+ connected users, it's perfect for both home or business networks. Featuring a 4.7" touchscreen display, providing insights into network performance, connected devices, and system status, as well as advanced security tools such as firewall protection, VPN support, plus built-in storage for cameras and recordings, the Dream Wall makes it easy to manage your entire network through the UniFi platform.



Features

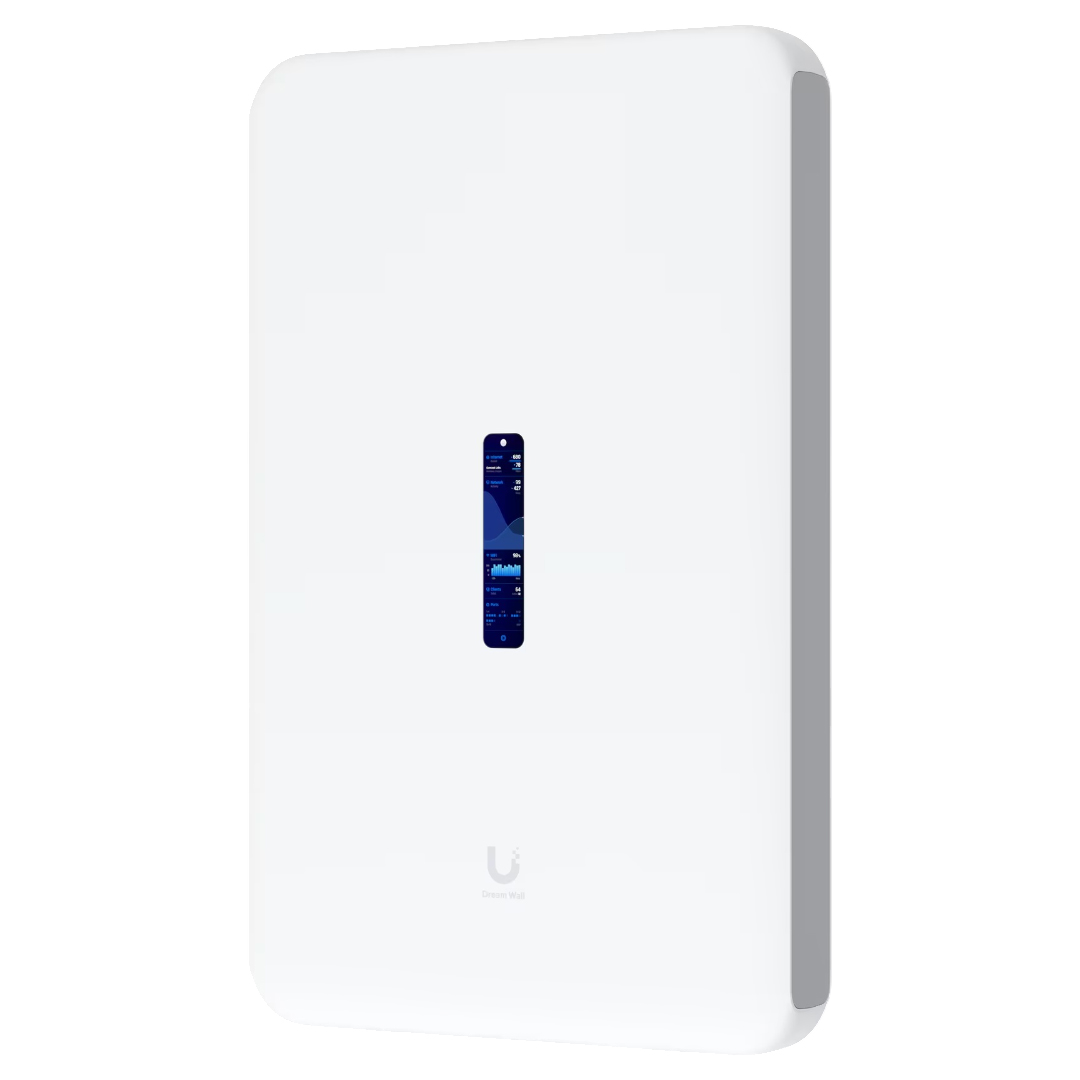

Ubiquiti UniFi Dream Wall Gateway Feature 1

Dream Wall

Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.

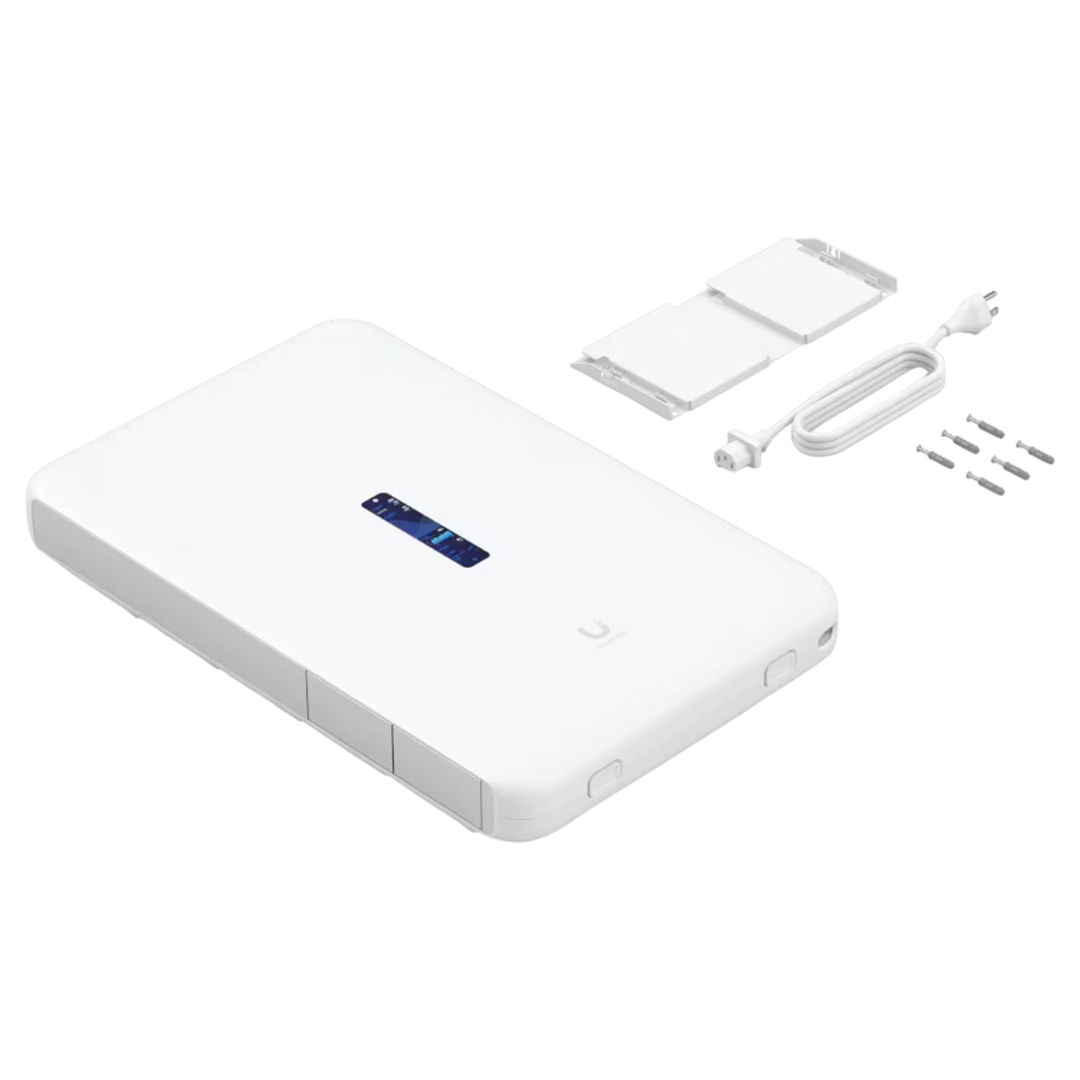

Ubiquiti UniFi Dream Wall Gateway Feature 2

Deployment

Build Features

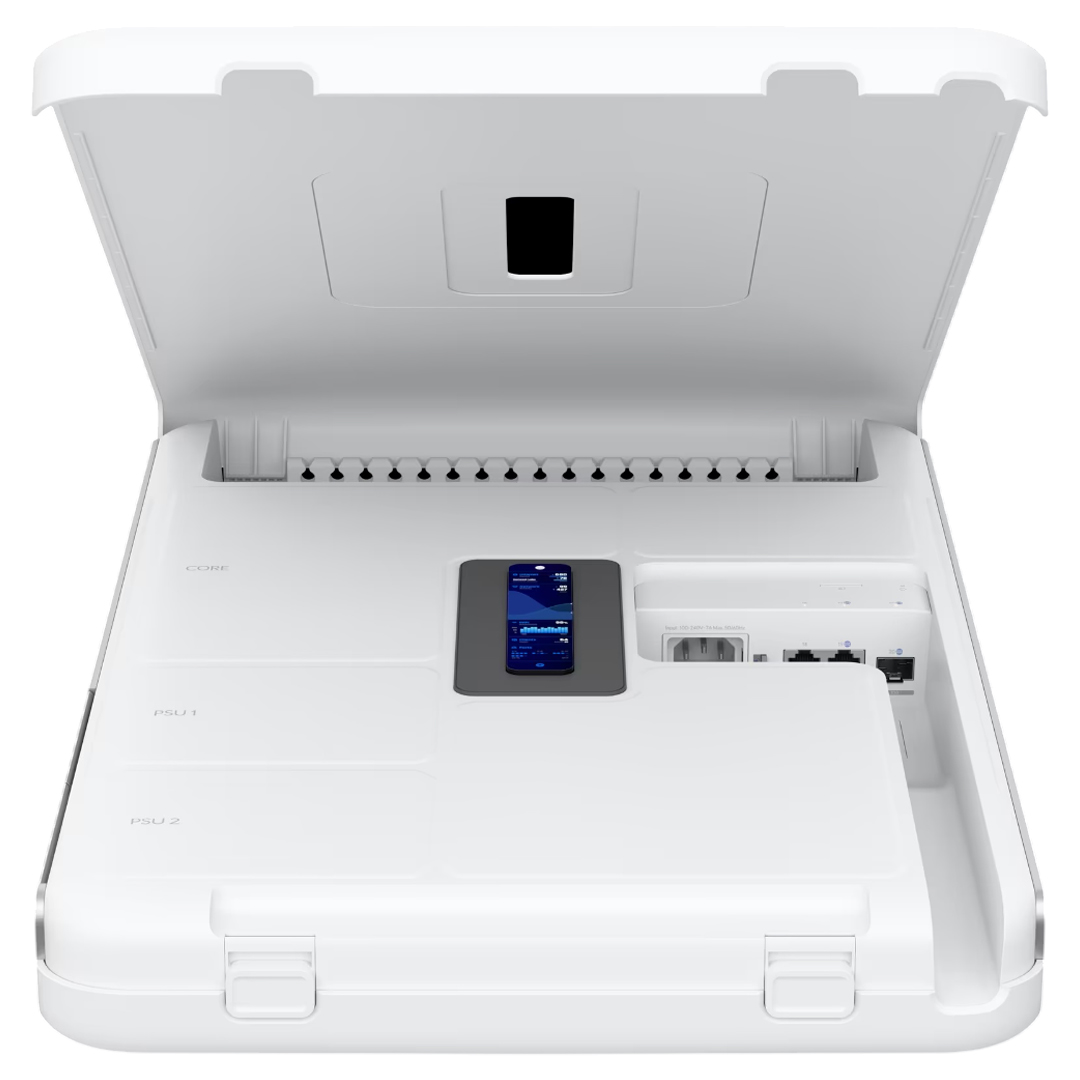

Ubiquiti UniFi Dream Wall Gateway Feature 3

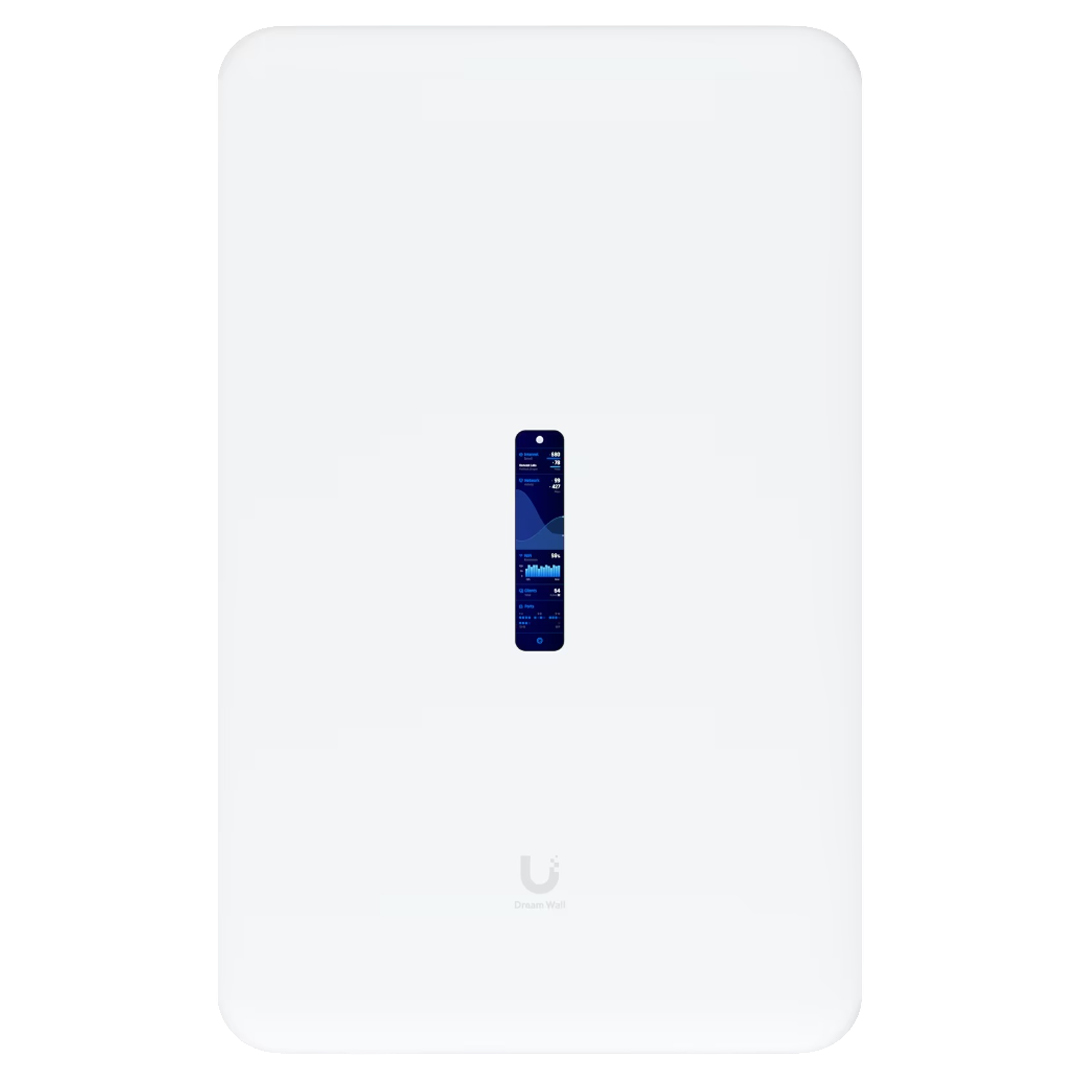

Front View

Ubiquiti UniFi Dream Wall Gateway Feature 4

Back View

*Requires a memory card with at least 128 GB of storage.

Ubiquiti UniFi Dream Wall Gateway Feature 5

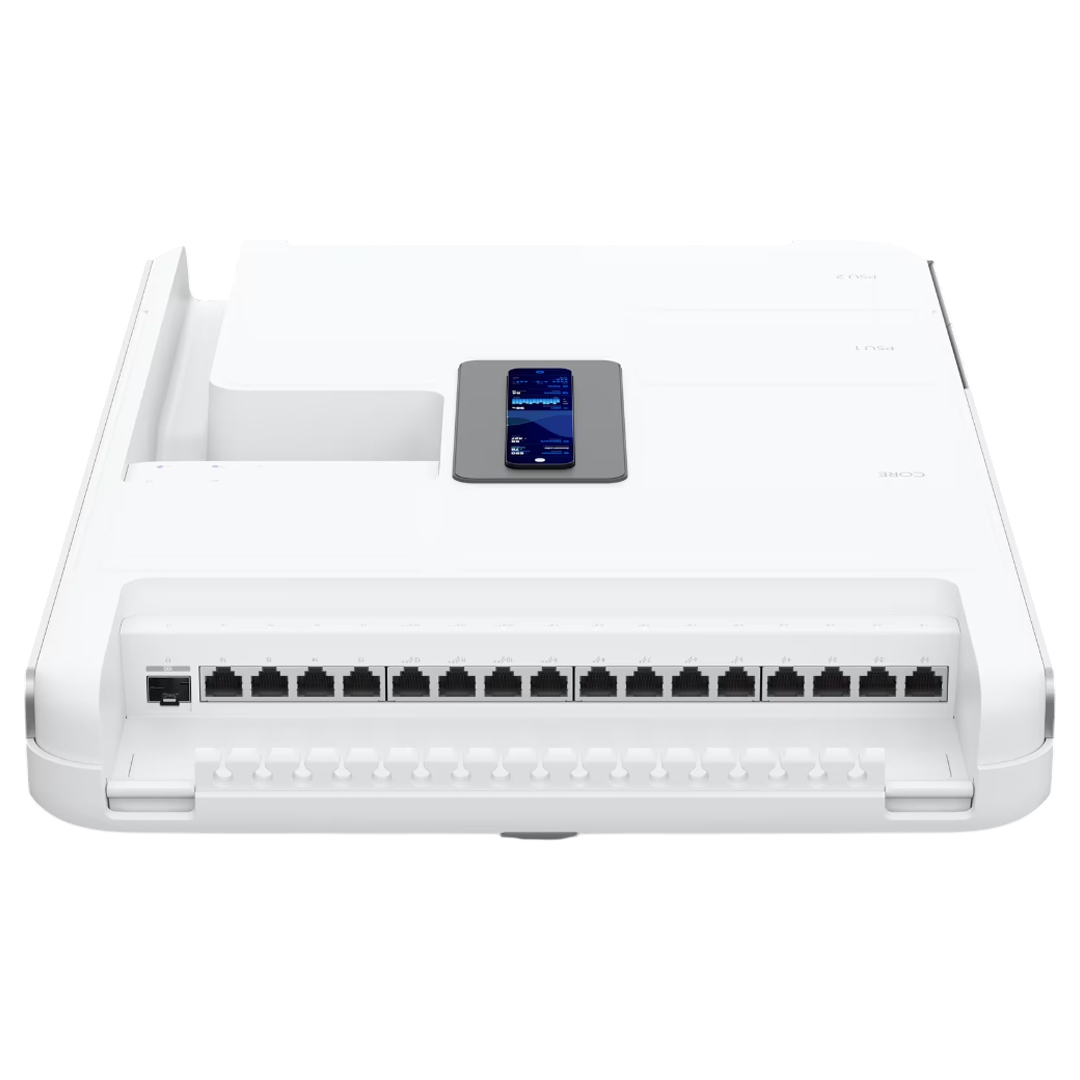

Top View

Ubiquiti UniFi Dream Wall Gateway Feature 6

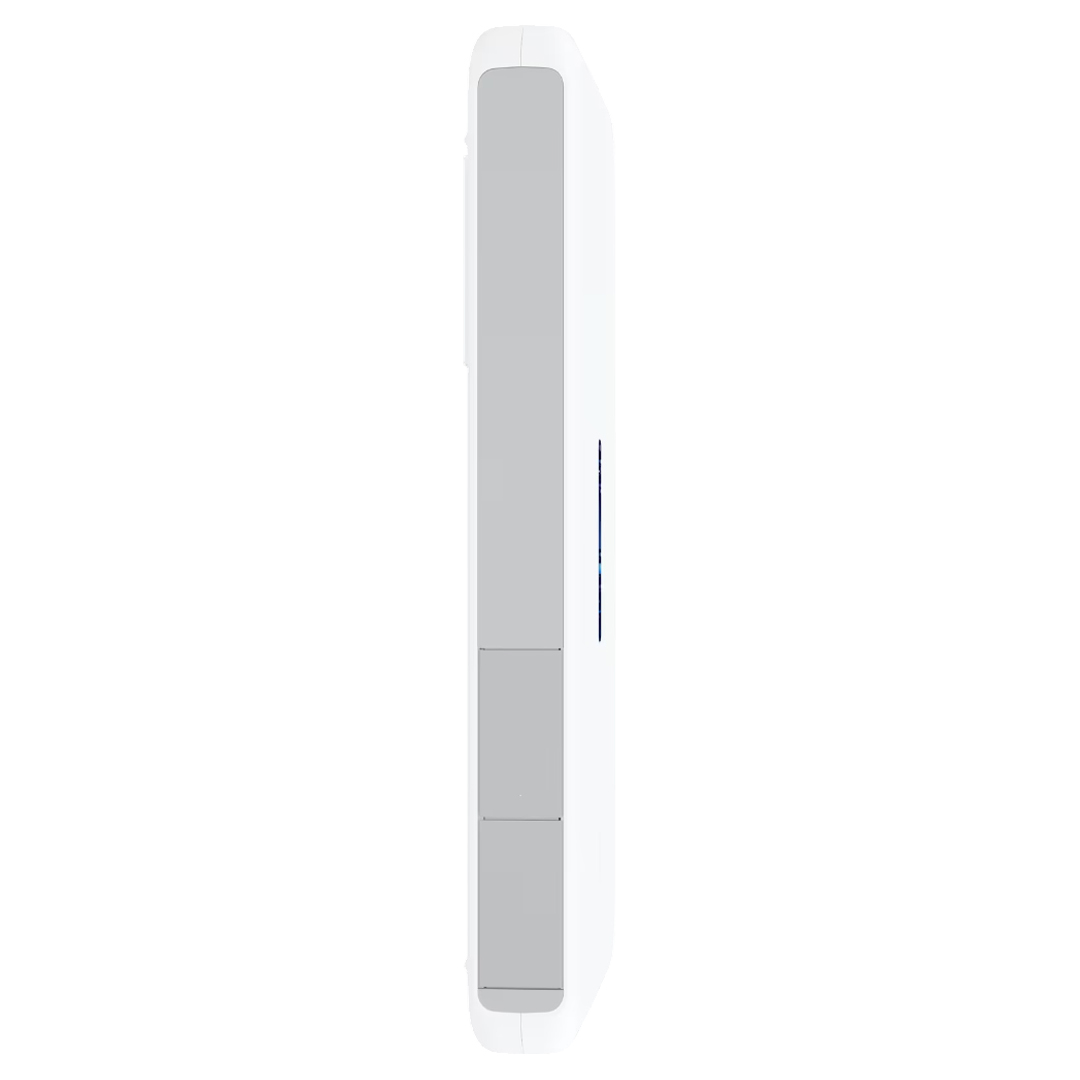

Side View

Specifications

General Data

Model Number UDW
Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
UniFi Application Suite Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices 100+
Managed Cameras (12) HD
(7) 2K
(4) 4K
Simultaneous Users Connected 300+
Max. WAN Port Count 8
Default WAN Ports (1) 2.5 GbE RJ45
(1) 10G SFP+
Port Layout 1 GbE RJ45
17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M))
2.5 GbE RJ45
1 (2.5G/1G/100M)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput 3.5 Gbps
Form Factor Wall-mounted
Redundancy (2) Hot-Swappable PSUs
Coverage Area 140 m² (1,500 ft²)
Warranty 1 Year

Security

Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-Based Traffic Segmentation Yes

VPN & SD-WAN

Licence-Free SD-WAN Yes
Site-To-Site VPN Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing Yes
Dynamic Routing OSPF: Yes
BGP: Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes
Integrated RADIUS Server Yes
RADIUS Over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
MAC Address Table Size 8,000
Policy-Based WAN and VPN Routing Yes
Customisable DHCP Server Yes
IPv6 ISP Support Yes
IGMP Proxy Yes

Integrated WiFi

WiFi Standard 802.11a/b/g/n/ac/ax (WiFi 6)
Throughput 5 GHz: 2.4 Gbps
2.4 GHz: 300 Mbps
MIMO 5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain 5 GHz: 6 dBi
2.4 GHz: 5.9 dBi
Max. TX Power 5 GHz: 26 dBm
2.4 GHz: 23 dBm
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Hardware

NVR Storage Pre-installed 512 GB microSD for NVR
Built-in 128 GB SSD for detection recordings
Expansion Slot MicroSD Card (Supports Micro SDXC, speed class 10/U1. Requires a memory card with at least 128 GB of storage. Max. capacity 1TB.)
PoE Budget 420 W
Max. PoE Wattage Per Port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage Range PoE Mode PoE: 44-57V
PoE+/PoE++: 50-57V
Max. Power Consumption 532 W (Including PoE Output)
Power Method Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power Supply (2) Hot-Swappable AC/DC 550W PSU
(1) Pre-installed PSU
Supported Voltage Range 100 - 240 V AC
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory 4 GB
On-Board Storage 16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card
Weight 8.6 kg (19 lb)
Enclosure Material Polycarbonate, galvanised steel, Aluminium alloy
Mount Material Stainless steel
LCM Display 4.7" touchscreen
Management Ethernet
Bluetooth
LEDs Ethernet: Yes
SFP+: Yes
Button (1) Factory-reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel

Software

VLAN 802.1Q
Guest Traffic Isolation Yes
Backed by a 1 year Ubiquiti warranty.
