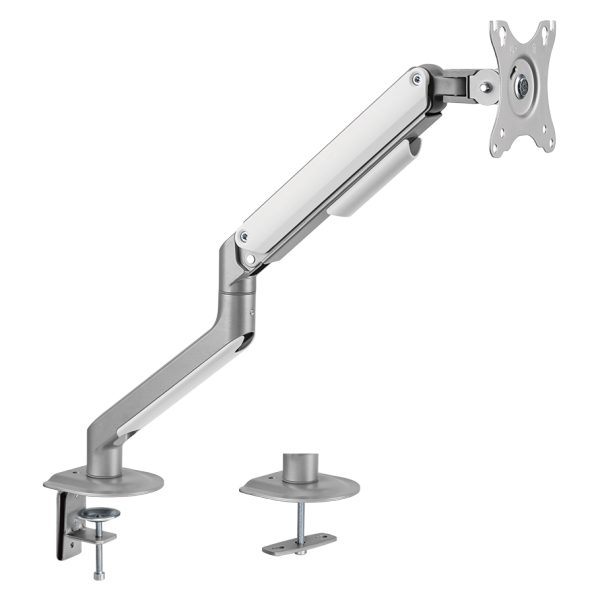

The Brateck LDT63-C012-S is a spring-assisted monitor arm designed to support 17" to 32" monitors weighing up to 9kg. It offers a full range of motion, including tilt, swivel and rotation, allowing for ergonomic positioning. The arm features a matte silver finish and is constructed from durable steel and aluminum. Installation options include desk clamp and grommet mount, accommodating desktops with thicknesses of 10-80mm for clamp and 10-40mm for grommet. Built-in cable management helps maintain a tidy workspace.
Features
Single Monitor Economical Spring-Assisted Monitor Arm
For Most 17"-32" Monitors
The LDT63-C012 Monitor Arm Mount is an economical choice for adding flexibility and ergonomics to the workplace. Durable steel and Aluminium construction supports most 17”-32” monitors up to 9kg/19.8lbs. Finger-tip adjustment allows for effortless manoeuvring and a wide range of motion to position screen height and angle. Integrated 180° rotation stop prevents the arm from hitting adjacent partitions and walls. A quick-release joint design reduces package size for lower shipping and storage costs while contributing to easy user assembly. The slim and modern design in 3 Colours fits most any office or home decor.
- Spring-Assisted Mechanism: Allows to easily move up and down
- Ease of Use: Self-adjusting counterbalance for most any monitors
- Keyhole Pattern: Allows for easy installation
- Two Mounting Options: Both desk clamp and grommet are included
- Reduced Package Size: Relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
Full Range of Motion
VESA Plate with Keyhole Slots
Provide quick monitor attachment and detachment
Quick-Release Joint
For easy installation and reduced package size
Integrated Cable Management
- Keeping desktops free of cords and clutter
- For an organised and neat workspace
180° Rotation Stop
- Protects wall and adjoining space by limiting motion
- Prevents monitor arm from swinging into screens or walls
Specifications
General Data
| Model Number |
LDT63-C012-S |
| Product Category |
Mechanical Spring Monitor Arm |
| Rank |
Standard |
| Material |
Steel, Aluminium, Plastic |
| Surface Finish |
Powder Coating |
| Colour |
Matte Silver |
| Dimensions |
117 x 503 x 578 mm (4.6" x 19.8" x 22.8") |
| Fit Screen Size |
17" - 32" |
| Fit Curved Monitor |
Yes |
| Screen Quantity |
1 |
| Weight Capacity (Per Screen) |
2 ~ 9 kg (4.4 lbs ~ 19.8 lbs) |
| VESA Compatible |
75 x 75,100 x 100 |
| Tilt Range |
+55° ~ -55° |
| Swivel Range |
+90° ~ -90° |
| Screen Rotation |
+180° ~ -180° |
| Arm Full Extension |
453 mm (17.8") |
| Installation |
Clamp, Grommet |
| Suggested Desktop Thickness |
Clamp:10 ~ 80 mm Grommet:10 ~ 40 mm (Clamp:0.39" ~ 3.1" Grommet:0.39" ~ 1.6") |
| Quick Release VESA Plate |
No |
| USB Port |
No |
| Cable Management |
Yes |
| Direction Indicator |
Yes |
| Anti-Theft |
No |
| What's Included |
Normal/Ziplock Polybag, Compartment Polybag |
Backed by a 1 year Brateck warranty.
