The PNY GeForce RTX 5060 Ti OC GDDR7 16GB graphics card features a 2407MHz clock speed, 2692MHz boost clock speed, 16GB GDDR7 128-bit memory interface, 28 Gbps memory speed, 4608 CUDA Cores, Fifth-Gen Tensor Cores, PCIe 5.0, 1 x HDMI 2.1b and 3 x DisplayPort 2.1b, powered by NVIDIA Blackwell architecture.
Features

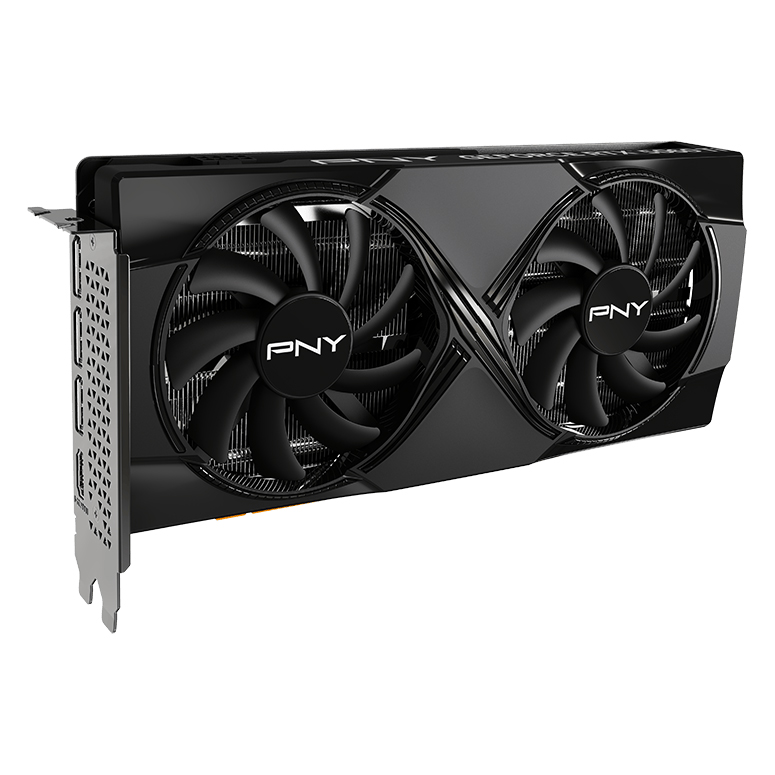

PNY GeForce RTX™ 5060 Ti 16GB Overclocked Dual Fan GPU
Get game-changing performance with the PNY GeForce RTX™ 5060 Ti, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
- NVIDIA Blackwell Architecture
- 16GB GDDR7 Memory
- 3x Display Port 1x HDMI®
- 4608 CUDA® Cores
- 180 W Max Power Consumption
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimised for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and Technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
Game Changer
Powered by NVIDIA® Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Specifications
| Model Number |
VCG5060T16DFXPB1-O |
| Architecture |
Blackwell |
| CUDA® Cores |
4608 |
| Clock Speed |
2407 MHz |
| Boost Speed |
2692 MHz |
| Memory Speed (Gbps) |
28 |
| Memory Size |
16 GB GDDR7 |
| Memory Interface |
128-bit |
| Memory Bandwidth (GB/sec) |
448 |
| TDP |
180W |
| NVLink |
Not Supported |
| Outputs |

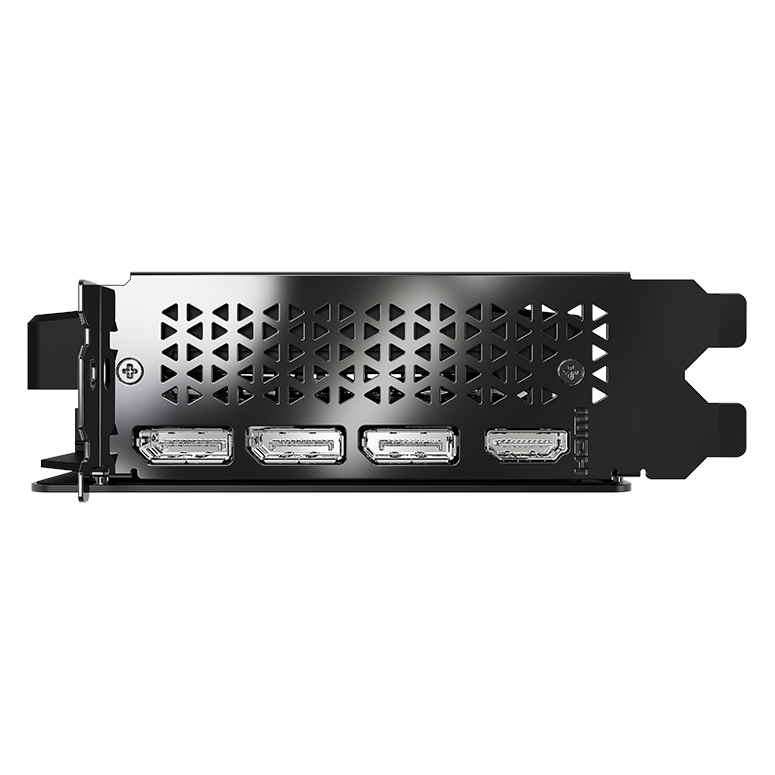

DisplayPort 2.1b (x3), HDMI® 2.1b |
| Multi-Screen |
4 |
| Resolution |
4K at 480Hz or 8K at 165Hz with DSC (Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz) |
| Power Input |
1x8-pin |
| Bus Type |
PCI-Express 5.0 x8 |
| Card Dimensions |
9.65" x 4.72" x1.57"; 2 Slot |
| System Requirements |
PCI Express-compliant motherboard with one 2-width x8 graphics slot
One 8-pin supplementary power connector
Total graphics power 180 W
Required system power 600W (Power requirements can be different depending on system configuration.)
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection (Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.)
WARNING: This product contains chemicals including lead known in the state of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. |
| What's Included |
PNY GeForce RTX™ 5060 Ti |
| Warranty |
3-Year Limited Warranty |
Backed by a 3 year PNY warranty.
