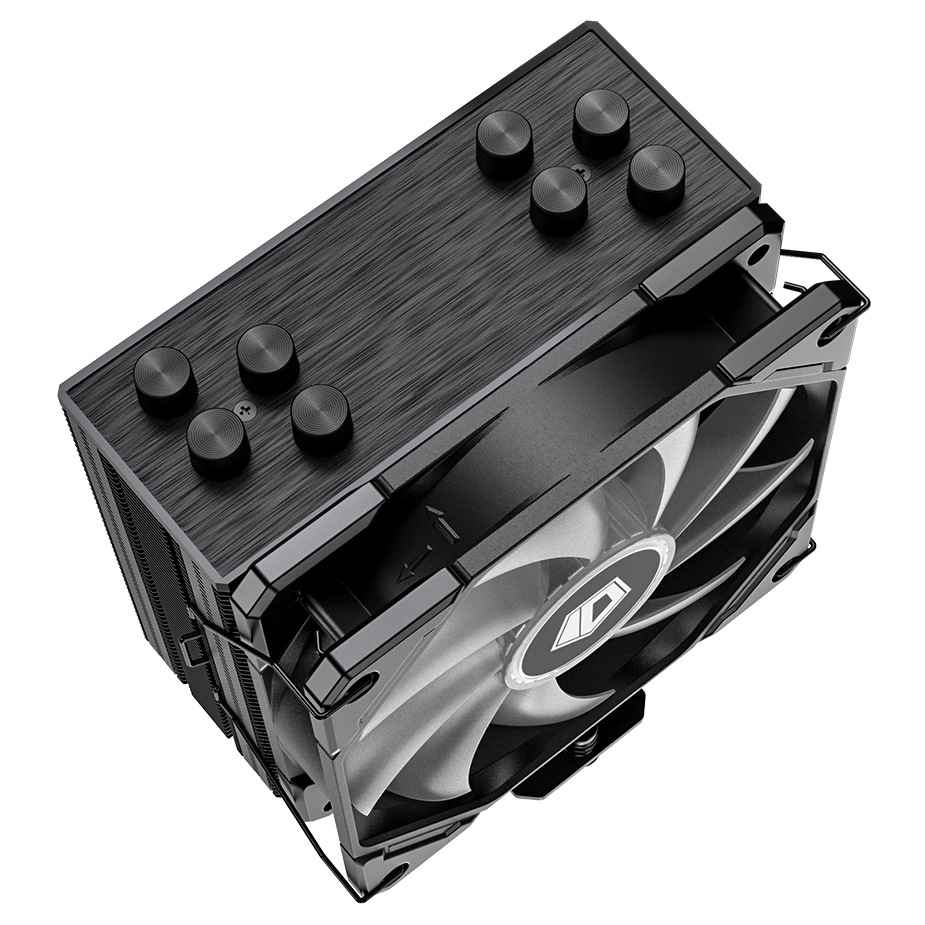

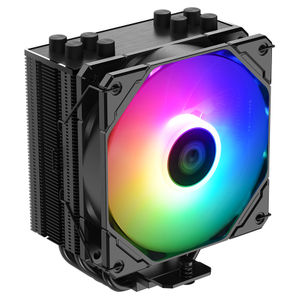

On sale! (normally $35) The ID-COOLING SE-224-XTS ARGB features a 120mm PWM fan with adjustable speeds for strong airflow and quiet operation. Its four direct-touch copper heat pipes and 151mm tower design provide up to 220W cooling capacity, with full support for Intel (LGA1851/1700/1200/115x) and AMD (AM5/AM4) sockets.
Features
Micro Wave Heatsink Fin
Special Design of Micro Wave on Aluminium Fins for Bigger Heat Dissipation.

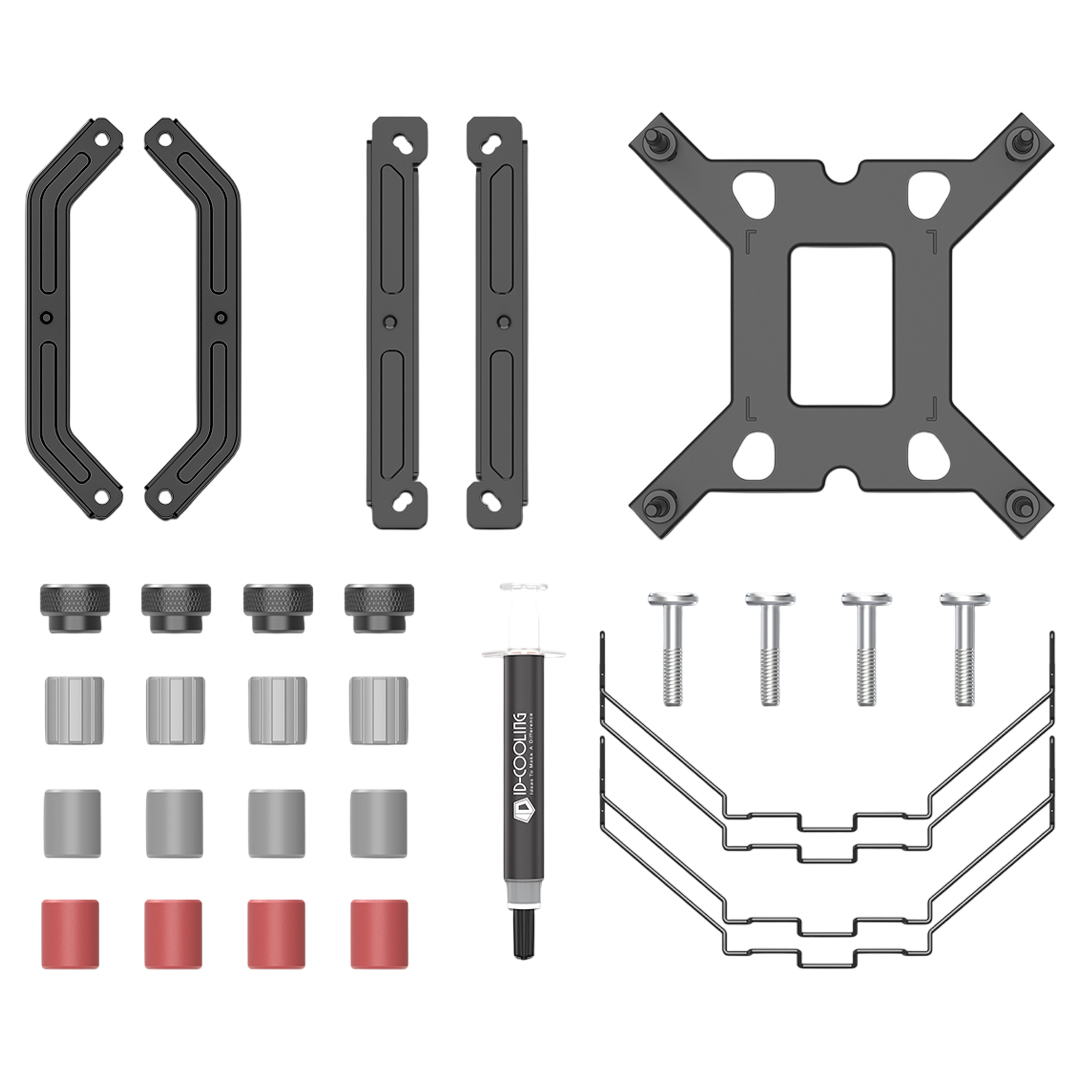

Metal-Mecha Mounting
Metal-mecha mounting kit for both Intel and AMD provides secure cooler mounting even during rude shipment.

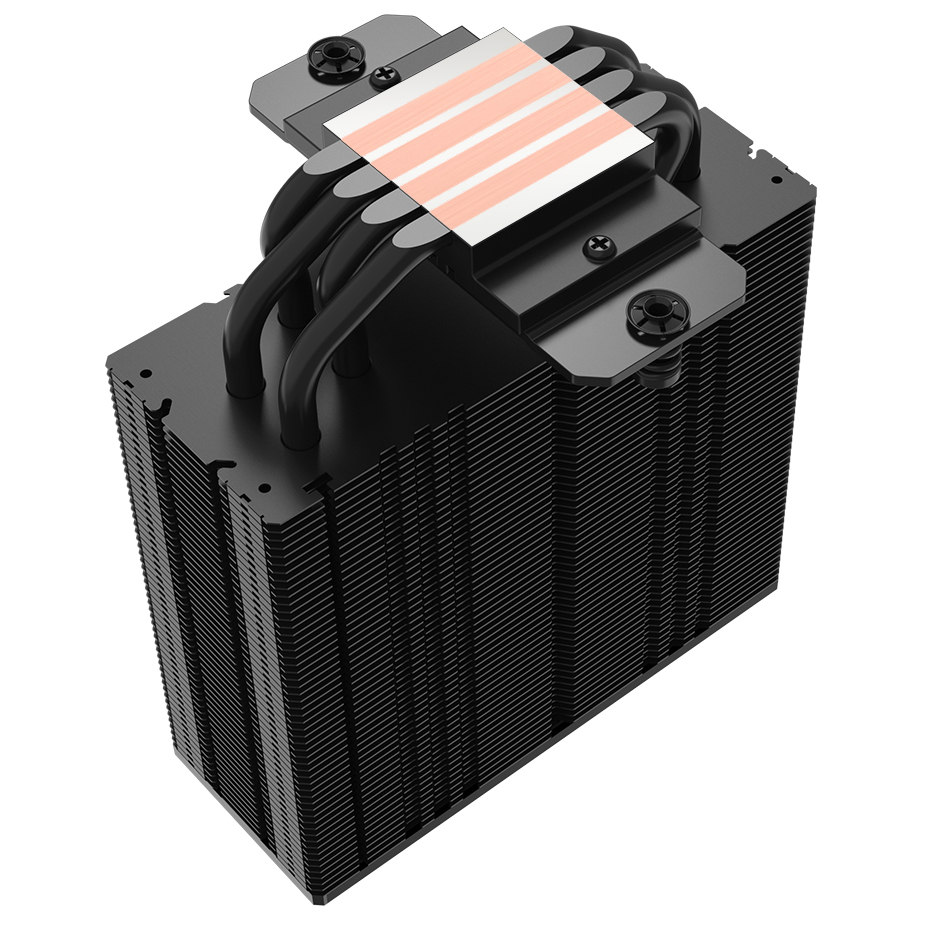

H.D.T 3.0 Direct Contact Heat Pipes
The heat pipe direct touch technology enhances the contact intensity by 30% more.

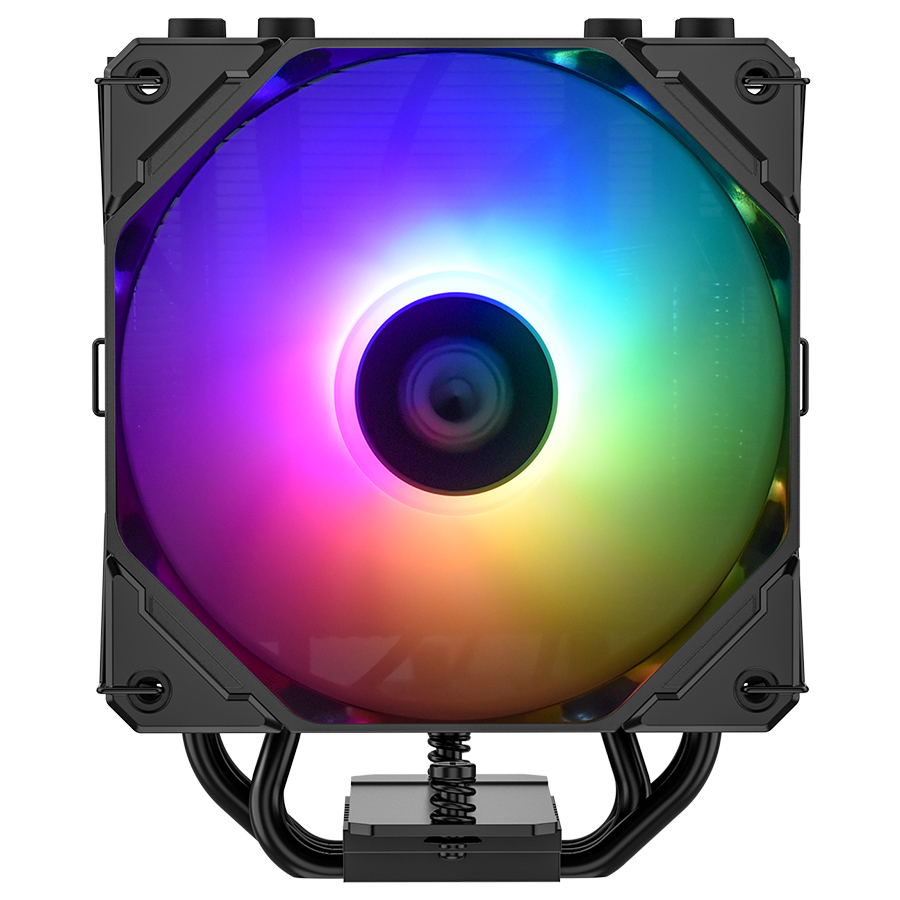

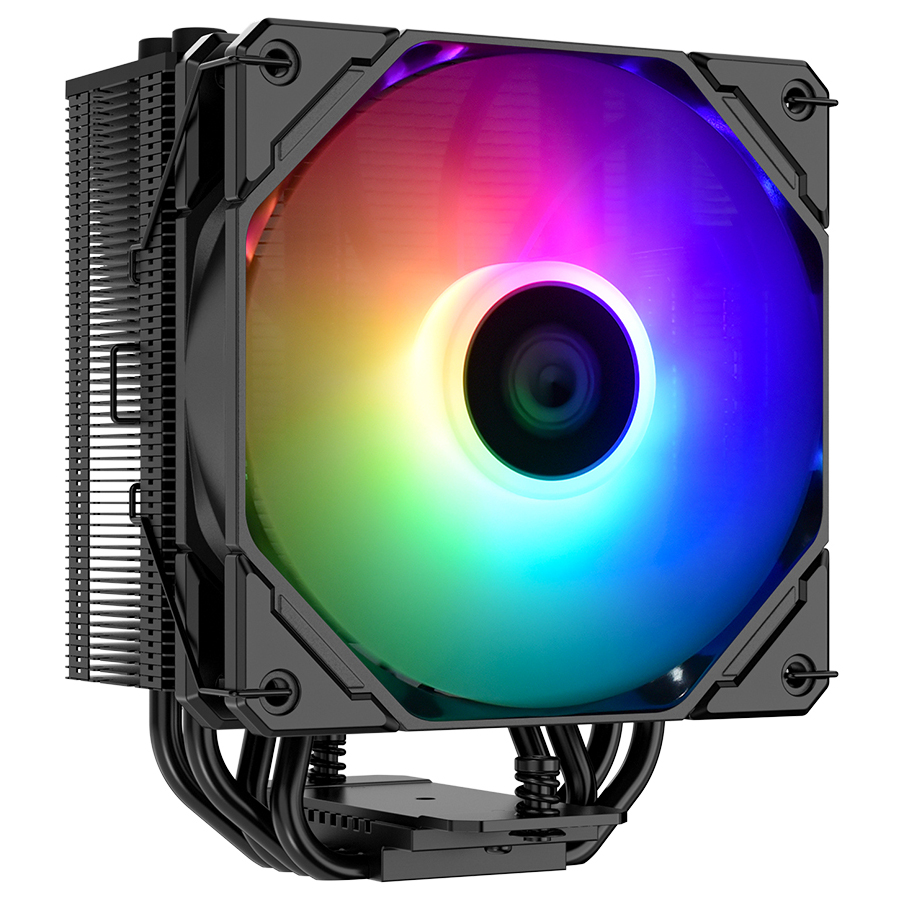

Enhanced Air Pressure Fan with ARGB
To achieve a bigger air pressure, optimised frame is designed to get the best performance.
Perfect Memory Compatibility
Heatsink slant design provides excellent memory compatibility even in Mini-ITX motherboards.
Specifications
| Model Number |
SE-224-XTS ARGB |
| Compatibility |
Intel: LGA1851/1700/1200/1151/1150/1155/1156
AMD: AM5/AM4 |
| TDP |
220W |
| Overall Dimension |
120x75x151mm (LxWxH) |
| Heatsink Material |
4xF6mm Heatpipe (Direct Touch) + Aluminium Fin |
| Weight |
650g (heatsink+fan) |
| Fan Dimension |
120x120x25mm |
| Fan Speed |
600±200 ~ 1500±10% RPM |
| Max. Air Flow |
70CFM |
| Max. Static Pressure |
2.15mmH2O |
| Noise |
28.9dB(A) Max. |
| Rated Voltage |
12VDC (4-pin PWM) |
| Operating Voltage |
10.8~13.2VDC |
| Started Voltage |
7VDC |
| Rated Current |
0.2A |
| Power Input |
2.4W |
| Bearing Type |
Hydraulic |
| Connector |
4-Pin PWM |
| Warranty |
2 Years |
Backed by a 2 year ID Cooling warranty.
