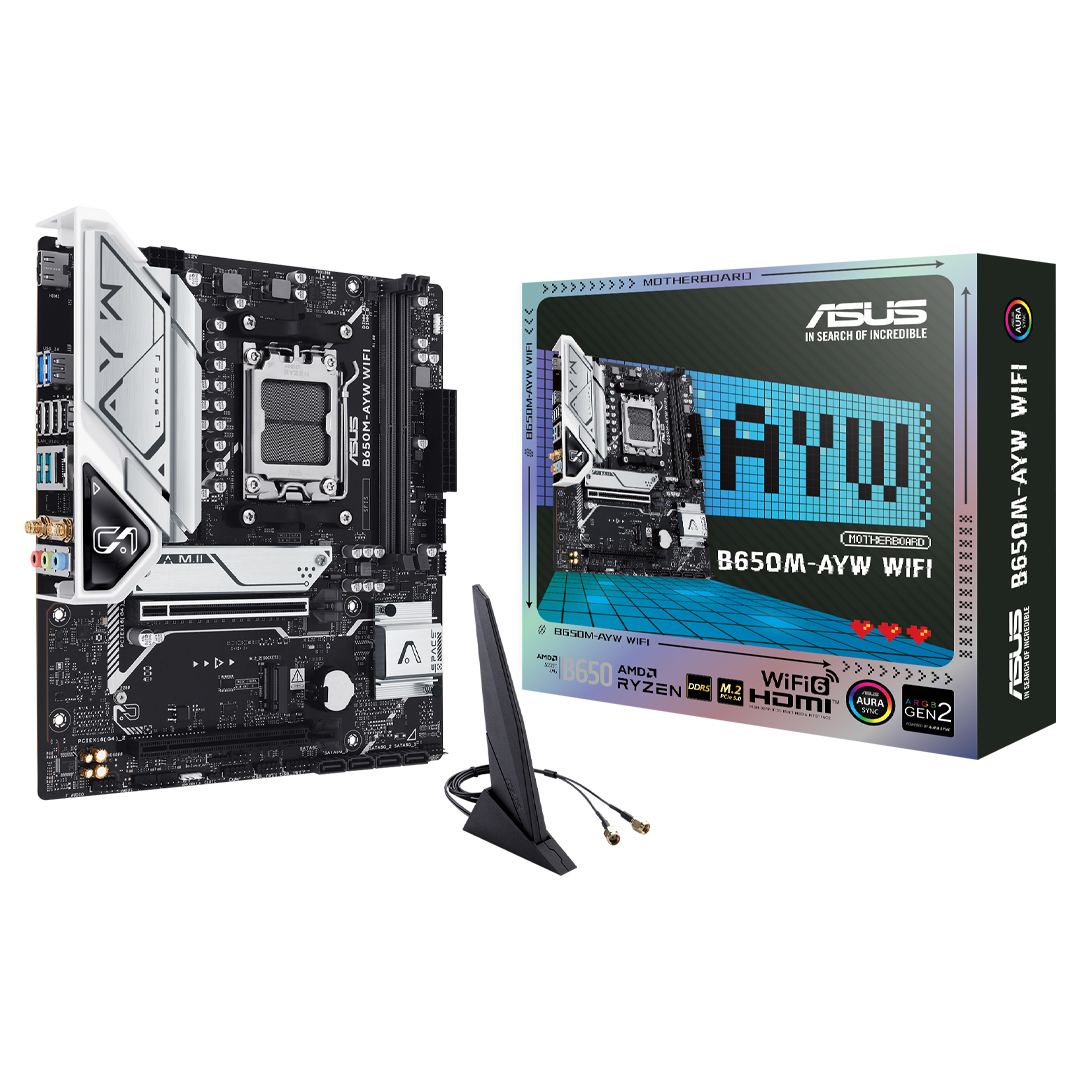

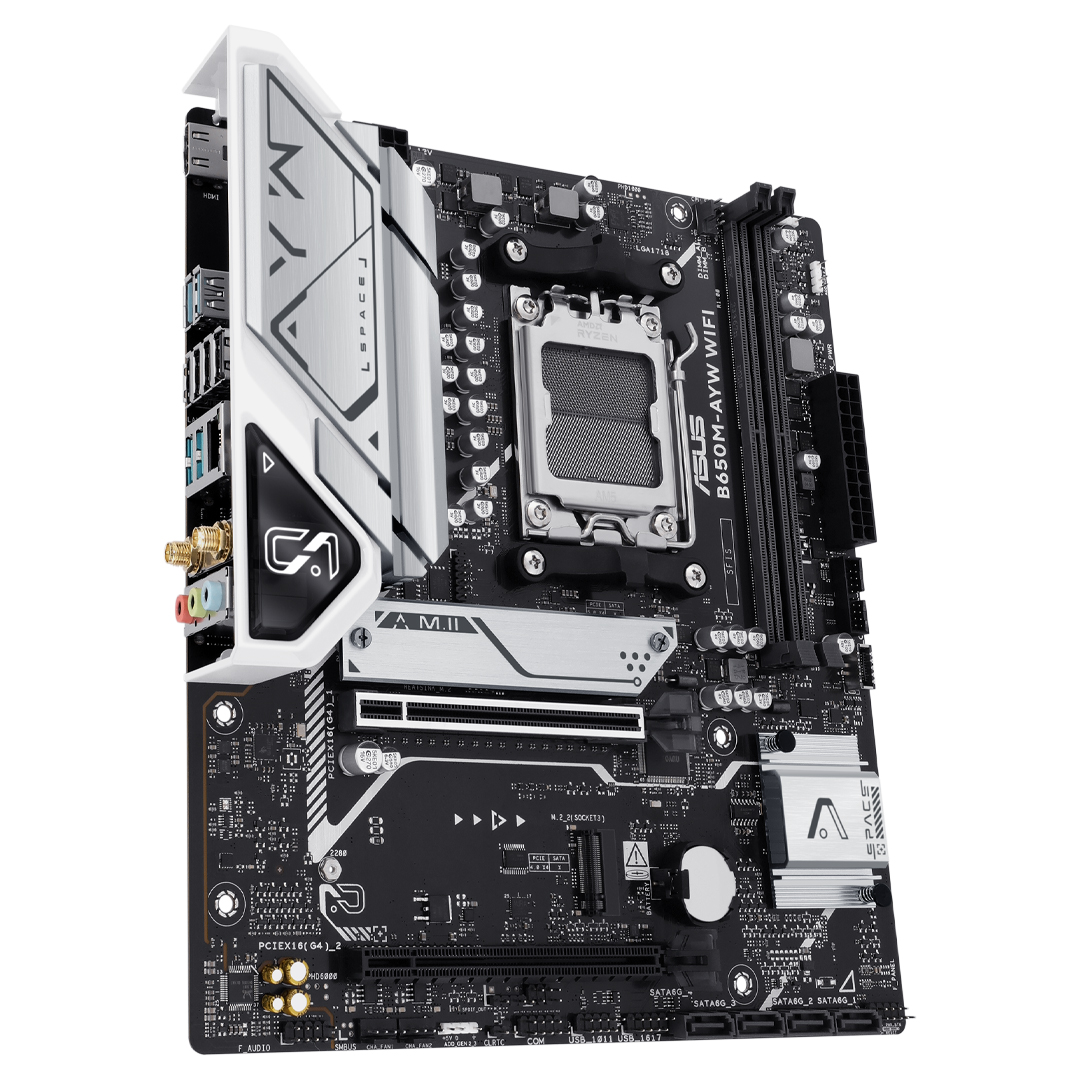

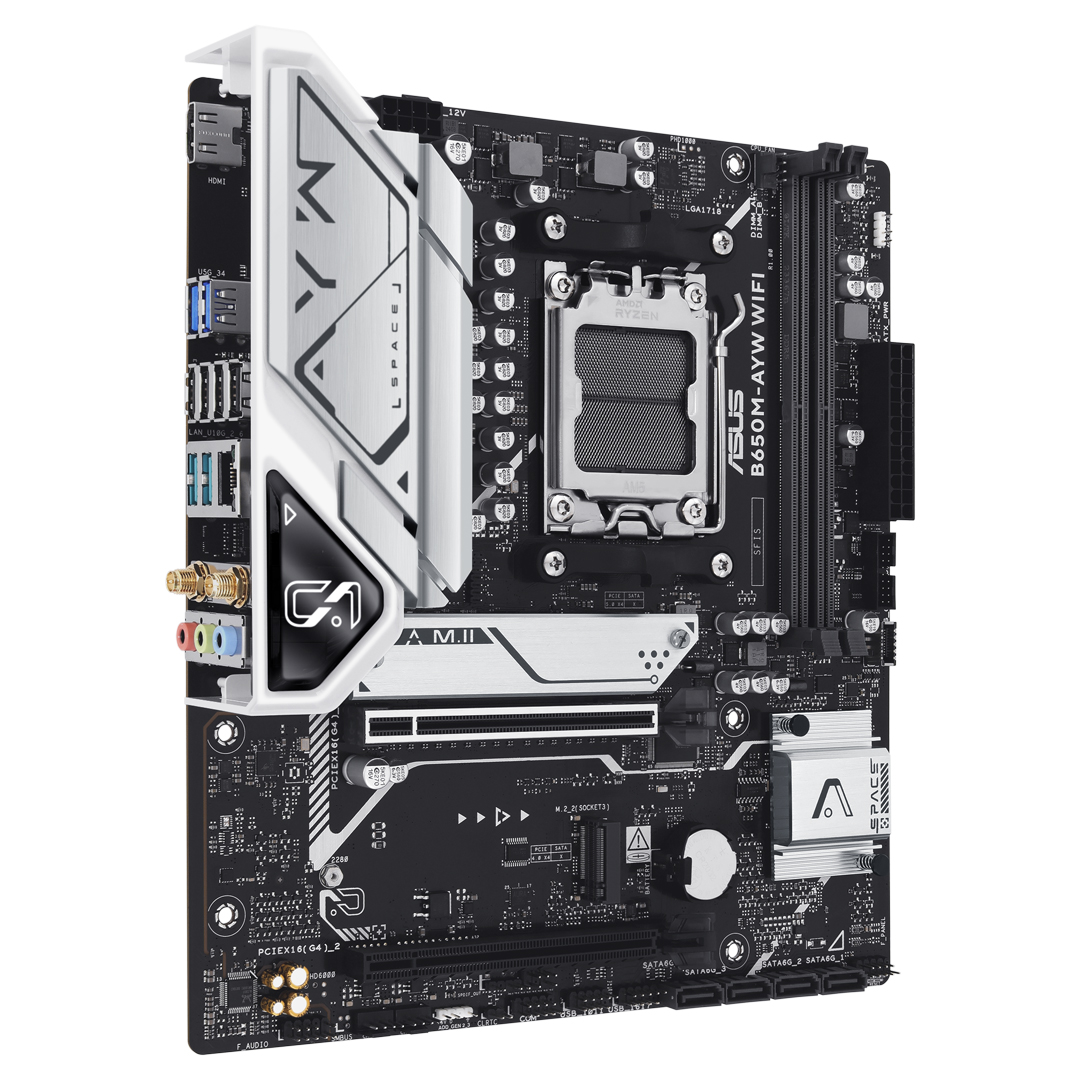

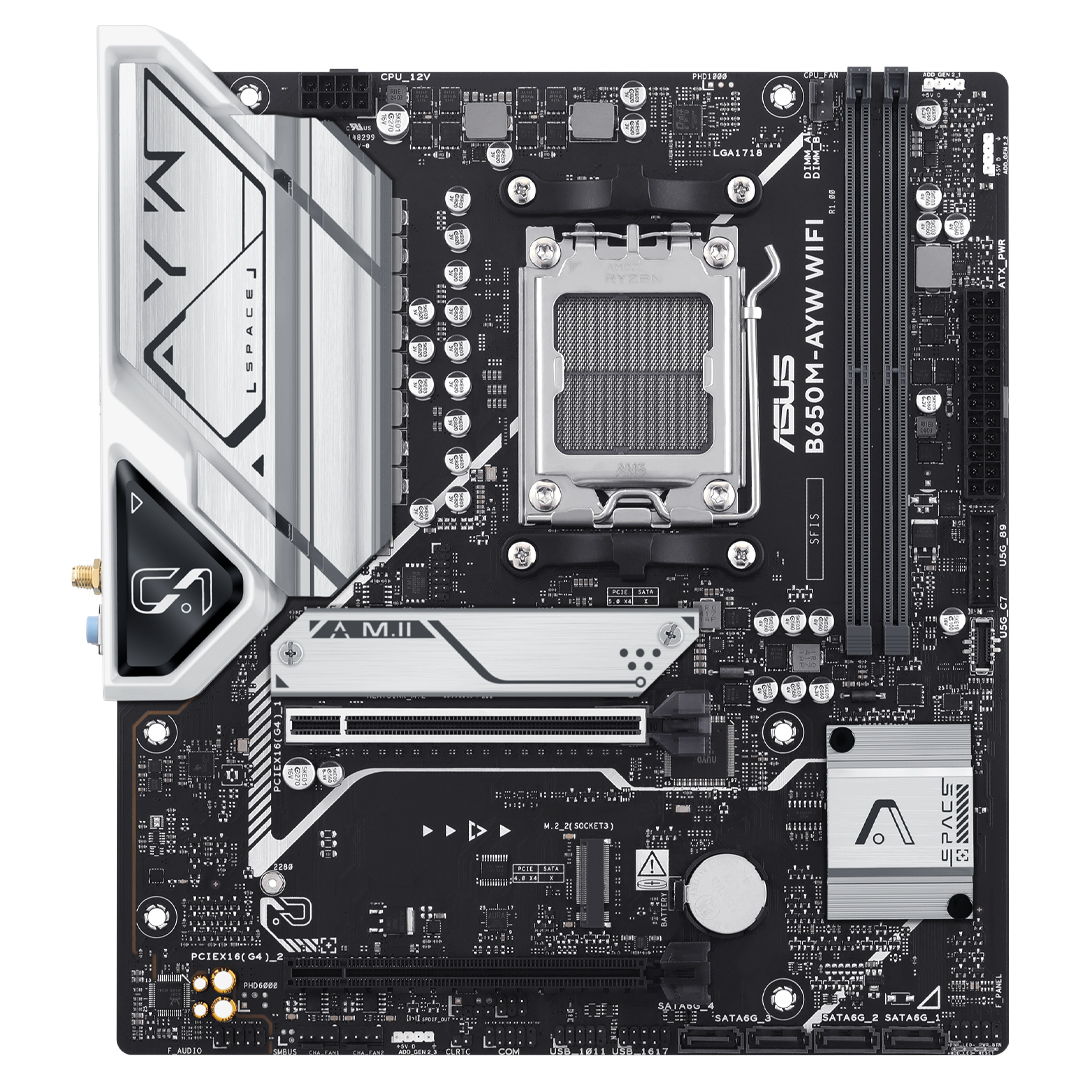

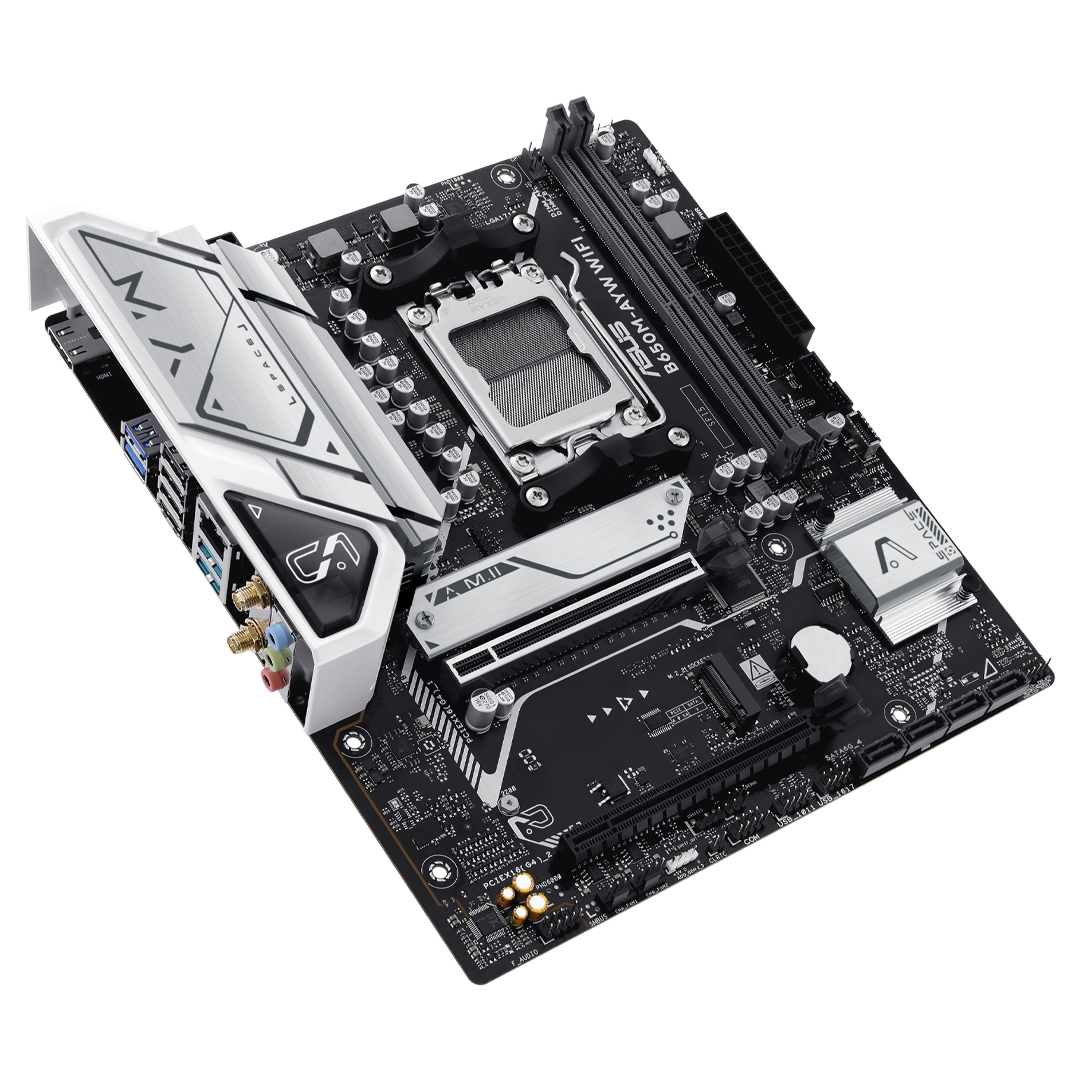

ASUS B650M AYW WiFi Motherboard

The ASUS B650M AYW WiFi DDR5 Motherboard features an AM5 socket supporting AMD Ryzen 7000 series processors and offers dual-channel DDR5 memory support up to 8000MT/s (OC). It also includes a PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 10Gbps ports and comprehensive cooling solutions with VRM and M.2 heatsinks.

Features

---

B650M-AYW WiFi

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2 support, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancellation, Aura Sync.

ASUS B650 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B650M-AYW WIFI provides users and PC DIY builders with a range of performance optimisations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AM5 Socket for AMD Ryzen™ Desktop Processors
• Ultrafast Connectivity: PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimisations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

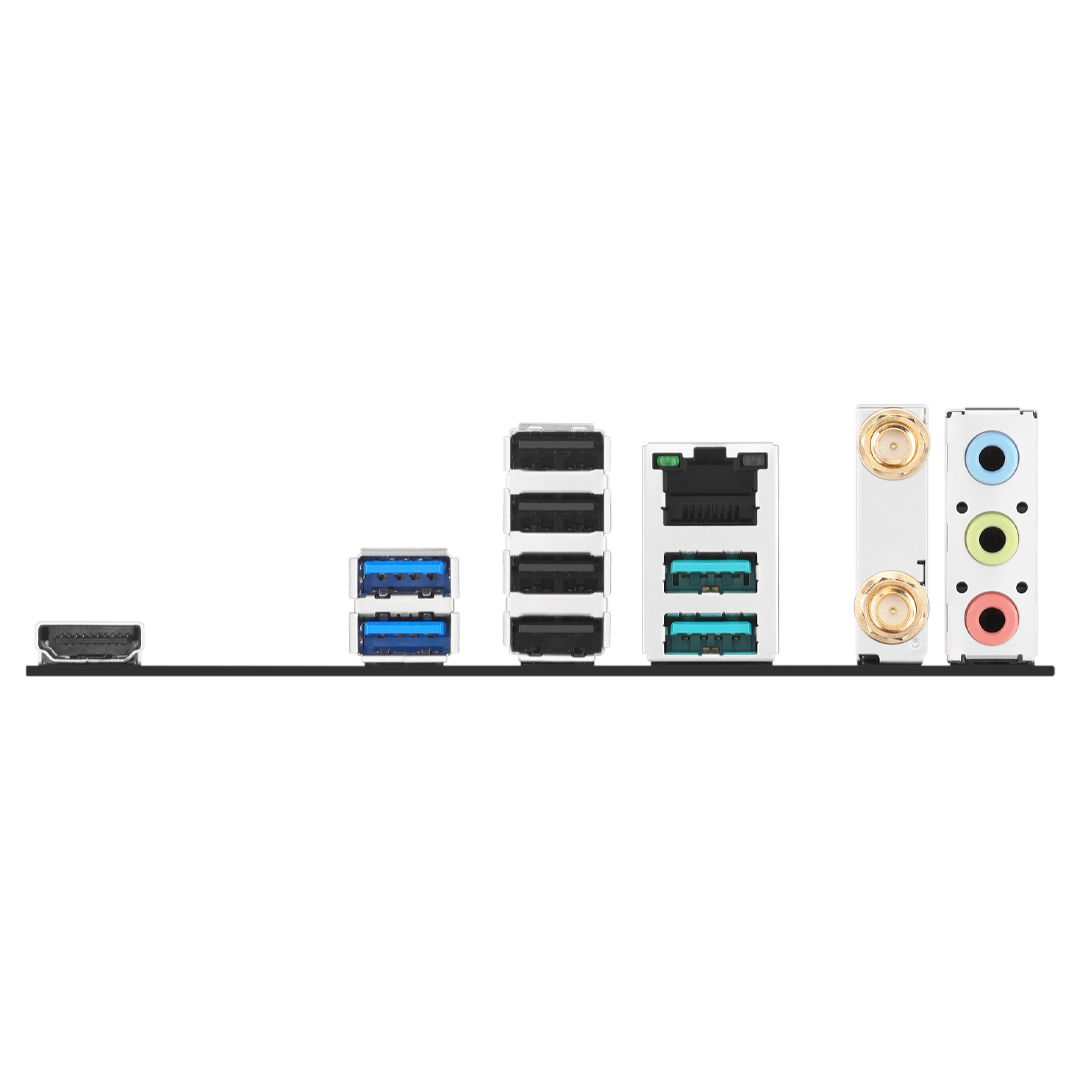

Specification

• HDMI™ port
• 2 x USB 5Gbps (Type-A)
• 4 x USB 2.0 (Type-A)
• Realtek 2.5 Gb Ethernet
• 2 x USB 10Gbps (Type-A)
• Wi-Fi 6
• 3 x Audio jacks
• Expansion Slots
  1 x PCIe 4.0 x16 SafeSlot Core+
  1 x PCIe 4.0 x16 (@x4)
• 1 x Addressable Gen 2 header
• 2 x Addressable Gen 2 headers
• 2 x DIMM DDR5
• AM5 Socket for AMD Ryzen™ Desktop Processors
• 2 x Front USB 5Gbps Type-A
• 1 x Front USB 5Gbps Type-C®
• 1 x M.2 2280 (PCIe 5.0 x4 mode)
• AMD B650 Chipset
• 1 x M.2 2280 (PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s
• 4 x Front USB 2.0

Flexibility

Comprehensive controls form the foundation of the ASUS B650 series. B650M-AYW WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.

Intelligent Control

Power Saving

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Fan Xpert 2+

Flexible Cooling Controls

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Digi+ VRM Control

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Transfer configuration settings between different BIOS versions, or share them with friends

EZ Mode

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Cooling

ASUS B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

M.2 Heatsink

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler By Design

ASUS B650 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

Six-Layer PCB Design

Multiple PCB layers optimise heat management for critical components to keep them at their optimal operating temperatures.

Performance

The ASUS B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Memory

DDR5 Performance Enhancement

Comprehensive memory tuning options are the cornerstone of ASUS B650 series motherboards. With the B650M-AYW WIFI, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

For entry-level modules without EXPO™ memory support, we’ve got you covered.

For those who want to fly past stock DDR5 speeds, the B650M-AYW WIFI is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

ASUS OptiMem II

Revisions to the motherboard’s trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Benefits of ASUS OptiMem II

• Improved memory stability and compatibility
• Allows lower memory latencies at equivalent voltages
• Improved memory frequency margin

Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software.

Storage

PCIe 5.0 M.2 Support

B650M-AYW WIFI offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

PCIe 4.0 Slot

B650M-AYW WIFI offers PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 10Gbps Type-A

A batch of USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A connectors with fast USB 10Gbps for transmission speeds of up to 10Gbps.

Front USB Type-C®

A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 5Gbps Type-C® connector that provides data transfer speeds of up to 5Gbps.

Wi-Fi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimised for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

• Wireless Wi-Fi 6 Adaptor - 1.2 Gbps
• Other Wireless Adaptor - 0.86 Gbps

*Actual speed varies and depends on networking conditions.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

• Lower CPU workload
• High TCP and UDP throughput

LANGuard

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Customisation

The ASUS B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customise your system to create a uniquely personal look.

Outstanding Audio

Combined Onboard Features Deliver Elevated Audio.

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analogue/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Personalisation

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

• Static
• Breathing
• Strobing
• Rainbow
• Colour Cycle
• Starry Night
• Music Effect
• Smart

Addressable Gen 2 Headers

Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Two-Way AI Noise Cancellation

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

• 500M Deep-learning database
• Audio Input/output
• High Fidelity
• Minimal Performance Impact

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customised Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

• Dashboard
• Aura Sync
• Two-way AI noise cancellation
• Fan Xpert 2+
• Power Saving
• Driver & Manual Download
• Account Management

DIY-Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

• No DRAM Detected - Fast blinking 4 Hz (0.25s)
• No VGA Detected - Slow blinking 1/2 Hz (2s)
• No Boot Device Detected - Very slow blinking 1/8 Hz (8s)
• Installation Completed - Solid light

Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

• Strengthened solder points around the PCIe and DIMM pins.
• Metal inserts keep graphics cards properly aligned during installation.
• The metal side-panels feature hooks that firmly clasp the slot body.

Overvoltage Protection

World-Class Circuit-Protecting Power Design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

Stainless-Steel Back I/O

3X Corrosion-Resistance for Greater Durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

1000+ Compatible Devices and Components

Prime 700 series provides superior compatibility with thousands of components and a memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+ Validation hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and Humidity Tests

Ensures components withstand extreme conditions.

Thermal Measurement Tests

Ensures that the system remains cool and stable under the heaviest loads.

Insertion Tests

Every port and connector is put through repeated installation cycles.

Ageing Tests

Up to 48-hour ageing test ensures reliability.

Power-Consumption Tests

Checked for world-class energy efficiency.

Temperature and DC Margin Tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-Shock Tests

Ensures ability to survive temperature changes during transportation.

Non-Operation Shock Tests

Built to withstand jolts that may occur during shipping.

Burn-In Tests

Every component is checked to ensure flawless operation.

Installation Tests

Connector placement is double-checked to ensure hassle-free installation.

Drop Tests

Drop tests from various heights ensure durability.

Salt and Spray Tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.

This Changes Everything

From this new platform, you can see the future.
