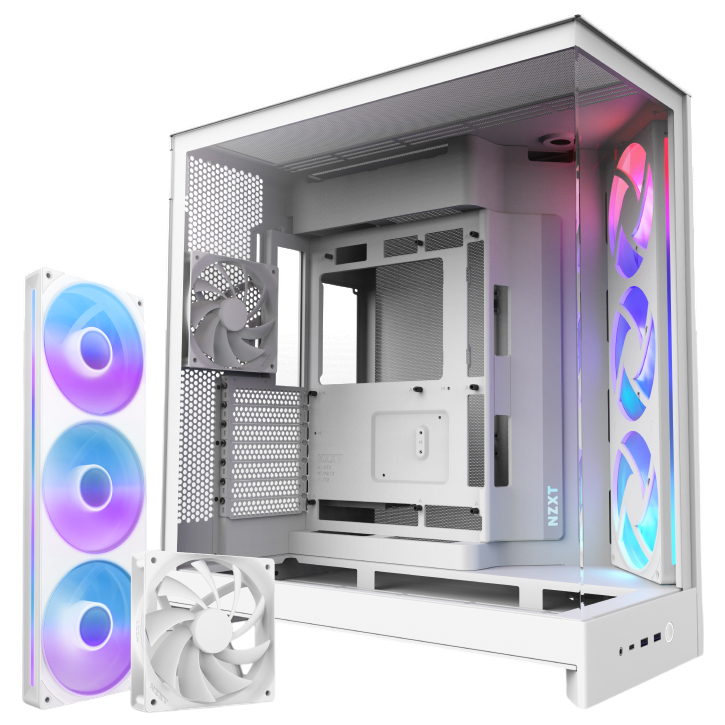

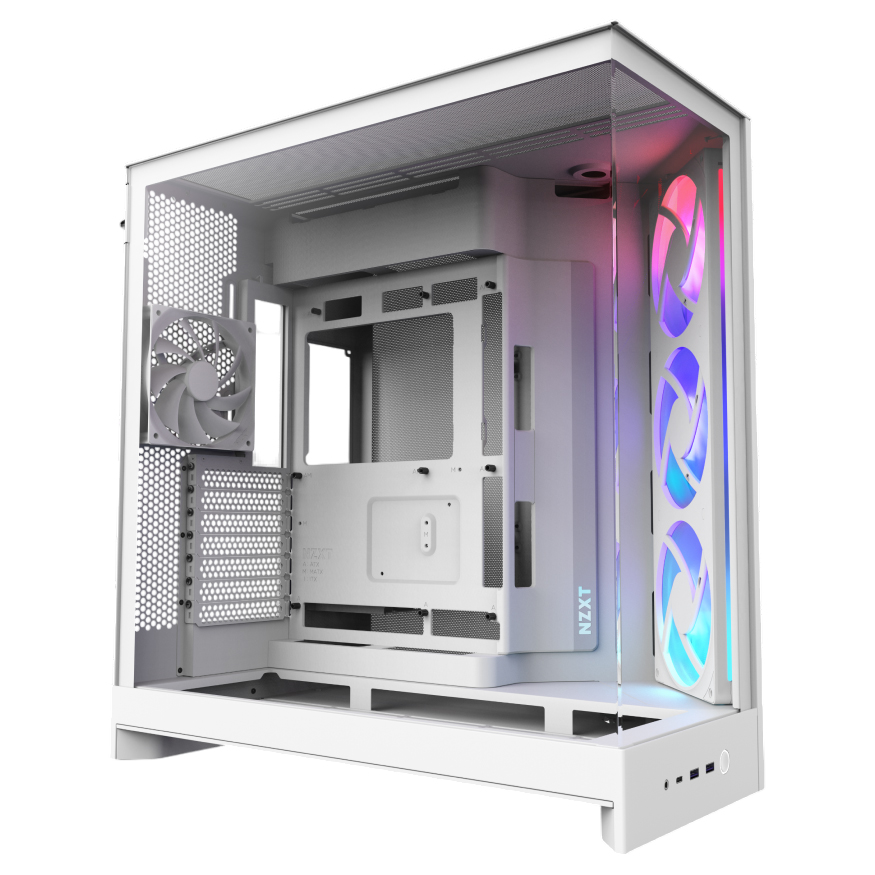

The NZXT H9 ATX Midtower Chassis RGB White is a dual-chamber mid-tower case designed for high-performance builds. It features a unique wraparound tempered glass design, providing a clear view of your components. The case supports up to 10 fans and multiple radiator configurations, ensuring optimal airflow and cooling. Its spacious interior allows for easy cable management and accommodates various motherboard sizes, including ATX, Micro-ATX and Mini-ITX.
Features
H9 Flow RGB Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB
Built to Flow. Made to Show.
The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimised Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass panelling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

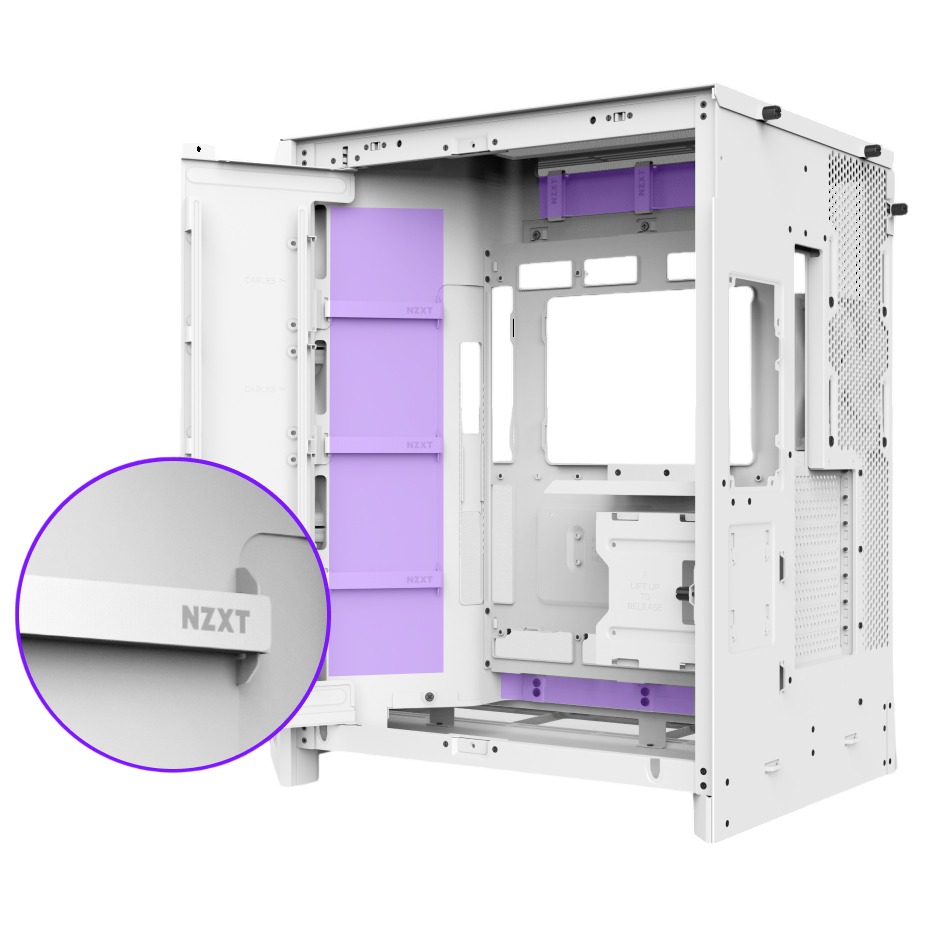

- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Optimised Airflow
Angled front-right fans and an airflow-optimised layout keep temps low and performance steady.
Mesh Panels
Ultra-fine, high-airflow mesh panels maximise airflow while filtering dust.

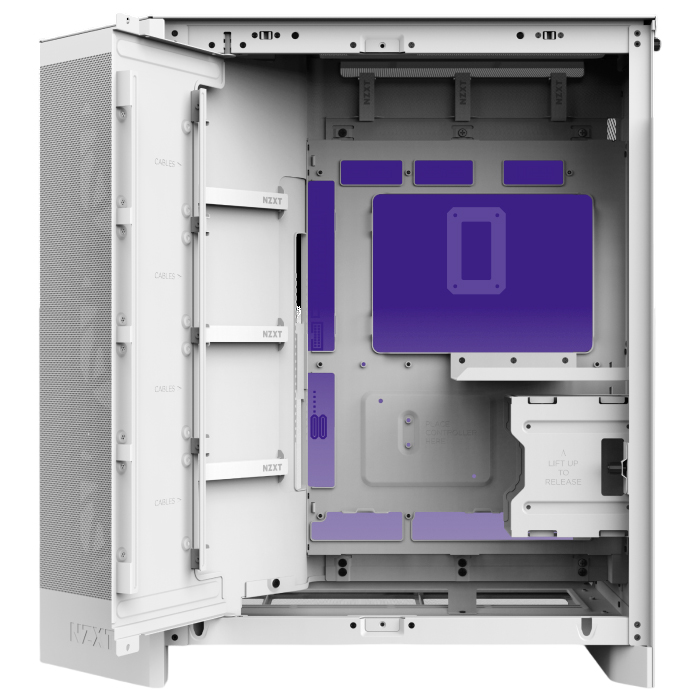

Spacious Dual-Chamber
Separates heat-generating components for improved airflow and a cleaner build.
10-Fan Cooling
Fits up to nine 140 mm fans and one 120 mm rear fan.
Large Radiator Support
Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.
Maximum Graphics
Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.
Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.
Easy Cable Management
Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.
Specifications
General Data
| Model Number |
CM-H92FW-R1 |
| Colour |
White |
| Enclosure Type |
Mid-tower |
| Motherboard Compatibility |
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Rear-Connecting Motherboard Support (BTF, Project Zero) |
Yes (ATX) |
| Materials |
SGCC steel, Clear tempered glass |
| Warranty |
2 years |
| What's Included |
H9 Flow RGB x 1
Pre-installed F420 RGB Core x 1
Pre-installed F120Q (CV) x 1
Installation accessories x 1
User guide x 1 |

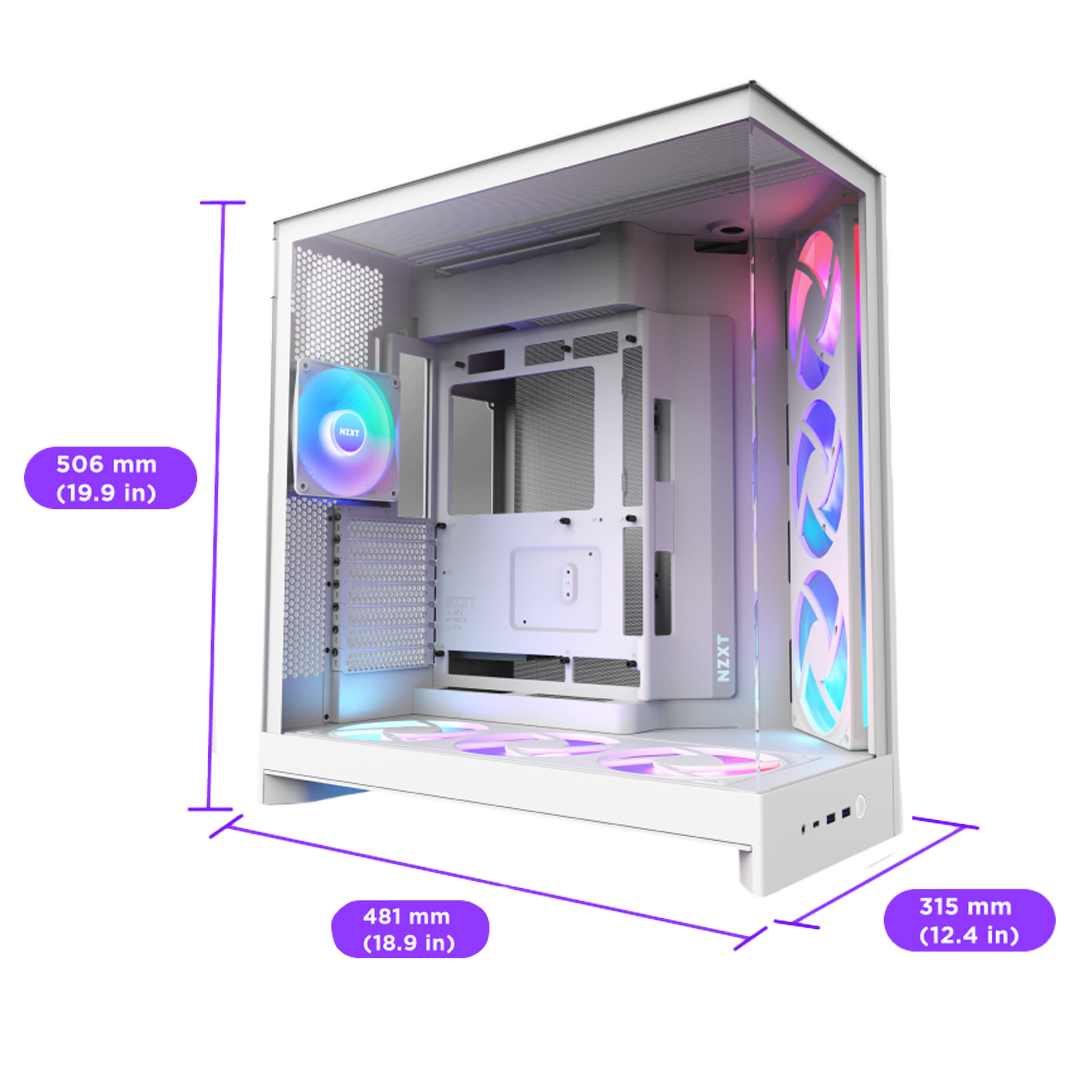

Dimensions
| Height |
506 mm (19.9 in) |
| Width |
315 mm (12.4 in) |
| Depth |
481 mm (18.9 in) |
| Volume |
76.7 L |
| Weight |
12.6 kg (27.78 lb) |
Clearance
| CPU Cooler Height |
165 mm |
| GPU Length |
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) |
| PSU Length |
200 mm |
| Top Radiator & Fan Thickness |
Up to 80 mm (360 mm) Up to 62 mm (420 mm) |
Front I/O Ports
| USB 3.2 Type-A |
2 |
| USB 3.2 Gen2x2 Type-C |
1 |
| Headset Jack |
1 |
Expansion Slots
Drive Bays
Fan Support
| Front-Right |
3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) |
| Top |
3 x 120 mm / 3 x 140 mm |
| Bottom |
3 x 120 mm / 3 x 140 mm |
| Rear |
1 x 120 mm (1 x F120Q (CV) included) |
Radiator Support
| Front-Right |
Up to 420 mm |
| Top |
Up to 420 mm |
| Bottom |
Up to 360 mm |
| Rear |
Up to 120 mm |
Fan - F420 RGB Core
| Model |
F420 RGB Core |
| Speed |
2,000 ± 200 RPM |
| Airflow |
98.61 CFM |
| Static Pressure |
3.2 mmH2O |
| Noise |
34.5 dBA |
| Fan Connector |
8-pin w/ splitter |
Fan - F120Q (CV)
| Model |
F120Q (CV) |
| Speed |
1,350 ± 150 RPM |
| Airflow |
60.2 CFM |
| Static Pressure |
1.05 mmH2O |
| Noise |
24.1 dBA |
| Fan Connector |
3-pin |
Backed by a 2 year NZXT warranty.
