Ubiquiti SuperLink Super Long-range Low-latency Wireless Gateway
UP-SUPERLINK | UbiquitiThis product has been discontinued
The Ubiquiti SuperLink Super Long range Low latency Wireless Gateway features proprietary SuperLink technology that supports up to 96 sensors with a line of sight range up to 2 kilometres. It offers Bluetooth Low Energy 52 for short range communication, flexible power options via PoE or USB Type C and supports wall or DIN rail mounting for easy installation.
Features
Ubiquiti SuperLink Super Long-range Low-latency Wireless Gateway
Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
SuperLink Setup Guide
Note: Long-range BLE coverage is comparable to WiFi coverage
Deployment
Build Features

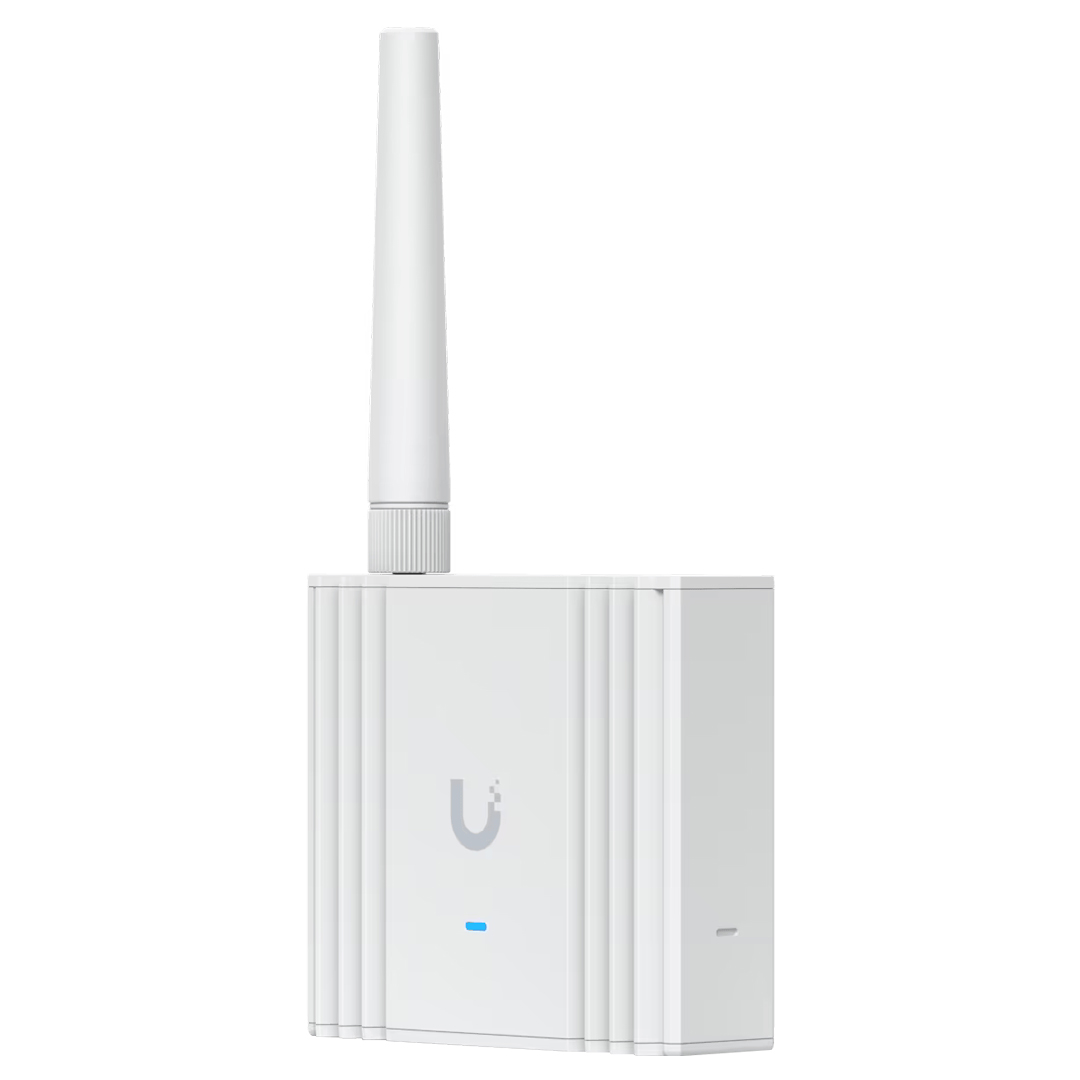

Front View

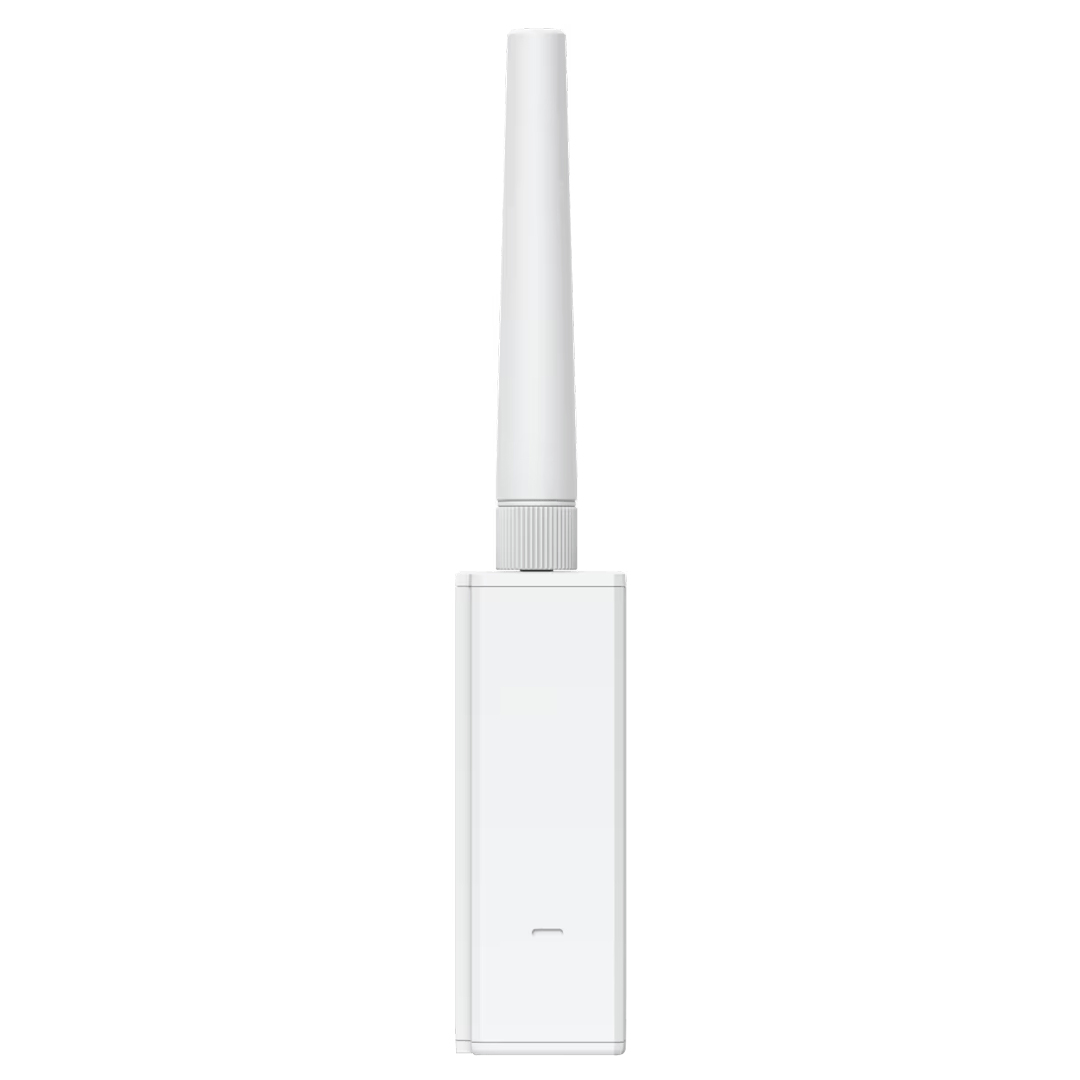

Top View
Bottom View
Specifications
General Data
| Model Number | UP-SUPERLINK |
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, Aluminium alloy |
| Mount Material | Polycarbonate |
Hardware
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Management Interface | Bluetooth® 5.2 SuperLink (Proprietary) |
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Max. Power Consumption | 3.4W |
| ESD/EMP Protection | Air: ± 8kV Contact: ± 4kV |
| Antenna Gain | Bluetooth: 3 dBi SuperLink: 1 dBi |
| Max. TX Power | Bluetooth: 10 dBm SuperLink: 27 dBm |
| Max. Client Count | Bluetooth: 7 SuperLink: 96 |
| LED | (1) Blue/white |
| Button | (1) Factory reset |
| Mounting | Wall, DIN rail |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
Software
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
Backed by a 1 year Ubiquity warranty.
