Ubiquiti UniFi U7 Pro XG Wireless Access Point WiFi 7 White

U7-PRO-XG | Ubiquiti
$389
In stock
Order within 4h 45m 41s for next day dispatch!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi U7 Pro XG is a high-performance WiFi 7 access point with tri-band coverage and a 10 GbE uplink for ultra-fast speeds. It supports over 300 devices, covers up to 140m2 and runs on PoE+ power. Perfect for dense networks, it's designed for easy ceiling or wall mounting.

Features

U7 Pro XG

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 White Feature 1

Deployment

Build Features

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 White Feature 2

Front View

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 White Feature 3

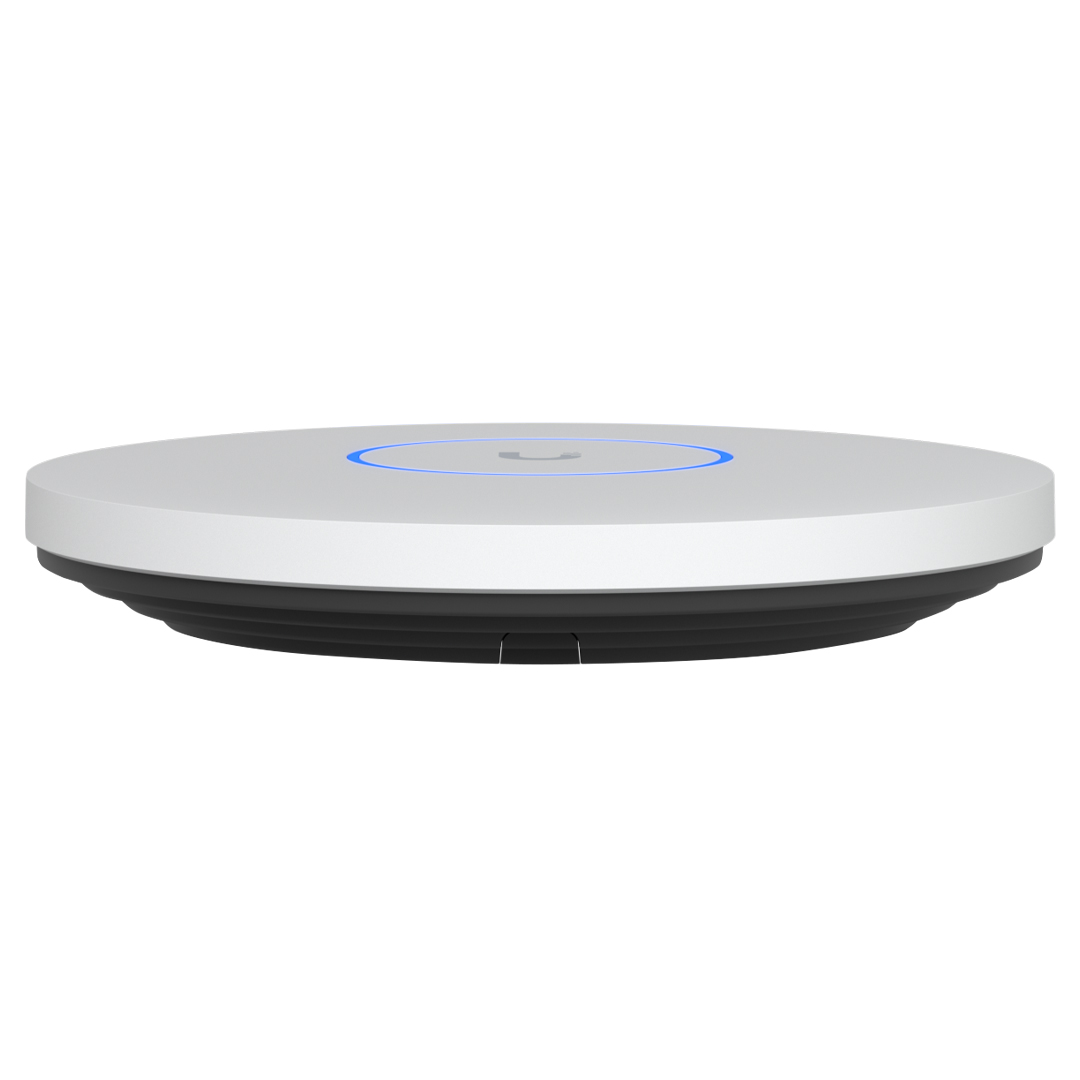

Side View

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 White Feature 4

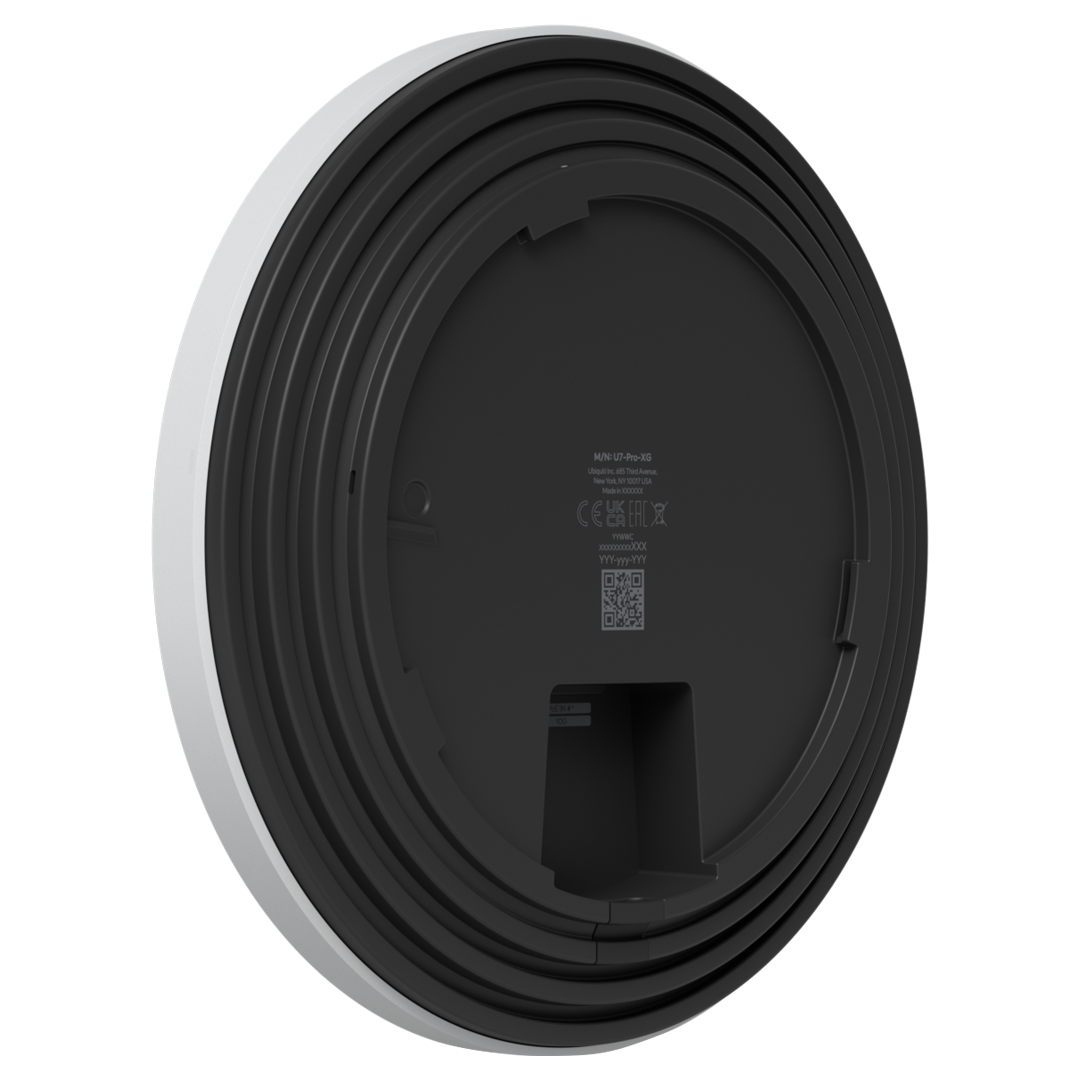

Back View

Specifications

General Data

Model Number U7-Pro-XG
Colour White
Dimensions Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 10 GbE

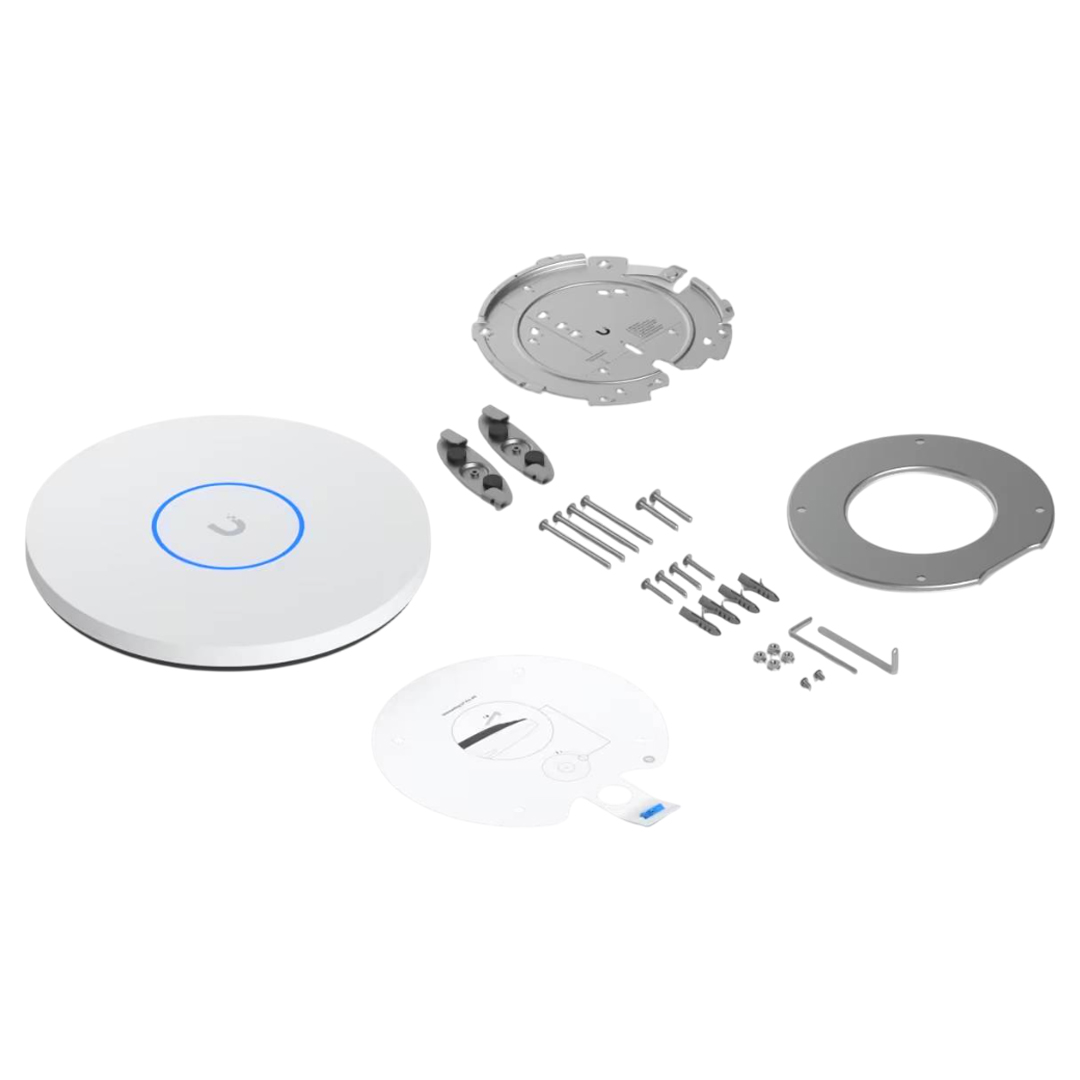

Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE+
Wireless Meshing Yes
Band Steering Yes
802.11v BSS Transition Management Yes
802.11r Fast Roaming Yes
802.11k Radio Resource Management (RRM) Yes
Advanced Radio Management Yes
Passpoint (Hotspot 2.0) Yes
Captive Hotspot Portal Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK) Yes
WiFi Speed Limiting Yes
Client Device Isolation Yes
WiFi Schedules Yes
RADIUS over TLS (RadSec) Yes
Dynamic RADIUS-Assigned VLAN Yes

Performance

MIMO 6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain 6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power 6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Hardware

Max. Power Consumption 22W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 10 GbE RJ45 port
Weight 750 g (1.7 lb)
Management Ethernet
Enclosure Material UV-stabilised polycarbonate, aluminium alloy
Mount Material Stainless steel (SUS304), galvanised steel (SGCC)
LEDs System: White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant Yes
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing

Software

Application Requirements UniFi Network: Version 9.0.114 and later
Backed by a 1 year Ubiquiti warranty.
