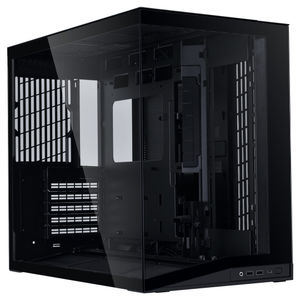

The Lian Li O11 Dynamic Mini Tempered Glass Case Black V2 features a precision-engineered 45.38L chassis that supports ATX, M-ATX, Mini-ITX and rear-connector ATX motherboards, offering a compact footprint with expanded hardware compatibility. It accommodates 400mm GPUs, 160mm CPU coolers, and ATX PSUs under 200mm, with support for up to nine 120mm fans and multiple radiator configurations, including a 360mm top radiator and a 240mm side radiator.
A compact chassis refined for serious performance, offering smart cooling, modular flexibility, and clean aesthetics in one sleek build.
Available in black or white, with or without pre-installed fans-four SKUs to match your build preferences.
Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow.

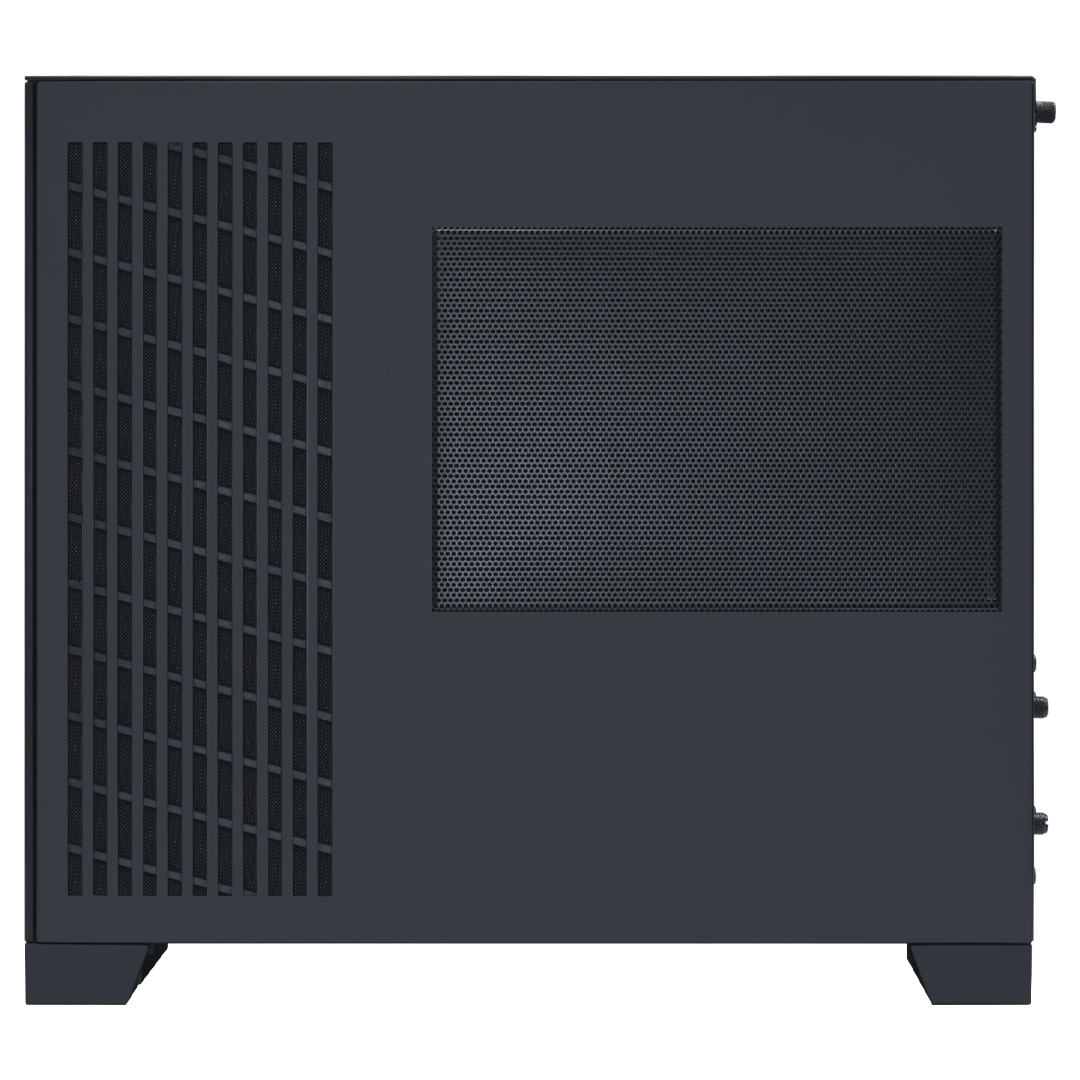

Side Mesh Extension for a Larger PSU
An extended side mesh design accommodates ATX PSUs up to 200mm without increasing the case width.
ATX Back-Connect Motherboard Support
The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.
Important Notice: Due to its compact design, the O11D MINI V2 only has 5 slots (first slot left out). So ATX motherboards that require the GPU to be installed in the first slot may not be compatible. For users with such motherboards, use of the included vertical GPU bracket is needed.
Angled Base for Direct GPU Airflow
A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.
The Flow Edition is Pre-Installed with Five Reverse-Blade Fans
Flow versions come with five reverse blade PWM fans-three at the bottom and two on the side, for strong, silent airflow right out of the box.
Optimised for GPU Cooling
The slanted bottom design and pre-installed fans channel airflow directly to the GPU, enhancing cooling efficiency. In thermal testing under identical noise levels, the O11D MINI V2 FLOW achieved significantly better GPU thermals, registering a 3.1°C improvement over the LANCOOL 207, or approximately 6% better GPU cooling performance.
- Thermal Test
- CPU simulated @350W
- GPU simulated @400W
- CPU Cooler: Scythe Orochi paired with one
- Noctua A12x25 SL-PWM fan running at 1200RPM
Adjustable Motherboard Standoffs for Radiator Flexibility
This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models.
Note: When using M-ATX motherboards with graphics card mounted on the second slot, graphics card thicker than 72mm may interfere with bottom fans.
Prepped for Performance, Built for Ease
Install fans or radiators outside the case, then drop in the entire bracket, simplifying the build process. The removable design also integrates a dust filter, keeping your system clean while making maintenance easy.
- Blue - Top fan/radiator bracket is removable, making top-side installation and cable routing much easier.

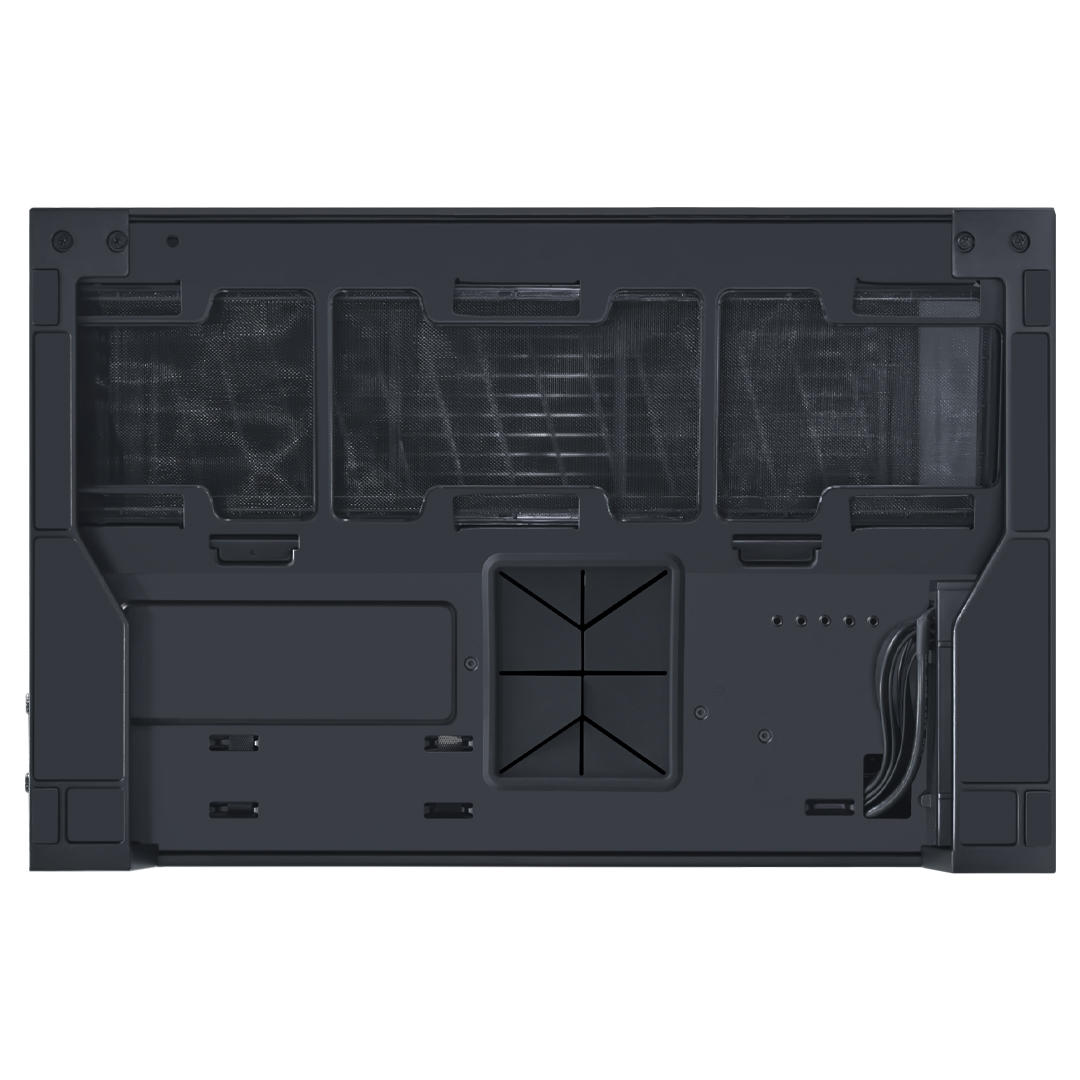

- Orange - The bottom dust filter can be quickly removed from the rear for convenient maintenance and long-term system cleanliness.

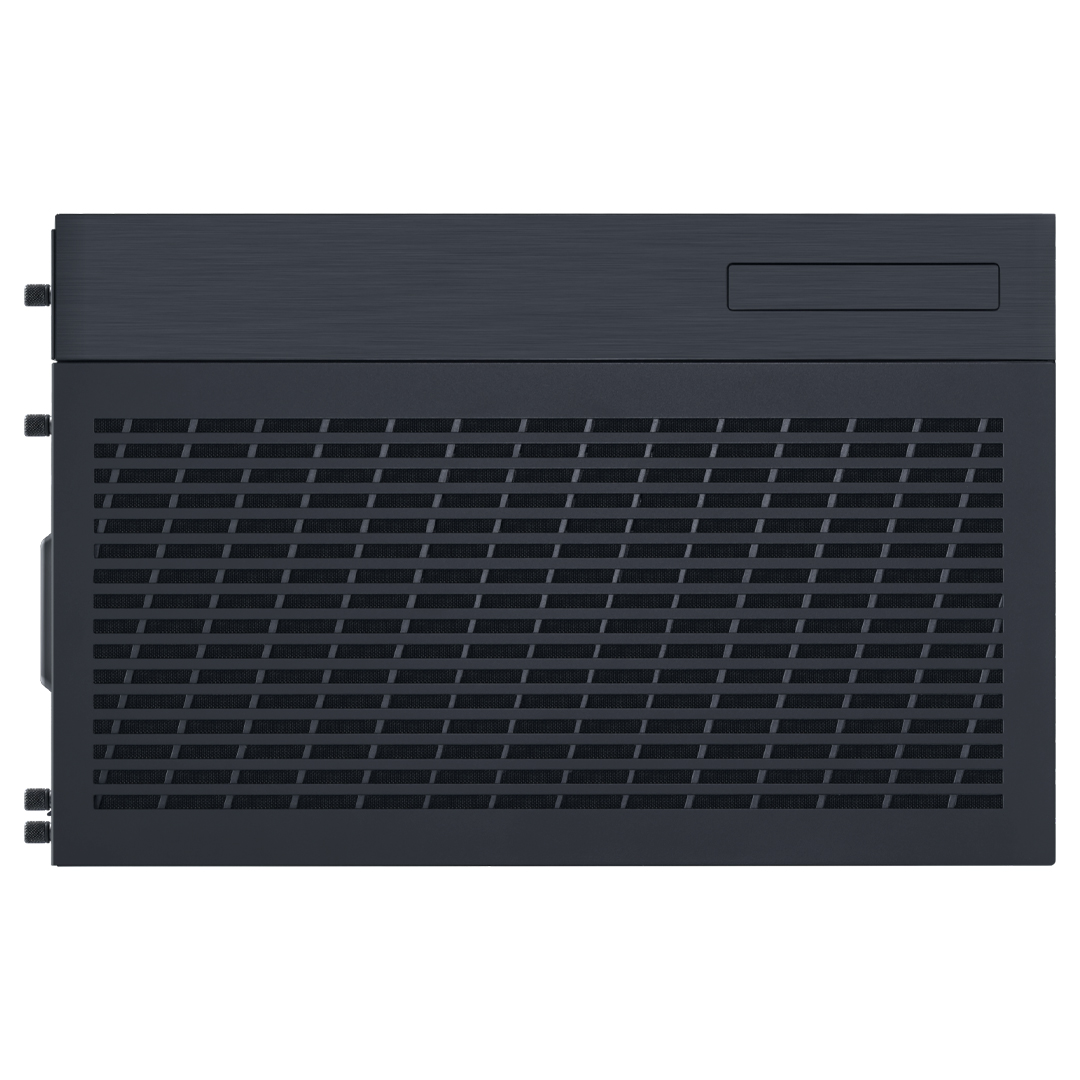

- Green - Both the top panel and the right side panel feature built-in mesh filters for effortless dust protection-no installation or removal required.
Airflow Covers for Prevented Pressure Leak
Tool-less fan cover brackets help seal off unused fan mounts, concentrating airflow where it matters most.
Top or Bottom I/O for Flexible Setup
The I/O module supports top or bottom placement, offering flexibility for various build layouts and desk arrangements.
Improved Airflow and Portability With Removable Bottom I/O and Cover
With the I/O module relocated to the top, the lower I/O and cover can now be removed to enhance bottom intake airflow. An optimisation aimed at improving thermal efficiency and ease of transport.
GPU Anti-Sag Support
Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation.
Adjustable Anti-Sag Bracket for Vertical GPU
The vertical GPU support bracket features height adjustment to accommodate thick cards and prevent GPU sag.
Built-in 24-Pin Cable Bracket for a Clean, Professional Look
This case comes with a built-in cable bracket that holds the 24-pin ATX power cable firmly in place, keeping it aligned and secure. This reduces strain on the connector and helps maintain a neat, organised appearance.
Build Smarter with 9 Dedicated Cable Straps
Thoughtfully positioned for different assembly zones, the cable straps make cable routing simpler and cleaner, even in tight spaces. Whether you're a first-time builder or a seasoned pro, this smart design ensures a faster, neater, and more enjoyable building experience.
1-2. CPU EPS cables
3. 24-pin power cable
4-5. Back-Connect motherboard cables
6-7 - Peripheral (Molex) & SATA power cables
8-9 - GPU PCIe power cables
Dual-Purpose Drive Cages with Cable Storage
Dual-purpose drive cages accommodate 2.5" and 3.5" HDDs or offer dedicated space for cable management, ensuring a clean and tidy build.
Designed for Tight Spaces, Built for Aesthetic Excellence
Engineered to maximise clearance in compact setups, the bottom cable grommets provide optimised pathways for your cables, ensuring functional flexibility and a seamless, uncluttered build aesthetic.
Aluminium Feet for Stability and Style
Machined aluminium feet enhance case stability while contributing to a refined overall aesthetic.
Included Accessories
