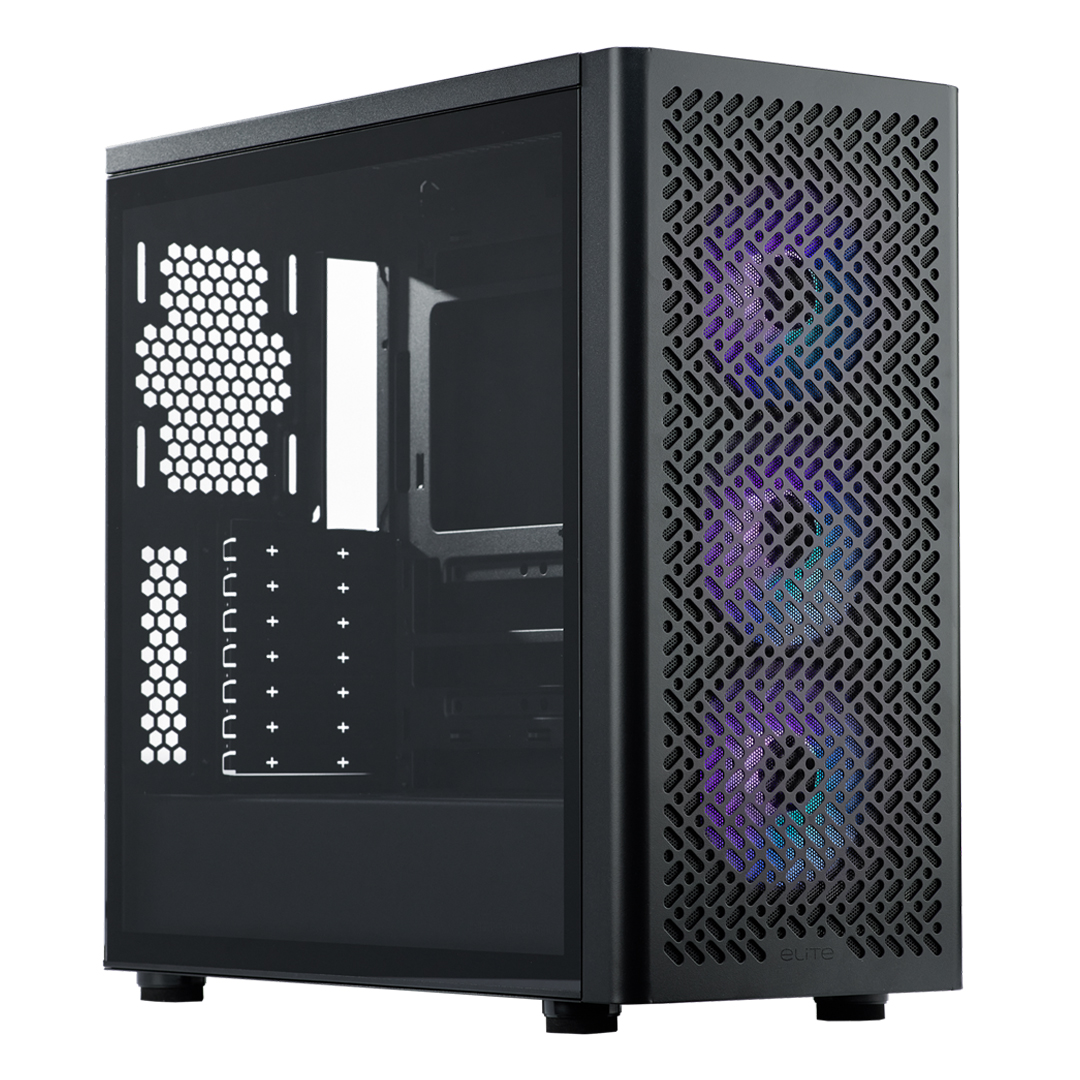

The Cooler Master Elite 502 ARGB Mid Tower Case features a tempered glass side panel and three pre-installed 120mm ARGB fans to the front for exceptional airflow and style. With further support for up to a total of seven 120mm fans (front, top and rear), and radiator support of up to 420mm (front, top and rear), for optimised cooling and performance. It supports graphics cards up to 410mm in length, CPU coolers up to 170mm in height and features modern connectivity with front I/O USB Type-C support. Additional features include a tool free magnetic mesh front panel and ventilated PSU shroud design, as well as rear connector motherboard support for ITX, mATX and ATX motherboards, for easier cable management and an efficient and streamlined build experience.
Features
Elite 502
Effortless Efficiency
The Elite 502 delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.
Back-Connected Motherboard Support
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.
Optimised Airflow

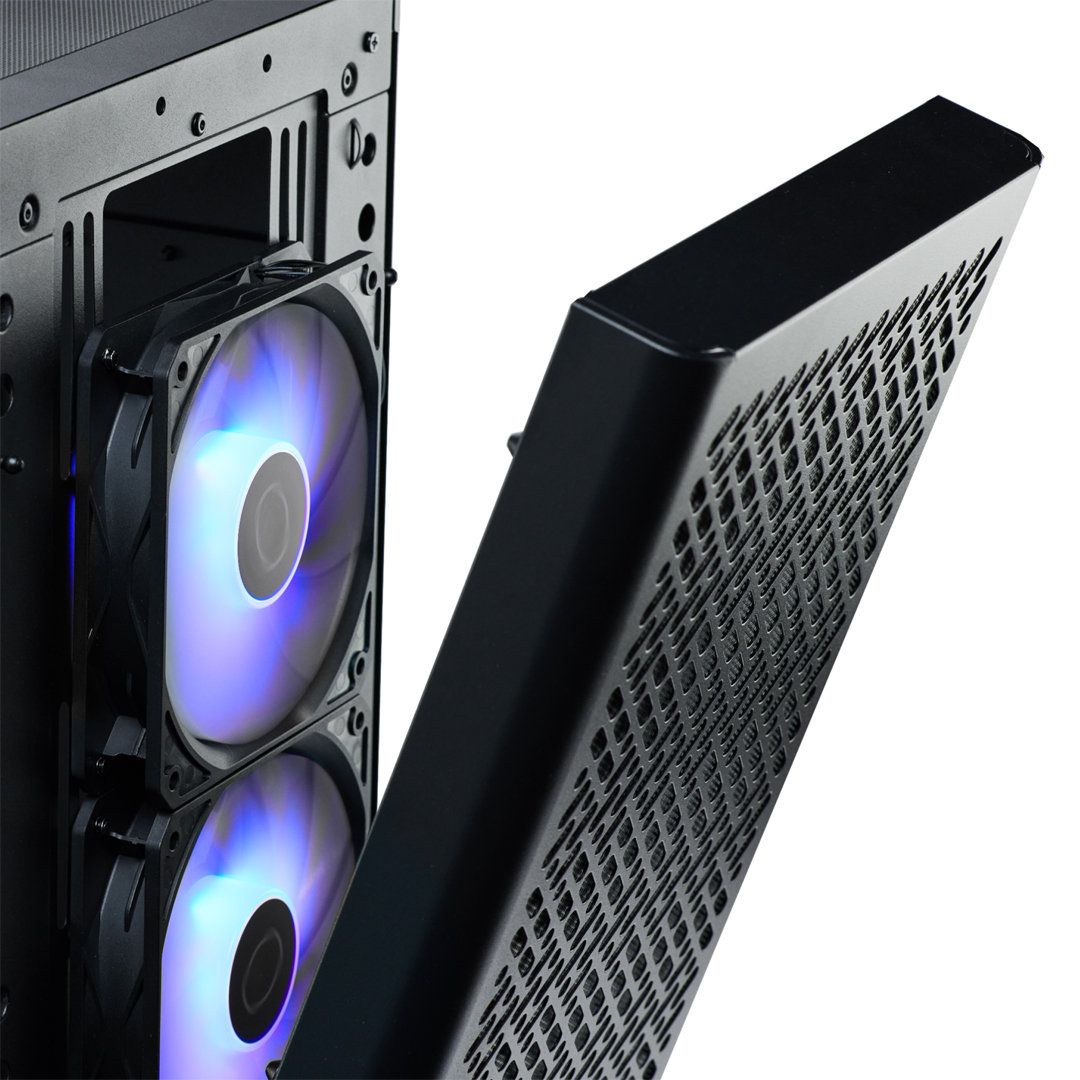

Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.
USB Type-C Upgrade
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
- Type C
- Type A
- 3.5mm Audio + Mic
Room for Updates
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.
Versatile Thermal Options
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.
Removable HDD Cage
The HDD cage is completely removable, providing better access during assembly and system upgrades.
Specifications
| Model Number |
E502-KGNN-SAZ |
| Product Name |
Elite 502 |
| Colour |
Black |
| Materials - Exterior |
Steel |
| Materials - Right Side Panel |
Steel |
| Materials - Left Side Panel |
TG |
| Dimensions (L x W x H) |
474 x 230 x 481 mm(Incl. Protrusions), 435 x 230 x 465 mm(Excl. Protrusions) |
| Volume (incl. Protrusions) |
49.73 L |
| Motherboard Support |
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots |
7 |
| 3.5" Drive Bays |
2 |
| 2.5" Drive Bays |
2 (Max.6) |
| I/O Panel - USB Ports |
1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel - Audio In / Out |
3.5 mm Combo x 1 |
| Fan Support - Front |
(Filtered) 140 mm x 3 / 120 mm x 3 |
| Fan Support - Top |
(Filtered) 140 mm x 2 / 120 mm x 3 |
| Fan Support - Rear |
1x 120mm |
| Pre-Installed Fans - Front |
3x 120mm ARGB Fans |
| Radiator Support - Front |
120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457x140x27 mm) |
| Radiator Support - Top |
120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear |
120mm |
| Clearance - CPU Cooler |
170mm |
| Clearance - PSU |
170mm, 210mm (w/o HDD Cage) |
| Clearance - Graphics Card (Installed 3.5"HDD BRK) |
360 / 410 mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray |
33-35 mm |
| Dust Filters |
Top, Front, Bottom |
| Power Supply Support |
ATX |
| Warranty |
2 years |
| Series |
Elite Series |
| Size |
Mid Tower |
Backed by a 2 Cooler Master warranty.
