The TP-Link OC220 Omada Hardware Controller features easy on premises network management, batch configuration and batch firmware upgrading, with free cloud access to remotely control the whole network. With spport for up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs. The OC220 Omada Hardware Controller is a mini yet mighty solution to conveniently manage your network.
Features
Omada Hardware Controller
A Mini yet Mighty Omada Controller that Works Without a Running PC/Server.
- Centralised Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs (The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.)
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
- Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

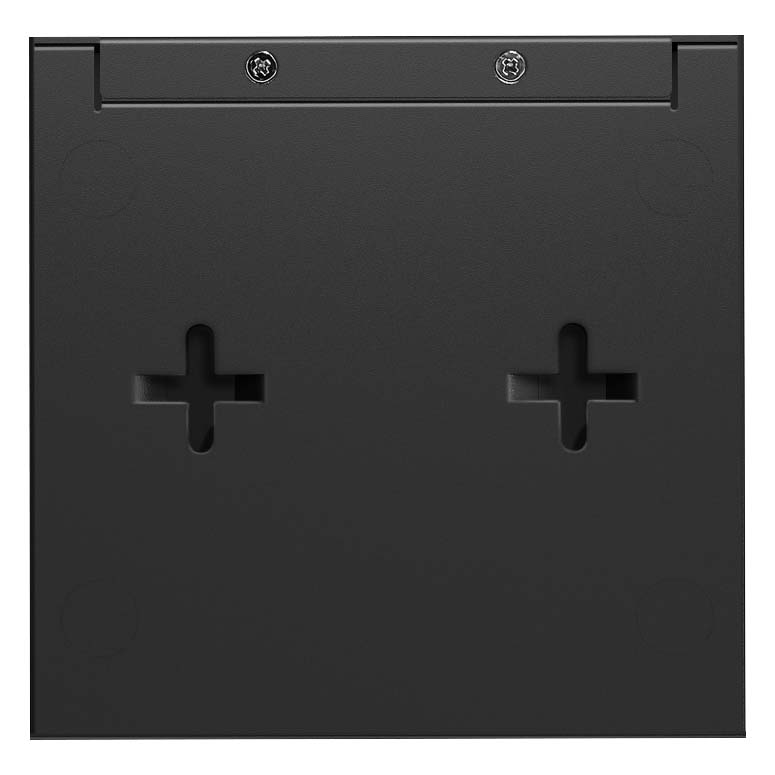

- Flexible Deployment: Powered via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.
- Manage up to 130 Devices (The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.)
- Fanless for Silent Operation
Hybrid Cloud Management for Maximum Convenience
Remotely or locally manage up to 100 Omada access points, 10 gateways, 20 switches, and two DeltaStream GPON OLTs via the Omada App or Web UI. (The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.)
Build Features

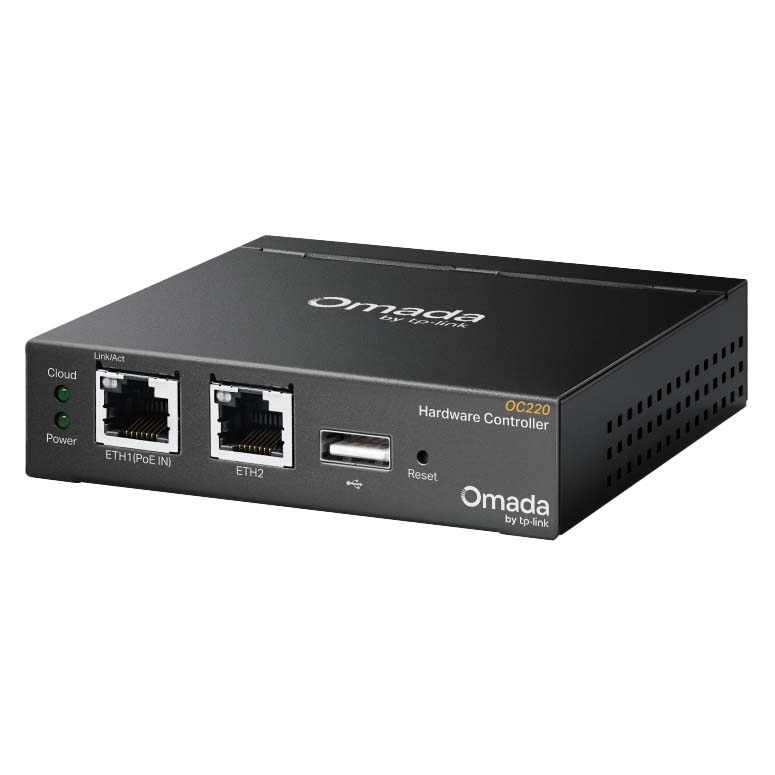

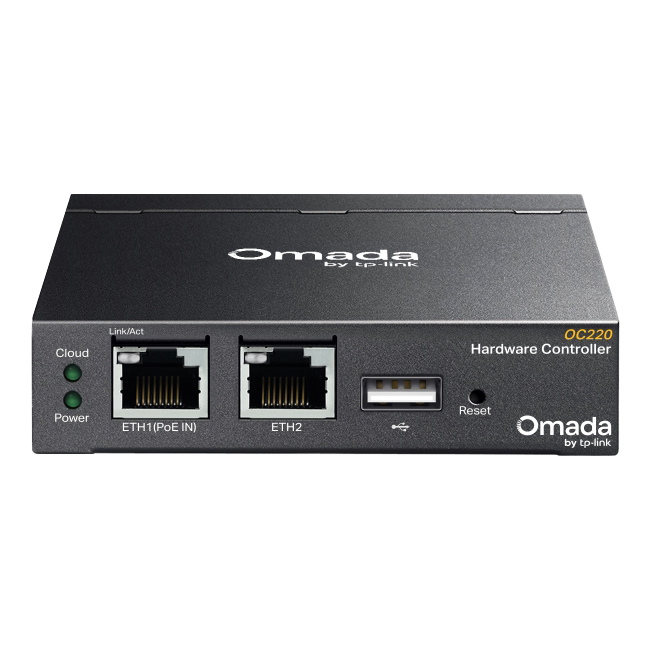

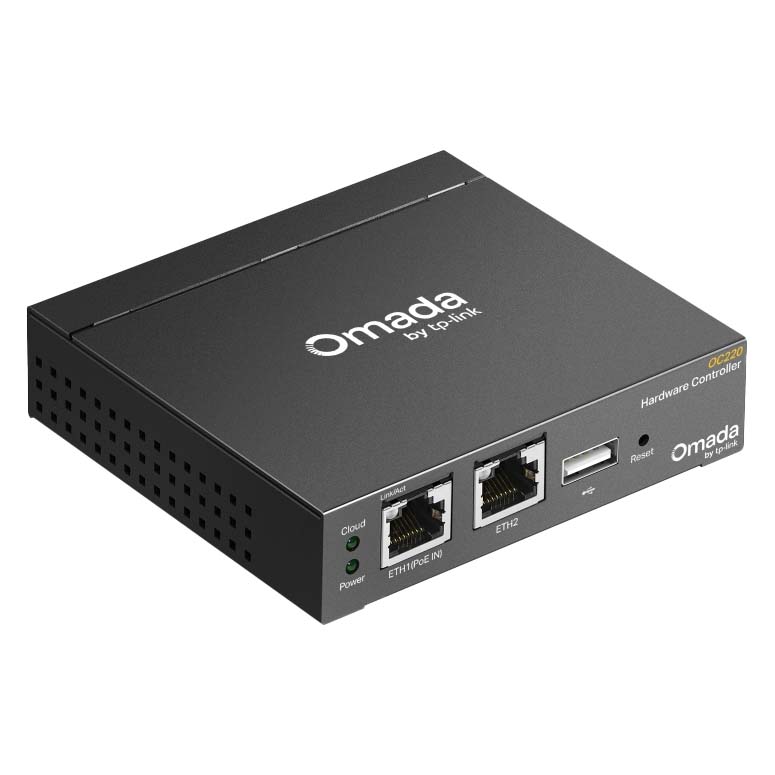

Front View

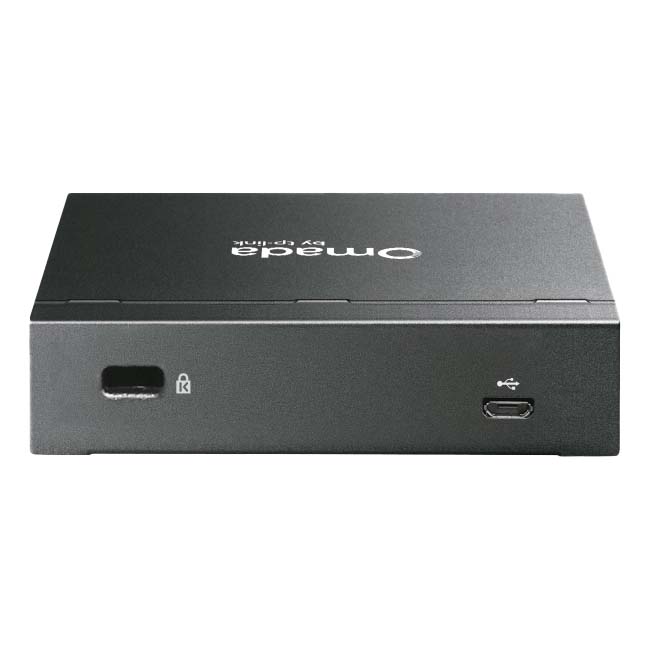

Back View
Dimensions
Specifications
General Data
| Model Number |
OC220 |
| Certification |
CE, FCC, RoHS |

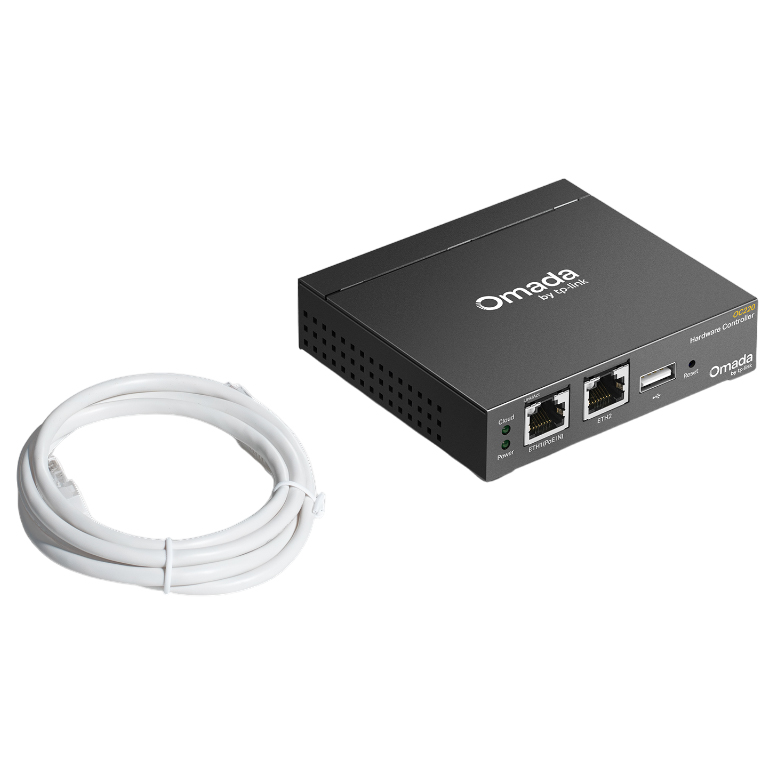

| What's Included |
Omada Hardware Controller OC220
Quick Installation Guide
RJ45 Ethernet Cable |
| System Requirements |
Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment |
Operating Temperature: -5–50 (23–122 )
Storage Temperature: -40–70 (-40–158 )
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
Hardware Features
| Interface |
2x Gigabit Ethernet Ports
1x USB 2.0 Port
1x Micro USB Port |
| Power Supply |
802.3af PoE
Micro USB(DC 5V/Minimum 1A) |
| Dimensions ( W x D x H ) |
3.9x3.9x1.0 in (100x98x25 mm) |
Management Features
| Omada App |
Yes |
| Centralised Management |
100 Omada access points
10 Omada gateways
A maximum of 20 Omada switches (The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.)
A maximum of two select DeltaStream GPON OLTs (The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.)
Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 |
| Cloud Access |
Yes |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management Features |
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration |
Backed by a 5 year TP-Link warranty.
