Ubiquiti G3 Access Gate Starter Kit

UA-G3-SK-GATE | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$1217
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns

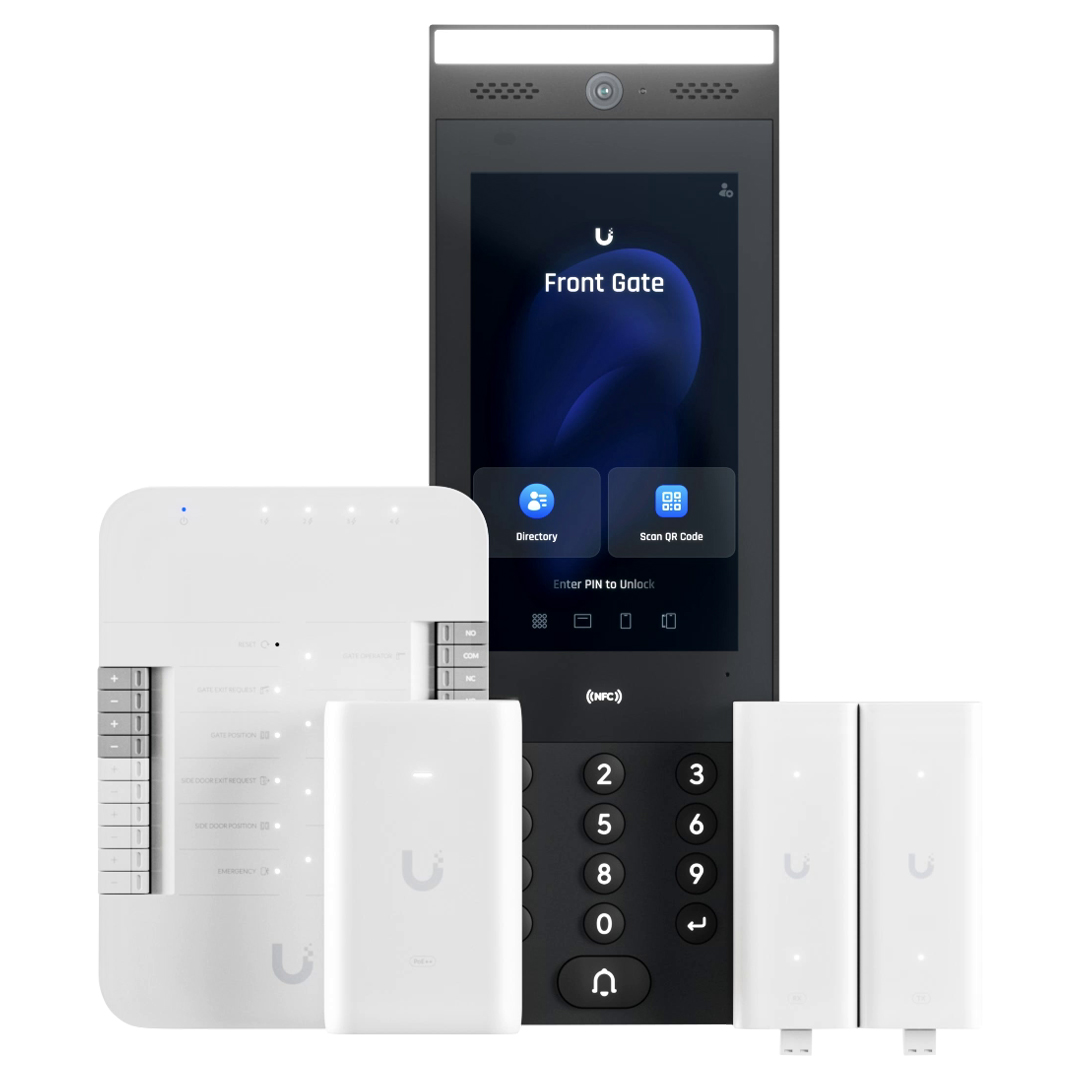

The Ubiquiti G3 Access Gate Starter Kit includes a Gate Hub, G3 Intercom, PoE++ adaptor, and two retrofit extenders, delivering a complete solution for secure, unified gate and door access control. The kit supports NFC, PIN, mobile unlock, Apple/Google Wallet, and two-way intercom, with PoE-powered connectivity, and IP65 weatherproofing for the intercom, suitable for both indoor and outdoor installations.

Features

Ubiquiti G3 Access Gate Starter Kit

Starter kit with a Gate Hub, G3 Intercom, PoE++ Adaptor, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.

Ubiquiti G3 Access Gate Starter Kit Feature 1

Deployment

Build Features

G3 Intercom

Ubiquiti G3 Access Gate Starter Kit Feature 2

Front & Side View

Ubiquiti G3 Access Gate Starter Kit Feature 3

Back View

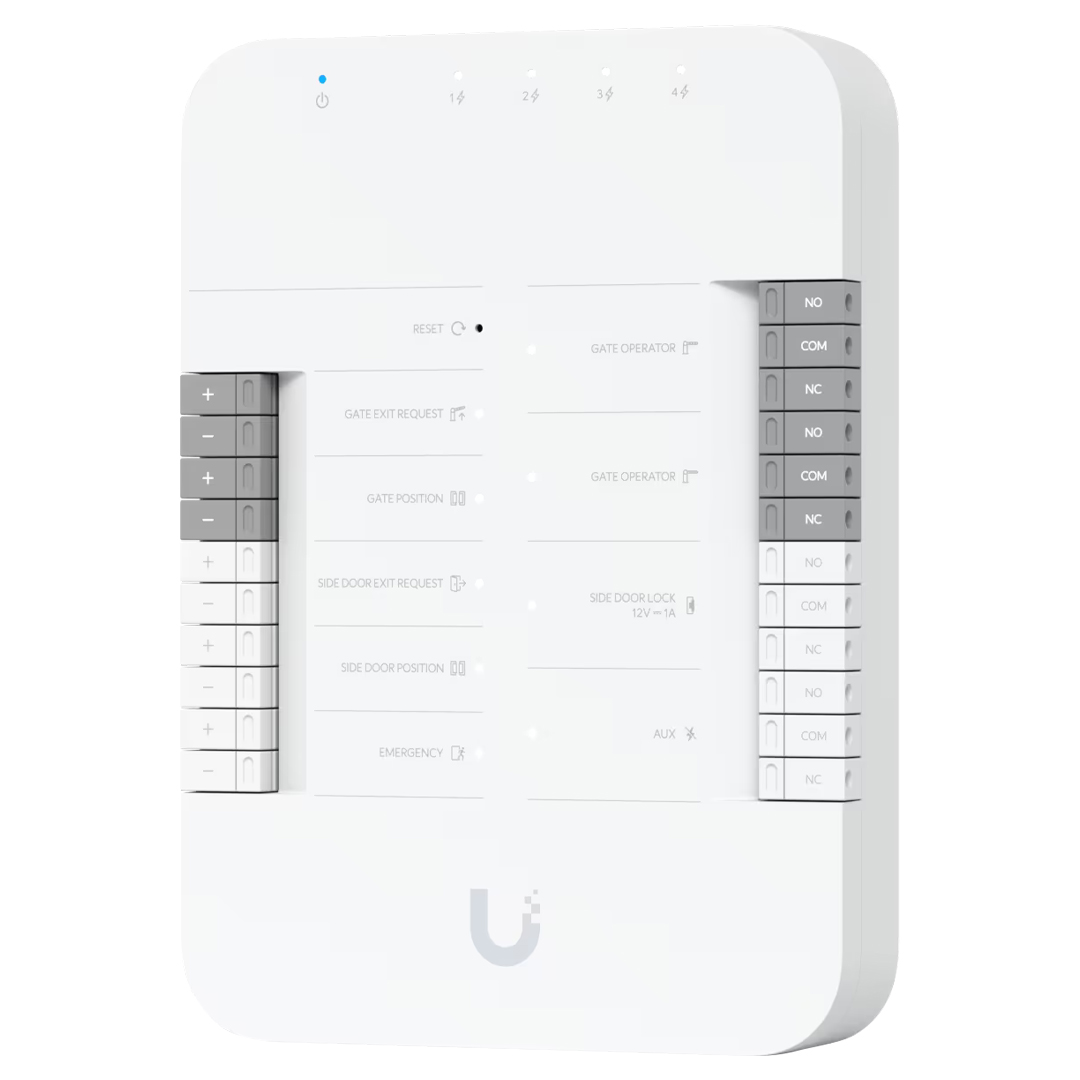

Gate Hub

Ubiquiti G3 Access Gate Starter Kit Feature 4

Front View

Ubiquiti G3 Access Gate Starter Kit Feature 5

Back View

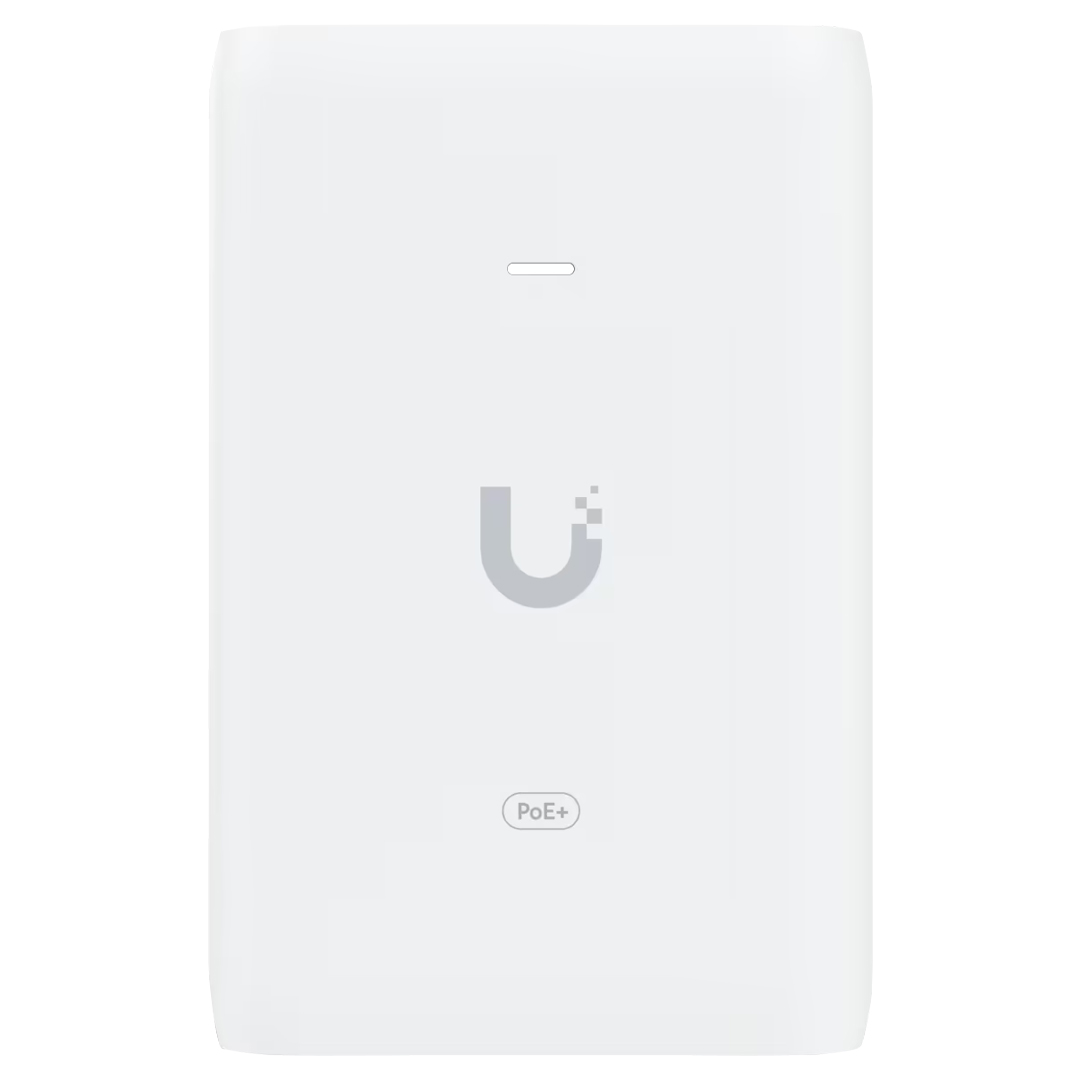

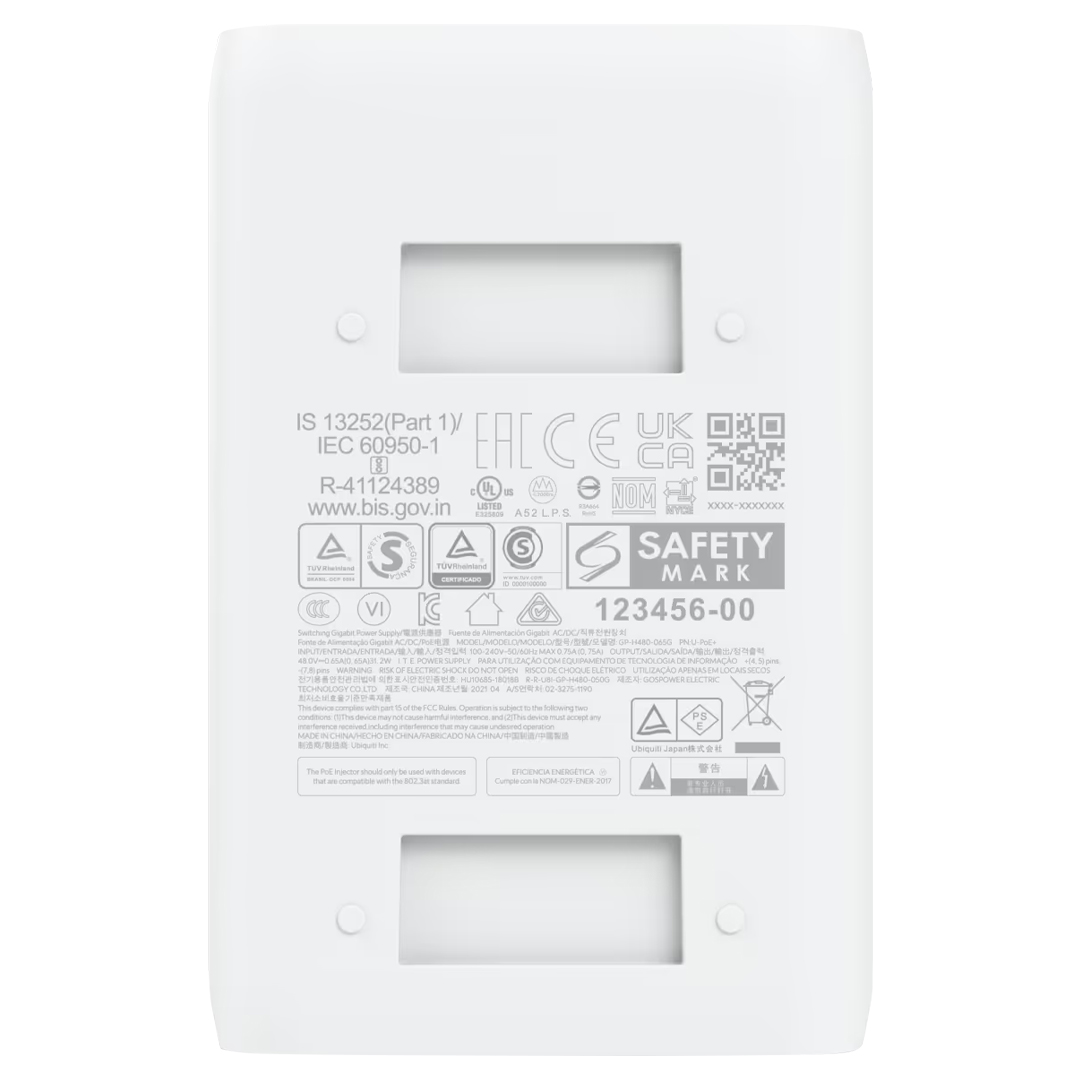

PoE++ Adaptor

Ubiquiti G3 Access Gate Starter Kit Feature 6

Front & Back View

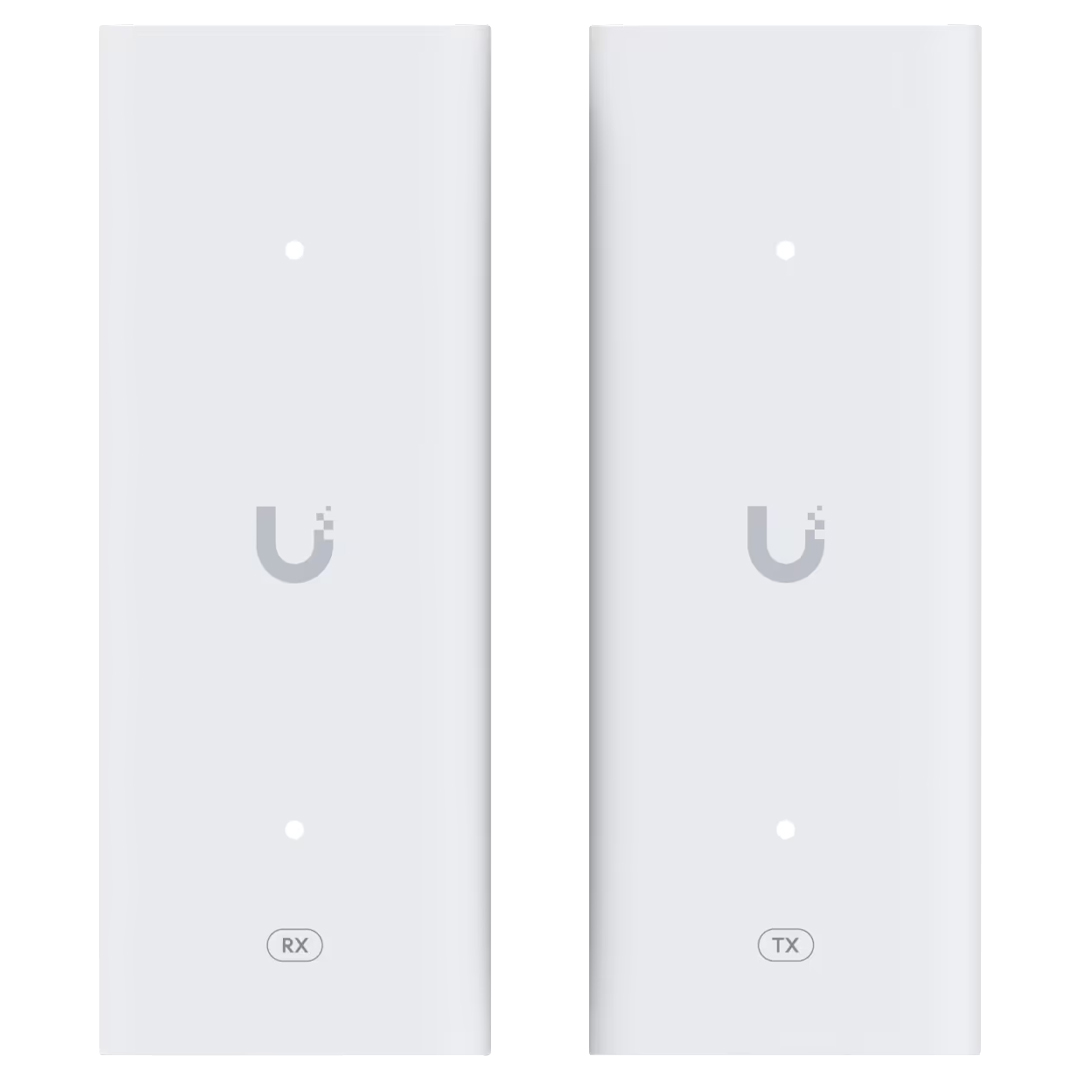

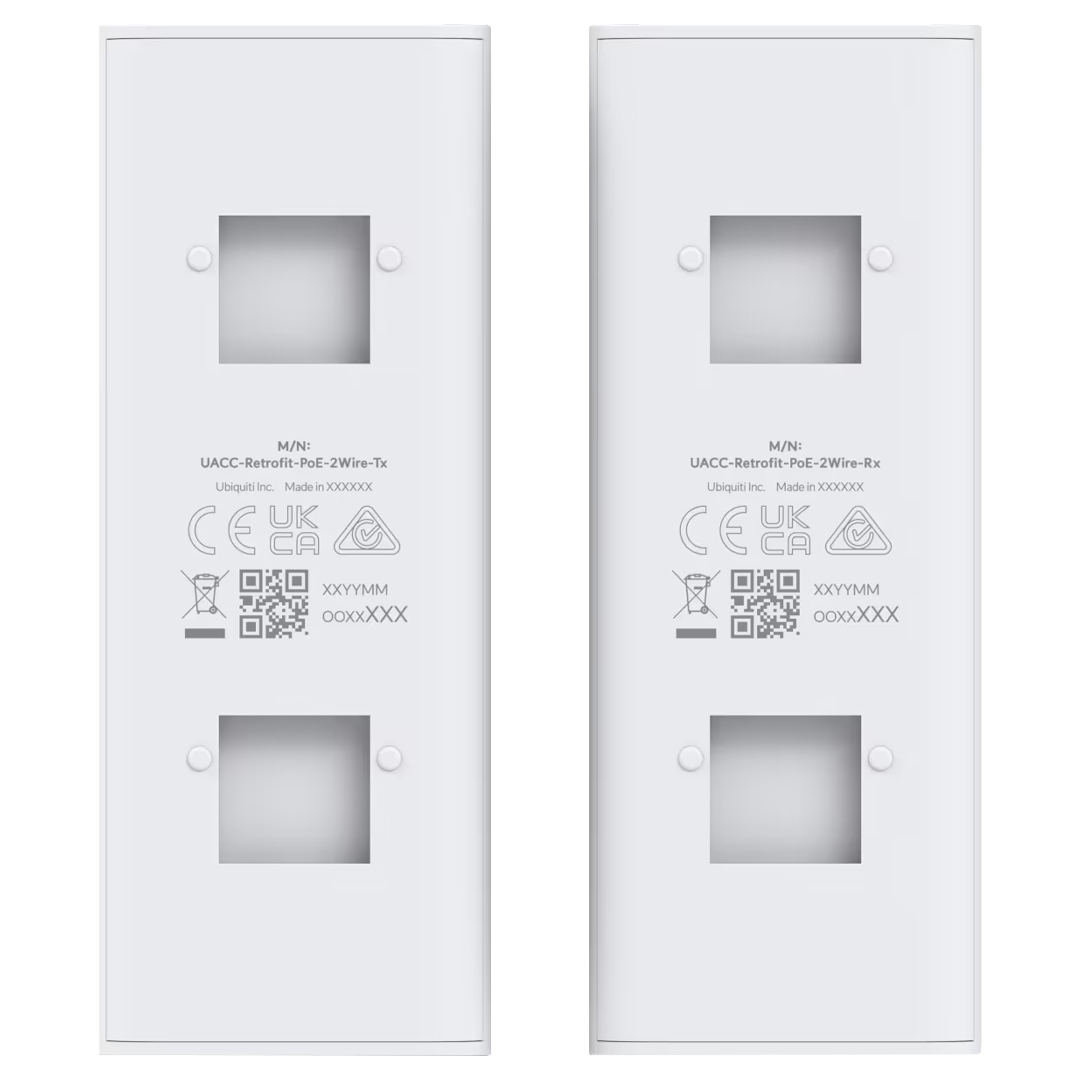

Retrofit Extender

Ubiquiti G3 Access Gate Starter Kit Feature 7

Front & Back View

Specifications

General Data

Model Number UA-G3-SK-Gate
What's Included (1) Gate Hub
(1) G3 Intercom
(1) PoE++ Adaptor
(2) 2-wire Retrofit Extenders

Gate Hub

Dimensions 175 x 126 x 26 mm
(6.9 x 5 x 1")
Supported Doors 1 gate, 1 side door
Input Terminals (1) Gate exit request
(1) Gate position
(1) Side door exit
(1) Side door position
(1) Emergency
Power Method PoE++
UL 294 Power-limited Class 2 PSU Yes
UL 60950-1/62368-1 LPS/PS2 PSU Yes
Enclosure Material Polycarbonate
Mounting DIN-rail (Included)
Weight 460 g (1 lb)
Indoor and Outdoor Use Indoor only: device itself
Outdoor: with waterproof junction box
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Ambient Operating Temperature -30 to 60° C (-22 to 104° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (5) 10/100/1000 Base-T
PoE Interface (1) PoE++ input, 50 V DC, 1A
(4) PoE outputs, 50 V DC, Max. 28 W
Max. Power Consumption 22 W (Without PoE output)
50 W (With PoE output)
Digital Input Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay (2) Operator: rated 30 V DC, up to 1 A
(1) Aux: rated 30 V DC, up to 1 A
Powered Output Relay Side door lock: 12 V DC, up to 1 A
LEDs W/B
Button (1) Factory-reset
Recommend Max. Cable Length UA-Lock-Electric (400 mA)
24 AWG: 25 m (82 ft)
22 AWG: 42 m (138 ft)
20 AWG: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay: 100 m (328 ft)
UA-Lock-Magnetic-540 kg (500 mA)
24 AWG: 20 m (66 ft)
22 AWG: 32 m (105 ft)
20 AWG: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay: 80 m (262 ft)
UA-Lock-Magnetic-270 kg (800 mA)
24 AWG: 12 m (29 ft)
22 AWG: 20 m (66 ft)
20 AWG: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay: 46 m (151 ft)
Other locks (1A)
24 AWG: 9 m (30 ft)
22 AWG: 15 m (49 ft)
20 AWG: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay: 36 m (118 ft)
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-Hub-Gate, V01

G3 Intercom

Dimensions 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated Camera View Angle: H: 79.4°, V: 97.5°, D: 118.2°
NFC Card & Keyfob Access Yes
PIN Access Yes
Apple/Google Wallet Yes
Mobile Unlock Yes
Two-Way Intercom & Doorbell Access Yes
Weatherproofing IP65
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure Material Aluminium alloy, UV-stabilised polycarbonate, glass
Mount Material Powder-coated stainless steel
Mounting Wall mount, Adaptor to the gooseneck pedestal (Included)
Surface angle, flush mount, sunshield kit (Optional)
Indoor and Outdoor Use Yes
Ambient Operating Temperature Device: -30 to 60° C (-22 to 140° F)
Display: -25 to 60° C (-13 to 140° F)
The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional.
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 13 W
Supported Voltage Range 48 V DC
Sensors Proximity sensor
ALS sensor
Display 177 mm (7") diagonal
Touch Screen Technology Capacitive multi-touch
Display Luminance Max. 1000 nits (Typical)
Resolution 1024 x 600 px
Microphone Yes
Speaker (1) Yes, 2W
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
LEDs Amber
Buttons (1) Factory-reset
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-G3-Intercom, V01

Retrofit Extender

Dimensions PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Adaptor: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Adaptor: 140 g (4.9 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Coaxial Connector BNC female
Networking Interface (1) 10/100 MbE
(1) Homeplug AV
Power Method PoE++
PoE Interface PoE in: (1) PoE++, 50 V DC, 1.2 A
PoE out: (1) PoE+, 48 V DC, 0.6 A
Max. Power Consumption 3W (Without PoE output)
ESD/EMP Protection Air: ±8kV, contact: ± 4 kV
LEDs White
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC

PoE++ Adaptor

Model U-PoE++
Dimensions 106 x 63 x 34 mm
(4.2 x 2.5 x 1.3")
Weight 210 g (7.4 oz)
Output Voltage 48 V DC @ 1.25 A
Gigabit LAN Port Yes
Rated Voltage 100—240 V AC @ 50/60Hz
Input Current 1.3A @ 120 V AC
0.75A @ 230 V AC
Inrush Current <100 A peak @ 120 V AC
<200 A peak @ 230 V AC
Efficiency 85+%
Output Ripple 1% max.
Switching Frequency 65 kHz
Line Regulation ≤ 1%
Load Regulation ≤ 3%
4-Pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge Protection Difference and common mode
Clamping Protection 11 V data, 60 V power
Max. Surge Discharge 1500 A (8/20 μs) power
Peak Pulse Current 36A (10/1000 μs) data
Shunt Capacitance <5 pF data
Response Time <1 ns
Power Method Universal AC input, 100—240 V AC, 50/60 Hz
Power Supply AC/DC
Supported Voltage Range 100—240 V AC
Max. PoE+ Wattage Per Port by PSE 60 W
Ambient Storage Temperature -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
NDAA Compliant Yes

Backed by a 1 year Ubiquiti warranty.
