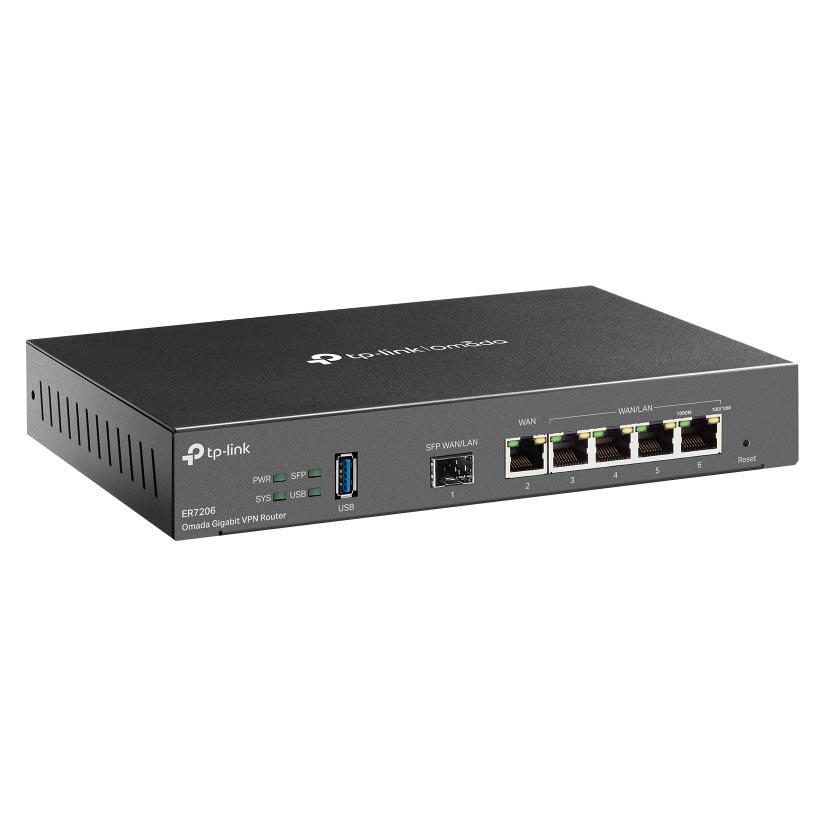

The TP-Link ER7206 V2 Omada Gigabit VPN Router delivers high-performance wired networking with robust security and advanced VPN capabilities. Featuring a gigabit WAN port, multiple LAN ports, and support for load balancing and WAN failover, it ensures reliable and efficient internet connectivity. With integrated VPN support including IPsec, OpenVPN, L2TP, and PPTP, it enables secure remote access and site-to-site connections. Fully compatible with the Omada SDN platform, it offers centralised cloud management, traffic monitoring, and intuitive network configuration. Ideal for high-speed, scalable network setups, the ER7206 V2 provides reliable, enterprise-grade performance and control.
Features
Omada Gigabit VPN Router
A Professional, Secure, and Reliable Gateway with Centralised Management Capability
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) (Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.), Centralised Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Up to 5 WAN Ports: Gigabit SFP WAN port and gigabit RJ45 WAN port optimise bandwidth usage.
- Highly Secure VPN (For PPTP VPN and L2TP VPN, ER7206 V2 can connect with up to 10 VPN servers. For OpenVPN, ER7206 V2 can connect with up to 5 VPN servers.): Supports multiple VPN protocols including SSL / Wireguard / OpenVPN/ IPSec / GRE VPN (These functions are supported only in Standalone Mode.)/ PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly
- Abundant Security Features: Advanced firewall policies, DoS defence, IP/MAC/URL filtering, and more security functions protect your network and data.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralised management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximise convenience.
Hassle-Free Centralised Cloud Management
100% centralised cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Up to Five WAN Gigabit Ports to Optimise Bandwidth Usage
One gigabit SFP WAN/LAN port, one gigabit RJ45 WAN port, and four freely interchangeable WAN/LAN ports allow the router to support up to five WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilisation rate of multi-line broadband.
Highly Secure VPN
ER7206 supports multiple VPN protocols including SSL / Wireguard/ IPSec/ OpenVPN/ GRE VPN (These functions are supported only in Standalone Mode.)/PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly. One-click auto IPSec VPN (These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller) greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
DoS Defence
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec and PPTP.
Internet Access Management Strategy
Standardise users’ online behaviour and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Backed by a 3 year TP-Link warranty.
