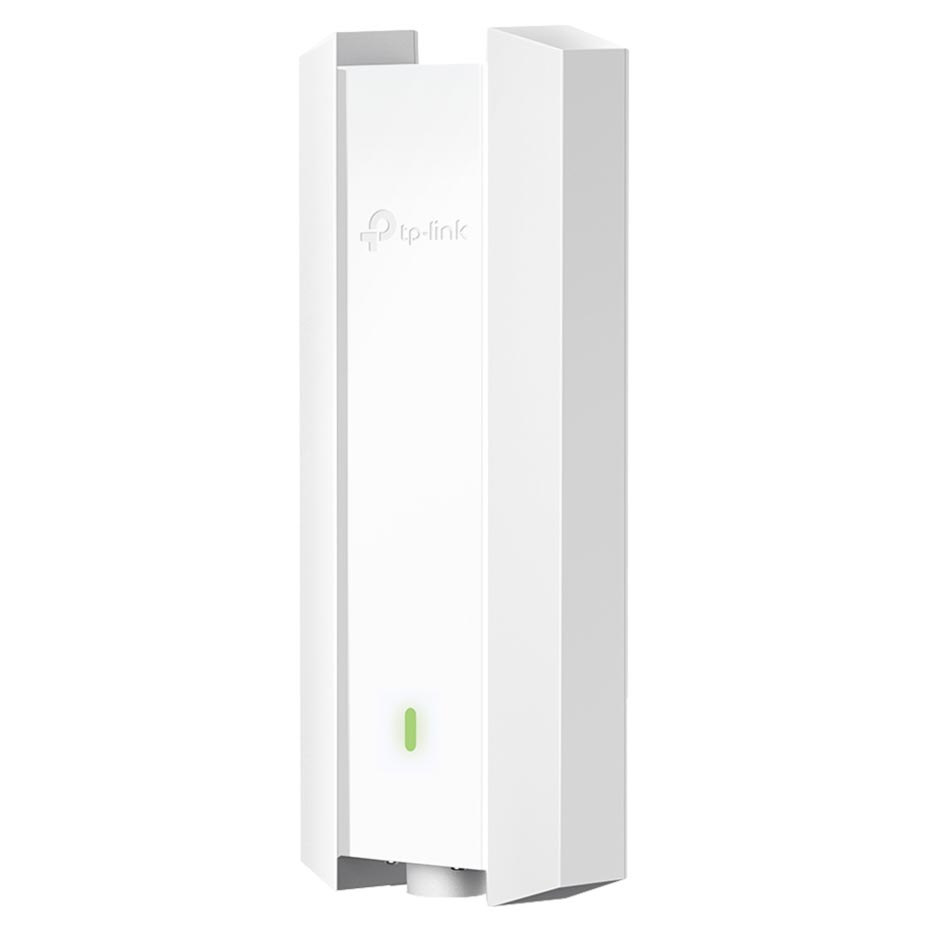

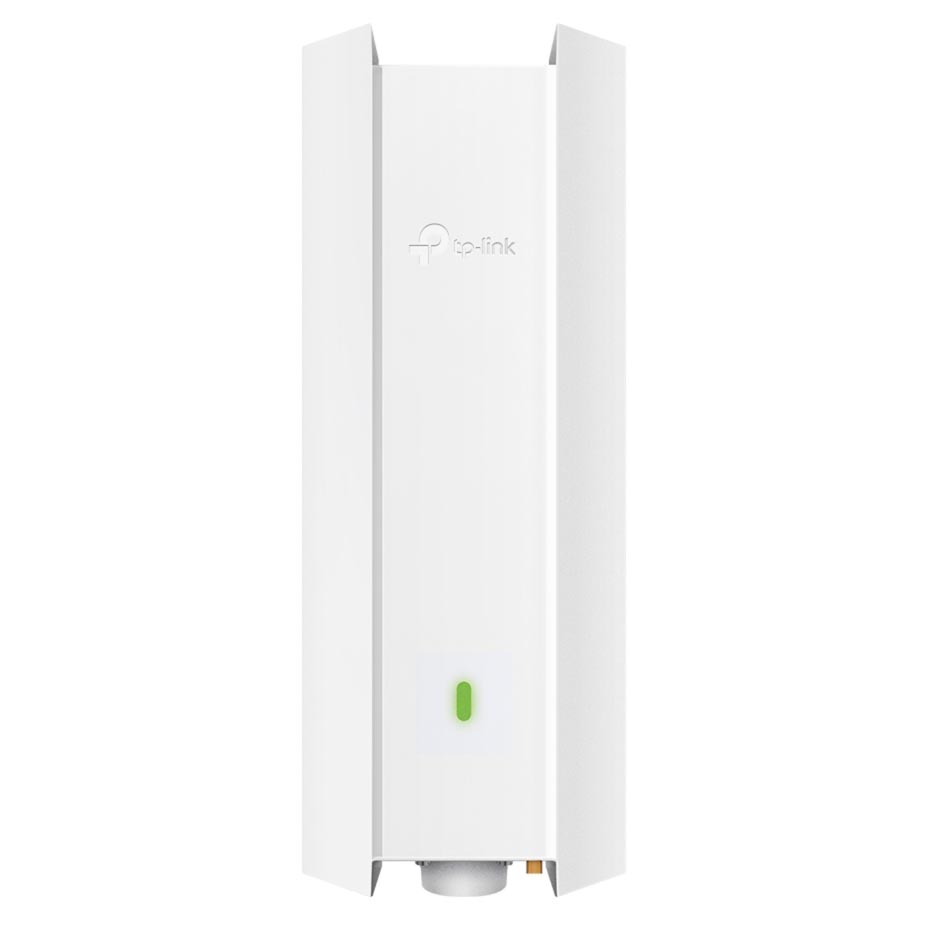

TP-Link AX1800 Indoor Outdoor WiFi 6 Access Point

The TP-Link AX1800 Indoor/Outdoor WiFi 6 Access Point (EAP610-OUTDOOR) delivers high-performance wireless coverage in both indoor and outdoor environments, ideal for businesses and public spaces. Supporting the latest WiFi 6 technology, it offers dual-band speeds up to 1.8 Gbps with improved capacity, efficiency, and reduced latency. Built to withstand harsh weather conditions with an IP67-rated enclosure, the EAP610-Outdoor ensures reliable connectivity in any environment. Featuring seamless integration with the Omada SDN platform, it supports centralised cloud management, advanced security, and flexible deployment options. This access point provides fast, stable, and scalable wireless networking wherever you need it.

Features

---

AX1800 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)
• Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)
• Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management

Performance-Driven WiFi 6 for Demanding Outdoor Environments

• Yard
• Swimming Pool
• Outdoor Café
• Amphitheatre
• Park

Dual-Band WiFi 6 Connectivity

Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)

• Omada WiFi 6 AP (2x 2) - 1775 Mbps (52% Speed Increase)
• Omada WiFi 5 AP (2x 2) - 1167 Mbps

Long-Range Coverage

Professional antennas equipped with high-power amplifiers utilise WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. The maximum range reaches up to 200 meters over 2.4 GHz band and 300 meters over 5 GHz band (The maximum range of WiFi coverage is calculated based on field tests. The real transmission range may vary, according to the environment, receiving device, etc.).

• Beamforming
• Band Steering
• Airtime Fairness

Connect Numerous Devices

OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.

• Wireless Camera
• Laptop
• Tablet
• Phone
• Wireless Speaker

Seamless Integration into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network—all controlled from a single interface.

• Hassle-Free Hardware or Software Controllers
• Centralised Cloud Management
• Intelligent Monitoring

Easy Deployment & Higher Performance by Omada Mesh

Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimised Network Performance

Intelligent self-organisation optimises the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)

IP67 Weatherproof Enclosure for Outdoor Environments

EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

6: Completely dust-tight. No ingress of dust.

7: Protection against full immersion in water up to 1 meter deep for half an hour

• 6KV Lightning Protection and 15KV ESD Protection
• No Ingress of Dust
• Water Proof Enclosure

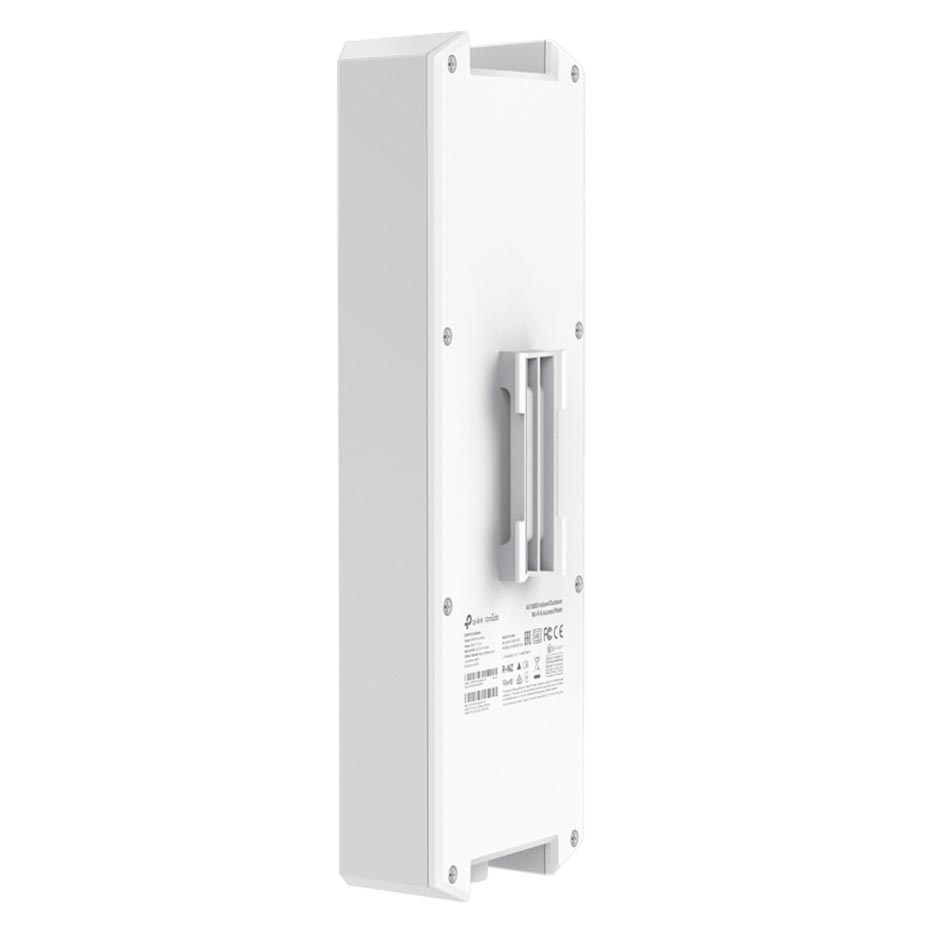

Versatile Mounting Solutions

Our mounting kits provide flexible installation, whether inside or outside.

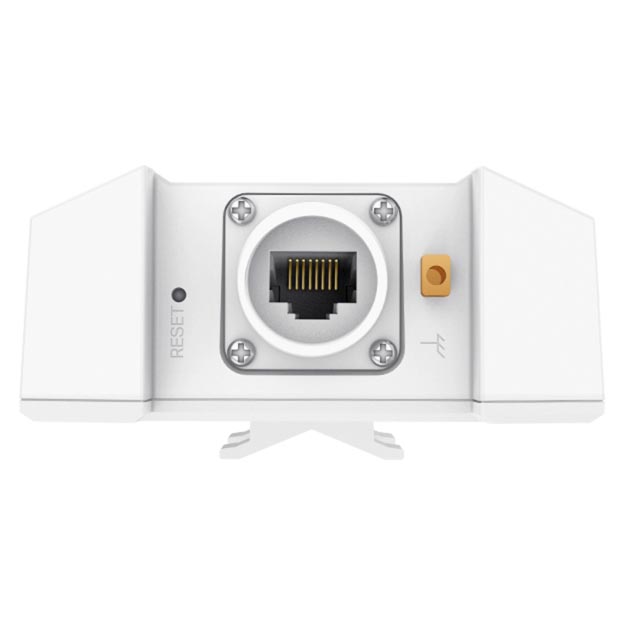

Multiple PoE Options for Easy Installation

The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adaptor for convenient deployment.

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
