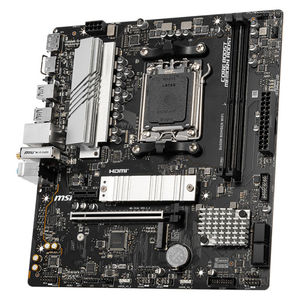

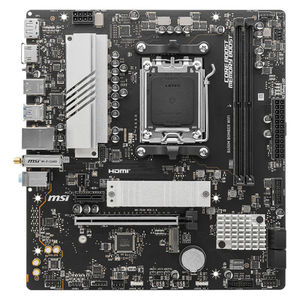

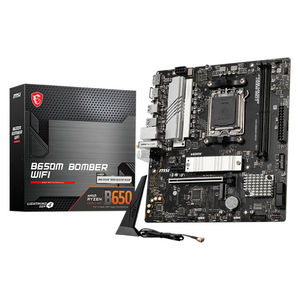

MSI B650M Bomber WIFI Motherboard
B650M-BOMBER-WIFI | MSIThis product has been discontinued
The MSI B650M Bomber WIFI motherboard is designed to support AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors with its AM5 socket. It accommodates up to 128GB of DDR5 memory, achieving overclocked speeds of 7800+ MHz in dual-channel mode. For storage, it offers two PCIe 4.0 x4 M.2 slots and four SATA 6G ports, supporting RAID 0, 1, and 10 configurations. The motherboard features a PCIe 4.0 x16 slot for high-speed graphics cards and a PCIe 3.0 x1 slot for additional expansion. Connectivity options include HDMI™ 2.1 and DisplayPort 1.4 outputs, both supporting 4K resolution at 60Hz, along with Realtek® ALC897 Codec for 7.1-channel high-definition audio. Networking is enhanced with 2.5G LAN and Wi-Fi 6E capabilities, ensuring fast and stable connections. Additional features like Core Boost and Memory Boost technologies enhance performance and stability, while Steel Armor protects VGA cards against bending and electromagnetic interference. This motherboard is ideal for gamers and professionals seeking a reliable and high-performance foundation for their systems.
Features
B650M BOMBER WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armour: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications
| Model Number | B650M-BOMBER-WIFI |
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2 x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MT/s 1DPC 2R Max speed up to 6400+ MT/s Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Onboard Graphics | 1 x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1 x PCI-E x 16 slot Supports x 16/x 1 Supports x 16 (For Ryzen™ 9000/ 7000 Series processors) Supports x 8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports x 4 (For Ryzen™ 8500/ 8300 Series processors) 1 x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x 1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x 16 (From CPU) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280 devices 4 x SATA 6G The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| USB | 2 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 3 x USB 5Gbps Type A (Rear) 1 x USB 5Gbps Type C (Rear) 4 x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO | 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 3 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports |
| Wireless LAN & Bluetooth | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 (The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.) * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. |
| LED Feature | 4 x EZ Debug LED |
| Back Panel Ports | DisplayPort HDMI™ Flash BIOS Button USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio connectors USB 5Gbps Type-C USB 2.0 |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Box Content | European Union Regulatory Notice Quick Installation Guide 1 x M.2 Clip Wi-Fi Antenna SATA Cable I/O Shield |
| PCB Info | mATX 226mm x 243.84mm |
Backed by a 3-year MSI Warranty.
