MSI MAG PANO M100R PZ Mid Tower Case Black

The MSI MAG PANO M100R PZ is a Micro-ATX tower case that combines innovative design with functional features. It supports Micro-ATX and Mini-ITX motherboards, including back-connect configurations, enhancing build cleanliness and cable management. The 270-degree panoramic tempered glass panel offers a clear view of internal components, perfect for showcasing your build. Pre-installed with four 120mm ARGB fans and a 1-to-4 ARGB-PWM control board, it delivers both efficient airflow and dynamic lighting effects. The case accommodates up to ten 120mm fans and supports up to a 360mm AIO liquid cooler on the top, ensuring optimal cooling performance. Front I/O includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1 Type-A, and audio ports, offering versatile connectivity options. Additional features like a GPU support stand with a level indicator and removable dust filters on the top and bottom enhance user experience and system maintenance.

Features

---

MAG PANO M100R PZ Gaming Case

A New Turning Point

The MAG PANO M100R PZ fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, an ARGB-PWM control board to let user organise cables easily.

• Micro-ATX Back-connect motherboard supported.
• Supports up to 360 mm AIO liquid cooler on the top.
• 270-degree panoramic tempered glass.
• Supports up to 10 x 120 mm system fans.
• Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
• The Magnetic Dust Filter at the bottom being easily removed for cleaning.
• DIY Friendly cables make your DIY process easier and create more possibilities to your system.

Organise Easily

Supporting Back-connect motherboards not only simplifies the installation process but also makes it easy for cable management. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.

The Velcro straps help to tie the cable easily.

Extensive Compatibility

Motherboard support: Micro-ATX (Back-connect and general motherboard compatible) and Mini-ITX (general motherboard compatible).

Component Clearances

• CPU Cooler height: 175 mm
• GPU Length: 390 mm
• PSU Length: Up to 200 mm

Storage Options

• 1 x 2.5"
• 1 x 2.5"/3.5" SSD combo bay

Extensive Cooling Support

The MAG PANO M100R PZ pre-installed with 3 x 120 mm Reverse-blade ARGB PWM fans and 1 x 120 mm ARGB PWM fan, other fan cooling options include:

• Top: 3 x 120/2 x 140 mm fans

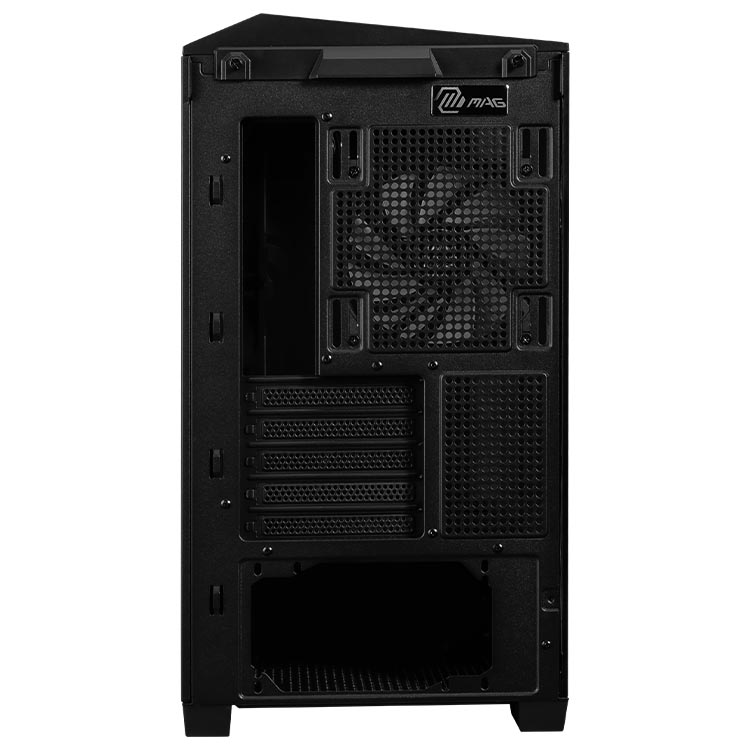

• Rear: 1 x 120/140 mm fan
• PSU shroud: 2 x 120 mm fans
• Bottom: 1 x 120 mm fan (Not available if 1 x 3.5" HDD is installed at the bottom.)

1-to-4 ARGB-PWM Control Board

The pre-installed 1-to-4 ARGB-PWM control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.

1. 3-pin ARGB connector

2. 4-pin PWM connector

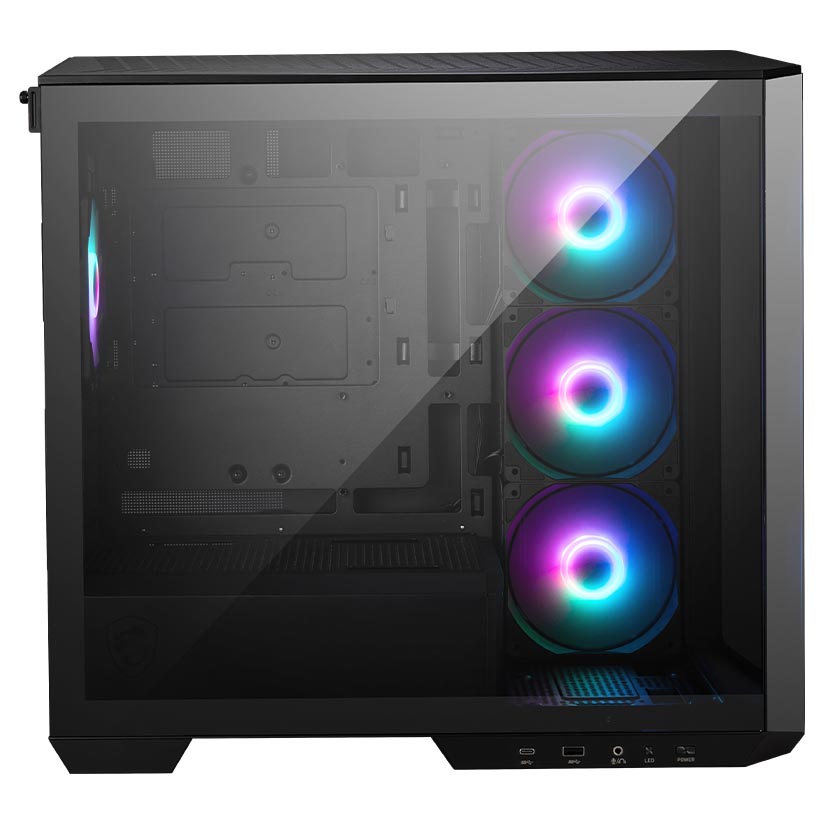

270-Degree Panoramic Display

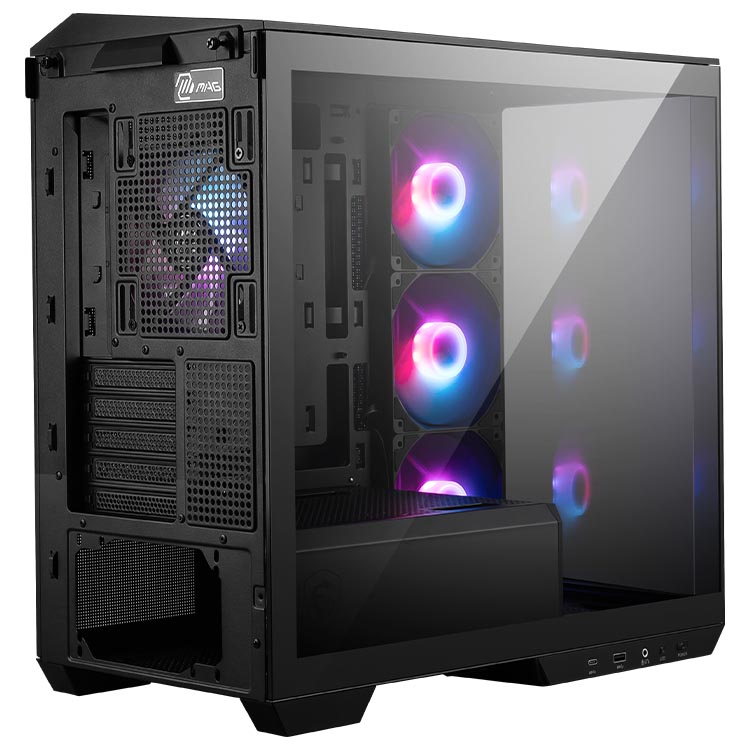

This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.

Assemble for Cable Management

33mm cable routing space & pre-installed cable Velcro strips for easy to do cable management.

Multiple Inlets & Filters

The tool-free top removable design ensures effortless installation, while the bottom of this case features a magnetic dust filter for easy removal and cleaning.

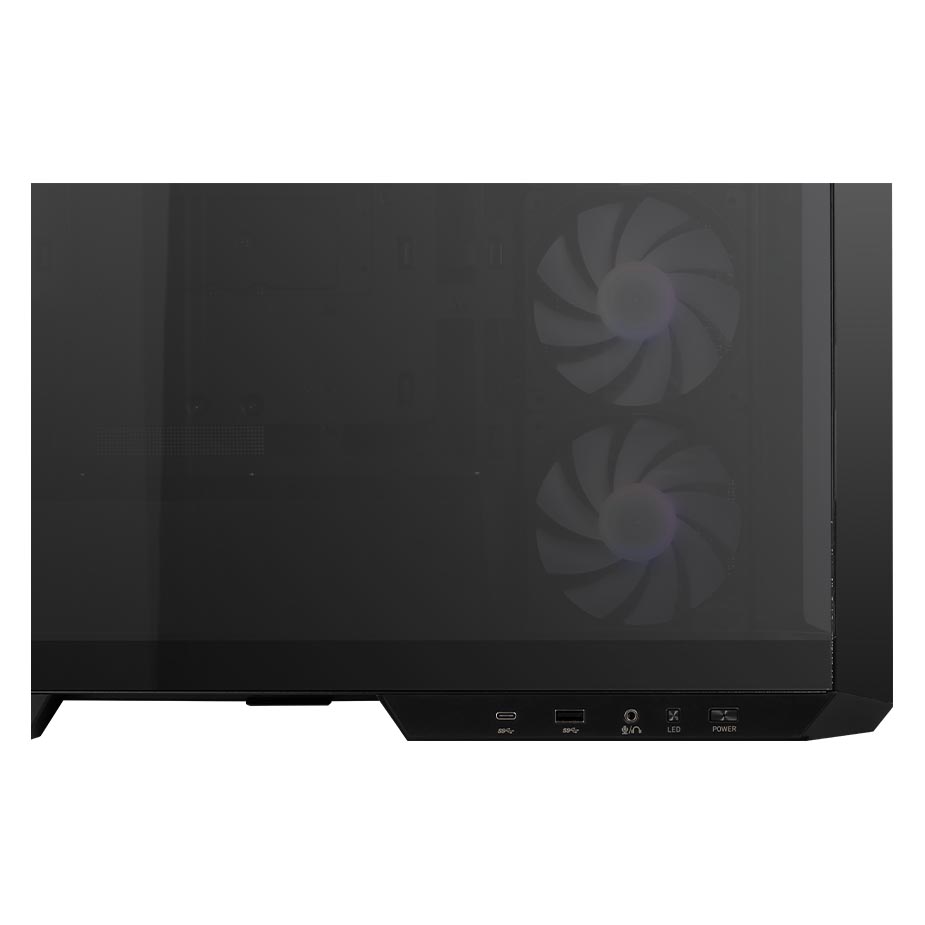

Top I/O Connectivity

The top I/O panel features a USB 3.2 Gen 2x2 Type-C port for high-speed 20Gbps data bridging to compatible motherboards.

1. 1 x USB 3.2 Gen 2x2 Type-C (20Gbps)

2. 1 x USB 3.2 Gen 1 Type-A (5Gbps)

3. Mic in / Audio out

4. LED Switch Button

5. Power Button
