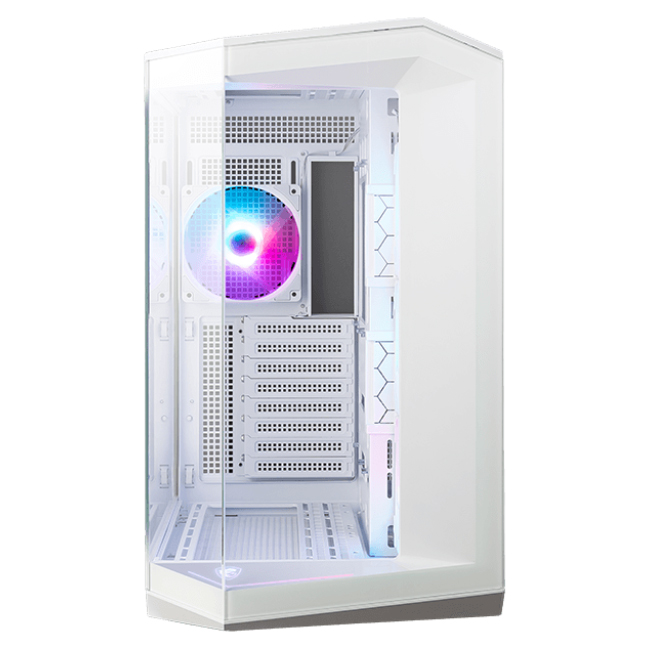

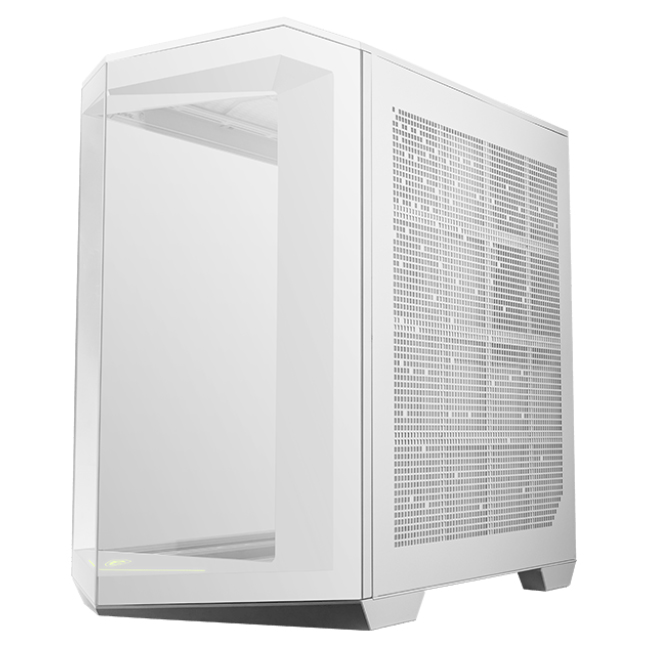

The MSI MAG PANO 100R PZ is a Mid Tower ATX case that supports up to ATX motherboards and features 3 Panels of 4mm thick tempered glass in a 270 degree panoramic design that is inspired by the MAG logo. This case has mounts to support up to 10 x 120mm fans (3 x 120mm top, 3 x 120mm bottom, 3 x 120mm side), features support for back connector motherboards, and includes a 1-to-4 ARGB fan control board. Front IO panel includes 1 x USB 3.2 Gen 2x2 Type-C (20Gbps), 2 x USB 3.0 Type-A, 1 x 3.5MM Mic/Audio jack, 1 x LED Switch, and 1 x Power button. Radiator support up to 360mm on bottom, side and top. Up to 3 2.5" SATA SSDs can be mounted to the case, and up to 2 3.5" SATA HDDs can be mounted to a combo mount that also supports 2.5" SSDs. Clearance of up to 166 mm for CPU coolers and 380 mm for GPUs.
Features
MAG PANO 100R PZ - White
A New Turning Point
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defence in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defence.
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The appearance design of the case adopts the MAG series brand symbol lines.
To meet the desire to show the ARGB PC build, the MAG PANO 100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness.
- Supported ATX and Micro-ATX Back-connect motherboard.
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass.

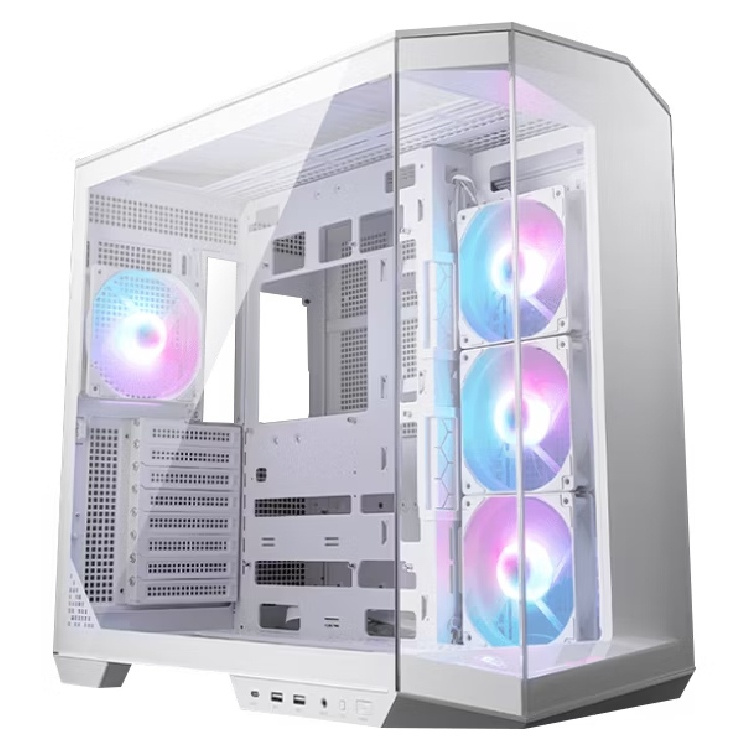

- Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
- 1-to-4 ARGB-Fan control board.
- Synergise with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
- Removable dust filter at the top, side and bottom being easily removed for cleaning.
- UNI front panel cable make your DIY process easier and create more possibilities to your system.
Chamfering Technique
Each piece of 4 mm tempered glass is cut at an angle to minimise every edge gap to make case appearance look more beautiful.
Hardware Compatibility
The gaming cases offer extensive support for the installation of your hardware components.
Back-Connect Compatible
Back-Connect Motherboard Supported
Supporting ATX and Micro-ATX back-connect PROJECT ZERO motherboards enables easy installation without the worry of forgetting to connect cables.
Hardware Support
Components Clearance
Flexible Graphics Card Installation
Cooling Layout
Fans and Radiator Supported Overview
Supporting the simultaneous installation of 3 x 360 mm radiators at the top, side, and bottom offers versatility options for configuring loop setups in a custom water cooling system.
At the side, supports the flexibility of mounting radiator in a push-pull configuration or the thicker radiator and fans.
Easy to Install
The gaming case has many features that make the installation process all the easier.
Dual Chamber
Large cable management space to reduce cable routing complexity, ensuring sufficient space for cable organisation.
Multi-Function Storage Bracket
The multi-function storage bracket with swinging door serves as a convenient tool for SSD installation and cover the messy cables, maintaining a clean and aesthetic appearance in the main chamber.
- Removable tool-free storage bracket, help install SSD more easily.
- Equid with rubbers to avoid your SSD and HDD is under vibration.
Dust Filter
The case equipped with removable filters on three sides, easy for cleaning. This ensures improved airflow and protects internal components from dust accumulation.
1. Top - Removable ventilation panel
2. Side - Large area of ventilation and magnetic filter
3. Bottom - Magnetic filter
1 to 4 ARGB-Fan Control Board
Thanks to the integrated control board, users can easily and intuitively manage lighting effects and adjust fan speeds conveniently.
EZ to Install
- The uni-front-panel cable is easy for users to connect to MSI motherboards.
- Push-latch side panel and PCle bracket, streamline installation process, enhancing the experience.
Removable Panel Design
The front, side and top panels are tool-free to remove, when installing side fans and radiators, there are no obstacles to hinder your progress.
- Decorated with a metal nameplate, enhancing the case's quality and highlighting the segment identity.
- Equipped with ARGB lighting board, fully supported by MSI mystic light with MSI motherboard.
- Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear, ensuring optimal airflow while maintaining a pleasing and clean appearance.
I/O Ports
Backed by a 3 year MSI warranty.
