Deepcool SC790 2-in-1 PWM & RGB Magnetic Fan Hub

R-SC790-BKNSNN-G | Deepcool

This product has been discontinued

Introducing the DeepCool SC790 2-in-1 PWM/ARGB Hub, the ultimate solution for enhancing your PC's cooling and lighting performance. This versatile hub seamlessly integrates PWM fan control with ARGB lighting management, allowing for synchronized and efficient control of up to 6 ARGB PWM fans. Equipped with user-friendly connectivity options and robust compatibility, the SC790 ensures a streamlined setup, exceptional cooling, and vibrant lighting effects, making it an essential addition to any PC build looking for superior functionality and aesthetic appeal.

Features

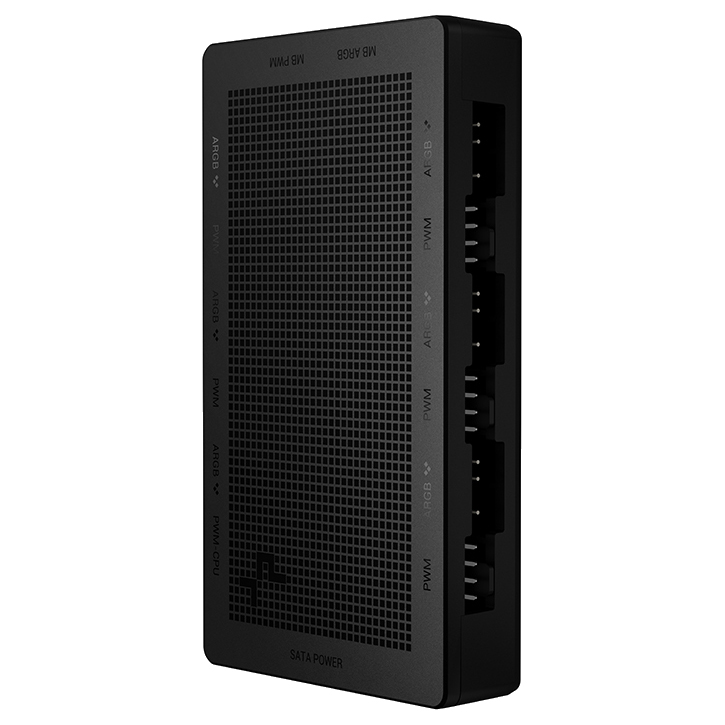

Deepcool SC790 2-in-1 PWM & RGB Hub Feature 1

SC790

2-in-1 PWM & RGB Hub

The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.

Deepcool SC790 2-in-1 PWM & RGB Hub Feature 2

PWM & ARGB Splitter Hub

The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronisation. The included SATA interface ensures stable continuous power for all connected devices.

Deepcool SC790 2-in-1 PWM & RGB Hub Feature 3

The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else.

Deepcool SC790 2-in-1 PWM & RGB Hub Feature 4

Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome.

*This product is NOT compatible with 12V 4-Pin RGB devices.

Specifications


Model Number R-SC790-BKNSNN-G
Product Dimension 102 x 60 x 17 mm
Net Weight 69 g
Port Type ARGB-3Pin & PWM-4 Pin
Fan Ports 6 Ports x 4Pin PWM
Length of Fan Connector cable 24 AWG 500 mm
Fan Rated Voltage 12V DC
Fan Rated Current 2.0 A(1Port) / Total 4.5 A(6Ports)
RGB Ports 6 Ports x 3Pin Addressable RGB
Length of ARGB Connector cable 24 AWG 538 mm (Asus Asrock MSI) + 50 mm (Gigabyte)
RGB Rated Voltage 5V DC
RGB Safety Current 2.0 A(1Port) / Total 4.5 A(6Ports)
Power Connector SATA Power
Power Safety Current 4.5A Max
Mounting Method Magnetic
Colour Black
Backed by a 1 year Deepcool Warranty.
