Deepcool AN600 Low Profile Top Flow CPU Cooler
R-AN600-BKNNMN-G | DeepcoolThis product has been discontinued
Features
AN600
Top Flow Low Profile Cooler
The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
Keeping Things Cool

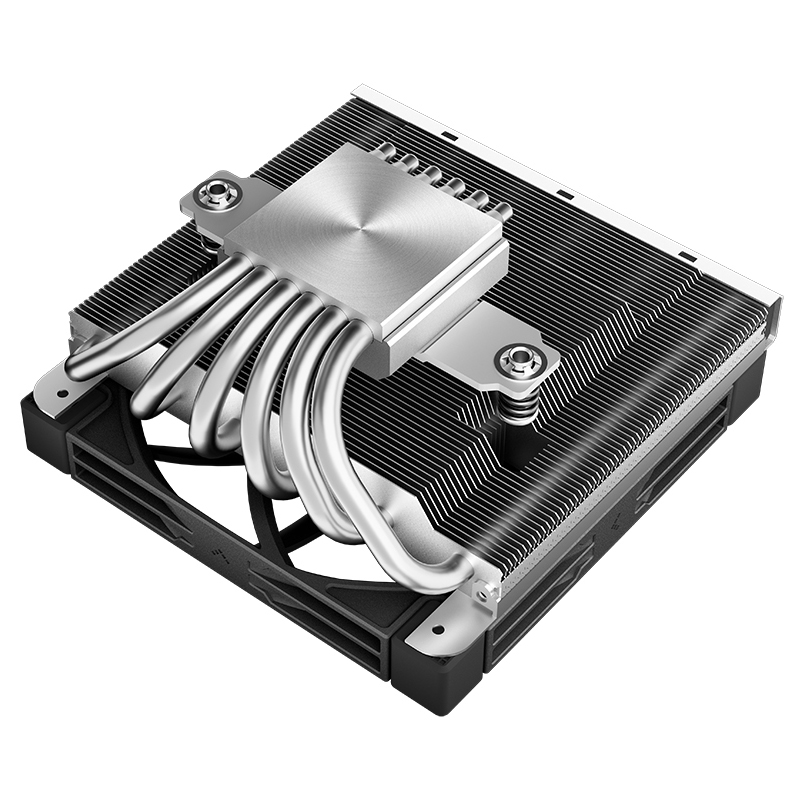

Utilizing 62 aluminium fins, a slim profile 120mm fan, 6 optimised heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
More Than a CPU Cooler

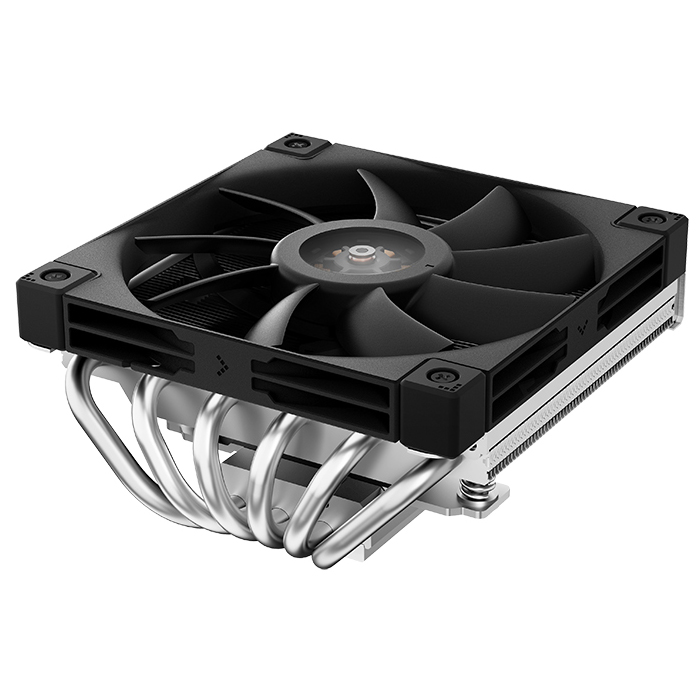

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6 stators ensure all of this is accomplished while staying under 24.4 dB(A). A low-noise adapter cable is included.
Simplified Support

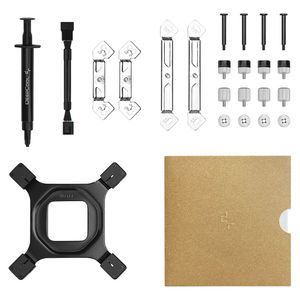

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Specifications
| Model Number | R-AN600-BKNNMN-G |
| Product Dimensions | 122 x 120 x 67 mm(LxWxH) |
| Heatsink Dimensions | 121 x 120 x 52 mm(LxWxH) |
| Net Weight | 628 g |
| Heatpipe | Ø6 mmx6 pcs |
| Fan Dimensions | 120 x 120 x 15 mm(LxWxH) |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 61.56 CFM |
| Fan Air Pressure | 1.97 mmAq |
| Fan Noise | ≤24.4 dB(A) |
| Fan Speed (with LSP) | 500~1250 RPM±10% |
| Fan Airflow (with LSP) | 41.51 CFM |
| Fan Air Pressure (with LSP) | 1.19 mmAq |
| Fan Noise (with LSP) | ≤20 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.27 A |
| Fan Power Consumption | 3.24 W |
| LED Type | White LED |
| Application For | Intel LGA1700/1200/1151/1150/1155 AMD AM5/AM4 |
