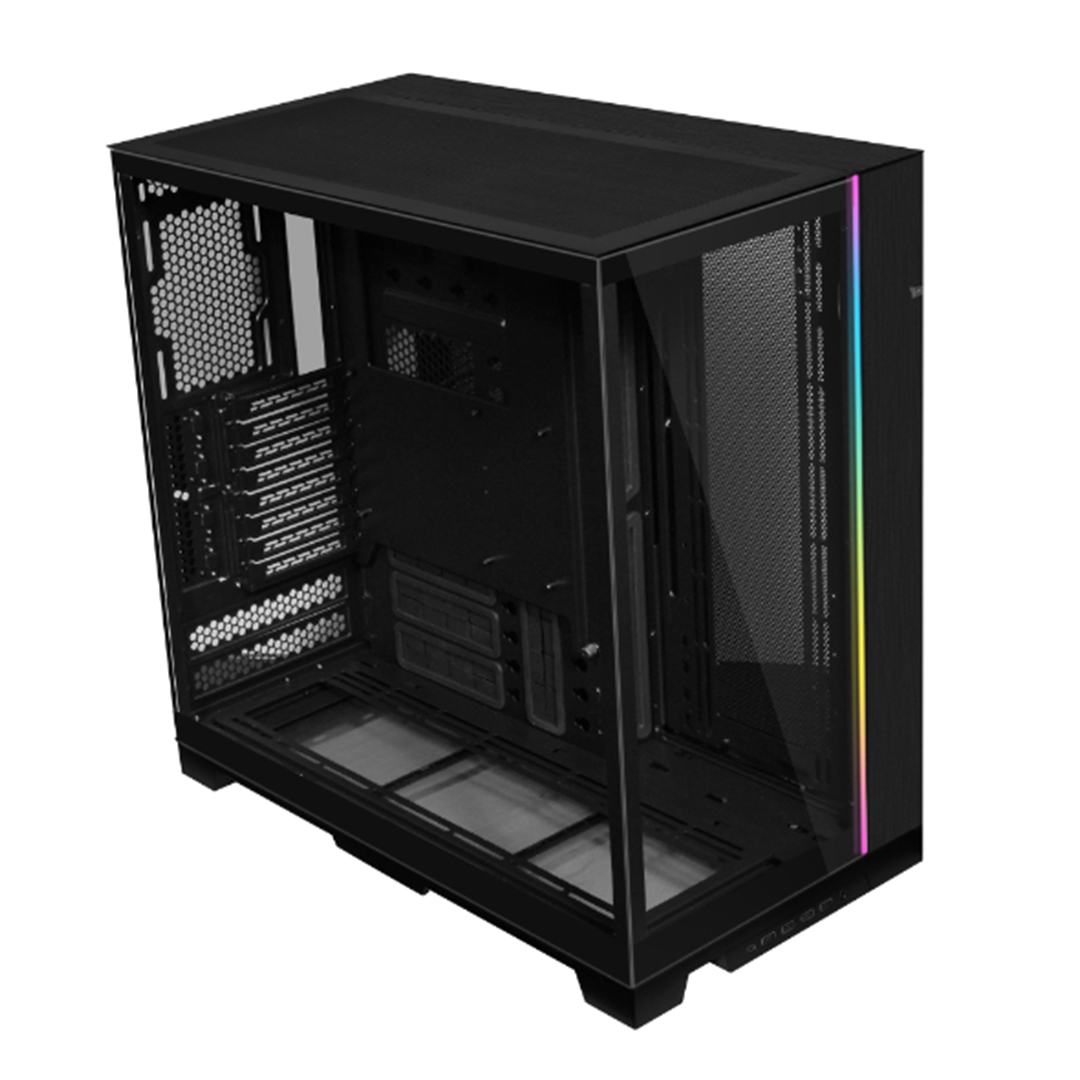

The Lian Li O11 Dynamic EVO XL case features tempered glass side and front panels, mesh top and side panels, reversible orientation, supports E-ATX (under 280mm), ATX, m-ATX, m-ITX motherboards, with radiator support to the top, side, and bottom (up to 420mm), and supports a GPU clearance of up to 460mm.
VIDEO
Features
O11 Dynamic EVO XL
The Ultimate O11 Evolution
Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
Full-tower chassis with two modes: Normal Mode/ Reverse Mode
Front and side tempered glass panels with a removable pillar for a seamless view of components and RGB lighting
Supports up to 3x 420mm radiators and a maximum of 11 fans
Offers mounting space for 7 storage drives
Dual-chamber layout with cable management compartment and three cable holders
Number of PSU supported : 1
Features a multi-directional power button and movable IO module
Optional accessories for vertical GPU or upright GPU mounting
Reversible Chassis
Supports 3 x 420mm Radiators
Enhanced Modularity
Removable Front Pillar
Simple GPU Installation
7 Drives Capacity
Multiple I/O Ports
Cable Management Friendly
Two Colours / Two Modes
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
Power Button - (Static White LED)
Reset Button
Light Mode Button (7 lighting effects) - Press 3 sec to sync MB or L-Connect, click "M" button once to release
Light Colour Button (7 colours) - Press 3 sec to turn off LED, click "C" or "M" button once to turn on
The ARGB strip in the front dazzles with built-in lighting effects and the ability to sync with the motherboard.
Fine Mesh, Exquisite Touch
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminium with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The mesh opening on the top is increased by 14.5%
The mesh opening on the side is increased by 14%
The fully open bottom panel, along with three dust filters, ensures uncompromised airflow while effectively keeping dust out of the chassis.
1. Bottom - Nylon Fine Dust Filter Tray
2. Top Magnetic Dust Filter
3, 4. Side Magnetic Dust Filter
Complete Seamless View
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
Note: Please keep the front pillar fixed in place while transporting the case.
Big Size, Great Compatibility
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 x 420mm radiators.
38% Larger than the O11D EVO
All 3 sides can hold up to a maximum of 420mm radiator
Flexible Configuration
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
There are Three Positions for the Motherboard Tray:
Upper Position
Lower Position
Default Position
Tool-Less Installation
Easily secure the graphics card.
Unscrew the thumbscrew and open the magnetic clamp.
Put the graphics card in place
Secure the clamp back with the screw.
Comes with the new anti-sag bracket (GB-003), designed with easy height adjustment to effectively support heavy GPUs.
Note: The GB-003 graphic card anti-sag bracket is compatible only with GPU installed in the 2nd expansion slot.
Struggle-Free Fan Brackets
Equipped with a quick-release design, the fan brackets can be easily removed or installed.
Top Fan Bracket
Removable from the top.
Bottom Fan Bracket
Removable from the main chamber.
The side bracket can be orientated in two ways depending on how you set up the fan intake/exhaust or position.
Side Fan Bracket
Removable with a quick-latch.
Comes with 2 seal plates to ensure no air pressure leak is created when mounting a 360mm radiator or 3 x 120mm fan on the side. The plates can be adjusted and moved around based on the configuration.
Inner Scenario
Supports up to 81mm thick radiator/fan combo in the main chamber (40mm in the second chamber)
Fans mount towards the front side
Fans mount towards the back side
Outer Scenario
Supports up to 117.2mm thick radiator/fan combo in the main chamber
Fans mount towards the front side
Fans mount towards the back side
Relocatable I/O Port
To satisfy any need, the modular I/O port includes 1 x USB Type C and 4 x USB Type A ports.
At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.
Friendly Storage Capacity
Offers multiple easily accessible storage mounting locations that support up to 7 x SSDs or 4 x HDDs + 3 x SSDs.
Cable Management Bar
2.5” SSD x 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.
Drive Cage
2.5” SSD x 4 or 3.5” HDD x 4
Two swinging hot-swappable cages that can mount a 15mm thick 120mm fan on the side to cool the drives.
With Water Cooling in Mind
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
Customisable Cable Management
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
Bulky cables can be securely held in the cable holder.
Thinner cables can be managed using Velcro straps.
Optional Accessory
Upright GPU
The upright GPU bracket allows you to install the GPU outside of the case and then conveniently put it back. The GPU can be flipped with the side bracket, letting you decide to have the GPU ports at the top or bottom.
Available separately, the PCIe riser cable is 900mm long with enough length for cable management and routing.
Vertical GPU
Not compatible with VG4-4X /VG4-4W.
LIAN LI’s O11D EVO XL, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.
Lower Position / Lowest Slot Installation
Upper Position / Highest Slot Installation
Compatible with Edge Series PSU
Backed by a 1 year Lian Li warranty.
