Atdec AWM Dual Monitor Mount 135mm Black

AWMS-2-D13F-B | Atdec

This product has been discontinued

The Atdec Dynamic Arm Dual Monitor Mount has two monitor arms attached to a small post. Each arm has three points of articulation and allows hand rotation of monitors landscape-to-portrait.



Features


AWMS-2-D13

Dynamic Motion for Monitors to ~27"

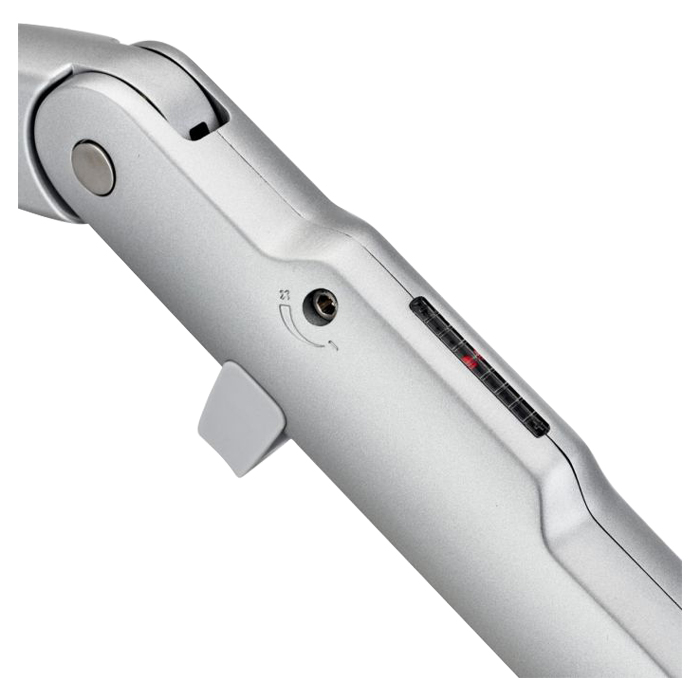

The monitor arms are spring-assisted and can be installed in any of the four post channels, and additional monitor arms can be added later. The spring-assisted arm design provides excellent ergonomic support and display adjustment from a seated position. Perfect for activity based workplaces, sit-to-stand workstations, and shared environments.

  • Dual monitors to approx. 27"
  • Independent positioning of each monitor
  • Suits most popular monitors to:
    9kg (20lb) flat displays
    6kg (13.5lb) curved displays
  • Built-in:
    Optional 180° rotation limiter
    Generous concealed cable management
    Quick display release
    Tool-free adjustments
  • Light, durable, & recyclable aluminium construction
  • Upgradable & reconfigurable
  • Black finish
  • 10 year warranty

You Will Receive the Following Components:

  • 2 x AWM-AD-S 618mm dynamic arm
  • 1 x AWM-P13-S 135mm post
  • 2 x AWM-LC-S Mounting post channel clamp for AWM-AD and AWM-AHX arms
  • 1 x AWM-FF-S F-clamp desk fixing

Important:

Curved, deep (e.g. all-in-one PCs) and offset VESA displays exert additional leverage on the mount. This extra force can exceed mount capacity, even with a display within the stated weight range.

Contact Atdec for displays that exceed 100mm (3.9”) in overall depth.

Note the AWM and AF desk mounts specifications include:

  • Maximum load for flat screen displays
  • Maximum load for curved displays


Specifications


General Data

Model Number AWMS-2-D13F-B
Upgradable to Carry Additional Display Yes
Material Aluminium
Colour
Black
Desk Fixing Type F-Clamp
Warranty 10 years

Compatibility

Flat Screen Maximum supported weight, 9 kg
Curved Screen Maximum supported weight, 6 kg
VESA Mounting Hole Pattern, mm 75 x 75, 100 x 100

Range of Movement

Spring Assisted Height Adjustability Yes
Tilt Adjustment Yes
Pan Adjustment Yes
Landscape to Portrait Screen Rotation Yes
Height Adjustable Yes
Backed by a 10 year Atdec warranty.
