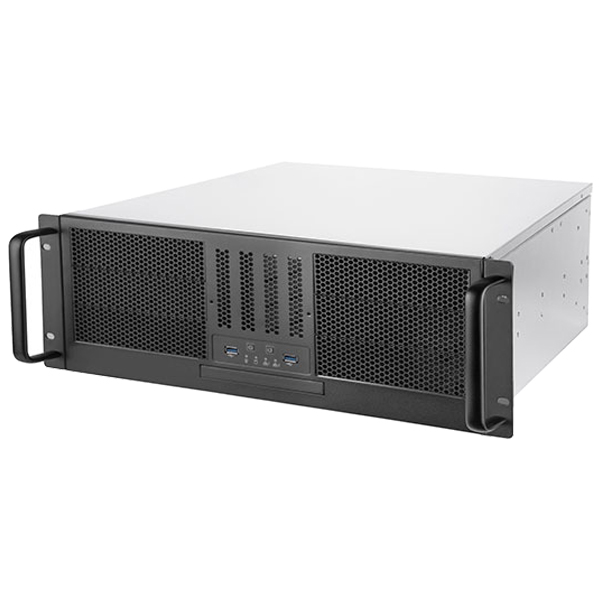

SilverStone RM41-506 4U Server Rackmount Case
SST-RM41-506 | SilverStoneThis product has been discontinued
On sale! (normally $279) The SilverStone RM41-506 4U Server Rackmount Case supports up to SSI-CEB motherboards, supports up to 7 x PCIe slots, 6 x 5.25in drive bays, USB 3.1 Gen 1 interface, mounting holes for easy installation (rail slide sold separately).
Features
RM41-H08 - 4U 6-bay 5.25" Rackmount Server Chassis
- Supports up to SSI-CEB motherboard
- Supports Standard profile PCI / PCIe x 7 slots
- Six 5.25" drive bays for flexible 5.25" device installation
- 5Gbps Super Speed USB 3.1 Gen 1 interface, backward compatible with USB 2.0 / 1.1
- Mounting holes ready for quick rail slide installation (rail slide sold separately)
- RM41-506 I/O ports
- RM41-506 handle bar
- 3.5" HDD installed demonstration
- CPU cooler installed demonstration
- PSU installed demonstration
- Vented 5.25" drive bay covers
- Chassis intrusion switch
Distinctive Exterior
Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports
Storage Device Performance
Supports optional 5.25” storage devices: FS204, FP510, FS305, FS305-12G.
Storage Bays
Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives.
Optional 5.25” storage device: FS204, FP510
Internal Configurations
- Length limitation: 7.87” (200mm)
- Supports ATX (PS2) / Mini Redundant
- Supports up to SSI-CEB (12" x 10.5") motherboards
Cooling Capabilities
Utilizing the typical front-to-back directional airflow, RM41-506 comes pre-installed with two 80mm PWM fans for exhaust, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside.
Specifications
| Model Number | SST-RM41-506 |
| Colour | Black |
| Chassis Form Factor | 4U |
| Material | SGCC |
| Motherboard | CEB (12" x 10.5") ATX (12" x 9.6") Micro ATX (9.6" x 9.6") Mini-ITX (6.7" x 6.7") |
| Drive Bay - External | 5.25" Drive Bay x 6 |
| Drive Bay - Internal | 4 x 3.5" 2 x 2.5" (up to 15 mm) 1 x 2.5" (up to 15 mm) or Slim Optical (12.7 mm) |
| Cooling System - Front | 80 x 25 mm Fan x 1 (Fan Not Included) |
| Cooling System - Rear | 80 x 25 mm Fan x 2 |
| Power Supply | PS2 / ATX / Mini Redundant (Supports up to 200 mm) |
| Expansion Card | Length w/ 5.25" Drive Cage: 278 mm Length w/o 5.25" Drive Cage: 426 mm |
| Limitation of CPU Cooler | 148 mm |
| Expansion Slot | Standard Profile PCI / PCIe x 7 |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Front Buttons | Power On / Off, System Restart |
| Indicators | Power Status x 1, HDD Activity x 1, LAN Activity x 2 |
| Main Metal Thickness | 1.2 mm |
| Net Weight | 9.7 kg |
| Dimensions | 430 mm (W) x 176 mm (H) x 446 mm (D) 16.93" (W) x 6.93" (H) x 17.56" (D) |
Backed by a 1 year SilverStone warranty.
