MSI GeForce RTX 3090 Ti Suprim X 24G
RTX-3090TI-SUPRIM-X-24G | MSIThis product has been discontinued
The MSI GeForce RTX 3090 Ti Suprim X 24G graphics card features a 1950MHz boost clock (in gaming & silent mode), 1965MHz extreme performance clock (via MSI center), 24GB GDDR6X 384-bit memory interface, 21Gb/s memory speed, PCI-E 4.0, 1 x HDMI 2.1, 3 x DisplayPort 1.4a, OpenGL 4.6 and DirectX 12 Ultimate support.
Features
Features of the MSI GeForce RTX 3090 Ti Suprim X 24G at a glance:
- 1950 MHz (GAMING & SILENT Mode) / 21 Gbps
- 24GB GDDR6X

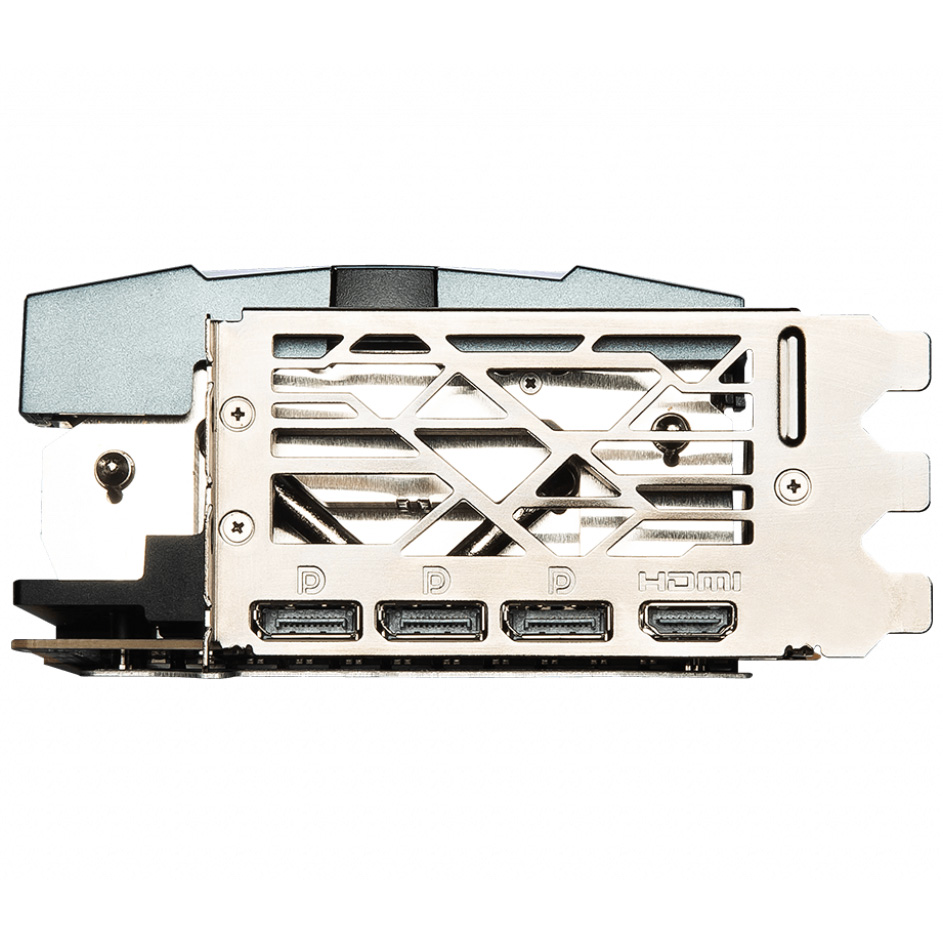

- DisplayPort x 3 (v1.4a)
- HDMI x 1 (2.1) (Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1)

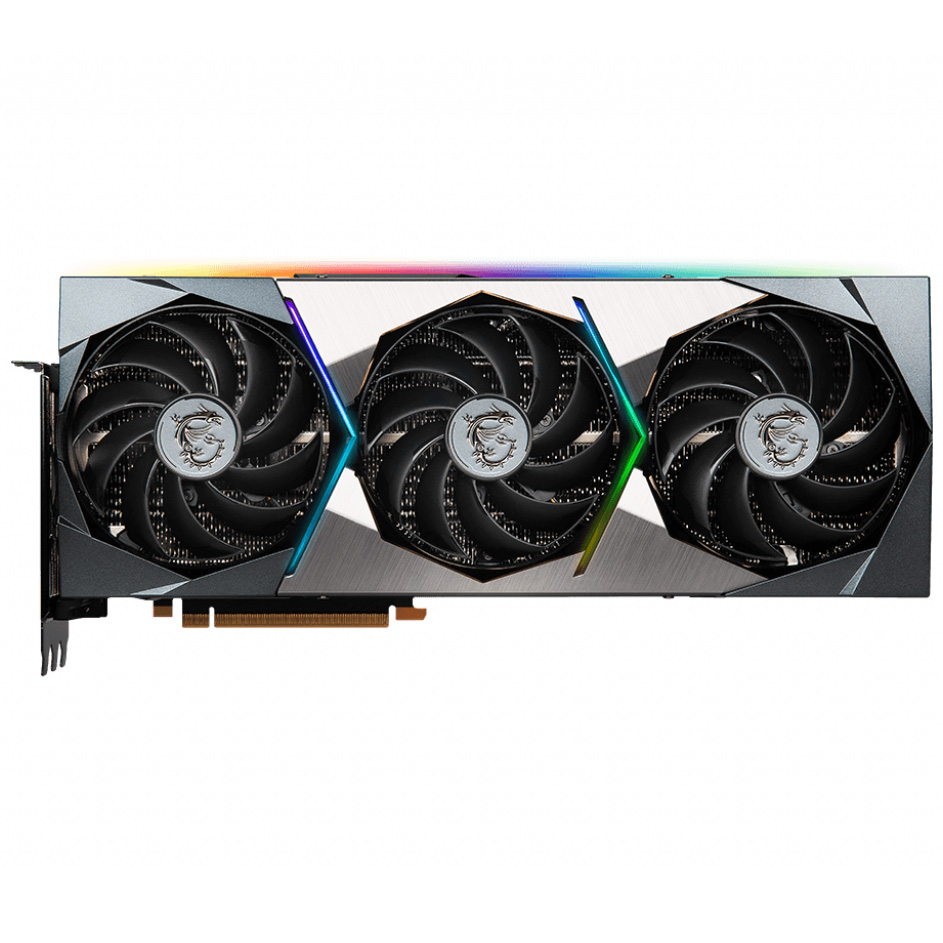

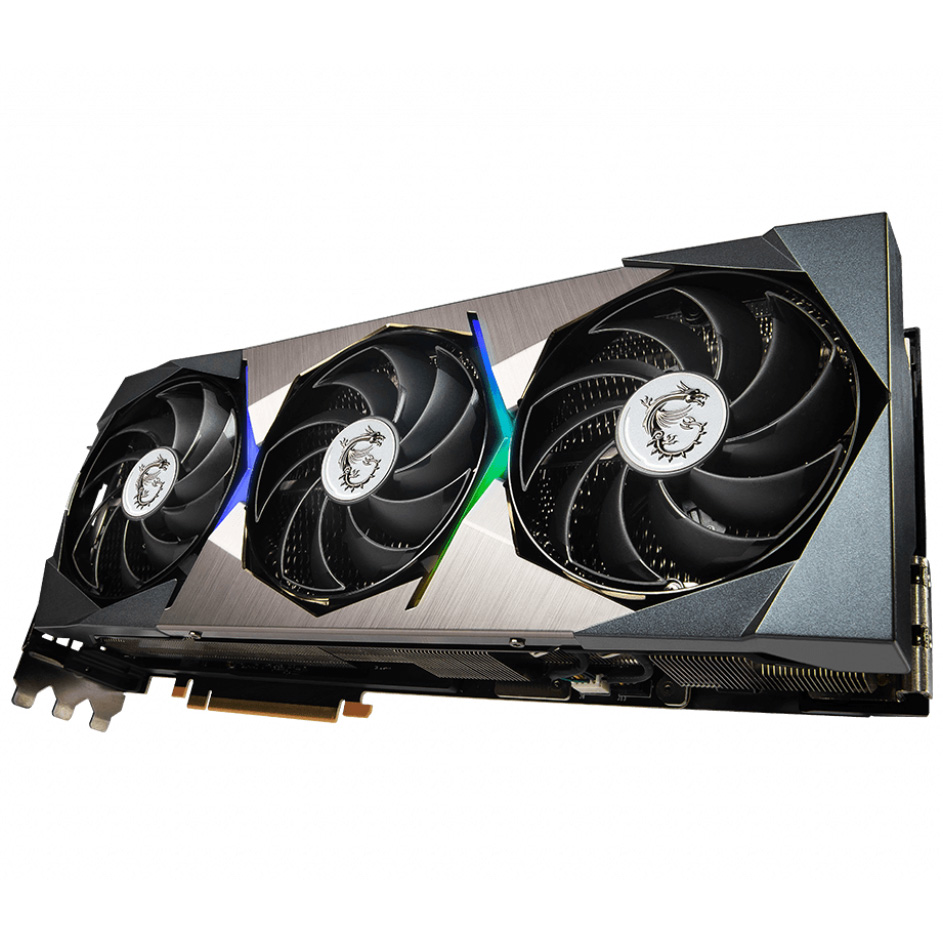

- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Copper Baseplate: A solid nickel-plated copper baseplate transfers heat from the GPU and memory modules to all the heatpipes.
- Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Controls lighting for both MSI and compatible third-party RGB products.
Specifications
| Model Name | GeForce RTX™ 3090 Ti SUPRIM X 24G |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 3090 Ti |
| Interface | PCI Express® Gen 4 |
| Cores | 10752 Units |
| Core Clocks | Extreme Performance: 1965 MHz (MSI Center Boost: 1950 MHz (GAMING & SILENT Mode) |
| Memory Speed | 21 Gbps |
| Memory | 24GB GDDR6X |
| Memory Bus | 384-bit |
| Output | DisplayPort x 3 (v1.4a) HDMI x 1 (2.1) (Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1) |
| HDCP Support | Y |
| Power consumption | 480W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 338 x 140 x 71 mm |
| Weight (Card / Package) | 2154g / 3309g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| NVLink Support | Y |
| Maximum Displays | 4 |
| VR Ready | Y |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
Backed by a 3 year MSI warranty.
