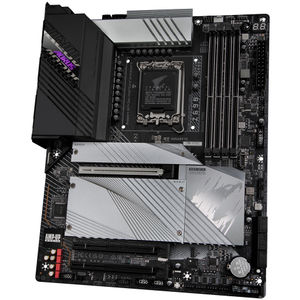

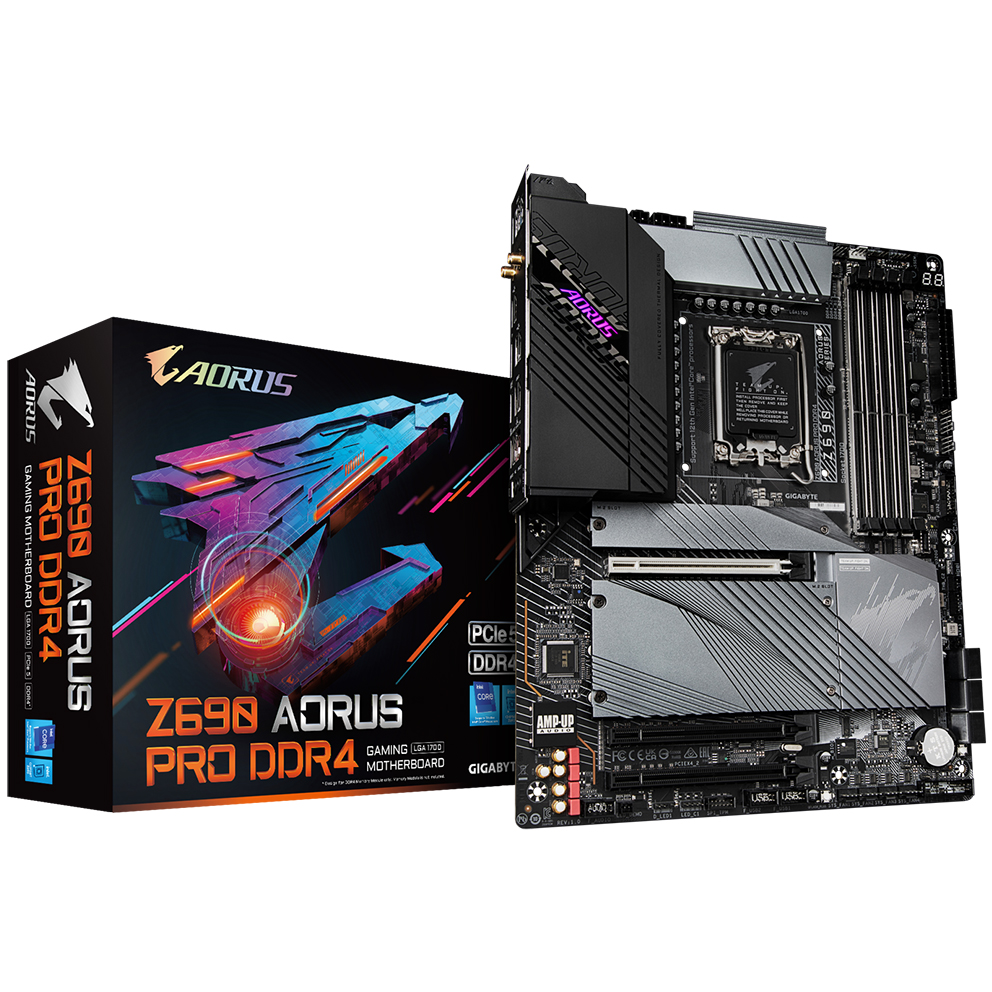

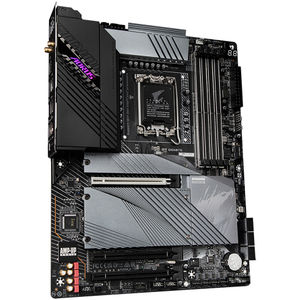

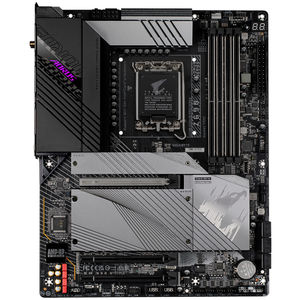

Gigabyte Z690 Aorus Pro DDR4 Motherboard
Z690-AORUS-PRO-D4 | GigabyteThis product has been discontinued
|
Warning: This product contains a button battery - If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours. - Keep batteries out of reach of children. - If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention. |
Features
Features of the Gigabyte Z690 Aorus Pro D4 Motherboard at a glance:
The New King of Gaming
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory.
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
- Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
- SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Unparalleled Performance
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
Direct Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel‘s new generation CPU, GIGABYTE Z690 series equip the best VRM design ever built with the highest quality components.
- 16 VCORE Phases 90A Power Stages - To unleash full potential of multi-cores CPU performance
- 1 VCCGT Phase 60A Power Stage - For CPU integrated GPU performance
- 2 VCCAUX Phases 70A DrMOS - Provide stable power for CPU integrated PCle & Memory controller
The more advanced manufacturing process and the higher core count on the new generation of CPUs, requires motherboards to utilize a more sophisticated VRM design to make CPUs run at their full potential. GIGABYTE uses fully DIRECT VRM DESIGN, high quality MOSFETs and tantalum polymer capacitors to achieve higher efficiency, lower voltage ripple and lower temperature than traditional parallel VRM design.
Tantalum Polymer Capacitor
- Lower impedance than regular capacitor to reduce voltage ripple
- Stable capacitance under high temperature
- Mounted right under the CPU area to stabilize CPU voltage during heavy loading
PCIe 5.0 Design
GIGABYTE Z690 Motherboards are ready to work with the upcoming PCIe 5.0 devices which are expected to experience double bandwidth than the current PCIe 4.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Ultra Durable™ SMD PCIe 5.0 Armor
GIGABYTE exclusive stainless steel shielding design.
- Tensile Strength
- Shearing Test Up To 1.7x stronger.
- Retention Force Test Up To 1.5x Stronger.
- Shearing Test Up To 1.6x Stronger. - Double Locking Bracket
Front Side - Inserted from the top for better retention.
Back Side - Soldered for a stronger bond. - SMD High-Frequency
Up To 5.6x Better. - SMD Iron Claw
By means of multi-point stainless steel pins penetrating the PCB to increase the strength of the SMD slot to improve the Durability.
DDR4 XMP - Support for DDR4 XMP Up To 5600MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
RAID Storage - Triple 7GB/s Gen4 M.2 PCIe SSDs in RAID 0
The exclusive 3 PCIe 4.0 M.2 and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 21053 and 15499 MB/s.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new " CPU Upgrade " in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
Gaming
- Deactivate all E-Core
- Zero compromise on gaming performance
- Up to 20% lower CPU package power
- Up to 5°C lower CPU temperature
Max Performance
- Activate all P-Core and E-Core
- Maximize full multi-cores performance
Advanced Thermal Solution
GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.
Thermal Design
- Fully Covered Thermal Design - High coverage MOSFET and integrated moulding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
- M.2 Thermal Guard II - M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue.
- Enlarged Thermal Guard - Enlarged double-sided M.2 heatsink prevents high-speed, large capacity PCIe 4.0/3.0 SSDs with double side flash from throttling due to overheating.
- 5 W/mK Thermal Pad - By using 1.5mm thicker 5 W/mK thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time.
- 2X Copper PCB - 2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
Fully Covered MOSFET Heatsink
- 2X Large Surface - Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
- Real One-piece Build - TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
- Multi-Cut Design - TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
AORUS M.2 Thermal Guard II
The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue.
2X Copper PCB
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Headers & Sensors
- 8 PWM/DC Fan Headers
- 9 Internal Temperature Sensors
Cooling Features
- High Current Support - Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control - Up to 9 temperature/fan speed control points for precise fan curve
- Dual Curve Mode - Slope/Stair dual mode for different user scenario
- Fan Stop - Fan can stop completely below users' specified temperature point
Smart Fan 6 BIOS UI
- Improve fan curve UI - We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
- Slope/Stair dual graph mode - Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
- Manual Input - For advanced users, we provide fan speed manual input for more precise control.
- EZ Tuning - Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
- Fan curve profile - Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Next Generation Connectivity
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.
2.5 GbE LAN
First adopter on 2.5 GbE LAN onboard - 2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
New Introduce Intel® WIFI 6 802.11ax + BT 5 Module
Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6
- 5.5X throughput than 802.11ac 1x1
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
USB 3.2 Gen 2x2 Type-C®
Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
AMP-UP Audio
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
Immersive Gaming ViBes - Realtek High-End HD Audio Codec
- Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB/110dB.
- Automatically detects impedance of audio device, preventing low volume and distortion.
- Stream voice with up to 110dB(A) SNR via microphone.
Definitive Aesthetics
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
RGB Fusion - Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
- Wave1
- Wave2
- Cycle Colour
- Static
- Pulse
- Flash
- Double Flash
- Music
- Random
- Game
- Digital A
- Digital B
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
UEFI BIOS
- New User Interface - All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
- Changelog - List all changes before saving and exiting bios. Quickly review overall settings modification.
- My Favourites - Add constantly used items into the favourite menu for quick access.
- Intuitive Load Line Curve - Clearly show each load line calibration setting in an intuitive curve graph.
- Storage Information - Show all kinds of storage information including SATA, PCIE and M.2 interface.
EasyTune
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer.
Ultra Durable
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Step 1: Plug 24pin & 8pin power supply cable on motherboard
Step 2: Download and unzip motherboard compressed BIOS file and rename to "gigabyte.bin', save to USB flash-drive, and plug USB flash drive into Q-Flash USB port
Step 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Solid Pin
Solid Pin Power Connectors
AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Specifications
| CPU | LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel® Z690 Express Chipset |
| Memory | DDR4 5600(O.C.) / 5400(O.C.) / 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio | Realtek® ALC4080 CODEC High Definition Audio 2-channel analog output Support for S / PDIF Out 7.1-channel digital signals Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6 AX200: WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 GHz Dual-Band |
| BLUETOOTH 5.2 | Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Actual data rate may vary depending on environment and equipment. |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2260 / 2280 / 22110 PCIe 4.0 x4 / x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260 / 2280 / 22110 SATA and PCIe 4.0 x4 / x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260 / 2280 / 22110 PCIe 4.0 x4 / x2 SSD support) (M2P_SB / M2Q_SB) 6 x SATA 6Gb / s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| USB | Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I / O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan / water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb / s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A / 12V @ 24W. |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0 / 1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S / PDIF Out connector 2 x audio jacks |
| I / O Controller | iTE® I / O Controller Chip |
| H / W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON / OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) cFosSpeed |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
