Inno3D GeForce RTX 3070 iCHILL X3 LHR 8GB
C30703-08D6X-1710VA38H | Inno3DThis product has been discontinued
On sale! (normally $1599) Limit 1 per household. The Inno3D GeForce RTX 3070 iCHILL X3 LHR 8GB graphics card features a 1500MHz base clock, 1785MHz boost clock, 8GB GDDR6 256-bit memory interface, 14GB/s memory speed, PCI-E 4.0,1 x HDMI 2.1, 3 x DisplayPort 1.4a, OpenGL 4.6 and DirectX 12 Ultimate support.
Features
Programmable RGB
The Inno3D GeForce RTX 3070 iChilll X3 LHR 8GB features built-in MCU control and supports Aura Sync, Mystic Light, and RGB Fusion. The RGB plate presents a unique asymmetric design and provides an edgy and dynamic look.

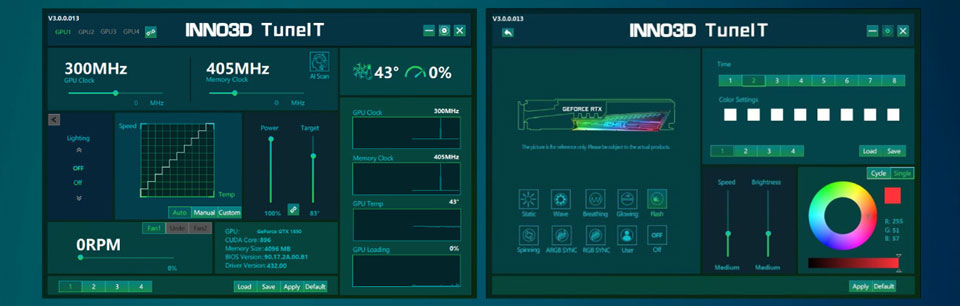

TuneIT software for OC and RGB control
The TuneIT software features a revamped UI, is simple and easy to use with much improved RGB control.

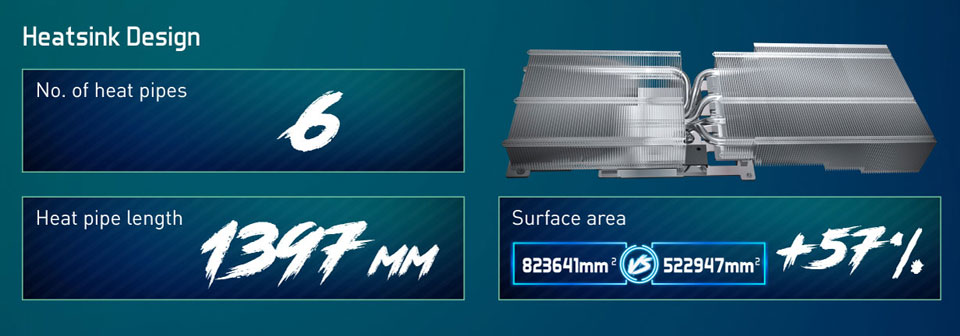

Heatsink design
Acrylic RGB tail fin

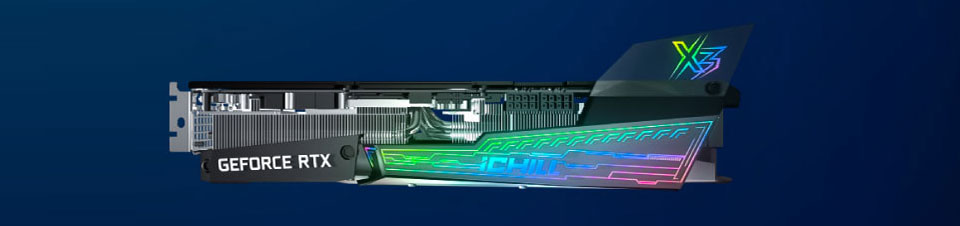

The Inno3D GeForce RTX 3070 iChilll X3 LHR tail fin can be added to the card for an increased LED experience. It includes two tail fins, one with a logo and one blank for customisation.
Ultra-thin cooling fans

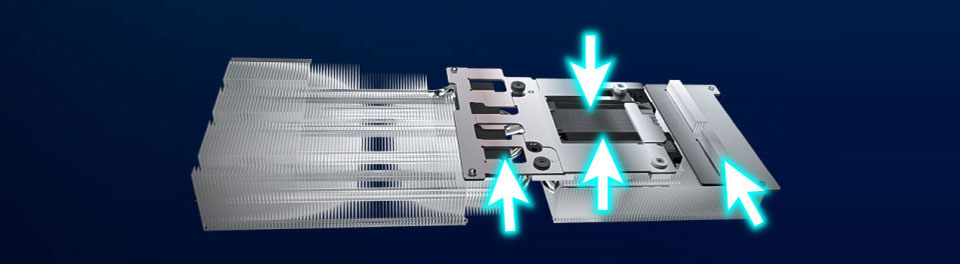

The Inno3D GeForce RTX 3070 iChilll X3 LHR 8GB features an ultra-smooth DHT surface for GPU composing of 6 heat pipes.
Back plate design
A solid die casted backplate with airflow openings help protect the card and allow the hot air to release from the fins.
Specifications
| CUDA Cores | 5888 |
| Boost Clock (MHz) | 1785 |
| Base Clock(MHz) | 1500 |
| Minimum System Power Requirement (W) | 650 |
| Supplementary Power Connectors | 8+8-pin |
| Memory Clock | 14Gbps |
| Standard Memory Config | 8GB |
| Memory Interface | GDDR6 |
| Memory Interface Width | 256-bit |
| Memory Bandwidth (GB/sec) | 448 |
| Real-Time Ray Tracing | Yes |
| Ray Tracing Cores | 2nd Generation |
| Tensor Cores | 3rd Generation |
| NVIDIA Architecture | Ampere |
| Microsoft DirectX | 12 Ultimate |
| NVIDIA DLSS | Yes |
| PCI Express Gen 4 | Yes |
| NVIDIA GeForce Experience | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| Bus Support | PCI-E 4.0 X16 |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| OS Certification | Windows 10, Linux, FreeBSDx86 |
| NVIDIA G-SYNC™-Ready | Yes |
| Lighting module | Programmable RGB: Aura Sync, Mystic Light, RGB Fusion |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA GPU Boost™ | Yes |
| Vulkan API | Yes |
| OpenGL | 4.6 |
| HDMI 2.1 | Yes |
| DisplayPort 1.4a | Yes |
| NVIDIA Encoder | 7th Generation |
| NVIDIA Decoder | 5th Generation |
| LHR | This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.). |
| Installation Guide | Yes |
| Power Guide | Yes |
| Graphics Card Dimensions | Length: 300mm Height: 135mm Width: 3-slot |
| Multi Monitor | Yes |
| Maxmium Digital Resolution | 7680x4320 |
| HDCP | 2.3 |
| Standard Display Connectors | HDMI 2.1, 3x DisplayPort 1.4a |
Backed by a 3 year Inno3D warranty.
