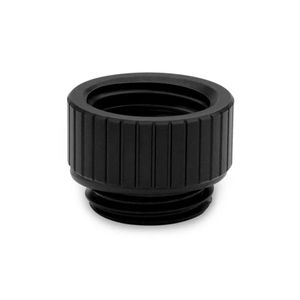

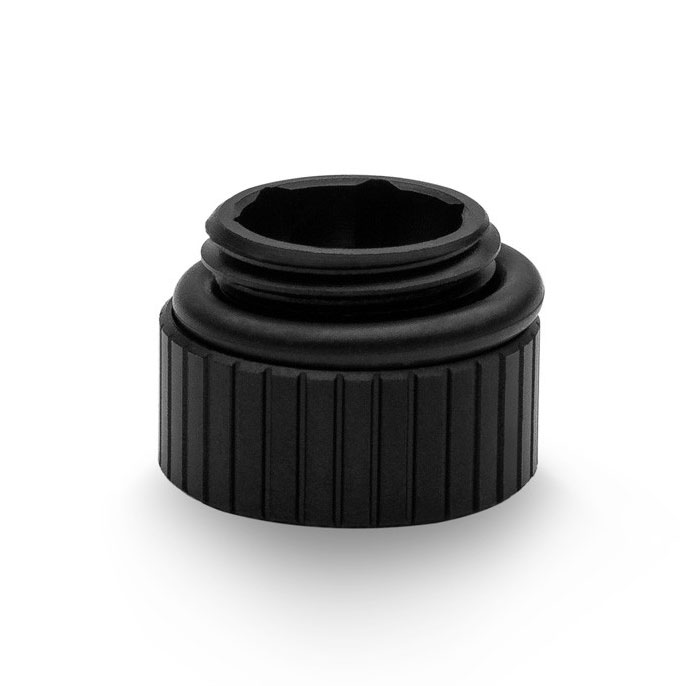

The EK Quantum Torque Micro Extender Static MF 7 Black is a premium small-diameter male+female threaded extender. It is commonly used to extend a G1/4" port from a block, radiator, or any other liquid-cooling component in order to ease the process of connecting to other components and having fewer bends or inaccessible fittings at tight places. This extender is especially useful in situations where the port spacing is too low, or due to clearance issues.
Features
Made from nickel-plated CNC machined brass. Sealed with quality EPDM O-rings.
These static extenders can be either tightened by hand or by using EK-Loop Multi Allen Key / Allen Key 9mm (not included, available for separate purchase).
This is not a revolvable extender.
Specifications
| Threading |
2 x G1/4" (Male - Female) |
| Thread length |
4.5mm |
| Diameter |
16.5mm |
| Height |
7mm |
| Material / Design / Color option |
Black |
| Threads |
G1/4 |
| Notes |
Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
This product should NOT be installed with any aluminum Fluid Gaming parts! |
Backed by a 2 year EK warranty.
