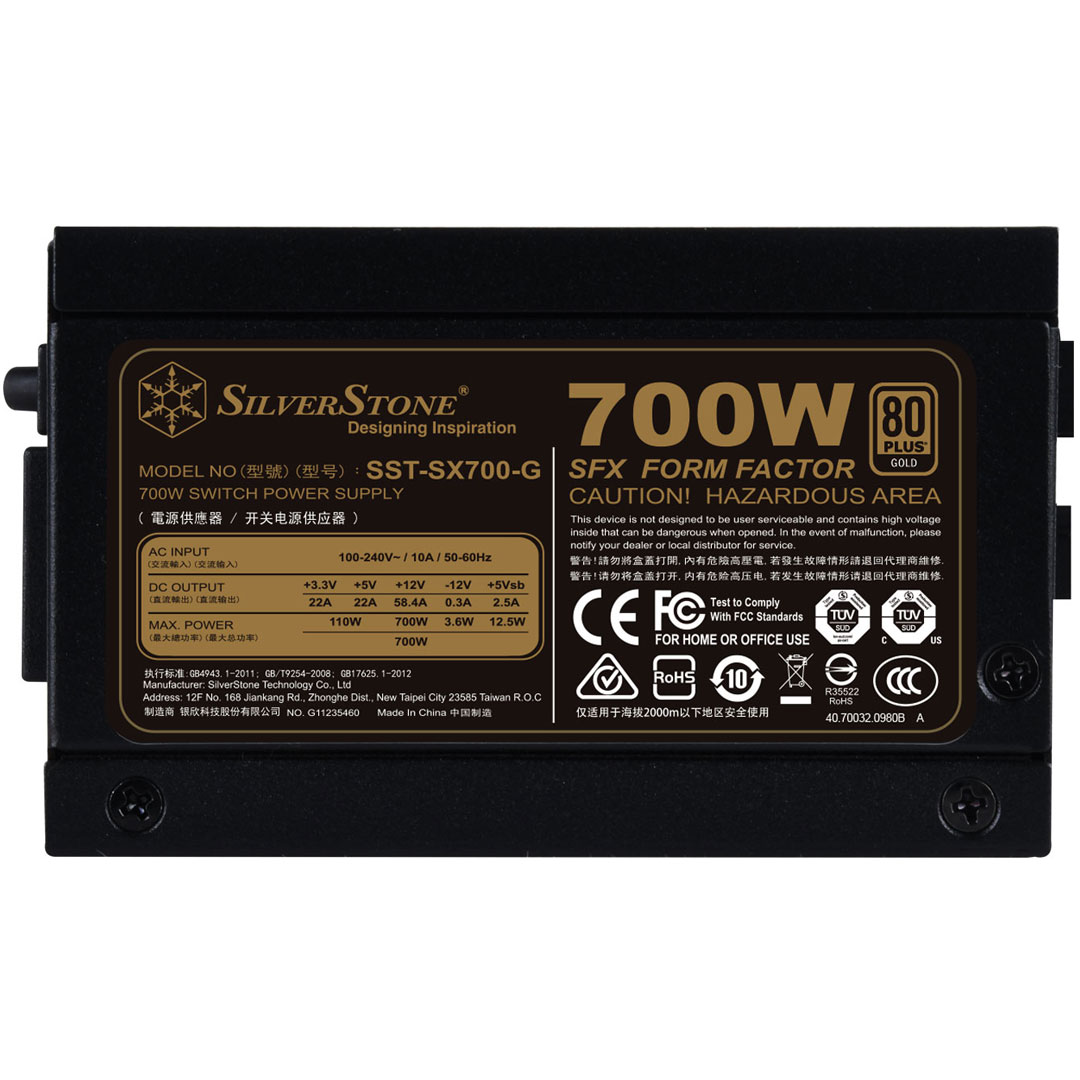

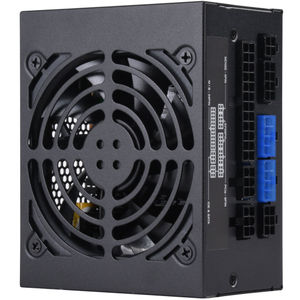

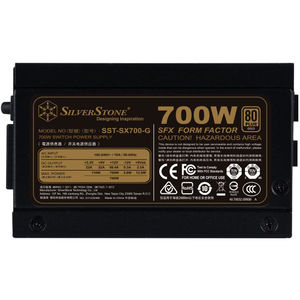

SilverStone SFX Gold Modular 700W Power Supply

SST-SX700-G-V1.1 | SilverStone
$169
In stock
Buy now, pay later!
The SX700-G is yet another evolutionary step toward perfecting the small form factor power supply category. It is more powerful without growing in size to achieve unprecedented power density levels of 882W, the highest of any SFX or ATX PSUs released thus far. This increase in power density was achieved through more advanced engineering and component selection so rather than added noise as is the norm for upping wattage output in power supplies, the SX700-G remains just as quiet as lower wattage models thanks to the use of 92mm FDB fan. For connectivity, the SX700-G is equipped with connectors a wide variety of system configurations with SilverStone's famed short, flexible flat cables. Longer standard length cable set, the PP05-L is also available for purchase separately for those users wishing to use this PSU in larger enclosures.

Features



Specifications


Model No. SST-SX700-G
Max. DC Output 700W
Power density 882W per liter
Load Range +3.3V, +5V, +12V, +5VSB, -12V
Max.(Amps) 22A, 22A, 58.4A, 2.5A, 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A, 0A, 0A, 0A, 0A
Range (%) ±3%, ±3%, ±3%, ±5%, ±10%
Line Reg.(%) ±1%, ±1%, ±1%, ±1%, ±1%
Ripple(mVp-p) 50mV, 50mV, 120mV, 50mV, 120mV
Color Black(Lead-Free Paint)
Combined +3.3V & +5V 110W
Combined +12V 700W
Input Voltage 90V ~ 264V
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency 87% ~ 90% at 20% ~ 100% loading
MTBF 100,000 hours
Operating temperature 0°C ~ 40°C
Protection Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors 1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)

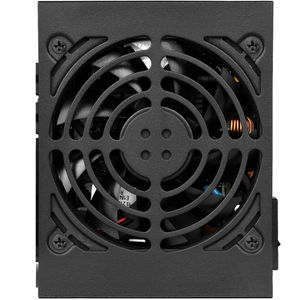

Cooling System Single 92mm FDB fan
Form factor SFX
Noise Level 18 dBA minimum
Dimension 125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight 1.4 Kg
Certification 80 PLUS Gold
Other GPU Support list
Compatible with ATX12V v2.4
Backed by a 5 year Silverstone warranty.
