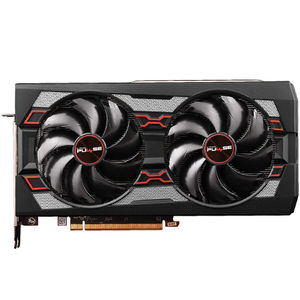

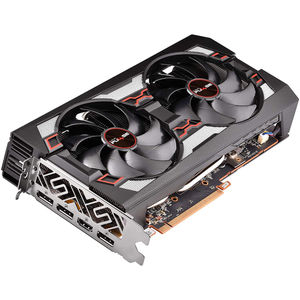

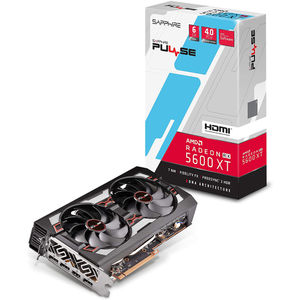

Sapphire Radeon RX 5600 XT Pulse 6GB
11296-01-20G | SapphireThis product has been discontinued
The Sapphire Radeon RX 5600 XT Pulse 6GB graphics card features a 1750MHz boost clock, 6GB GDDR6 192-bit memory interface, PCI-E 4.0, 1 x HDMI, 3 x DisplayPort, and OpenGL 4.6, DirectX 12, Shader Model 6.4 support.
The Sapphire Pulse RX 5600 XT offers incredible performance at the optimal budget for every gamer. With lightning fast GDDR6 memory and redefined display and media engines, the PULSE RX 5600 XT is the ideal graphics card for 1080p gamers. It is powered by AMD’s extreme RDNA architecture, alongside our innovative Dual-X Cooling Technology which keeps the GPU, Memory and VRM components icy cool at low noise levels. The all-aluminum backplate preserves the rigidity of the GPU and guarantees nothing bends, dust stays out and adds another level of passive cooling to dissipate heat. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Dual Ball Bearing Fans keep your GPU running smooth and stable. Take your gaming to the next level with the SAPPHIRE PULSE RX 5600 XT as the beating heart of your PC!
The Sapphire Pulse RX 5600 XT offers incredible performance at the optimal budget for every gamer. With lightning fast GDDR6 memory and redefined display and media engines, the PULSE RX 5600 XT is the ideal graphics card for 1080p gamers. It is powered by AMD’s extreme RDNA architecture, alongside our innovative Dual-X Cooling Technology which keeps the GPU, Memory and VRM components icy cool at low noise levels. The all-aluminum backplate preserves the rigidity of the GPU and guarantees nothing bends, dust stays out and adds another level of passive cooling to dissipate heat. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Dual Ball Bearing Fans keep your GPU running smooth and stable. Take your gaming to the next level with the SAPPHIRE PULSE RX 5600 XT as the beating heart of your PC!
Features
Dual BIOS
Choose between performance mode or silent mode to enhance your gaming experience.
COOLTECH
Our superior cooling technology to keep your temperatures low at a high framerate.
- Intelligent Fan Control
- Precision Fan Control
- Robust VRM Cooling
- Robust Memory Cooling
- Dual-X Cooling Technology
DNA
Our core parts that elevate the life of our products through quality, robustness & reliability.
- Backplate (Tough Metal Backplate)
- Two-Ball Bearing
- Fan Quick Connect
- Fuse Protection
- Dual BIOS
PLUS
All of the extra features that make our SAPPHIRE Boards so special and unique.
- Power Design
- Free Flow
- TriXX Supported
- TriXX Boost
- Red LED Logo
Extreme gaming DNA
The AMD Radeon RX 5600 XT graphics card is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the hear of AMD's advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.
Specifications
| GPU | Radeon™ RX 5600 Graphics 2nd Gen 7nm GPU RDNA Architecture |
| Engine Clock | Boost Clock: Up to 1750 MHz Game Clock: Up to 1615 MHz Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 2304 |
| Memory Size/Bus | 6GB/192 bit GDDR6 |
| Memory Clock | 14 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz |
| Interface | PCI-Express 4.0 |
| Output | 1x HDMI 3x DisplayPort |
| BIOS Support | Dual UEFI |
| API | Vulkan® OpenGL® 4.6 OpenCL 2.0 DirectX® 12 Shader Model 6.4 |
| Game Index | Extreme 1080P, 1440P Entry |
| Sapphire Features | Power Design Free Flow TriXX Supported TriXX Boost Red LED Logo Intelligent Fan Control Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS |
| AMD Features | RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR |
| Cooling | Dual-X Cooling Dual Fan Two-Ball Bearing |
| Form Factor | 2.3 slot, ATX Dimension: 254 x 135 x 46.5(mm) |
| Power Consumption | 160W |
| OS | Linux®, Windows® 10, Windows® 7 64bit operating system required |
| System Requirement | Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply). 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 4GB of system memory. 8GB recommended. |
Backed by a 3 year Sapphire warranty.
