ASUS RT-AX86U AX5700 Dual Band Wi-Fi 6 Gaming Router
RT-AX86U | ASUSThis product has been discontinued
Features
Ultra powerful Wi-Fi 6
RT-AX86U brings you all the benefits of WiFi 6 (802.11ax), and works perfectly with all your existing WiFi devices.

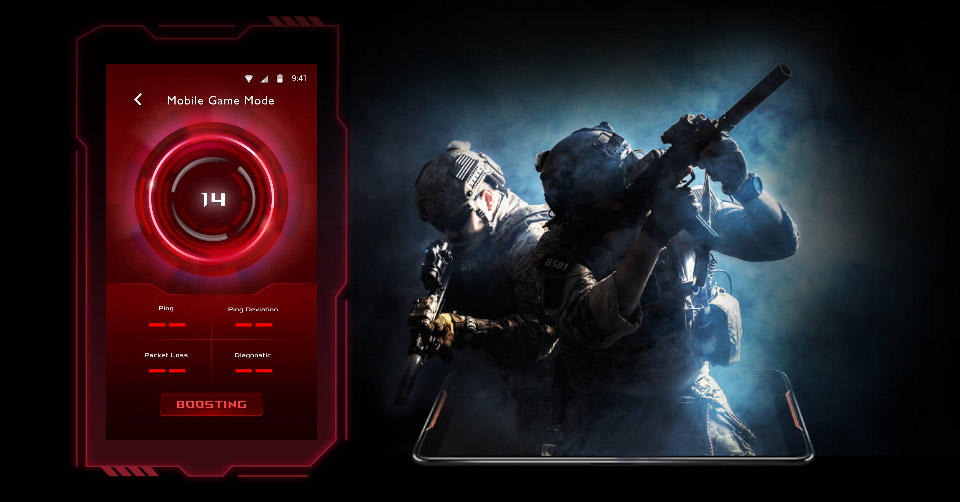

Boost your mobile gaming experience
Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app.
Gaming Without Limits
The dedicated gaming port on RT-AX86U automatically prioritizes any wired device connected to it. No complex configuration is needed, just connect your gaming PC or console to the special LAN port to give you a fast, stable connection that's always at the head of the queue.
Lightning-fast 2 GB/s internet
RT-AX86U is designed to break down all the barriers that can slow down your gaming. It supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections.
Remove Network Bottlenecks
Adaptive QoS (Quality of Service) lets you keep your network running smoothly by prioritizing network traffic. You can prioritize applications such as streaming video or web surfing, as well as gaming. It's the perfect ally for delivering low-latency WiFi anywhere in your home.

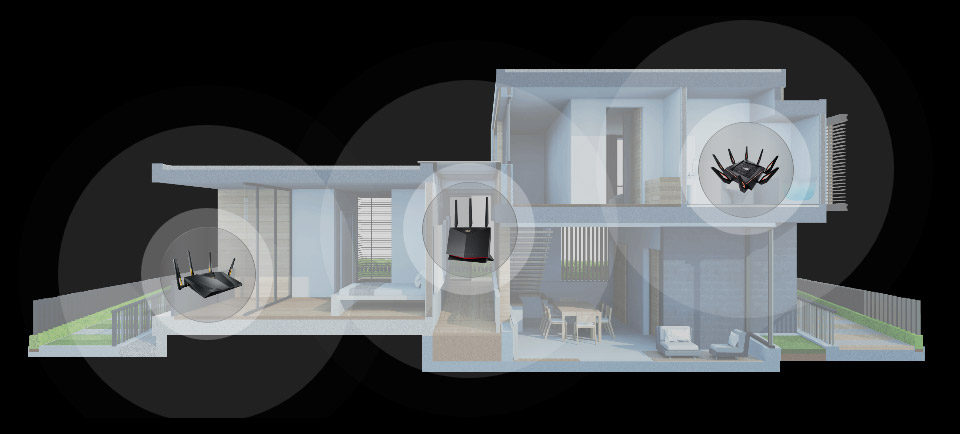

Whole-house gaming
AiMesh, a unique mesh-networking technology that creates a whole-home network using multiple ASUS routers. With easy central control and seamless roaming, even non-experts can set it up with any AiMesh-capable routers you own. Say goodbye to WiFi dead zones!
Commercial-grade security from your home
Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. RT-AX86U includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with RT-AX86U, and you can keep an eye on everything that's happening on your network via the handy mobile app.
Easy management via mobile application
Easily manage your router settings via the mobile application.
Specifications
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
| Product Segment | AX5700 ultimate AX performance |
| Coverage | Very large homes |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 450 Mbps 802.11n (1024 QAM) : up to 750 Mbps 802.11ac (1024 QAM) : up to 4333 Mbps 802.11ax (2.4GHz) : up to 861 Mbps 802.11ax (5GHz) : up to 4804 Mbps |
| Antenna | External antenna x 3 Internal PCB antenna x 1 |
| Transmit/Receive | 2.4 GHz 3 x 3 5 GHz 4 x 4 |
| Processor | 1.8 GHz quad-core processor |
| Memory | 256 MB Flash 1 GB RAM |
| Wi-Fi Technology | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access control：Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN Support | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through IPSec server PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| Utilities | Router setup wizard; Firmware restoration; Device discovary |

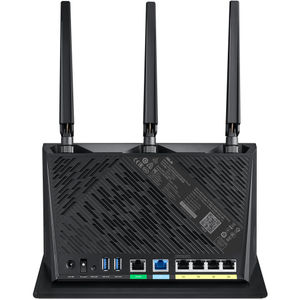

| Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1 USB 3.2 Gen 1 x 2 |
| Features | Router app Link Aggregation - 802.3ad MU-MIMO Traffic Analyzer Adaptive QoS AiProtection Pro Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN server : PPTP Server, OpenVPN Server, IPSec server VPN client : PPTP client, L2TP client, OpenVPN client NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay Mac OS Backup Enhanced media server (AiPlayer app compatible) - Image : - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management Dual WAN IPTV support Roaming Assist OFDMA Beamforming NVIDIA Geforce Now Cloud Gaming Optimization WAN Aggregation |
| Button | WPS Button, Reset Button, Power Switch, LED on/off Button |
| LED Indicator | Power x 1 Wi-Fi x 2 2.5G Port x 1 WAN x 1 LAN x 4 WPS x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current DC Output : 19.5 V with max. 2.31 A current |
| OS Support | Windows® 10 Windows® 8 Windows® 7 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 |
| Dimensions | 242 x 100 x 325 mm (WxDxH) with antenna 242 x 100 x 164 mm (WxDxH) without antenna |
| Weight | 814.5 g |
| Package Content | RT-AX86U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Operation mode | Wireless router mode Access point mode Media bridge mode |
