Netgear GS308T 8-port Gigabit Managed Pro Switch

GS308T-100AUS
On sale! (normally $99) The Netgear GS308T 8-port Gigabit Managed Pro Switch offers powerful Layer 2 features and enhanced performance. It features 8 ports, advanced VLAN support for better network segmentation, QoS for traffic prioritisation and port mirroring. Backed by a 5 year Netgear warranty.

Features


Traffic Management

  • Auto Negotiation of speed and duplex modes
  • IEEE 802.3x Flow Control
  • Dynamic MAC address management
  • IEEE 802.1Q-based VLAN
  • Auto Voice VLAN
  • Auto Video VLAN
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 801.2p-based QoS
  • TCP/UDP-based QoS
  • DiffServ
  • DSCP Support
  • Rate Limiting (ingress, or egress)
  • Link Aggregation and LACP

Security

  • MAC lockdown
  • MAC lockdown by number of MACs
  • IEEE 802.1x port authentication EAP
  • Dynamic VLAN Assignment
  • Guest VLAN
  • TACACS+
  • 3 HTTPS /SSL versions (Selected models)
  • TLS session
  • Trusted MAC
  • IPv4, L4-based Access Control List (ACL)

Multicast Efficiency

  • IGMP snooping, v1, v2 and v3
  • IGMP Snooping querier
  • Blocking of unknown multicast traffic

Spanning Tree, Routing and Stacking

  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Reliability, Performance and Troubleshooting

  • Port mirroring both on ingress and egress traffic
  • Jumbo frame support
  • Broadcast Storm control
  • Cable diagnostics
  • Loop Detection
  • DoS Prevention
  • IEEE 802.1ab LLDP
  • LLDP-MED
  • Dual Image
  • SNTP
  • Option to enable/disable the flooding of EAPOL when 802.1x is disabled
  • Protected ports
  • DNS client
  • DHCP clients
  • DHCP snooping
  • Ping and traceroute client
  • Energy Efficient Ethernet (IEEE 802.3az) compliant

Switch Management

  • Web browser-based management GUI
  • Smart Control Center Software for multi-switch management
  • IP Access List
  • Configurable Management VLAN
  • SNMP v1/v2c and v3
  • Standard MIBs (RFC1213, RFC1643, and RFC1493)
  • RMON group 1, 2, 3, 9
  • Firmware Upgrade through Smart Control Center (TFTP)
  • Firmware download (to switch) and upload (to server) through TFTP/HTTP
  • Configuration and Image Upload (to PC) through HTTP
  • Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
  • Memory & FLASH log
  • Syslog (server)
  • System password protection
  • Registration through NETGEAT Insight App

Specifications


Model Description NETGEAR® S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch
Gigabit ports 8
SFP ports N/A
PoE+ (802.3at) ports N/A
Total PoE Power budget (Watts) N/A
Max MAC entries 8K
Buffer size 512 KB
VLAN (Number Supported) 64
VLAN routing N/A
Dynamic VLAN assignment Yes
MLD Snooping N/A
Static route N/A
Host ARP table Yes
EEE Yes
DoS Prevention Yes
Internal/External Power Supply External: DC 12V 1.0A (power cord localized to country of sale)
Max consumption (Watts) 6.4W
FAN Fan-less
Acoustic Noise Level @25C (dBA) N/A
Operating Temperature 0° to 40° C (32° to 104° F)
MTBF 2,957,592 hrs (338 yrs)
Weight (kg) 0.41kg (0.9 lb)
Dimensions (WxDxH) mm 158 x 101 x 30 mm (6.2 x 4.0 x 1.2 in)


Product Images

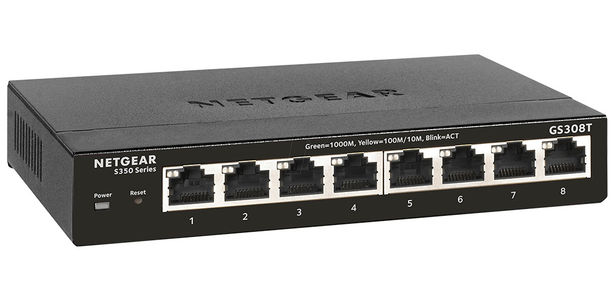

Netgear GS308T 8-port Gigabit Managed Pro Switch product
