MetallicGear Neo Qube Case Black
MG-NE620Q_DBK01 | MetallicGearThis product has been discontinued

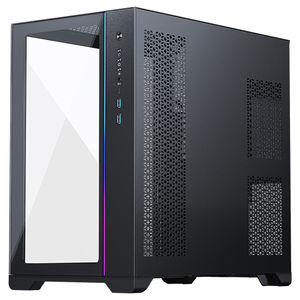

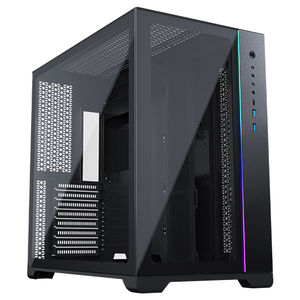

The MetallicGear Neo Qube case features a tempered glass front and side panel, integrated DRGB lighting, dual chamber interior allowing you to install a second system, supports E-ATX, ATX, micro-ATX and mini-ITX motherboards, radiator support at the top, side and bottom (all up to 360mm) and supports graphic cards of up to 425mm in length.
Features
Spacious Interior with a View
The Dual Chamber design provides a spacious interior for a clean and easy building experience. With dual tempered glass, the NEO Qube is the perfect showcase to display your system from every angle.
Digital-RGB Lighting Integrated
A smooth ray of D-RGB lighting is integrated into the tempered glass design. Tasteful and easy-to-use colour effects are built in and can be easily expanded with more D-RGB products and synced with D-RGB equipped motherboards.
Dual System Power
Unlock the Dual System capability with the Revolt X power supply from Phanteks. A second ITX system can be installed and equipped with up to a dual slot half-height expansion card. Create the perfect Dual System setup for streaming, work, storage and multiple users
Capabilities
- Up to E-ATX Motherboards
- Integrated & Expandable D-RGB Lighting
- Dual System Support
- Dual Tempered Glass Panels
- Vertical GPU Ready
- Fast Type-C USB (gen2)
- Triple 360 Radiator Support
- Equipped Dust Filters (4x)
Specifications
Case Specifications
| Model | MG-NE620Q-DBK01 |
| Series | Neo Series |
| Dimension (WxHxD) | 270 mm x 450 mm x 460 mm 10.7 in x 17.9 in x 18.3 in |
| Form Factor | Mid Tower |
| Materials | Steel Tempered Glass |
| MB Support | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Front I/O | 2 x USB 3.0, 1 x USB 3.1 (gen 2 type-C), Mic, Headphone, D-RGB Mode Button, D-RGB Colour Button, Reset Button, Power Button |
| Window | Yes, Front and Side Tempered Glass |
| Colour | Black |
| Warranty | 5 Years |
PCI Slots & Drive Bays
| PCI Slots | 8 |
| Internal 3.5" | 2 (2 Included) |
| Internal 2.5" | 5 (5 Included, 3 If 3.5" Bays are Used) + 2 Optional |
Fan
| Side | 3 x 120 mm |
| Top | 3 x 120 mm / 2 x 140 mm |
| Bottom | 3 x 120 mm / 2 x 140 mm |
Radiator
| Side | Up to 360 mm Radiator Space |
| Top | Up to 360 mm / 280 mm Radiator Space |
| Bottom | Up to 360 mm Radiator Space |
Clearance
| CPU Cooler | 148 mm (5.9 in) |
| Cable Management | 90 mm (3.6 in) |
| Graphics Card | 425 mm (16.9 in) |
| Power Supply (Incl. Cables) | 275 mm (10.9 in) |
Packaging
| Net Weight | 9.5 KG (20.9 lbs) |
| Gross Weight | 10.8 KG (23.8 lbs) |
Backed by a 5-year MetallicGear warranty.
