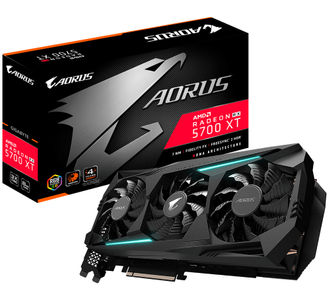

Gigabyte Radeon RX 5700 XT Aorus 8GB

The Gigabyte Aorus Radeon RX 5700 XT 8G features an AMD Radeon RX 5700 XT with a Base Clock of 1770 MHz and Boost Clock of up to 2010 MHz, 8GB GDDR6 256-bit memory, a Windforce 3X Cooling System, BIOS switch for OC mode and silent mode, support for up to 6 Displays (DisplayPort 1.4 x3 and HDMI 2.0b x1, 1.4b x 2), PCI-E 4.0, DIrectX 12 and OpenGl 4.6 support. This card is equipped with a metal back plate and RGB Fusion 2.0 support to synchronise colours with your other Aorus devices. Backed by a 3 year Gigabyte's warranty.

Features

---

Specifications

---

Graphics Processing	Radeon RX 5700 XT
Core Clock	Boost Clock : Up to 2010 MHz (Reference card is 1905 MHz) Game Clock* : 1905 MHz (Reference card is 1755 MHz) Base Clock : 1770 MHz (Reference card is 1605 MHz)
Stream Processors	2560
Process Technology	7 nm
Memory Clock	14000 MHz
Memory Size	8 GB
Memory Type	GDDR6
Memory Bus	256 bit
Memory Bandwidth (GB/sec)	448 GB/s
Card Bus	PCI-E 4.0 x 16
Digital max resolution	7680x4320@60Hz
Multi-view	6
Card size	L=290 W=123 H=58 mm
PCB Form	ATX
DirectX	12
OpenGL	4.6
Recommended PSU	600W
Power Connectors	8 Pin*2
Output	DisplayPort 1.4 HDMI 2.0b HDMI 1.4b
Accessories	AORUS metal sticker Quick guide 4-year warranty registration
Note	*Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
