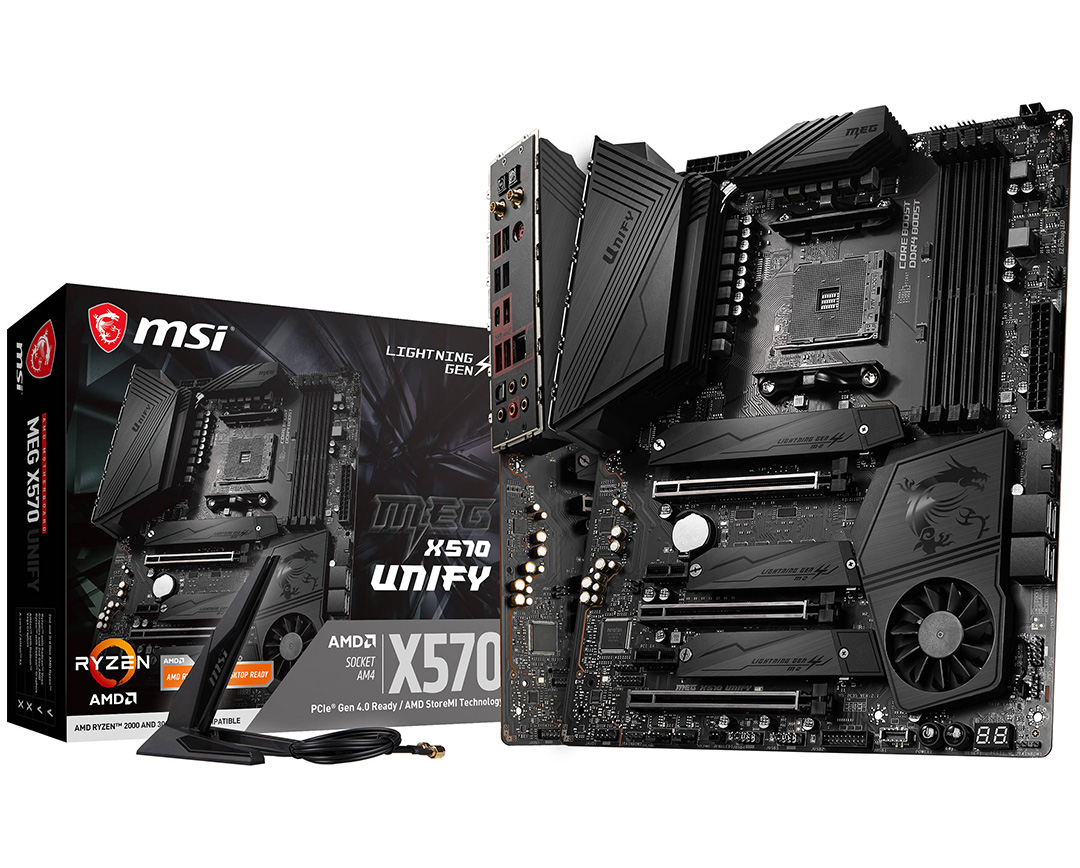

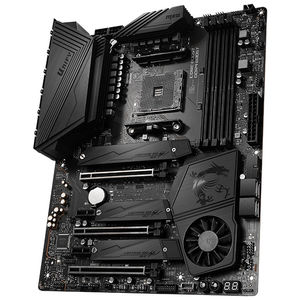

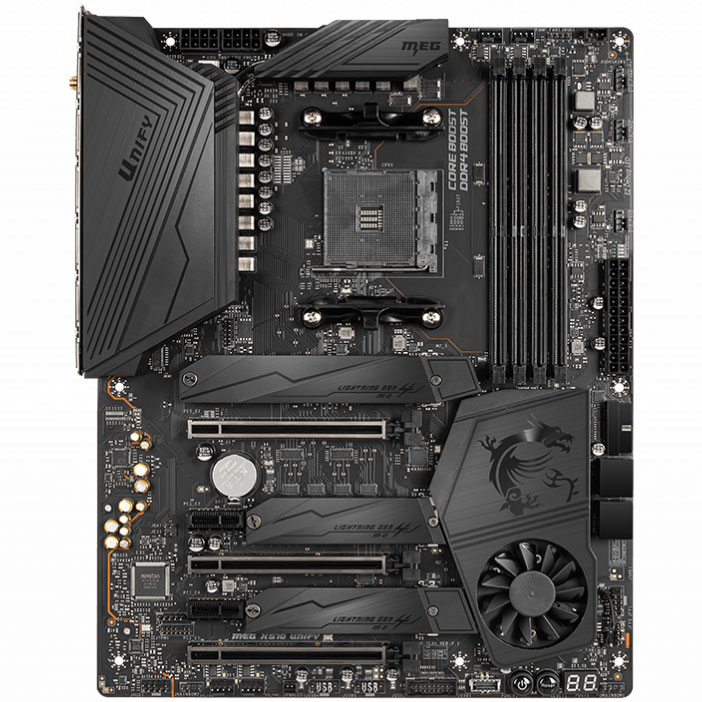

MSI MEG X570 Unify Motherboard
MEG-X570-UNIFY | MSIThis product has been discontinued
AMD Ryzen AM4 Socket with AMD Ryzen 3rd Generation support, X570 Chipset, 4x DIMMs dual channel DDR4, PCI-E 4.0, 4x SATA3, 3x M.2 ports, Realtek RTL8125 Gigabit LAN port, Realtek ALC1220 Audio Codec, HDMI, ATX form factor.
|
Warning: This product contains a button battery - If swallowed, a lithium battery can cause severe or fatal injuries within 2 hours. - Keep batteries out of reach of children. - If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention. |
Specifications
| Socket | AM4 |
| CPU (Max Support) | RYZEN 9 |
| Chipset | AMD® X570 Chipset |
| DDR4 Memory | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by JEDEC and A-XMP OC MODE |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 3 |
| PCI-E x1 | 2 |
| SATAIII | 4 |
| M.2 Slot | 3 |
| RAID | 0/1/10 |
| TPM (header) | 1 |
| LAN | 1x Realtek® RTL8125 2.5 Gbps LAN controller |
| USB 3.2 ports (Front) | 1(Gen2, Type C), 4(Gen1, Type A) |

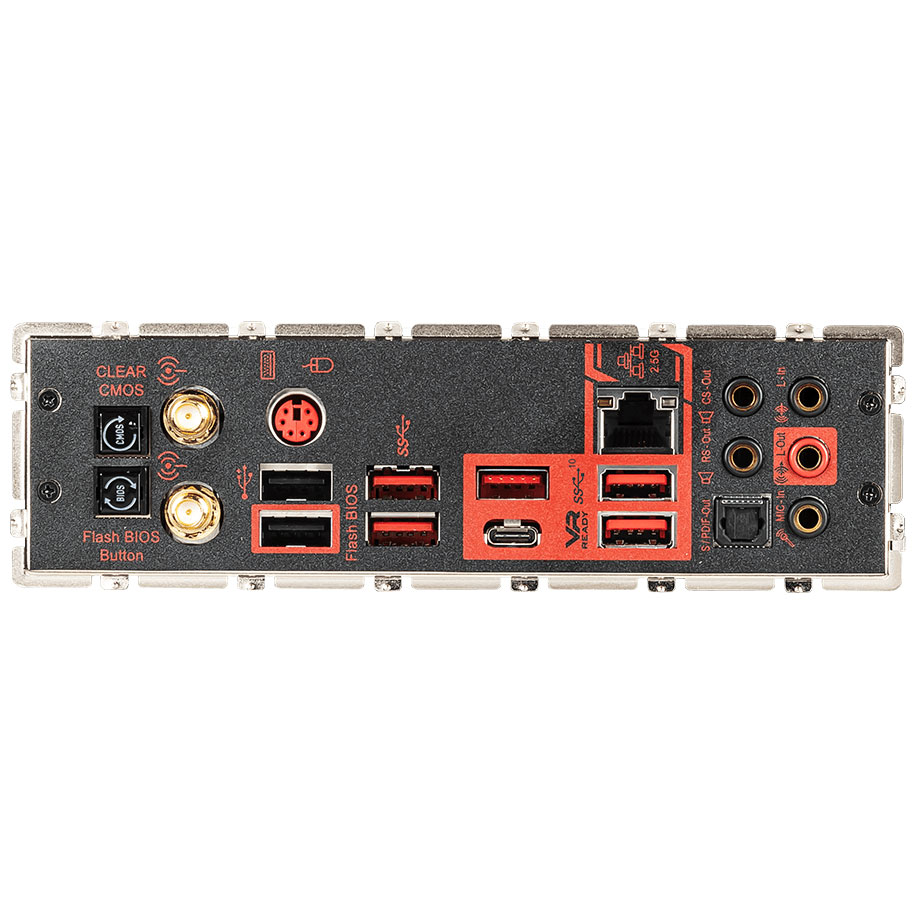

| USB 3.2 ports (Rear) | 1(Gen2, Type C), 3(Gen2, Type A), 2(Gen1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek® ALC1220 Codec) |
| DirectX | 12 |
| Form Factor | ATX |
| SLI | Y |
| CrossFire | Y |
| Operating System | Support for Windows® 10 64-bit |
Backed by a 3 year MSI warranty.
