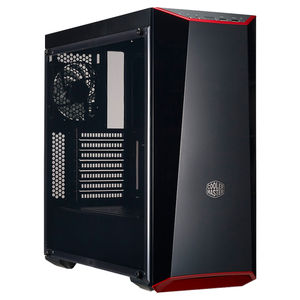

Cooler Master MasterBox Lite 5 Mid Tower Case
MCW-L5S3-KANN-01 | Cooler MasterThis product has been discontinued
Features
MasterBox Lite 5
Choose Your Style
- Full Black Coating & PSU Cover
- Edge to Edge Transparent Acrylic Side Panel
- Support for a total of 4 Fans & Liquid Cooling
- Graphics Card Support Up to 400mm
The Gateway to Stylish Gaming

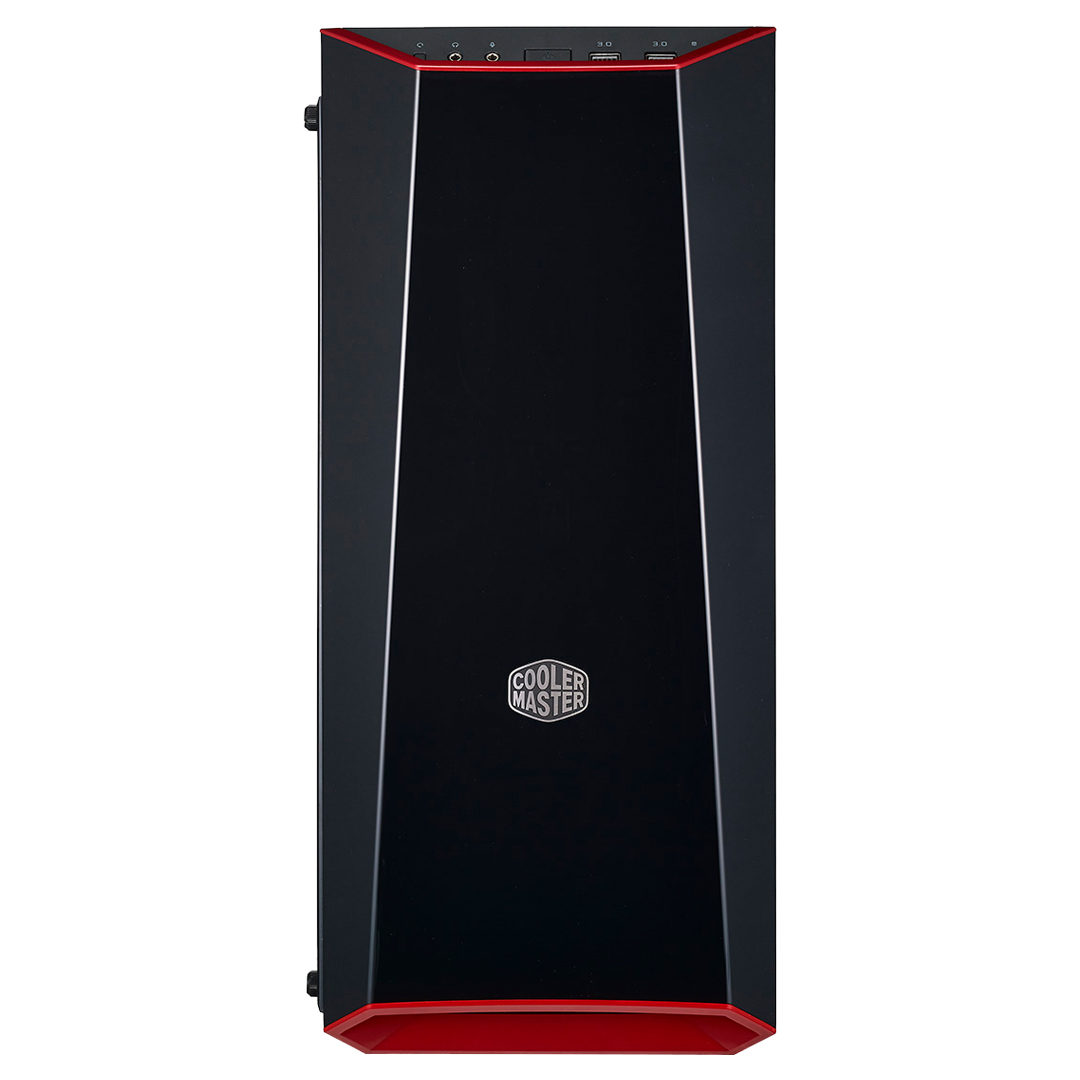

Customizable Trim Colours
- Top Customizable Fan
- DarkMirror Front Panel
- Bottom Customizable Fan

3D Printing
Freely Express Yourself
We know the community also has some awesome ideas, and the ability to express them in everything you make or do. So with that in mind, we're set to release the 3D printing schematics of the top and bottom trim.

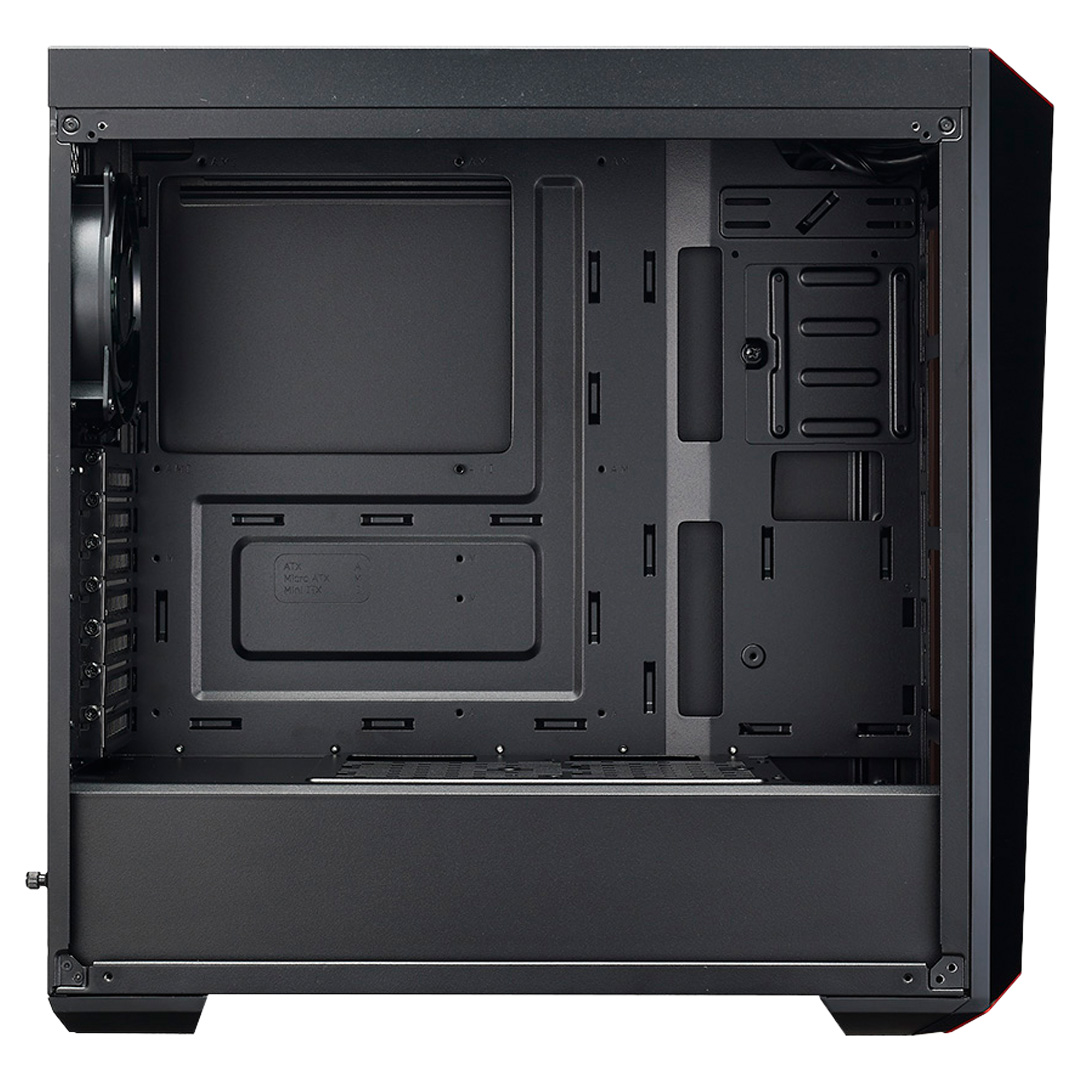

Expanding the Possibilities
For All Your Components
The spacious interior fits all standard motherboards for your gaming needs. Black coating and an included PSU cover that allows for easy, simple configurations for your gaming build. Let your configuration stand out with an all-black background.
- ATX
- Micro-ATX
- Mini-ITX

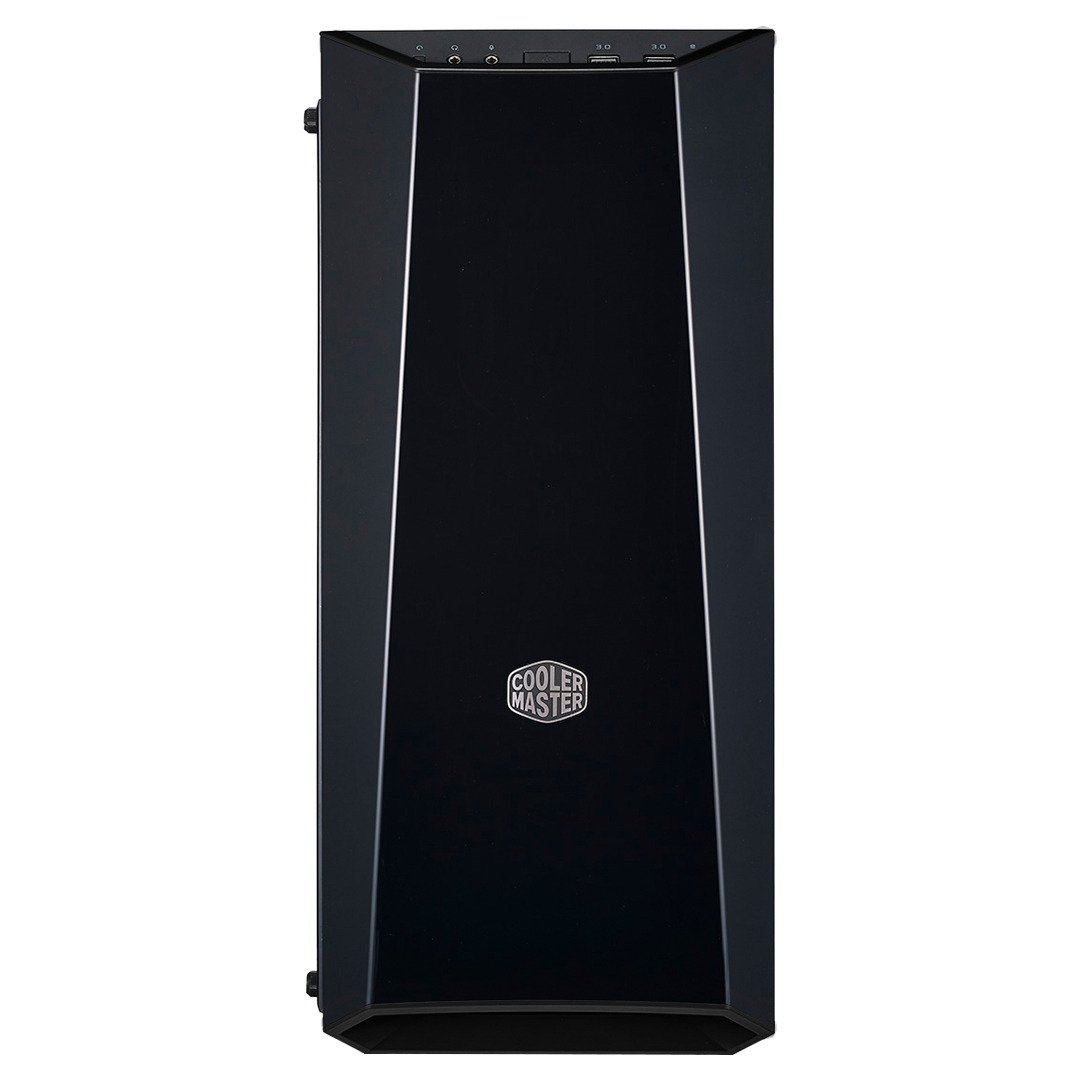

DarkMirror Front Panel
Because Your Case Doesn’t Have to Be Boring
A sleek, tinted side window panel and DarkMirror removable front panel allows for easy access to your components. And with support for up to four cooling fans and a watercooling system, we ensure that your performance doesn't suffer.
Specifications
| Model Number | MCW-L5S3-KANN-01 |
| Available Colour | Black |
| Materials | Steel, Plastic |
| Dimensions (L X W X H) | 468.8 x 200 x 454.5mm |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| Expansion Slots | 7 |
| 2.5" / 3.5" Drive Bays (Combo) | 2 |
| Drive Bays -SSD | 1 |
| I/O Panel | 2 x USB 3.0, Audio In & Out (Supports HD Audio) |
| Pre-Installed Fans - Rear | 1 x 120mm (Black) |
| Fans Support - Front | 3 x 120mm, 2 x 140mm |
| Fans Support - Rear | 1 x 120mm |
| Liquid Cooling System- Front | 240mm, 280mm, 360mm |
| Liquid Cooling System- Rear | 120mm |
| Clearance - CPU Cooler | 163mm / 6.41" |
| Clearance - GFX | 400mm / 16.14", 400mm / 16.14" (w/o 3.5" HDD Cage) |
| Clearance - PSU | 180mm /7.1" |
| Cable Routing - Behind Motherboard Tray | 15-23mm / 0.59-0.90" |
| Dust Filters | Front, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Series | MasterBox Series |
| Size | Mid Tower |
