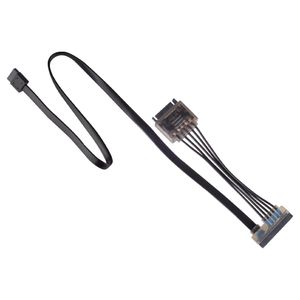

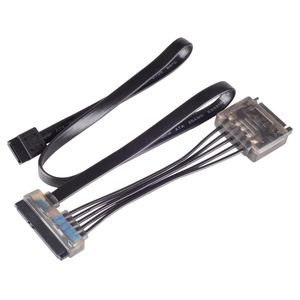

The SilverStone CP13 is a specially designed SATA drive extension cable that extends 15pin SATA power and 7 pin SATA data into a 22pin combo connector. Its 180 degree thin profile helps it fit in extremely tight spaces so connection is still possible even if drives are stacked directly on top of each other. For extra insulation protection, internal heat shrink moulds are used while tantalum capacitors provide stable voltage. There are also built-in LED indicators to show the connection/power status for the cable. With high quality materials and innovative features, the CP13 is an invaluable accessory for any enthusiast.
Features
CP13
- 180 degree combo connector eliminates interference with adjacent drives
- Heat shrink moulds for insulation protection
- Integrated tantalum capacitors provide stable voltage
- Includes LED indicators
Specifications
| Model Number |
SST-CP13 |
| Colour |
Black |
| Connectors |
Input Connectors:

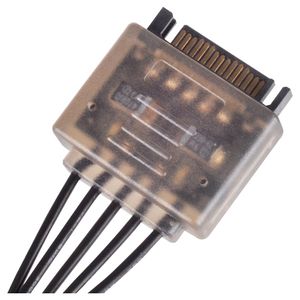

1 x Standard 15-pin SATA power connector

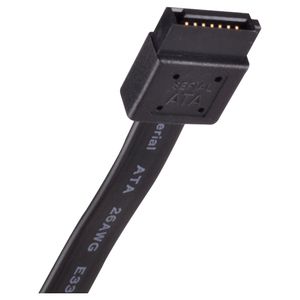

1 x Standard 7-pin SATA data connector
Output Connector:

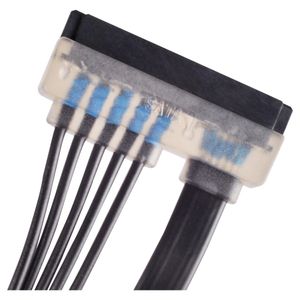

1 x 180° combo SATA 15-pin power connector & SATA 7-pin data connector (22-pin) |
| Capacitor Size |
470 μF |
| Transmitting Speed |
6 Gb/s |
| Cable Length |
Data cable 500 mm, power cable 100 mm |
Backed by a 1 year SilverStone warranty.
