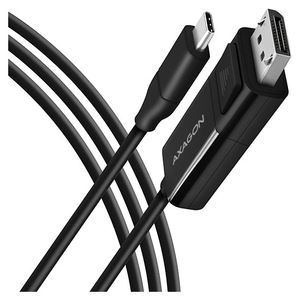

The Axagon RVC‑DPC USB‑C to DisplayPort 4K/60 Hz Cable 1.8 m features an active converter cable that outputs DisplayPort 1.2 from a USB‑C port with DP Alt Mode or Thunderbolt support. It delivers up to 4K resolution at 60 Hz, carries video and audio over a 1.8 metre fixed cable, and includes a latch‑style DP connector with HDCP 2.2 support, hot‑plug detect and up to 8‑channel 96 kHz/24‑bit audio.
Features
RVC-DPC USB-C > DP Cable 1.8m
Active cable for connecting DisplayPort display to USB-C output. Support 4K/60Hz.
Active USB-C -> DisplayPort cable - Adaptor AXAGON RVC-DPC for connecting a DisplayPort monitor/TV/projector to a notebook or mobile phone using USB type C connector.
A hardware converter ensures quality image up to 4K/60Hz Ultra HD resolution without any installation. Video and audio transfer from a computer, laptop, phone or Apple MacBook will now be easy.
Compact dimensions provide the possibility to use the cable in insufficient space. The converter dimensions are almost identical to the standard cable connectors. You have an ideal solution - you don't need a cable and converter, with this active cable everything is integrated into one compact unit.
The cable is only oneway, i.e. USB-C to DP, not otherwise . A USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support of a device with Thunderbolt 3 port is required for the cable to function properly.
- Supported modes: mirroring the desktop (default setting), extending the desktop,
- HPD (Hot-Plug-Detect) support - communication sequence controlling the connection/disconnection of the device while running,
- Support up to 8-channel sound - 96 kHz at 24 bits,
- Compliant with USB Type-C Cable and Connector Specification Revision 1.1 specification,
- Compliant with VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0 specification,
- Compliant with USB Device Class Definition for Billboard Devices Revision 1.0 specification,
- HDCP 2.2 (High-bandwidth Digital Content Protection) support - a mechanism used to protect the digital contents,
- Support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV),
- Power supply via USB-C – no external power is needed,
- Dimensions of converter body 47 x 22 x 10 mm,
- Total length cable incl. connector 185 cm,
Input
- USB-C
- USB type C (M) male connector
Output
- DisplayPort 1.2
- DP connector with latch (M) male
- connector latch control button
Specifications
General Data
| Model Number |
AXAGON-RVC-DPC |
| Max. Resolution |
4096 x 2160 @60Hz 4K x 2K |
| Display Modes |
Mirroring / extending the primary monitor area |
| Sound Transmission |
Yes |
| Automatic Installation |
Yes |
| Energy Saving |
Yes (computer- and display-controlled sleeping) |
| Hot Plug Detect |
Yes (HPD - connecting / disconnecting device when running) |
| Plug And Play |
Yes |
| Hot Plug |
Yes |
| Indication |
No |
| Dimensions |
47 x 22 x 10 mm |
| Weight |
71 g |
| Power Supply On The Bus |
Yes (USB bus power) |
| What's Included |

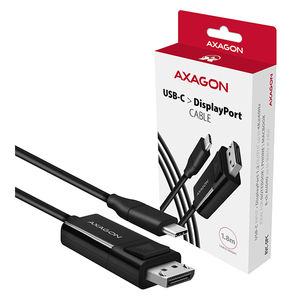

USB-C > DP cable 1.8m length
Printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA |
| Supported Resolutions |
Max. 4096 x 2160 (19:10) @60Hz DCI 4K
3840 x 2160 (16:9) @60Hz UHD-1 4K (UHDTV)
3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
2560 x 2048 (5:4) QSXGA
2560 x 1920 (4:3)
2560 x 1600 (16:10) WQXGA
2560 x 1440 (16:9) QHD
2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
2048 x 1536 (4:3) QXGA
2048 x 1152 (16:9) QWXGA
1920 x 1440 (4:3)
1920 x 1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1856 x 1392 (4:3)
1792 x 1344 (4:3)
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1536 x 864 (16:9)
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) HD
1360 x 768 (16:9) HD
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
* The resolution depends on monitor/TV/projector and graphics Adaptor parameters |
Input
| Interface |
USB-C (DisplayPort Alternate Mode) |
| Connector |
USB Type C male (on the cable) |
| Cable |
1.8 m, permanently connected |
Output
| Interface |
DisplayPort v1.2 |
| Connector |
DP male |
OS Support
| MS Windows |
Yes |
| Mac OS |
Yes |
| Android |
Yes |
| Chrome |
Yes |
Backed by a 2 year Axagon warranty.
