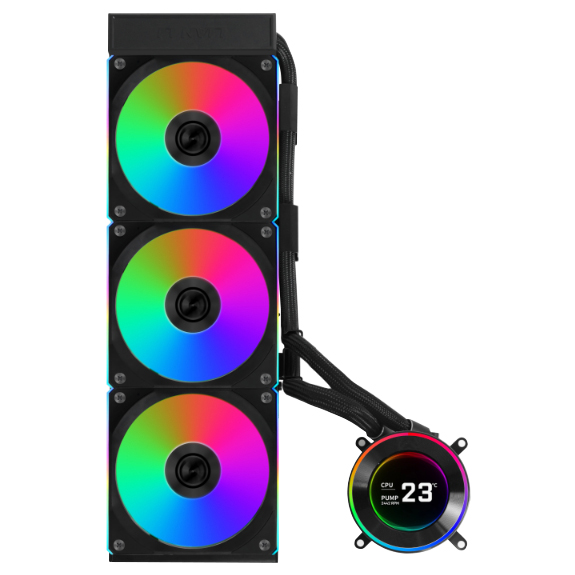

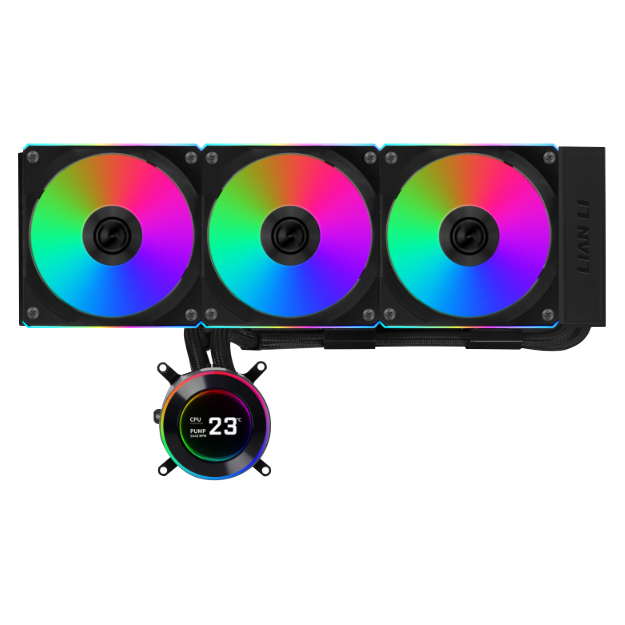

The Lian Li Hydroshift II LCD-C 360R AIO CPU Cooler offers a sleek and customisable cooling solution with its innovative design, featuring side-mounted tubing that runs along the radiator's edge, creating a clean and minimalist appearance by minimising visible cables and tubes. The cooler is equipped with a vibrant 2.1 inch round IPS LCD display boasting a 480×480 resolution, 500 nits brightness, and a 60Hz refresh rate, allowing users to monitor system information or display custom visuals. Equipped with three high-performance UNI FAN CL Wireless ARGB fans, the cooler delivers efficient heat dissipation while maintaining low noise levels. The slim 22mm-thick radiator enhances compatibility with a wide range of PC cases, while the industrial-grade corrugated tubing ensures durability and ease of installation. The cooler supports multiple control modes, including an Offline Mode using a rotatable cap for on-device adjustments, a Wireless Mode via Lian Li's L-Wireless Controller for remote customisation, and a Streaming Mode through USB connection for advanced personalisation using L-Connect 3 software. Compatible with Intel LGA1700/1851 and AMD AM4/AM5 sockets, combining functionality with a refined aesthetic for modern PC builds.
Features
Hydroshift II LCD-C
Boldly Unique, Brilliantly Upgraded
- Side-mounted tubing and concealed wiring for a minimal, tubeless appearance.
- Features a 2.1” IPS LCD with 480x480 resolution, 500-nit brightness, and 60Hz refresh rate.
- Offers Offline, Wireless, and Advanced USB-connected control modes.
- Three configurations: with TL Wireless, CL Wireless, or fanless for full DIY flexibility.
- Precision tubing alignment with adjustable routing for cleaner builds.
- Slimmed-down 360mm radiator (400x122x24mm) for enhanced case compatibility.
- Pre-installed UNI FANs and support for L-Connect 3 software customisation.
- Includes redesigned mounting bracket and 6-year warranty.
- Better performance.
- Available in three versions.
- Hidden cable design
Three Versions / Two Colours
Hydroshift II LCD-C is designed for ultimate convenience, with radiators pre-installed with UNI FANs. Users can select from two fan configurations or opt for a fanless version for a fully customisable DIY experience.
Hydroshift II LCD-C 360TL
Equipped with UNI FAN TL Wireless, this version offers a perfect blend of striking aesthetics and high-performance cooling.
Note: Only the TL version comes with the L-Wireless Controller included.
Hydroshift II LCD-C 360CL
Equipped with UNI FAN CL Wireless, this version delivers powerful airflow alongside vibrant, synchronised RGB lighting for a visually stunning build.
Hydroshift II LCD-C 360N
Provides full DIY flexibility, giving users the freedom to choose and install their preferred fans.
Note: Fans are required for operation.
Seamless Interaction, Complete Control
Experience vibrant visuals on the 2.1″ IPS LCD, featuring a sharp 480x480 resolution and 500-nit brightness for clear display even in well-lit environments. A 60Hz refresh rate ensures smooth, fluid animations.
- 2.1” LCD screen
- 500-nit brightness
- SRGB 24-bit true colour
- 480x480 resolution
- IPS panel
- 60Hz refresh rate
Minimalist Aesthetics, Maximum Freedom
The innovative side-mounted tubing design routes the tubes along the edge of the radiator, significantly reducing visual clutter. Pump and USB cables are seamlessly hidden in the tubes’ woven sleeve that integrates into the radiator’s side for a “nearly cable-free and tubeless” look.
Additionally, the USB power and data cables are integrated directly into the cooling tubes, leaving the cap completely wire-free—making your computer’s interior more organised.
Pre-installed with three tube support brackets, the water cooling tubes are neatly concealed, while the exposed sections appear more organised—further enhancing the overall tidiness of the case interior.
Precision Fit, Effortless Alignment
Hydroshift l LCD-C is engineered with both aesthetics and flexibility in mind. Its innovative adjustable tubing design allows for precise alignment directly to the CPU, optimising cable routing and creating a cleaner internal layout. The result is a sleek, streamlined build that adds refined character to any PC.
Note: Users can fine-tune the rightmost tube bracket at the 140mm position on the radiator mount.
Reduced Dimensions without Performance Compromise
The radiator has been compactly redesigned to just 400 x 122 x 24mm—3mm thinner, 3mm shorter, and 2.5mm narrower than the previous generation. This reduced footprint improves compatibility with mainstream PC cases, making installation easier while maintaining excellent thermal performance.
Redesigned Mounting Bracket
The newly developed mounting system is designed for easier, more intuitive installation. Engineered for simplicity, the new mounting bracket streamlines the setup process with improved structure and logic.
Installation Steps
1.Install the CPU first.
2.Mount the water block bracket, ensuring the notch is aligned to the right.
3.Use the included screwdriver to secure the bracket screws—again, ensure the notch is on the right.
4.Attach the pump head from right to left and tighten the screws to secure it.
Universal Compatibility, Hassle-Free Setup
Hydroshift l LCD-C is designed for easy installation and supports all major CPU sockets, ensuring a smoother, worry-free building experience.
Compatible Platforms
- INTEL: LGA 1851 LGA 1700
- AMD: AM4 AM5
Three Modes, Different Experiences
1. Offline Mode (No USB Connection Required)
Easily control the pump cap by rotating the transparent outer ring. A built-in sensor tracks real-time coolant temperature and pump speed, while turning the ring clockwise switches screen themes and counterclockwise adjusts lighting effects—offering seamless customisation without the need for a USB connection.
(Note: Only the CL wireless fan version supports synchronised lighting between the pump and fans.)
2. Wireless Mode (No USB Connection)
With the L-Wireless Controller, users can wirelessly switch between screen content and select different hardware sensors to monitor. It also enables easy adjustment and synchronisation of lighting effects across all LIAN LI wireless products.
Wireless Mode Advanced (With USB Connection)
By adding a USB connection, users can enjoy the best of both worlds—wireless lighting control and full LCD customisation. Lighting effects remain wirelessly synced with all LIAN LI wireless products, while the LCD gains full customisation capabilities, including video and photo uploads as well as modular assets and theme selection.
Click the “Screen Advanced Mode” button in the wireless tool to enter advanced mode.
Once in advanced mode, the user can directly customise the pump lighting effects and theme from the wireless tool interface.
3. Streaming Mode (USB Connected)
Unlock full customisation capabilities with USB connection. Like the “Wireless Mode Advanced”, the LCD gains full customisation capabilities, including video and photo uploads as well as modular assets and theme selection.
Users can choose to remove the USB 2.0 cable and operate in Offline or Wireless Mode only.
(Note: USB 2.0 is connected by default and can be removed by detaching the radiator cover.)
The cover, which is located on the right side of the radiator, can be removed to access cable connectors.
PWM Power Cable
It is recommended to connect the 4-pin cable to the AIO pump or CPU fan header on the motherboard for stable power. The 2-pin serves as auxiliary power—if insufficient power is detected, connect the cable to a PWM header on the motherboard. (This applies to the water cooling fan, CL version, TL version, and fanless version—all using a 4-pin connector.)
USB 2.0 Cable
Used for transferring media in streaming mode and advanced wireless mode, such as JPG and MP4 files. (Basic wireless mode only supports JPG uploads.)
Flexible Layout, Upgraded Compatibility
The top mounting position for water cooling supports radiators up to 280mm wide and 400mm long, allowing ample space for both the radiator and tubing installation. Depending on the case’s top clearance, users may opt to remove the vertical tubing support bracket. It is recommended for setups with radiator + fan thickness over 55mm.
Since different cases may present varying installation scenarios, users can adjust or remove the support bracket as needed to suit their specific setup.
Scenario 1: Sufficient Clearance Between the Radiator and Motherboard (e.g., O11 Vision Compact)
The user can use thumb screws to slightly adjust the bracket position around the 140mm mounting area on the radiator bracket.
Scenario 2: Limited Clearance Between the Radiator Bracket and Motherboard (e.g., LANCOOL 216)
The vertical bracket needs to be repositioned directly behind the CPU, and any excess tubing should be routed toward the back of the radiator. If necessary, consider removing the leftmost tubing support bracket. (Note: Tubing clips are not usable in this layout.)
Scenario 3: Tight Clearance Between the Radiator Bracket and Motherboard (e.g., LANCOOL 207)
The vertical bracket needs to be repositioned directly behind the CPU, and any excess tubing should be routed toward the back of the radiator. If necessary, consider removing the leftmost tubing support bracket.
(Note: Tubing clips are not usable in this layout.)
Mounting Cover Caps
Conceal screws and brackets for a unified, clean aesthetic.
Cable Management Clips
Keep coolant tubing organised for a neater and more streamlined build.
Industrial-Grade Corrugated Tubing
Flexible and durable for easy routing across different cases. Designed to bend freely to either side for optimised cable paths and convenience.
