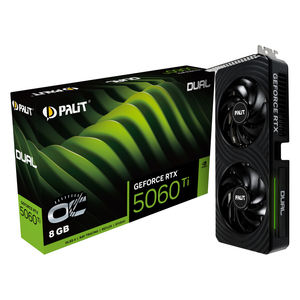

Palit GeForce RTX 5060 Ti Dual OC GDDR7 8GB
NE7506TT19P1-GB2062D | PalitThis product has been discontinued
The Palit GeForce RTX 5060 Ti Dual OC GDDR7 8GB graphics card features a 2407MHz graphics clock, 2632MHz boost clock, 8GB GDDR7 128-bit memory interface, 28Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1b, 3 x DisplayPort 2.1b, DirectX 12 Ultimate support and OpenGL 4.6 support.
Features
Palit GeForce RTX 5060 Ti Dual OC GDDR7 8GB
Efficient Dual-Fan Cooling
The Palit GeForce RTX 5060 Ti Dual OC features a dual 95mm fan design, ensuring effective heat dissipation and stable performance during intensive gaming sessions.
Overclocked Performance
Factory overclocked to deliver enhanced performance, this GPU offers higher clock speeds for improved gaming experiences.
NVIDIA Blackwell Architecture
Built on NVIDIA's latest Blackwell architecture, the RTX 5060 Ti provides advanced AI capabilities, real-time ray tracing, and support for DLSS 4, delivering exceptional graphics and performance.
Key Specifications
- CUDA Cores: 4,608
- Base Clock: 2.24 GHz
- Boost Clock: Up to 2.57 GHz
- Memory: 8GB GDDR7
- Memory Interface: 128-bit
- Memory Speed: 28 Gbps
- Memory Bandwidth: 448 GB/s
- Power Consumption: 180W
- Recommended PSU: 600W or greater with ATX 3.X specification
- Power Connector: One 8-pin supplementary power connector
- Display Outputs: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
- Dimensions: 291.9mm (L) x 116.6mm (W) x 41.3mm (H)
- Slot Requirement: 2 slots
Advanced Technologies
- DLSS 4: Leverages AI to boost frame rates while maintaining visual quality.
- Ray Tracing: Real-time ray tracing for hyper-realistic lighting and shadows.
- NVIDIA Reflex: Minimises latency for a more responsive gaming experience.
- PCI Express Gen 5: Ensures high-speed data transfer for optimal performance.
- DirectX 12 Ultimate: Supports the latest graphics features for next-gen games.
Specifications
General Data
| Model Number | NE7506TT19P1-GB2062D |
| Memory Amount | 8 GB |
| Memory Interface | 128 bits |
| DRAM Type | GDDR7 |
| Graphics Clock | 2407 MHz |
| Boost Clock | 2622 MHz |
| Memory Clock | 28 Gbps |
| CUDA Cores | 4608 |
| Memory Bandwidth (GB/sec) | 448 |
| Microsoft DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Bus Support | PCI-E 5.0 |
| HDMI | HDMI 2.1b |
| DisplayPort | DP2.1b x 3 |
| Maximum Digital Resolution | 4K at 480Hz or 8K at 120Hz with DSC |
| Height | 2 Slot |
| Board Size | 282.1 x 128.3 x 40.1 mm |
| Graphics Card Power | 180 W |
| Recommended System Power | 600 W |
| Supplementary Power Connectors | 8-pin x 1 |
Features
| Composite Heat Pipe | Yes |
| Copper Base | Yes |
| DrMOS | Yes |
| 0-dB TECH | Yes |
| NVIDIA Architecture | Blackwell |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA DLSS | 4 |
| NVIDIA Reflex | 2 |
| NVIDIA Broadcast | Yes |
| Resizable BAR | Yes |
| NVIDIA App | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| NVIDIA G-SYNC | Yes |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA Omniverse | Yes |
| RTX Remix | Yes |
| NVIDIA GPU Boost | Yes |
| Vulkan | 1.4 |
| OpenGL | 4.6 |
| NVIDIA Encoder (NVENC) | 1x 9th Generation |
| NVIDIA Decoder (NVDEC) | 1x 8th Generation |
| AV1 Encode | Yes |
| AV1 Decode | Yes |
| CUDA Capability | 12.8 |
| VR Ready | Yes |
| SFF-Ready Enthusiast GeForce Card | Yes |
| Multi Monitor | 4 |
Backed by a 3 year Palit warranty.
