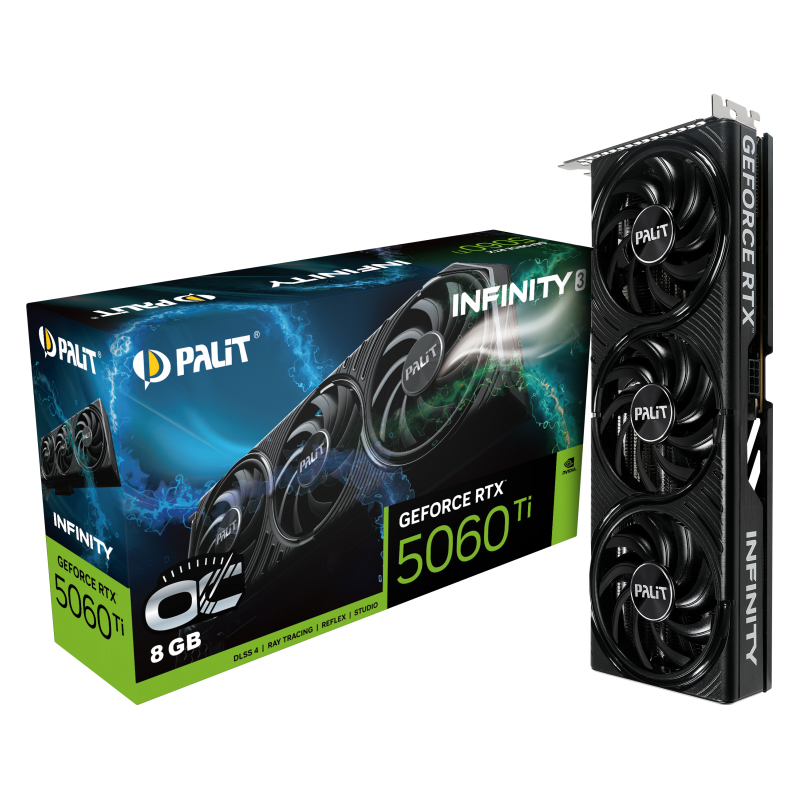

Palit GeForce RTX 5060 Ti Infinity 3 OC GDDR7 8GB
NE7506TS19P1-GB2062S | PalitThis product has been discontinued
The Palit GeForce RTX 5060 Ti Infinity 3 OC GDDR7 8GB graphics card features a 2407MHz graphics clock, 2662MHz boost clock, 8GB GDDR7 128-bit memory interface, 28Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1b, 3 x DisplayPort 2.1b, DirectX 12 Ultimate support and OpenGL 4.6 support.
Features
Palit GeForce RTX 5060 Ti Infinity 3 OC GDDR7 8GB
Compact Powerhouse for SFF Builds
The Palit GeForce RTX 5060 Ti Infinity 3 OC 8GB is designed for small-form-factor (SFF) enthusiasts, delivering high-end GPU performance within a compact design. Its triple-fan cooling system ensures optimal thermal performance, making it ideal for space-saving PC cases.
NVIDIA Blackwell Architecture
Experience next-generation performance with NVIDIA's Blackwell architecture, offering enhanced AI capabilities and superior performance for both gamers and creators.
- CUDA Cores: 4,608
- Boost Clock: Up to 2.66 GHz
- Memory: 8GB GDDR7
- Memory Interface: 128-bit
- Memory Speed: 28 Gbps
- Memory Bandwidth: 448 GB/s
- Ray Tracing Cores: 36
- Tensor Cores: 144
- Power Consumption: 180W
- Recommended PSU: 600W or greater with ATX 3.X specification
- Power Connector: One 8-pin supplementary power connector
- Display Outputs: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
- Dimensions: 291.9mm (L) x 116.6mm (W) x 41.3mm (H)
- Slot Requirement: 2 slots
Advanced Technologies
- NVIDIA DLSS 4: Leverages AI to boost frame rates while maintaining visual quality.
- Ray Tracing: Real-time ray tracing for hyper-realistic lighting and shadows.
- NVIDIA Reflex: Minimises latency for a more responsive gaming experience.
- NVIDIA Broadcast: Enhances streaming with AI-powered features.
- PCI Express Gen 5: Ensures high-speed data transfer for optimal performance.
- DirectX 12 Ultimate: Supports the latest graphics features for next-gen games.
Specifications
General Data
| Model Number | NE7506TS19P1-GB2062S |
| Memory Amount | 8 GB |
| Memory Interface | 128 bits |
| DRAM Type | GDDR7 |
| Graphics Clock | 2407 MHz |
| Boost Clock | 2602 MHz |
| Memory Clock | 28 Gbps |
| CUDA Cores | 4608 |
| Memory Bandwidth (GB/sec) | 448 |
| Microsoft DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Bus Support | PCI-E 5.0 |
| HDMI | HDMI 2.1b |
| DisplayPort | DP2.1b x 3 |
| Maximum Digital Resolution | 4K at 480Hz or 8K at 120Hz with DSC |
| Height | 2 Slot |
| Board Size | 291.9 x 118.6 x 41.3 mm |
| Graphics Card Power | 180 W |
| Recommended System Power | 600 W |
| Supplementary Power Connectors | 8-pin x 1 |
Features
| Composite Heat Pipe | Yes |
| Copper Base | Yes |
| DrMOS | Yes |
| 0-dB TECH | Yes |
| NVIDIA Architecture | Blackwell |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA DLSS | 4 |
| NVIDIA Reflex | 2 |
| NVIDIA Broadcast | Yes |
| Resizable BAR | Yes |
| NVIDIA App | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| NVIDIA G-SYNC | Yes |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA Omniverse | Yes |
| RTX Remix | Yes |
| NVIDIA GPU Boost | Yes |
| Vulkan | 1.4 |
| OpenGL | 4.6 |
| NVIDIA Encoder (NVENC) | 1x 9th Generation |
| NVIDIA Decoder (NVDEC) | 1x 8th Generation |
| AV1 Encode | Yes |
| AV1 Decode | Yes |
| CUDA Capability | 12.8 |
| VR Ready | Yes |
| SFF-Ready Enthusiast GeForce Card | Yes |
| Multi Monitor | 4 |
Backed by a 3 year Palit warranty.
