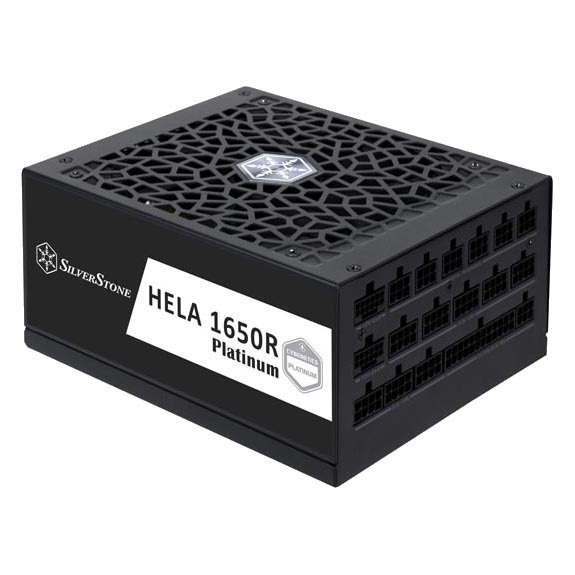

SilverStone Hela 1650R Platinum ATX3.1 1650W Power Supply
SST-ZU1650R-TM | SilverStoneThis product has been discontinued
On sale! (normally $669) The SilverStone Hela 1650R Platinum ATX 3.1 Power Supply delivers extreme efficiency and power for high-performance systems. Designed to meet the latest ATX 3.1 and PCIe 5.1 standards, it provides stable and reliable power for demanding components, including next-gen GPUs. With an 80 PLUS Platinum certification, fully modular design, and high-quality Japanese capacitors, the Hela 1650R ensures optimal efficiency, reduced cable clutter, and long-term durability. Its advanced cooling system and intelligent fan control keep noise levels low while maintaining excellent thermal performance. Ideal for enthusiasts and professionals, this PSU is built to handle even the most power-hungry builds.
Features
HELA 1650R Platinum
Cybenetics Platinum 1650W PCIe 5 Fully Modular ATX (PS2) Power Supply
- Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- 24/7 continuous power output with 50℃ operating temperature
- Fully modular design with SilverStone’s 3rd generation modular interface
- Silent-running 140mm FDB fan with delayed shut-off function
- All black flat cables
12V-2x6 PCIe Connector with ATX 3.1 and PCIe Gen5 Standards
Easily and efficiently power high-end systems with the latest graphics cards.
Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency, to minimise wasted heat while significantly reducing electricity consumption.

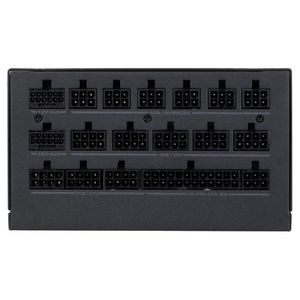

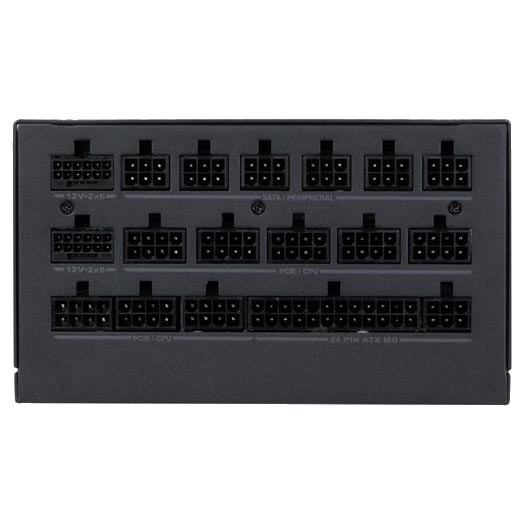

Fully Modular Design with Universal EPS / PCIe Connector Interface
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese Electrolytic Capacitors
Guarantees dependable power delivery and an extended lifespan.

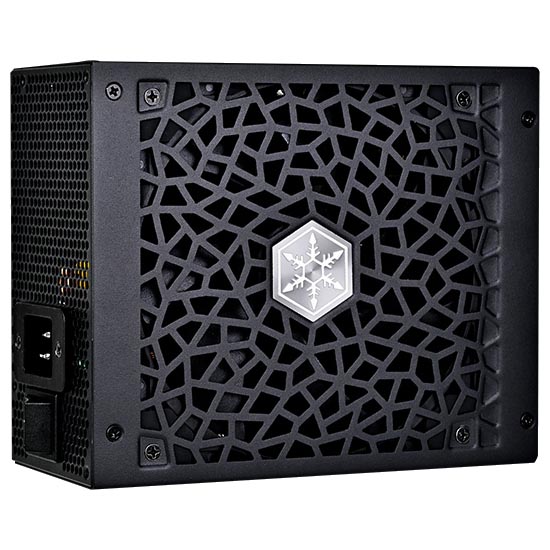

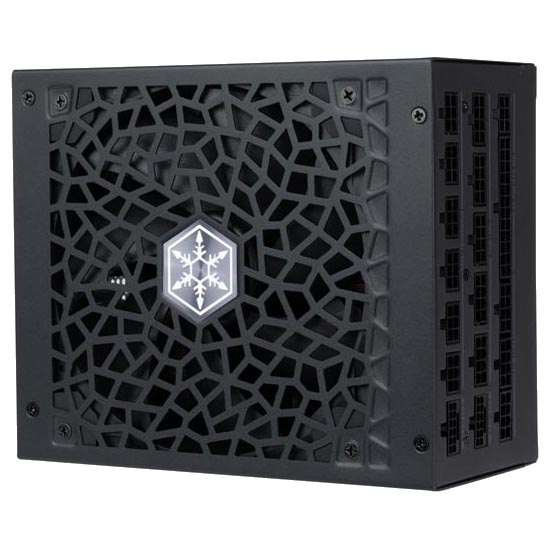

High Reliability Cooling Fan with Delayed Shut-Off Function
Equipped with a 140mm FDB bearing fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.
Advanced Protections for Safety and Security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications
General Data
| Model Number | SST-ZU1650R-TM |
| Colour | Black (lead-free paint) |
| Max. DC Output | 1650W |
| Power Density | 710.6W/L |
| Combined +3.3V & +5V | 130W |
| Combined +12V | 1650W |
| Input Voltage | 1650W: 103~264 Vrms 1350W: 90~264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | 100,000 hours |
| Operating Temperature | 0°C ~ 50°C |
| Efficiency | 89% ~ 91% overall efficiency |
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 9 x 8 / 6-Pin PCIe connectors 2 x 12+4-Pin 12V-2x6 connectors 16 x SATA connectors 6 x 4-Pin Peripheral connector 1 x 4-Pin Floppy Adaptor connector |
| Cooling System | Silent 140mm FDB fan |
| Noise Level | 18 dBA minimum |
| Certification | Cybenetics Platinum |
| Form Factor | ATX (PS2) |
| Dimension | 150mm (W) x 86mm (H) x 180mm (D) 5.91" (W) x 2.5" (H) x 7.1" (D) |
| Weight | 2.09 kg |
Load Range
| Output | +3.3V | +5V | +12V1 | +5VSB | -12V |
| Max.(Amps) | 25A | 25A | 137.5A | 3A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±3% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
Backed by a 5 year SilverStone warranty.
