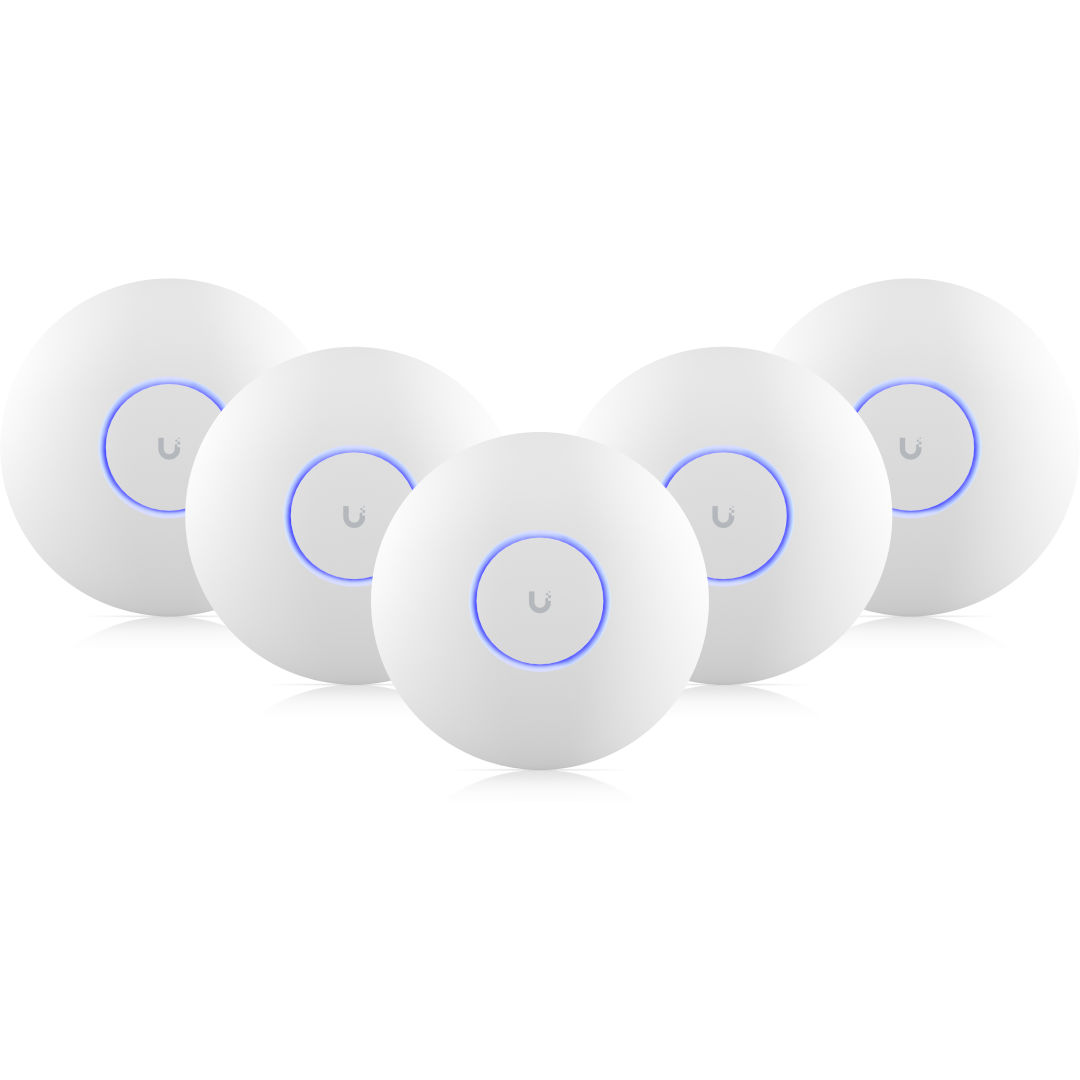

Ubiquiti UniFi U7 Pro Wireless Access Point Wi-Fi 7 5 Pack

U7-PRO-5 | Ubiquiti
$1709
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
Upgrade your network with the Ubiquiti UniFi U7 Pro Wireless Access Point Wi-Fi 7 5 Pack, delivering next-gen performance for seamless connectivity. Featuring Wi-Fi 7 technology, these high-performance access points support tri-band speeds of up to 11.5 Gbps, ensuring ultra-fast data transfer, low latency, and enhanced efficiency for high-density environments. With advanced OFDMA and MU-MIMO capabilities, the U7 Pro optimizes bandwidth allocation for smooth streaming, gaming, and enterprise-level networking. Designed for easy integration with the UniFi Network, these access points provide robust security, cloud-based management, and scalable coverage, making them ideal for modern home and business setups.

Features

U7 Pro

Build Features

Ubiquiti UniFi U7 Pro Wireless Access Point Wi-Fi 7 5 Pack Feature 1

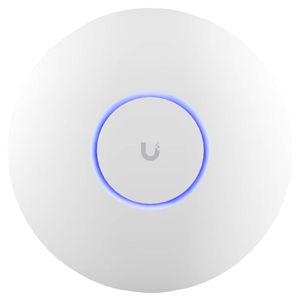

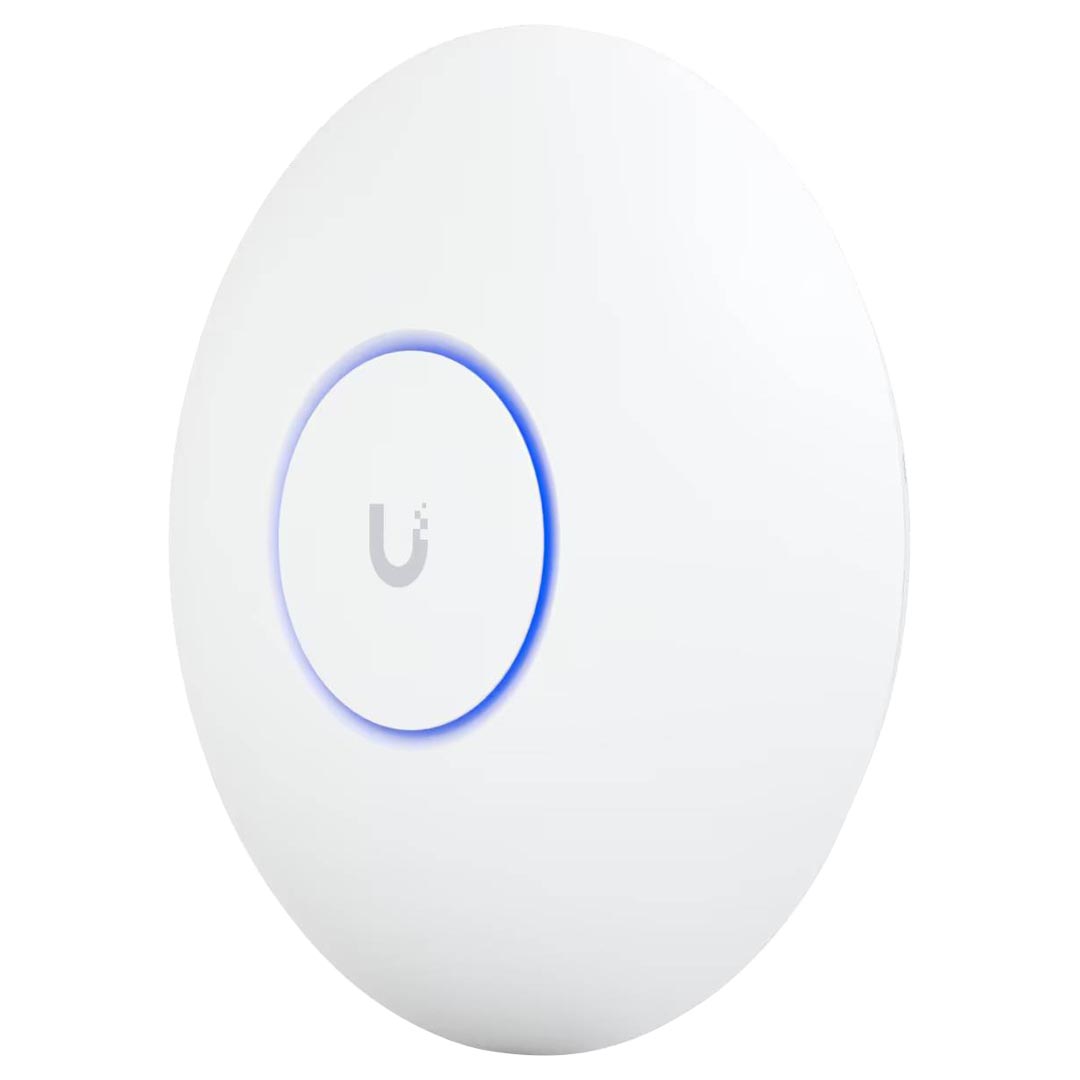

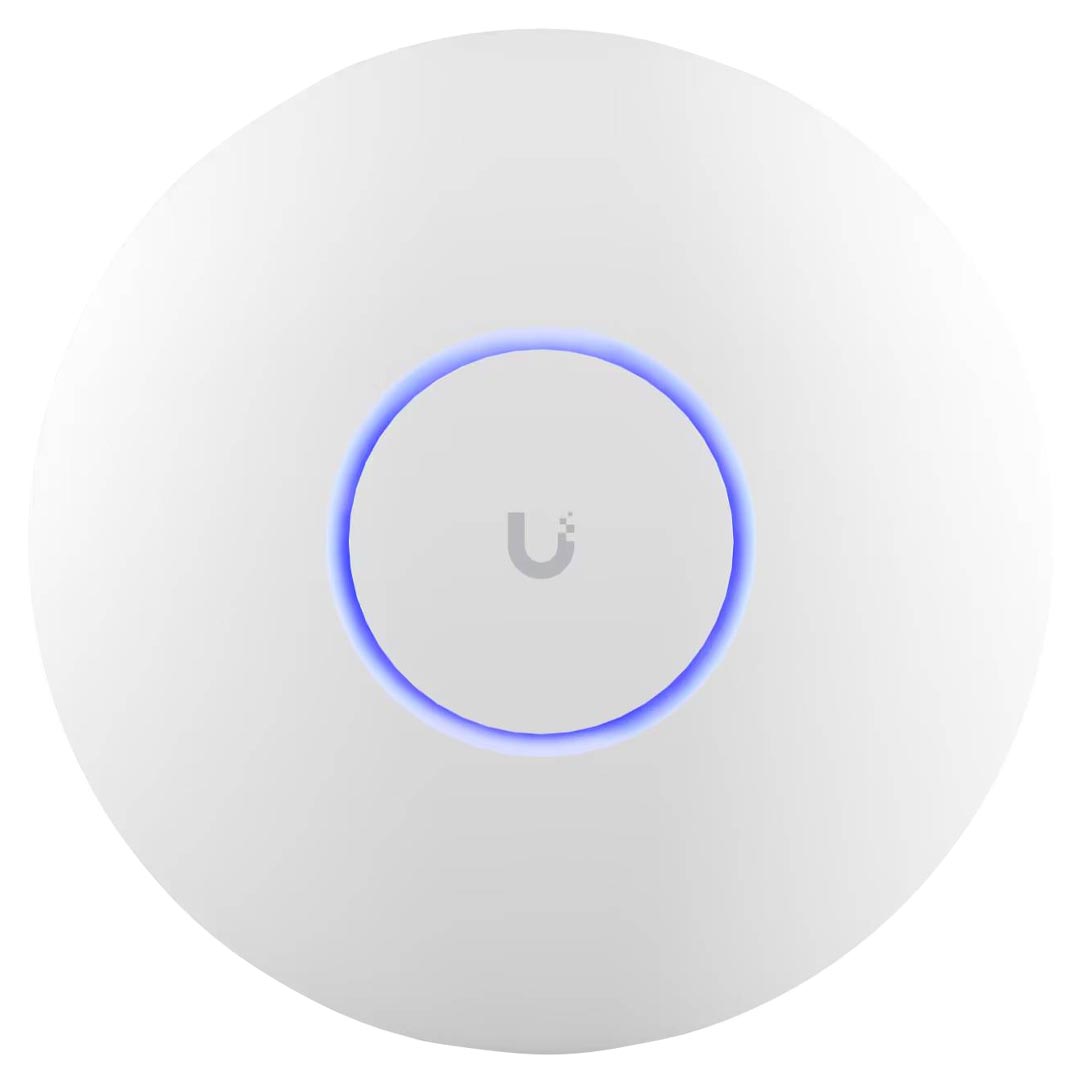

Front

Ubiquiti UniFi U7 Pro Wireless Access Point Wi-Fi 7 5 Pack Feature 2

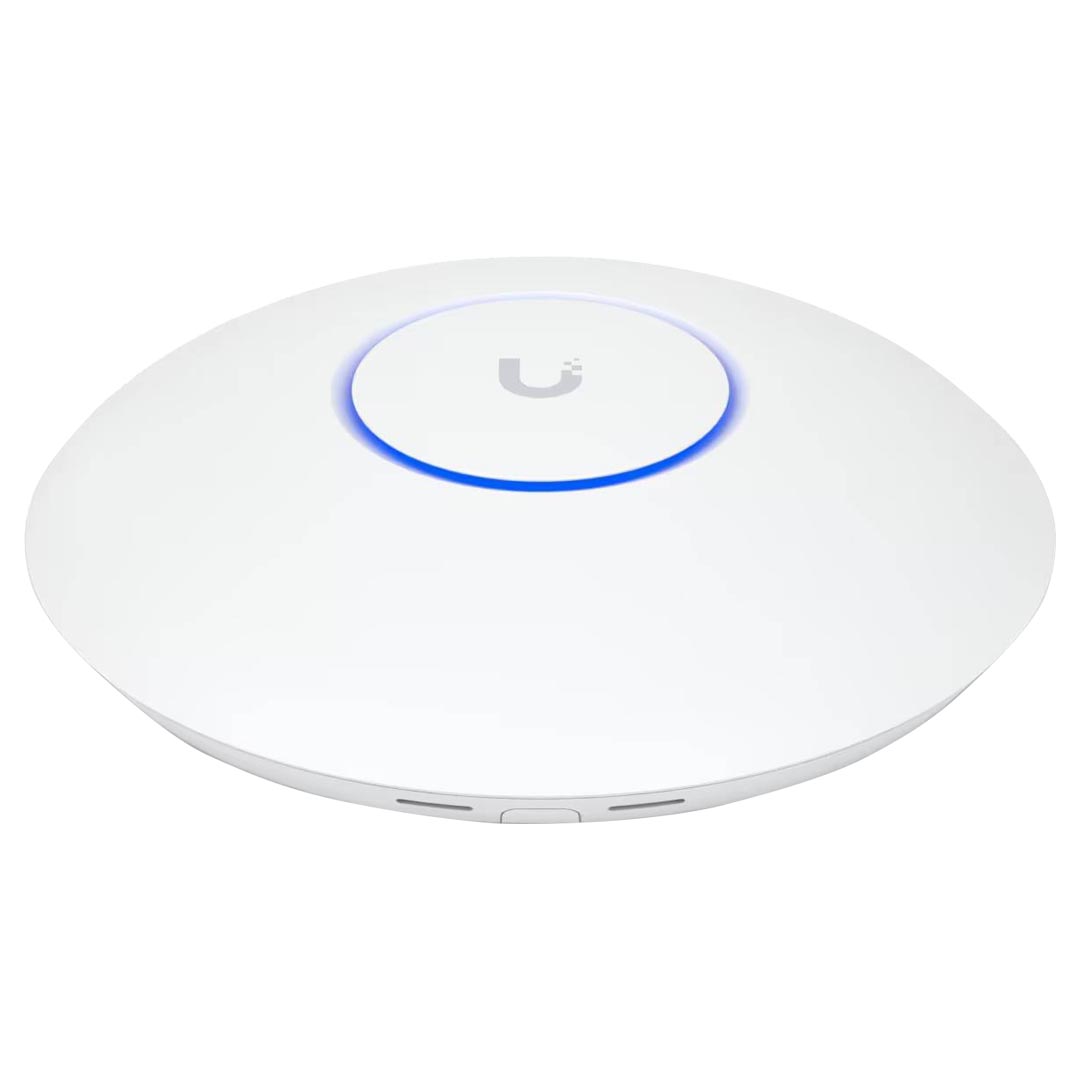

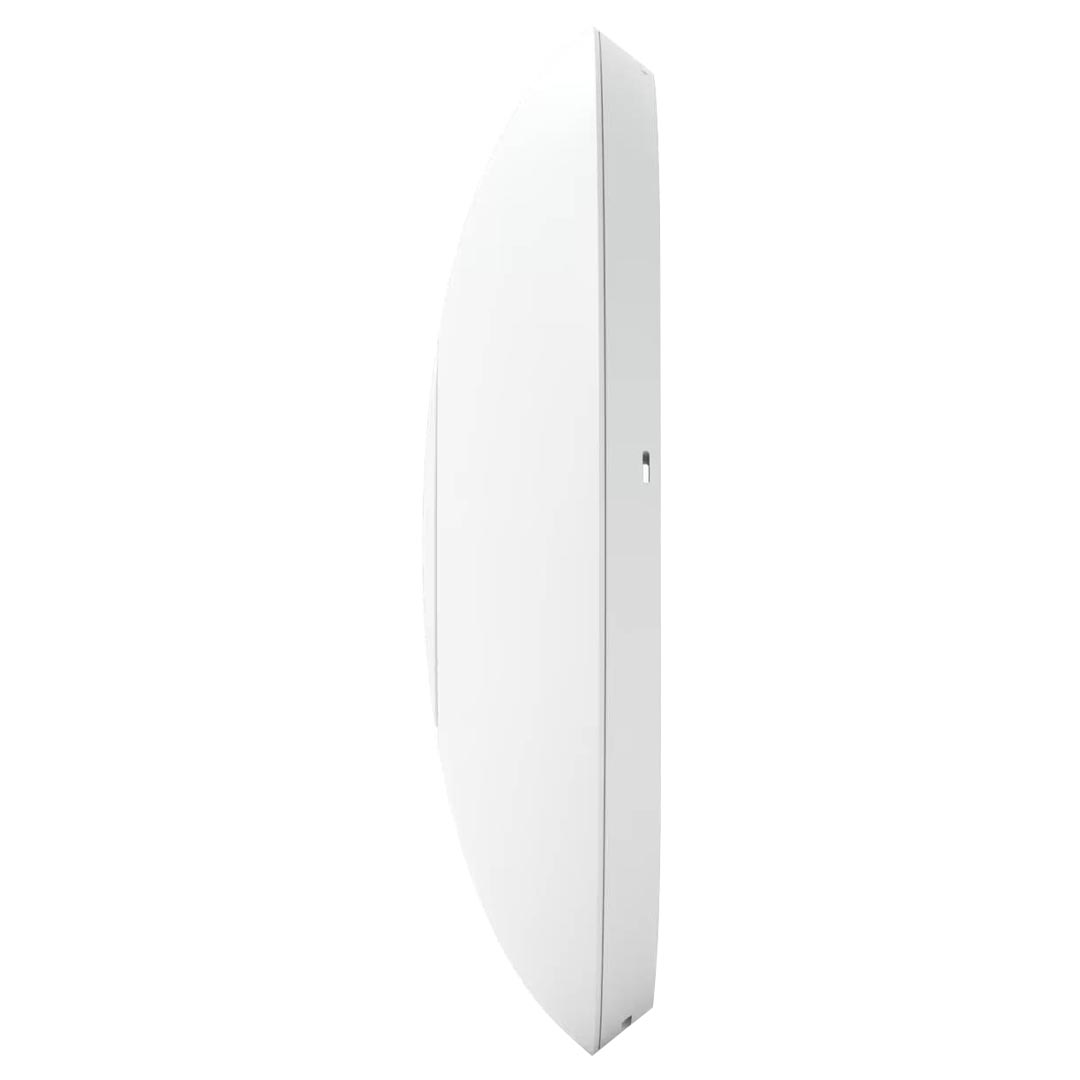

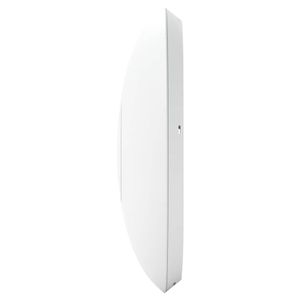

Side

Ubiquiti UniFi U7 Pro Wireless Access Point Wi-Fi 7 5 Pack Feature 3

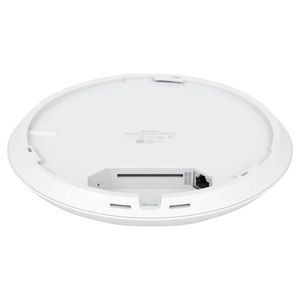

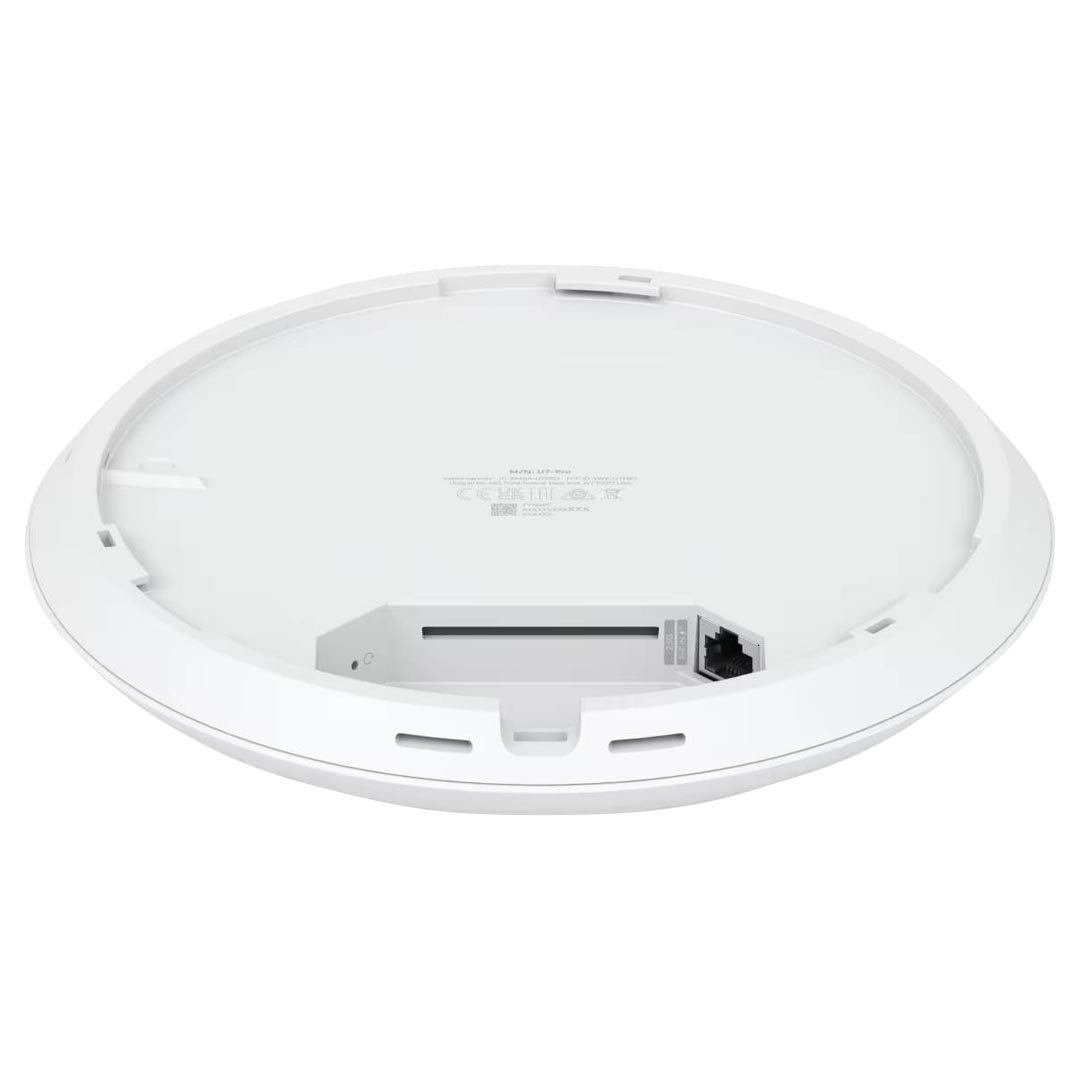

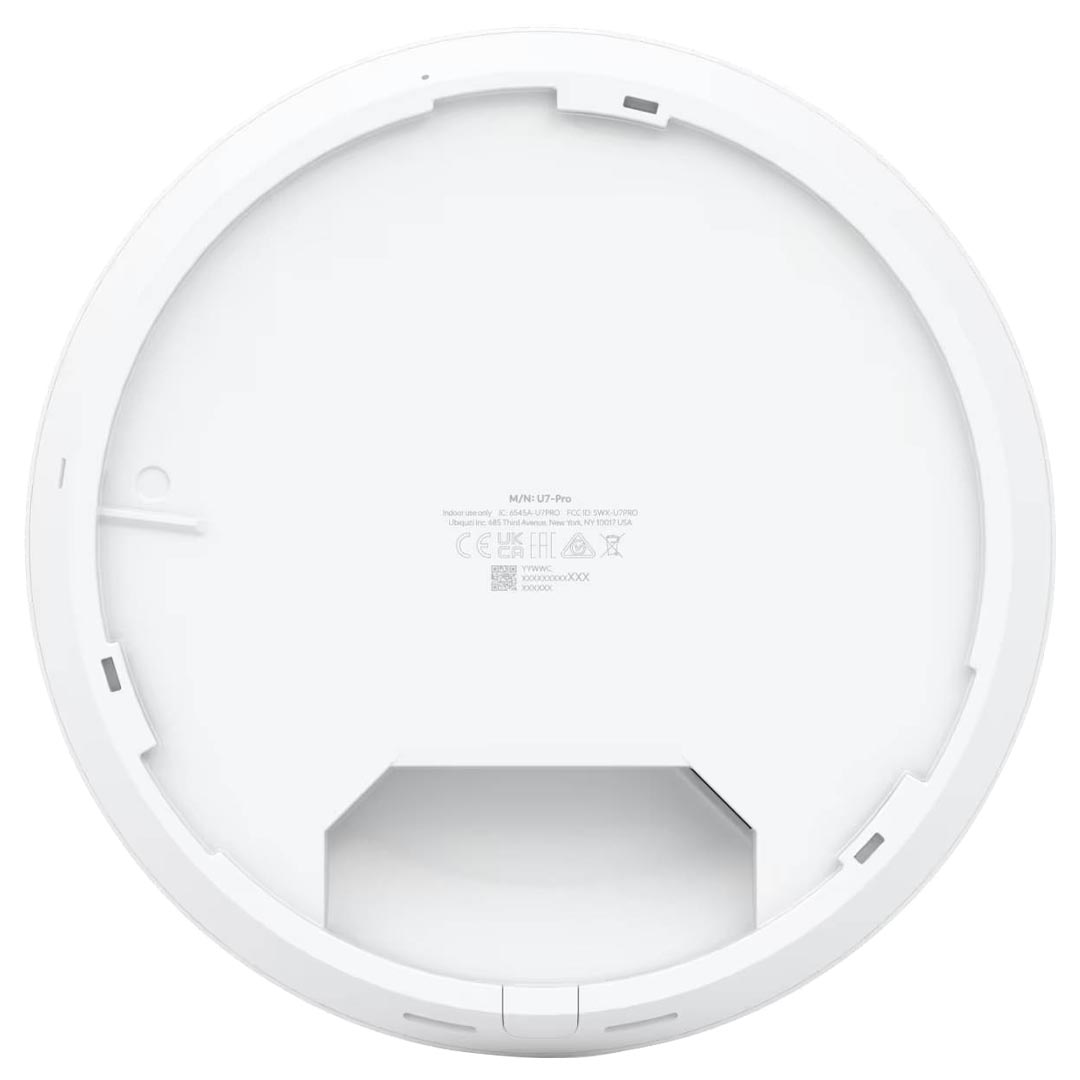

Back

Ubiquiti UniFi U7 Pro Wireless Access Point Wi-Fi 7 5 Pack Feature 4

Deployment

Specifications

General Data

Model Number U7-PRO-5
Dimensions Ø206 x 46 mm
(Ø8.1 x 1.8")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Locations Ceiling, wall

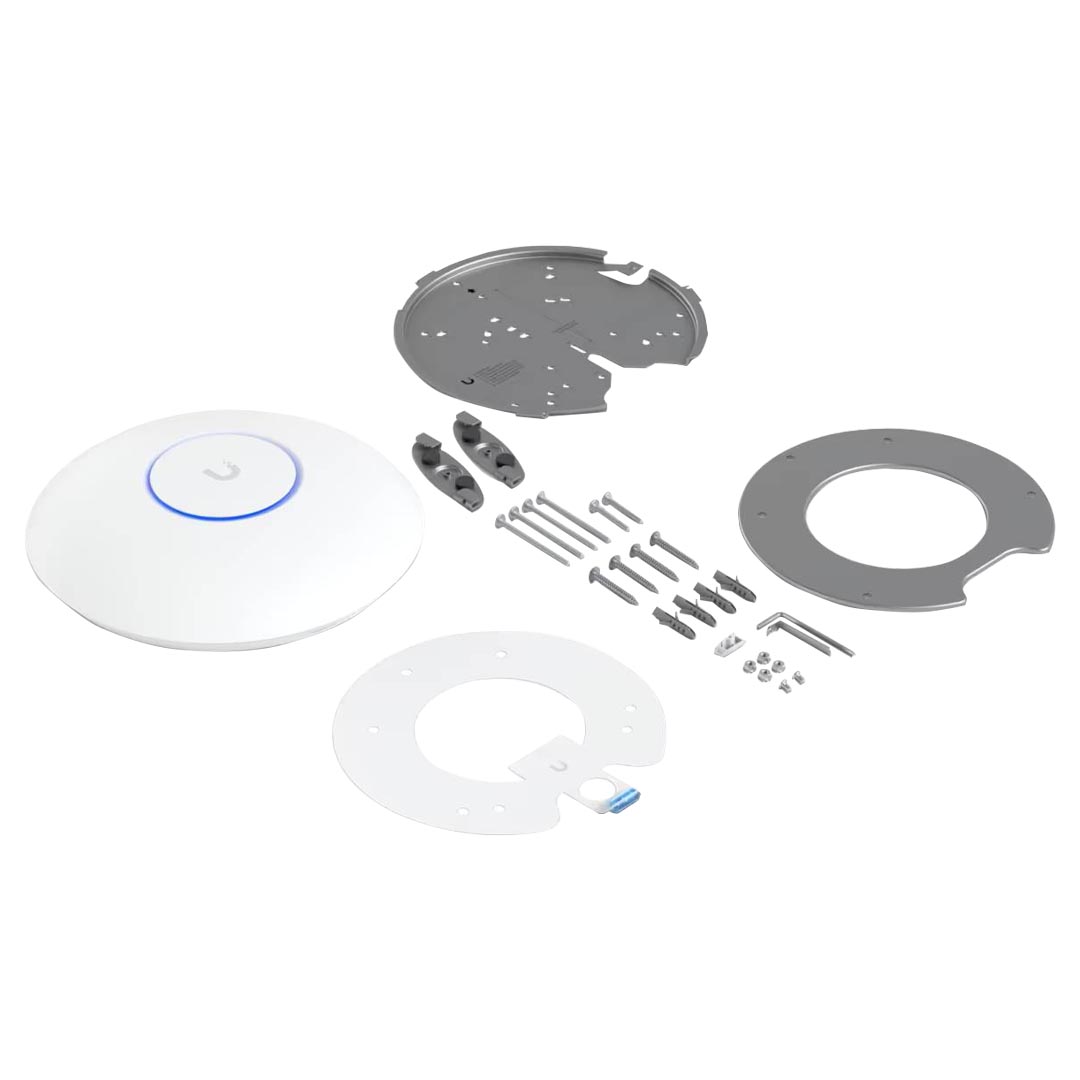

Mounting Plate Pro mounting plate (Included)
Power Method PoE+

Performance

MIMO

 6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

 6 GHz
5.7 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)

Antenna Gain

 6 GHz
5.8 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi

Max. TX Power

 6 GHz
23 dBm
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio

Supported Data Rates

 802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing Yes
Band Steering Yes
802.11v BSS Transition Management Yes
802.11r Fast Roaming Yes
802.11k Radio Resource Management (RRM) Yes
Advanced Radio Management Yes
Passpoint (Hotspot 2.0) Yes
Custom Branding Landing Page Yes
Voucher Authentication Yes
Payment-Based Authentication Yes
External Portal Server Support Yes
Password Authentication Yes
Guest Network Isolation Yes
Private Pre-Shared Key (PPSK) Yes
WiFi Speed Limiting Yes
Client Device Isolation Yes
WiFi Schedules Yes
RADIUS over TLS (RadSec) Yes
Dynamic RADIUS-Assigned VLAN Yes

Hardware

Max. Power Consumption 21W
Supported Voltage Range 44—57V DC
Networking Interface (1) 1/2.5 GbE RJ45 port
Weight 680 g (1.5 lb) (Each unit)
Management Ethernet
Enclosure Material Polycarbonate, metal
Mount Material Stainless steel (SUS304), galvanised steel (SGCC)
LEDs System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications CE, FCC, IC
Operating Frequency US/CA
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 - 5925 - 7125 MHz
Worldwide
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Backed by a 1 year Ubiquiti warranty.
