The SilverStone FS305-E is a high-performance hot-swap adapter cage designed to maximize storage efficiency by accommodating up to five 2.5-inch or 3.5-inch SAS-12G/SATA 6Gbit/s drives within three 5.25-inch device bays. Each drive bay is secured with an individual metal key lock, ensuring enhanced data protection. The built-in 80mm cooling fan provides excellent heat dissipation, maintaining optimal drive temperatures during operation. Independent drive status LEDs offer real-time monitoring of each drive's activity and health. With full support for hot-swap functionality, the FS305-E allows for quick and convenient drive replacements or upgrades without system downtime. Constructed with a durable plastic front panel and steel body, the unit measures 146mm in width, 126mm in height, and 206mm in depth, weighing approximately 1.8 kilograms. It features versatile power connectivity options, including SATA 15-Pin and Molex 4-Pin connectors, and supports 7-Pin SATA or SAS primary channel connections for seamless integration into various system configurations.
Features
FS305B-E
Three 5.25" Device Bay to Five 3.5" SAS-12G / SATA 6Gbit/s Hot-Swap Adaptor Cage
- Fits five 2.5" / 3.5" SAS-12G/SATA 6Gbit/s drives in three 5.25" device bay
- Individual metal key lock for each drive for extra security
- Built-in cooling fan for excellent heat dissipation
- Independent drive status LED
- Fully supports hot-swap function
Fits into 3 x 5.25" Device Bays
Support Up to SAS 12G / SATA 6Gbit/s Devices

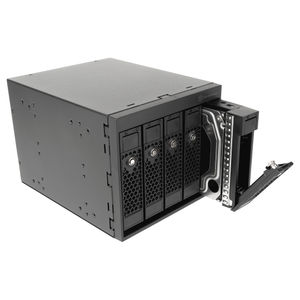

Supports Hot-Swap Function

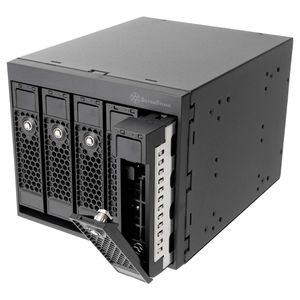

Individual Metal Key Lock for Each Drive for Extra Security

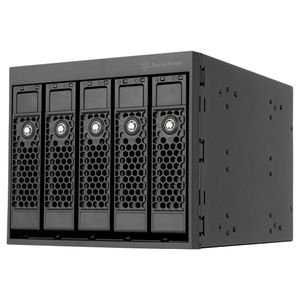

Front Side
A1. 5-bays 2.5"/3.5"HDD Tray

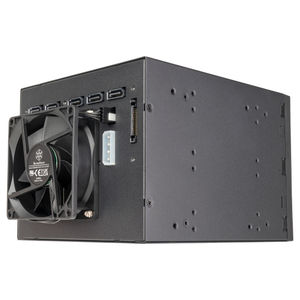

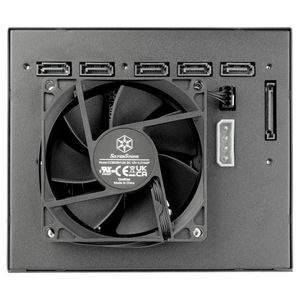

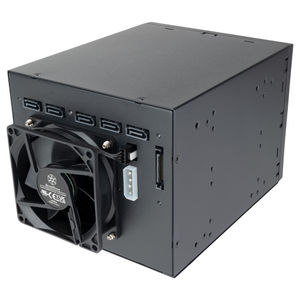

Back Side
B1. 8025 Fan
B2. 7 pin SATA connector
B3. 15 pin SATA power connector
B4. Fan power connector
B5. Molex 4 pin power connector
Dimensions
Specifications
| Model Number |
SST-FS305B-E |
| Colour |
Black + Black |
| Material |
Plastic front panel, steel body |
| Transfer Rate |
Up to 12 Gbit/s (dependent on drive speed) |
| Application |
5.25" drive bay x 3 (FS305-E is designed for maximum space utilisation. In order to fit five 3.5" drive bays into the space of three 5.25" bays, the sides are designed flat with no cutouts to fit between 5.25" bays with protruding lip or brackets. Therefore, please make sure your case has 5.25" bays that are also flat on the inside with no protrusions. If not, please consider using FS303 or FS304 instead.) |
| Cooling System |
80 mm fan x 1 |
| Power Connector |
SATA 15-Pin x 1, Molex 4-Pin x 1 |
| Drive Support |
5 x 2.5" / 3.5" SAS (Your system must have SAS controller if you want to use SAS HDD.) (Hard drive capacity and RAID support is dependent on SAS or SATA controller used.) / SATA SSD or HDD |
| Host Interface |
7-Pin SATA connector x 5 or SAS (Your system must have SAS controller if you want to use SAS HDD.) (Hard drive capacity and RAID support is dependent on SAS or SATA controller used.) primary channel connection |
| Drive Security |
Metal key lock design |
| Number of Key |
2 |
| LED Indicator |
HDD Power LED: Green
HDD Access: Blue blinking |
| Dimension |
146 mm (W) x 126 mm (H) x 206 mm (D) |
| Net Weight |
1.8 kg |
Backed by a 1-year Silverstone Warranty
