The MSI Cubi NUC 1M-001BAU Core i7-150U Mini PC is a compact yet powerful computing solution, ideal for business and productivity applications. Powered by the Intel Core 7 Processor 150U, featuring 10 cores and 12 threads with speeds up to 5.40 GHz, ensuring efficient multitasking and reliable performance. It supports up to 64GB of dual-channel DDR5 5200 MHz memory, facilitating rapid data processing and seamless multitasking. For storage, the Cubi NUC 1M offers 2x M.2 SSD slots (NVMe PCIe Gen4 x4) and 1x 2.5inch drive bay, providing flexible and ample storage options. Connectivity is robust with dual Intel I226-V LAN ports, WiFi 6E with Bluetooth 5.3, as well as support up to four displays simultaneously via two HDMI 2.1 ports and two Thunderbolt 4 ports, one supporting PD up to 100W, making it suitable for complex multi-monitor setups. The MSI Cubi NUC 1M combines performance and versatility in a spaces saving design with VESA mount compatibility.
Features
Cubi NUC 1M
The Essence of Productivity - Thank You for Saving the Planet with MSI
- 0.826-Litre with VESA mountable design
- Up to Intel® Core™ 7 processor 150U with dual channel DDR5 SO-DIMMs memory
- Two Thunderbolt™ 4, and one of them supports PD-in (up to 100W)
- Dual 2.5G LAN & dTPM support
- Quadruple display support & easy to upgrade design
- MSI AI Engine: optimise user experience without manual configuration.
- MSI Power Link technology allows Cubi NUC to be powered by an MSI-selected monitor.
- Power Meter enables one-click power saving, carbon emission calculation, and electricity cost estimation
- Made with PCR-recycled plastics; FSC™-certified carton; Waste reduction with recycled moulded pulp (100% recyclable); Manufactured with 92% Renewable Energy at factory
- EPEAT Silver Registered (Cubi NUC 1MG)
- Environment-friendly Materials
- Mini yet Powerful
- Reliable Choice for Business
- Optimised for Versatility & Convenience
- Sleek & Elegant
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
- Digital signage & Public Service
- Hostel & Restaurant
- Education
- Medical & Science
Environment-Friendly Materials
By utilising green materials like post-consumer recycled (PCR) plastic and sourcing renewable energy for our factory, we ensure the durability of our products and demonstrate a strong commitment to creating a greener world.
Built for Sustainability
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. By utilising green material, PCR (Post-Consumer Recycled) plastic, ensures not only the products' durability but also commits to a greener world.
Our commitment extends to incorporating sustainable materials in both our product design and packaging, all of which hold certifications from EPEAT and ENERGY STAR®. The Cubi NUC Series embodies sustainable value and heightened productivity.
A Better Future with EPEAT Registered MSI Desktops
EPEAT is the world’s premier global ecolabel for electronics. MSI desktops provide sustainable products inside out and participate in EPEAT/EPEAT ecolabel. Let’s protect the earth with actions.
*Micro-Star International Co., Ltd. registers products in EPEAT. See www.epeat.net for registration status and tier levels by country.
42.9% Post-Consumer Recycled (PCR) Plastic
The Cubi NUC mini PC contains 42.9% PCR plastic, reducing plastic waste sent to landfills and contributing to environmental conservation.
Sustainably Sourced Wood Pulp with FSC Certification
FSC-certified cartons are made from sustainably sourced wood pulp, ensuring responsible forest management. This certification guarantees that the materials are renewable and low-carbon, promoting environmental sustainability.
By using FSC-certified cartons, MSI supports sustainable practices and contributes to the preservation of forests for future generations
Renewable Energy - Solar and Wind Power
MSI has installed solar panels on the entire factory roof, resulting in a 64.53% reduction in TCO2e compared to the data from 2021.
Additionally, by purchasing wind power, the factory now uses renewable energy for 92% of its energy needs. This demonstrates MSI's commitment to environmental protection and sustainable development.
Power Meter
*Please update the MSI Center to download and install the MSI Power Meter.
One-Click Power Saving
The MSI Power Meter can record the computer power consumption and achieve more power-saving settings through a One-click Power Saving button.
Calculator
By analysing computer usage and energy costs, users can gain insights into their carbon footprint and the environmental benefits, such as trees saved.
Energy Recommendations
Energy recommendations collect settings that have an outsized impact on power consumption in one place, making it easy to reduce the power consumption.
Mini Yet Powerful
The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size.
Maximise Space with the Versatile Cubi NUC
The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-litre chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Tailored for Professional Users
Equipped with up to Intel® Core™ 7 Processor 150U with 10 cores and 12 threads, it provides faster and more reliable performance. It also features 5.40 GHz with Intel Turbo Boost Max Technology 3.0, which allows users to multitask a variety of applications with ease.
- Up to Core 7 Processor 150U
- Support Windows 11 Pro
- Up to 5200MHz DDR5 64GB Dual Channel Memory
*The actual specification will vary by model.
DDR5 Dual-Channel Memory
DDR5 memory with dual-channel can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.
*The actual specification will vary by model.
Thunderbolt 4: A Single Cable to Serve All
Thunderbolt 4 supports power delivery input of up to 100W, making it an excellent choice for both powering and displaying through a single port.
Quadruple Display Support
Supporting up to 4 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.

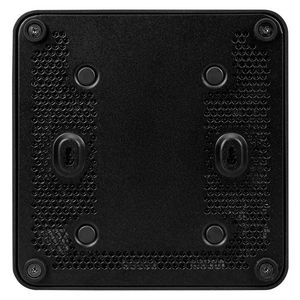

VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
MSI Power Link
The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience.
Reliable Choice for Business
Ensuring top quality is not just a catchphrase for us; it is our utmost priority to deliver a hassle-free and high-quality product.
dTPM 2.0
dTPM 2.0 technology provides hardware-based security functions. Sensitive data and passwords can be stored with encryption for advanced protection.
Kensington Lock
The Kensington lock design is a reliable and efficient method of deterring theft. By physically tethering the Cubi NUC to a secure object, Kensington lock is particularly useful in safeguarding the device and the valuable data in it.
Dual 2.5G LAN
Experience the blazing speed of dual 2.5G LAN, which streamlines troubleshooting and enhances redundancy, network segmentation, security, and load balancing for users.
24 / 7 Qualified Reliability Test
Our relentless commitment to quality is reflected in our extensive reliability testing, which generates over 246,000 hours of MTBF (Mean Time Between Failures). We assure 24/7 reliability and availability, delivering an effortless user experience. Quality is not just a buzzword for us, it's our top priority to deliver a hassle-free and high-quality product.
Intensive Quality Testing
1. PCBA test
2. Motherboard test
3. Vibration test (X & Y Axis)
4. Drop test - Planes, Edges, Corners
5. Chamber test (Temp. & Humidity)
6. Infrared (IR) test
7. Acoustic test
8. Signal test
9. I/O Port life test
10. Power test
11. System performance test
Performance Assurance
MIL-STD-1916 testing guarantees MSI products meet high-performance standards, providing reliable and professional experiences with desktop PCs at their best.
Durability
MIL-STD-1916 testing ensures every component meets strict durability standards, making MSI products capable of lasting through extended gaming and work sessions while delivering reliable performance.
Precision
We employ automation and advanced technology to achieve the highest level of precision. This technology-driven approach allows us to create and test products with unparalleled accuracy.
Reliability
In the world of business, reliability and dependability are crucial. MSI products go through rigorous testing and quality checks to minimise the chances of failure, ensuring an uninterrupted workflow.
Optimised for Versatility & Convenience
Streamlining operations to achieve maximum productivity with minimal wasted effort or expense.
MSI AI Engine
Experience the convenience of MSI AI Engine automatically detecting user scenarios to provide the optimal display mode, eliminating the need for manual adjustments.
*Please install the MSI Al Engine from the MSI Center.
"The interface and functionality may differ due to version change.
Microsoft Copilot
Work smarter, be more productive, boost creativity, and stay connected to the people and things in your life with Copilot-an Al companion that works everywhere you do and intelligently adapts to your needs.
MSI Cloud Center
Back up and transfer files, photos, videos, and more between PCs, Android, and IOS devices faster and easier than using a cable connection.
Fast, secure & wireless backup between PC, Android & IOS Devices.
MSI Center
The MSI Center allows for easy optimisation and resource allocation to enhance software performance.
*The interface and functionality may differ due to version change. Please download the latest MSI Center APP through Microsoft Store.
Easy to Upgrade Design
Users can easily upgrade two SO-DIMM, two M.2 SSDs (2280 & 2242), or one 2.5" HDD/SSD by disassembling the cover. This makes Cubi NUC an even more flexible desktop and also reduces the time wasted on upgrading.

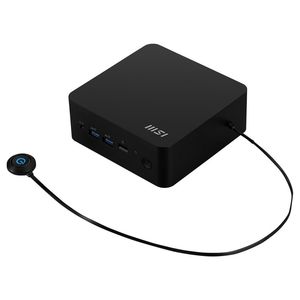

External Power Switch
The optional external power switch significantly enhances the convenience of turning on the computer. In cases where the computer is situated in a hard-to-reach area, opting for the external power switch on the desk is far superior to bending down to turn it on.
Built-In Card Reader
The Cubi NUC Series features a built-in card reader, enabling easy file transfers using a Micro SD card.
Various I/O Ports
With a various array of I/O ports, it can connect all devices users need at the same time so they can multi-task with those devices to make them work more efficiently.

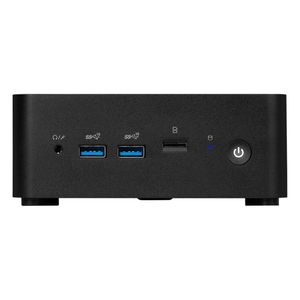

Front
1. 1x Mic-in / Headphone-out combo
2. 2x USB 10Gbps Type A
3. 1x Micro-SD card Reader

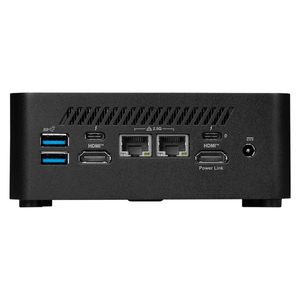

Side / Rear
4. 1x External Power Switch Slot
5. 2x USB 10Gbps Type A
6. 1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
7. 2x RJ45 LAN (2.5G)
8. 1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1) which supports the MSI Power Link
9. 1x DC Jack
10. 1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W)
11. 1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W / PD-in up to 100W)
12. 1x Kensington Lock Slot
Backed by a 3 year MSI warranty.
