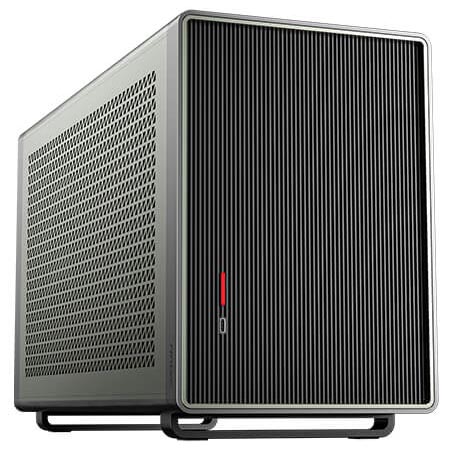

The Antec Performance 1M Aventurine Mini ITX Gaming Case offers a sleek aesthetic with high-performance functionality for compact gaming builds. Its perforated aluminum panels ensure optimal airflow, maintaining system cooling during intense gaming sessions, crafted with a fully CNC-machined chassis for durability and reliability. The adjustable central mount offers compatibility with a variety of GPU and CPU cooler sizes, accommodating graphics cards up to 350mm in length, CPU coolers up to 85mm in height and an ITX motherboard form factor. Tool-free side panels enable effortless access for upgrades and maintenance. Supporting both 120mm and 140mm fans, the case provides flexible cooling options.
Features

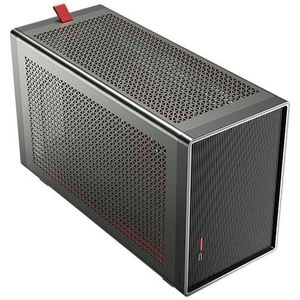

Optimal Airflow and Aesthetics
Perforated panels keep your system cool with a refined, modern touch. Engineered for quiet confidence and clean style.

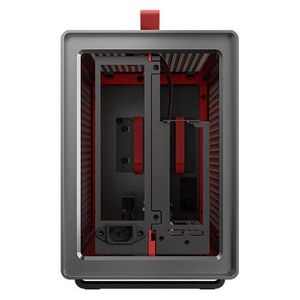

Adjustable Central Mount
Features an adjustable central mount, allowing compatibility with a range of GPU and CPU cooler sizes for greater flexibility in your build.
Generous GPU Compatibility
Built to fit some of the largest GPUs, delivering the power and performance your build demands.

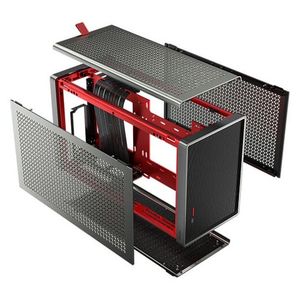

Effortless Accessibility
Tool-free side panels allow quick, easy access for upgrades and maintenance.
Versatile Fan Support
Supports both 140mm and 120mm fans for flexible cooling options.
Sleek and Unobtrusive
A minimalist, understated design that blends effortlessly into any setup.
Refined Aluminium Finish
Built with aluminium side panels and an aluminium rear frame, the case offers a durable, sleek metallic finish that complements any setup.
Robust Construction
Crafted with a fully CNC-machined chassis for durability and reliability you can trust.
Specifications
General Data
| Model Number |
CAA-P1-1M-AVE-GN |
| Dimensions |
424 x 175 x 260 mm (D x W x H) |
| Form Factor |
Mini ITX |
| Materials |
Steel + Plastic + Aluminium |
| Mainboard Support |
ITX |
| Front Access & Controls |
Power, Type-C 10 Gbps x 1 |
| Side Panel |
Solid Side Panel |
Drive Bays
| Expansion Slots |
3 (Max GPU Mode) / 2 (Max CPU-Cooler Mode) |
| 2.5" |
1 |
Fan
| Bottom |
2 x 120 / 2 x 140 mm |
Clearance
| Max GPU Length |
≤ 350 mm |
| Total GPU Thickness + CPU Cooler Height |
125 mm |
| Max GPU Thickness |
≤ 78 mm (47 mm Max CPU Cooler Height) |
| Max CPU Cooler Height |
≤ 85 mm (40 mm Max GPU Thickness) |
| Max PSU Size |
130 x 125 x 63.5 mm / SFX-L & SFX only |
Miscellaneous
| Riser Cable |
PCIE 4.0 |
| Dust Filter |
Bottom |
| Net Weight |
4.90 Kg |
| Warranty |
2 Years |
Backed by a 2 year Antec warranty.
