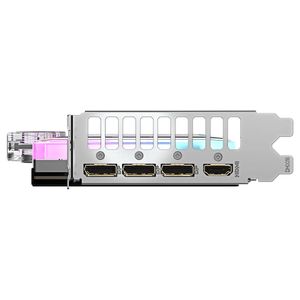

The Gigabyte Aorus GeForce RTX 5080 Xtreme Waterforce WB 16GB graphics card features a 2805MHz boost clock, 16GB GDDR7 256-bit memory interface, 30Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1b, 3 x DisplayPort 2.1b, OpenGL 4.6 support and DirectX 12 API support.
Features

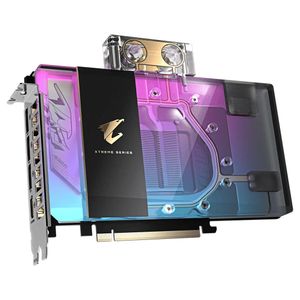

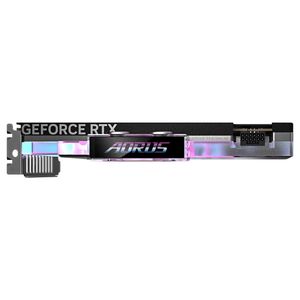

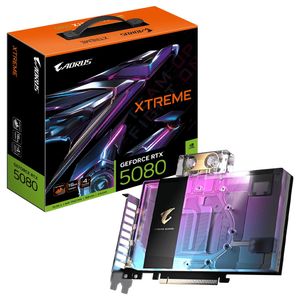

Aorus GeForce RTX™ 5080 Xtreme Waterforce WB 16G
Feel the Chill
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5080
- Integrated with 16GB GDDR7 256-bit memory interface
- WATERFORCE Water Block cooling system
- Patented leak detection
- RGB Lighting
- Protective metal back plate
- 4 Years Warranty (Online registration required)
- Core Clock: 2805 MHz (Reference: 2617 MHz)
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimised for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
RTX. It’s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionising the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
NVIDIA DLSS 4
Supreme Speed. Superior Visuals. Powered by AI.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
Full Ray Tracing with Neural Rendering
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
NVIDIA Reflex 2
Compete at Warp Speed
Reflex technologies optimise the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.
RTX AI PCs
NVIDIA Powers the World’s AI and Yours
Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
Creators
Your Creative AI-Advantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
NVIDIA Broadcast - Your AI-Powered Home Studio
Take your livestreams, voice chats, and video calls to the next level with AI-enhanced voice and video. Remove distracting background noise, customise your background, and more at the touch of a button.
RTX Video - Upgrade Your Video Viewing
RTX Video Super Resolution and HDR uses AI to transform your videos in Chrome, Edge, or Firefox—automatically sharpening details and wiping out compression artefacts. Enjoy stunning clarity in up to 4K.
RTX Remix - Remaster The Classics
RTX Remix allows modders to easily capture game assets, enhance materials with AI tools, and create stunning RTX remasters with ray tracing and DLSS.
Video Editing - Speed Meets Creativity
Harness the power of the ninth-gen NVIDIA Encoder (NVENC) for blazing-fast video exports and AI-driven effects in DaVinci Resolve, Adobe Premiere Pro, and more.

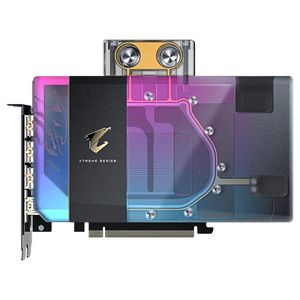

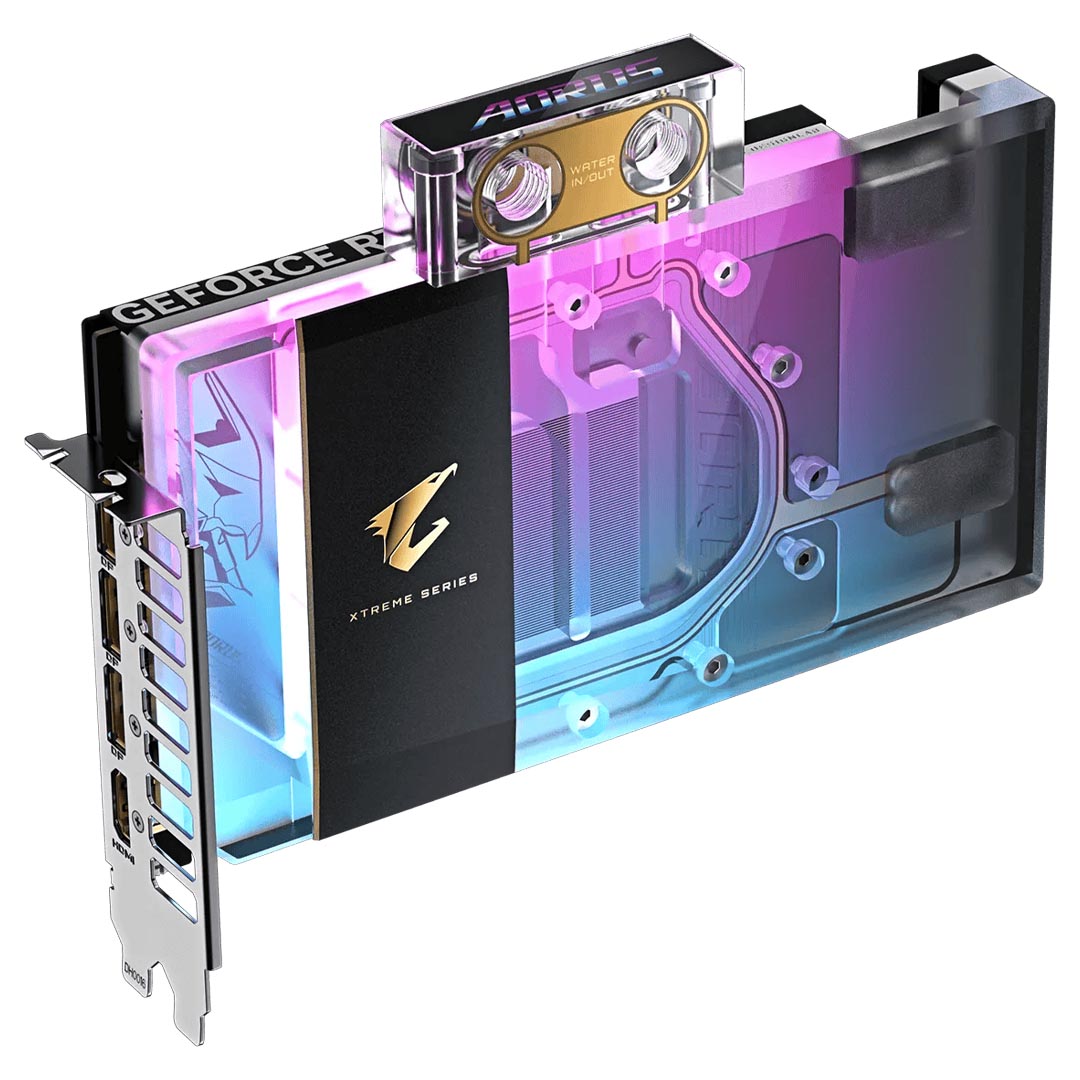

Waterforce Cooling System
Designed for DIY PC enthusiasts aiming to create unique custom loop builds and achieve the highest possible performance in silence. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
Optimal Spacing on Microchannel
The optimal spacing between the micro fins allows for significant heat transfer from the GPU via stable water flow and prevents blocking.
Server-Grade Thermal Conductive Gel
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
All-Cover Copper Baseplate
The large copper base plate covers the entire water channel over the GPU, VRAM, and other critical parts, so the heat can then be quickly taken away.
High Performance Micro Fins
The micro fins over the GPU increase the contact area with liquid flows. In addition, we have shortened the distance between the water channel and the GPU to provide more efficient heat dissipation.
Excellence in Essential
Patented Leak Detection
The water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flash warning light in case of any liquid leaks.

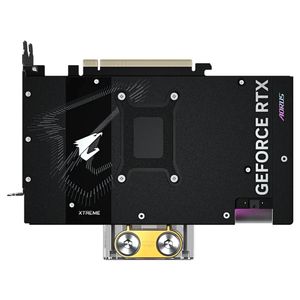

Protective Metal Backplate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Power Indicator
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Superior Craftsmanship
Extreme Overclocking
The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.
Ultra Durable
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
PCB Coating
- Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
- Moisture resistant - prevents unwanted conduction paths and board damage.
- Corrosion resistant - protects from salt spray, humidity, and corrosion.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through the Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
- Aorus Series
- UD PG5 Series
- UD Series
Gigabyte Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Backed by a 4 year Gigabyte warranty.
