Lian Li Edge USB and Fan Hub Black

The Lian Li Edge USB and Fan Hub enhances your PC's connectivity and cooling management by providing four internal USB 2.0 headers with a total output of 2.5A and six PWM fan headers each rated at 2A. This modular hub can be directly attached to compatible Lian Li Edge Gold power supplies or powered independently when connected through a PCIe 8-pin connector, while its integrated magnetic design allows for easy placement within your case, ensuring efficient cable management and flexible system organisation.

Features

---

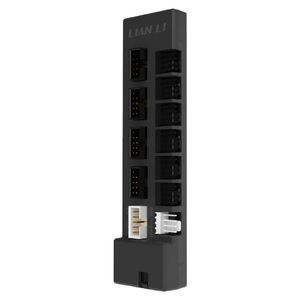

Modular USB & Fan PWM Hub – Edge Hub

The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.

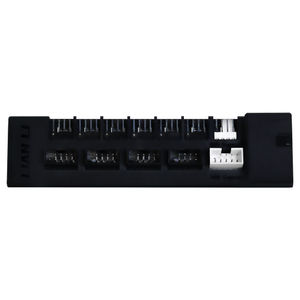

1. Fan PWM Hub

6 extended 4-pin fan connectors, each rated at 2 x PCIe 8-PIN cable for independent operation.

2. USB Hub

4 ports supporting up to 8 downstream connections, ideal for RGB controllers and USB devices, with a total output of 2.5A.

3. Edge PSU Connector

Remove the cap and attach the hub directly to the Edge PSU for power.

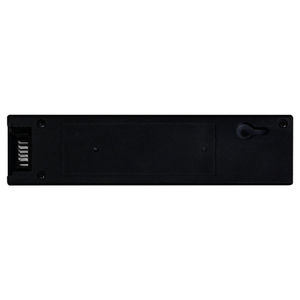

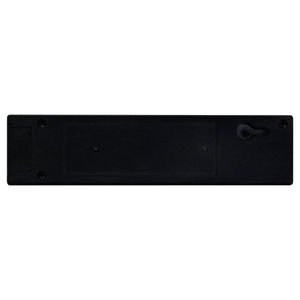

4. Magnetic Design

Integrated magnets allow easy placement and accessibility inside the case.

5. Independent Power Supply

Connect the hub to a PCIe 8-PIN cable for independent operation.

Connect Edge Hub to Edge Gold PSU

Place the hub inside the case

Motherboard Signal Connection

Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.

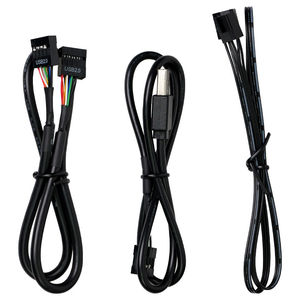

Offers two options for motherboard USB signal connection to accommodate different configurations.

USB Type-A

USB-USB
