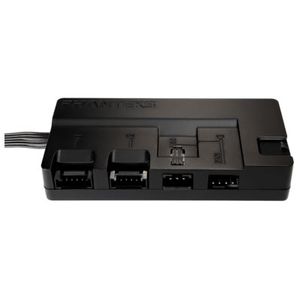

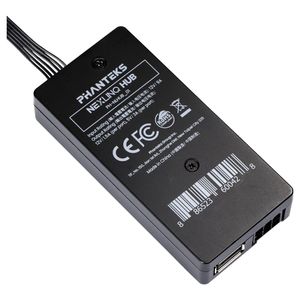

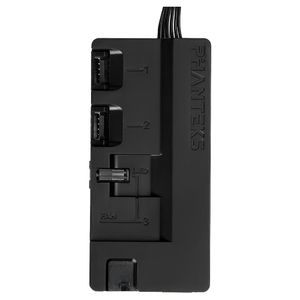

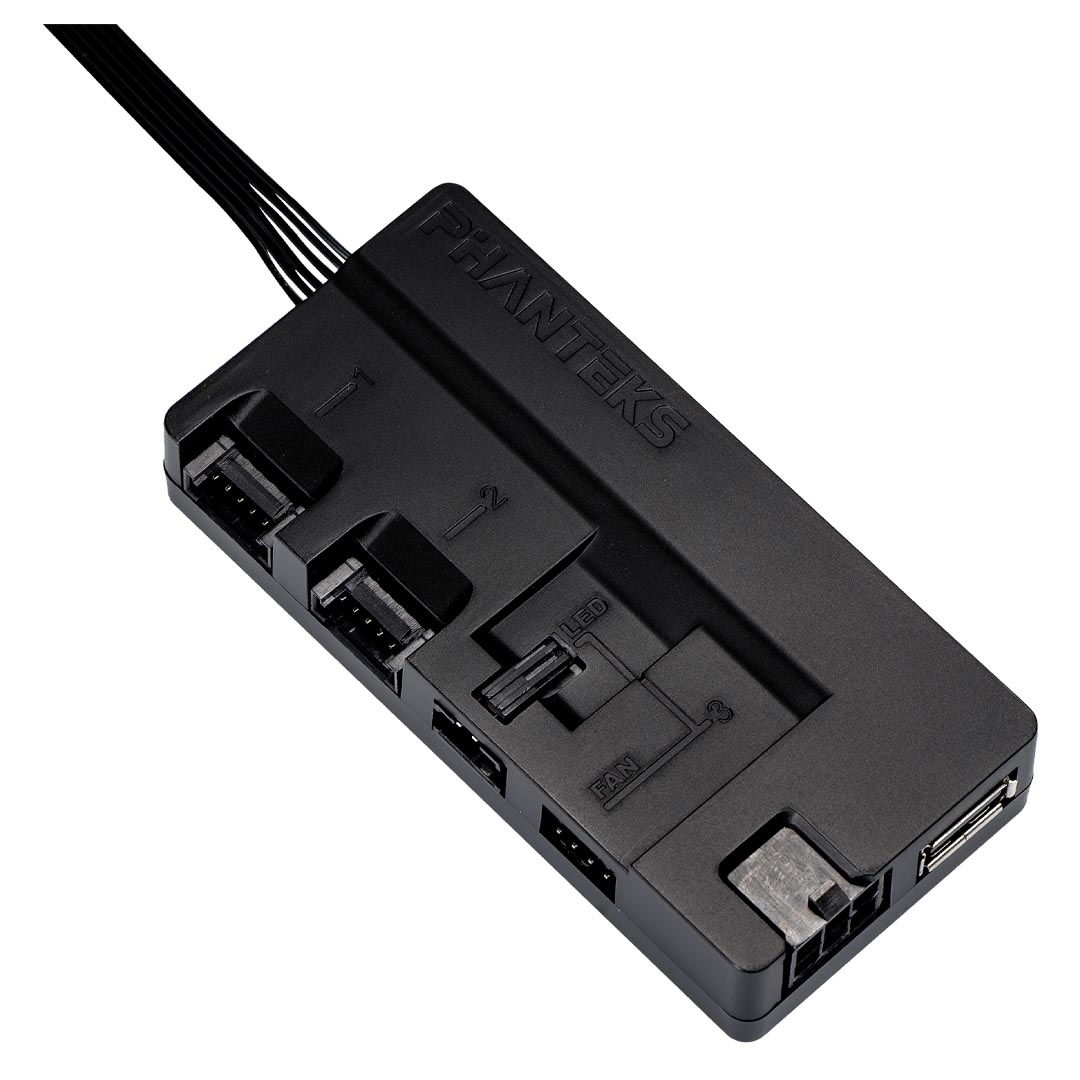

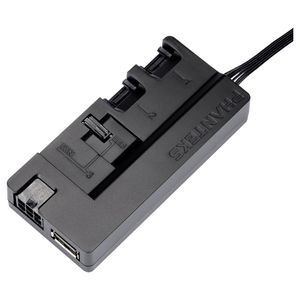

The Phanteks Nexlinq Controller Hub is an advanced compact hub designed to simplify cable management and enhance ARGB lighting and fan control for your PC, featuring multiple output ports offering flexible routing and connection possibilities and is compatible with a broad range of input and control options.
Features
NexLinq Hub
Hassle-Free Fan & Lighting Control
With the Phanteks Nexlinq Hub and Windows App, fan and lighting control becomes a breeze. Designed to be highly compatible with multiple input and control options such as the Phanteks Nexlinq Windows App, Mainboard or Windows Dynamic Lighting, users can decide how they want to control their fans and lighting in their system. Equipped with several output ports, the Nexlinq Hub can connect a broad range of fans and lighting accessories, allowing for precise RPM and lighting adjustments across the system.
The Phanteks Nexlinq Windows App is a very lightweight application taking very little resources yet presents a comprehensive overview of core system stats and powerful fan control settings. Users can automate fan RPMs through either automatic or manual PWM curves, based on CPU or GPU temperatures or whichever is higher. The lighting effects have been carefully curated to offer a wide range of tastefully executed options to personalise your build.
Multiple Output Ports
- Three separate channels for flexible routing and connecting possibilities.
- Supports both LINQ6 and legacy products.
- Additionally use the mainboard adapter to sync all NexLinq products with third-party software.
NexLinq Hub Ecosystem
- Clean cable management, connect and control all fans easily with minimal cable usage.
- Connect intake fans on a separate channel to make the fan speed dependent on GPU temperature for optimal cooling performance.
- Create separate groups of connected fans or daisy-chain all fans together onto one single channel.
NexLinq Software
- The Nexlinq HUB makes both lighting and fan control a breeze with its lightweight software.
- Show the important stats of the hardware in one clean and simple to understand overview.
- Easily adjustable fan curves to create the perfect cooling environment.
- Multiple output ports to power a vast array of fan and lighting products.
- A wide range of tastefully executed lighting effects available.
- Highly compatible platform with support for Mainboards and Windows Dynamic Lighting input.
Specifications
| Model Number |
PH-NLHUB_01 |
| Controller Hub Dimensions |
94.5 x 45 x 18 mm | in |
| Materials |
PC + ABS_AC3100 |
| Mounting |
Magnet or Velcro Strip |
| Input Power Rating |
12 VDC | 9 A |
| Input Rated Power |
108 W |
| Input Sources |
Linq6 Mainboard Input
USB Nexlinq App
USB Windows Dynamic Lighting |
| Output Connector |
Port 1 & 2 | Linq6 Connectors
Port 3 | 4-PIN PWM & DRGB 3-PIN JST |
| Output Rated |
12 VDC | 1.5 A (Per port)
5 VDC | 3 A (Per port) |
| Output Rated Power |
100 W total |
| Net Weight |
58.1 ± 5 g | 10.24 ± 0.17 oz |
| Warranty |
2 Years limited |
| What's Included |
1 x Nexlinq controller hub
1 x USB 2.0 cable 600 mm
1 x Linq6 Mainboard adapter 500 mm
1 x Linq6 Output adapter 500 mm
1 x Velcro strip 670 x 30 mm |
Backed by a 2 year Phanteks warranty.
